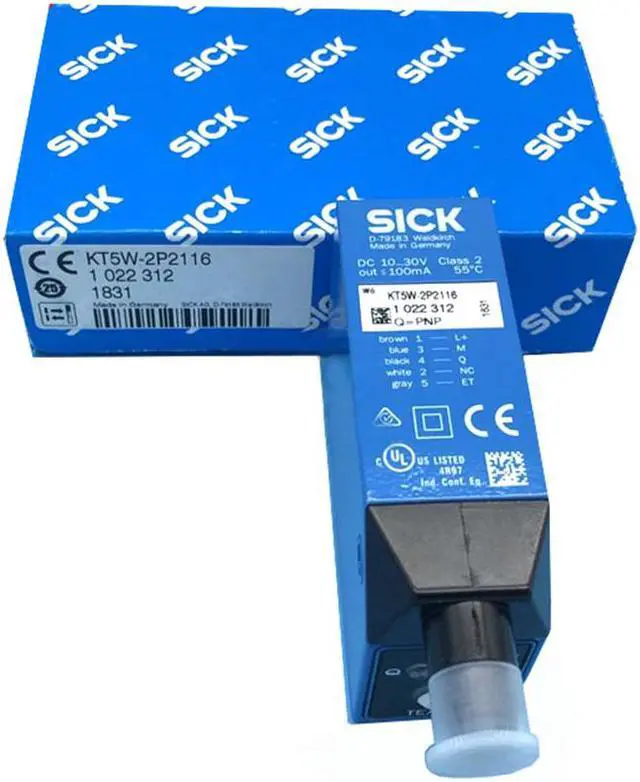

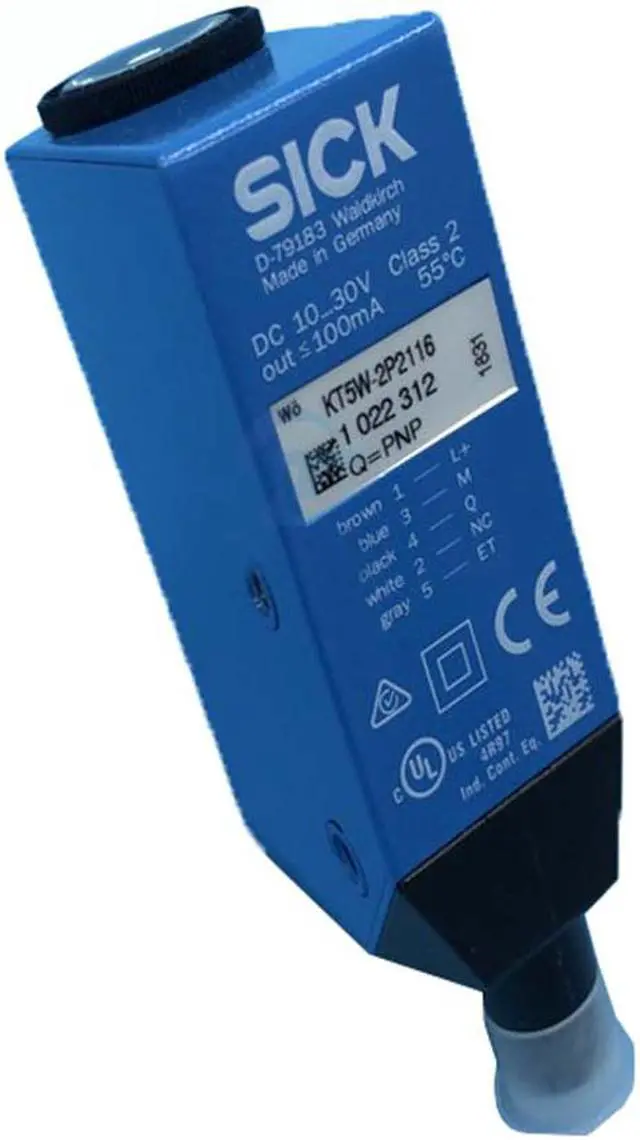

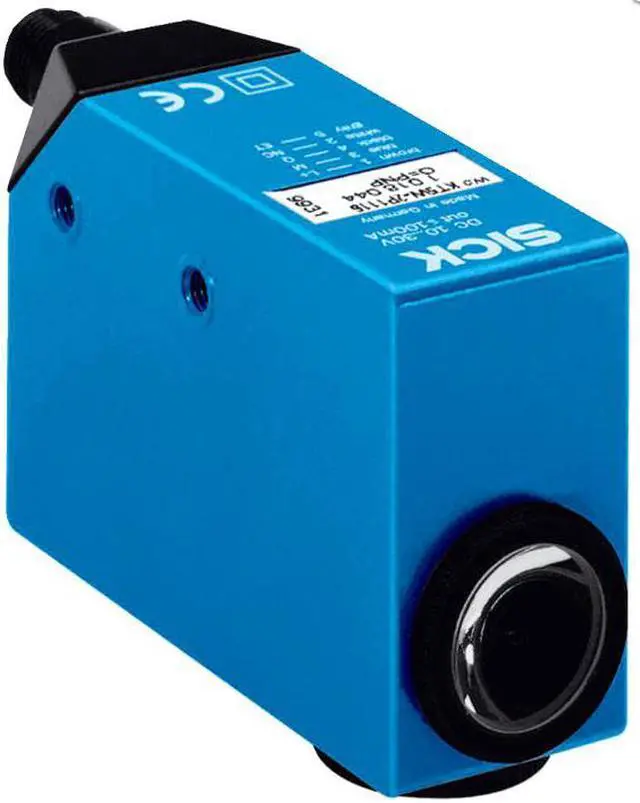

SICK KT5W-2P2116 Contrast Sensors ,PNP,New

FEATURES
Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
Sensing distance 10 mm 1)
Sensing distance tolerance ± 3 mm
Housing design (light emission) Rectangular
Light source LED, RGB 2)
Wave length 470 nm, 525 nm, 640 nm
Light emission Long and short side of housing, exchangeable
Light spot size 4.2 mm x 1.2 mm
Light spot direction Horizontal 3)
Adjustment Teach-in button
Teach-in mode Static 2-point teach-in

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 80 mA 3)
Switching frequency 10 kHz 4)
Response time 50 µs 5)
Switching output PNP
Switching output (voltage) PNP: HIGH = VS– = 2 V / LOW approx. 0 V
Output current Imax. 100 mA 6)
Input, teach-in (ET)
PNP
Teach: U = 10 V ... < UV
Run: U < 2 V
Retention time (ET) 25 ms, non-volatile memory
Connection type Male connector M12, 5-pin
Protection class II 7)
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 400 g
Housing material Zinc diecast
