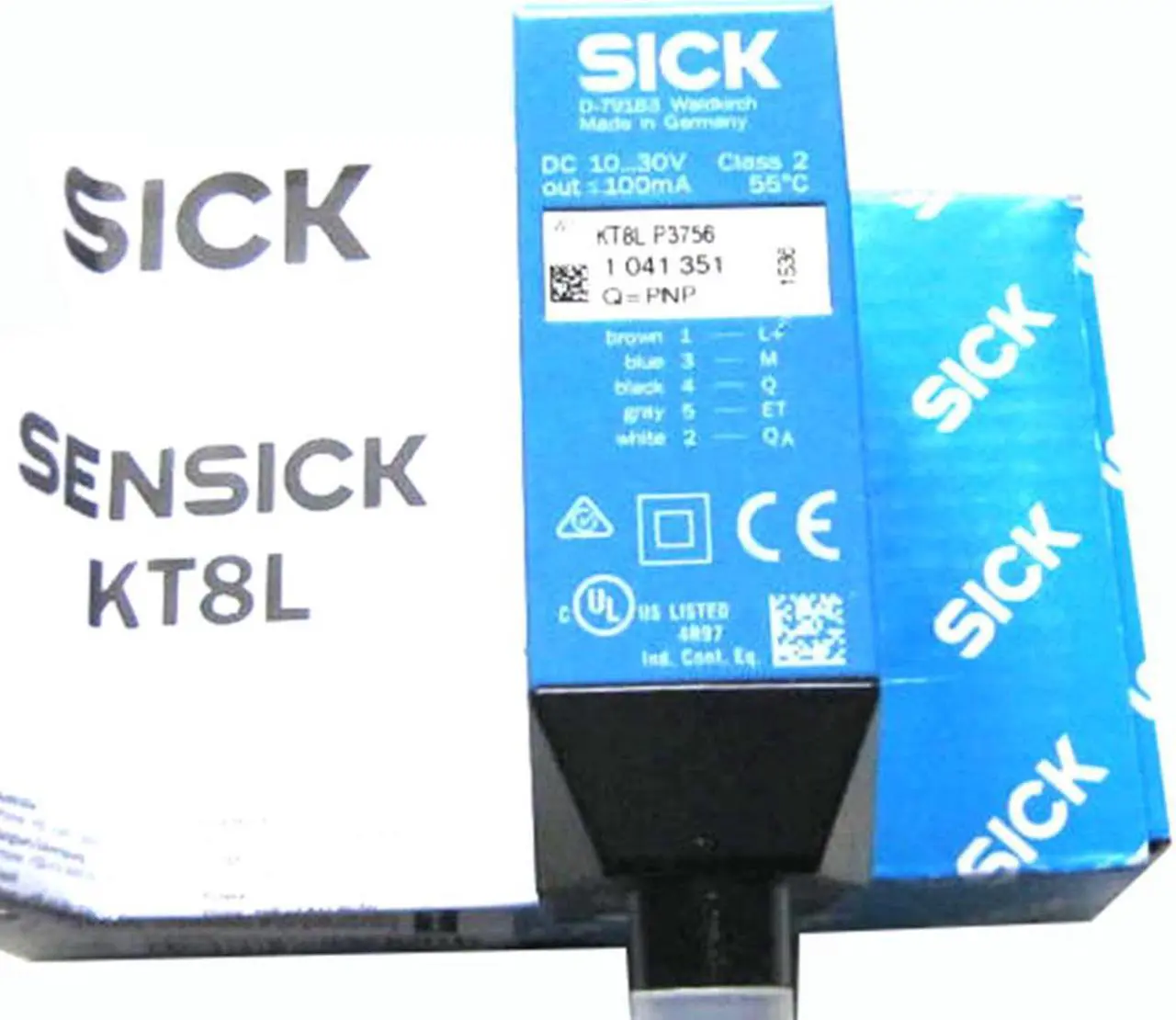

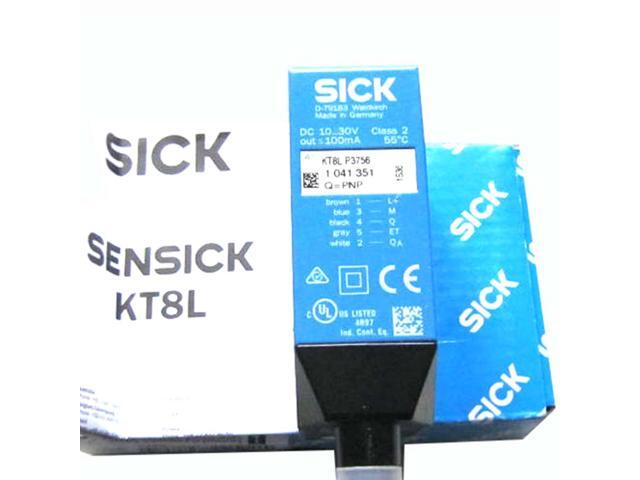

FEATURES

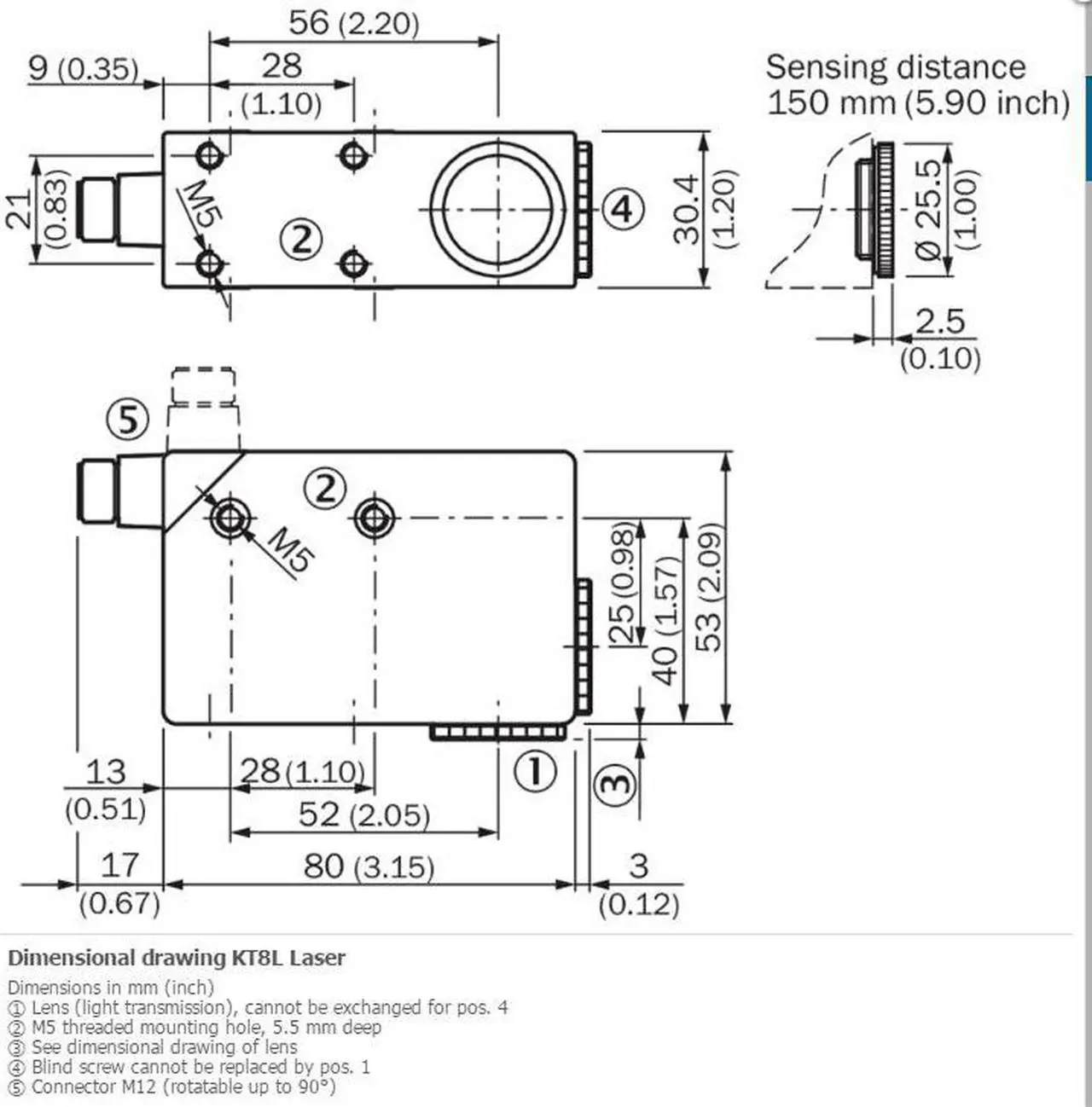

Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
Sensing distance 150 mm 1)

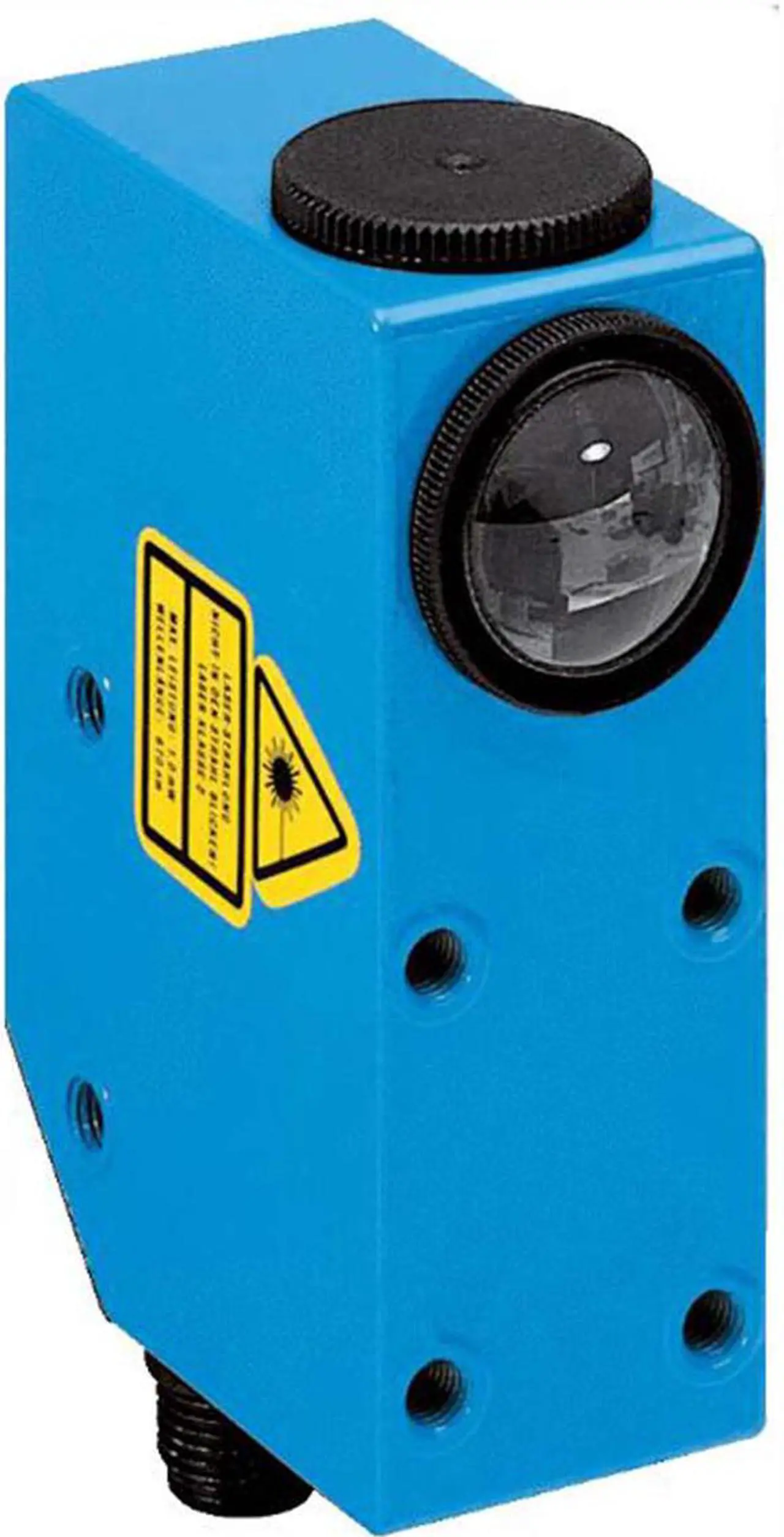

Housing design (light emission) Rectangular
Light source Laser, Red 2)
Wave length 655 nm
Light emission Long side of housing
Light spot size Ø 3 mm 3)
Light spot direction Round
Operating distance 30 mm ... 600 mm 4)

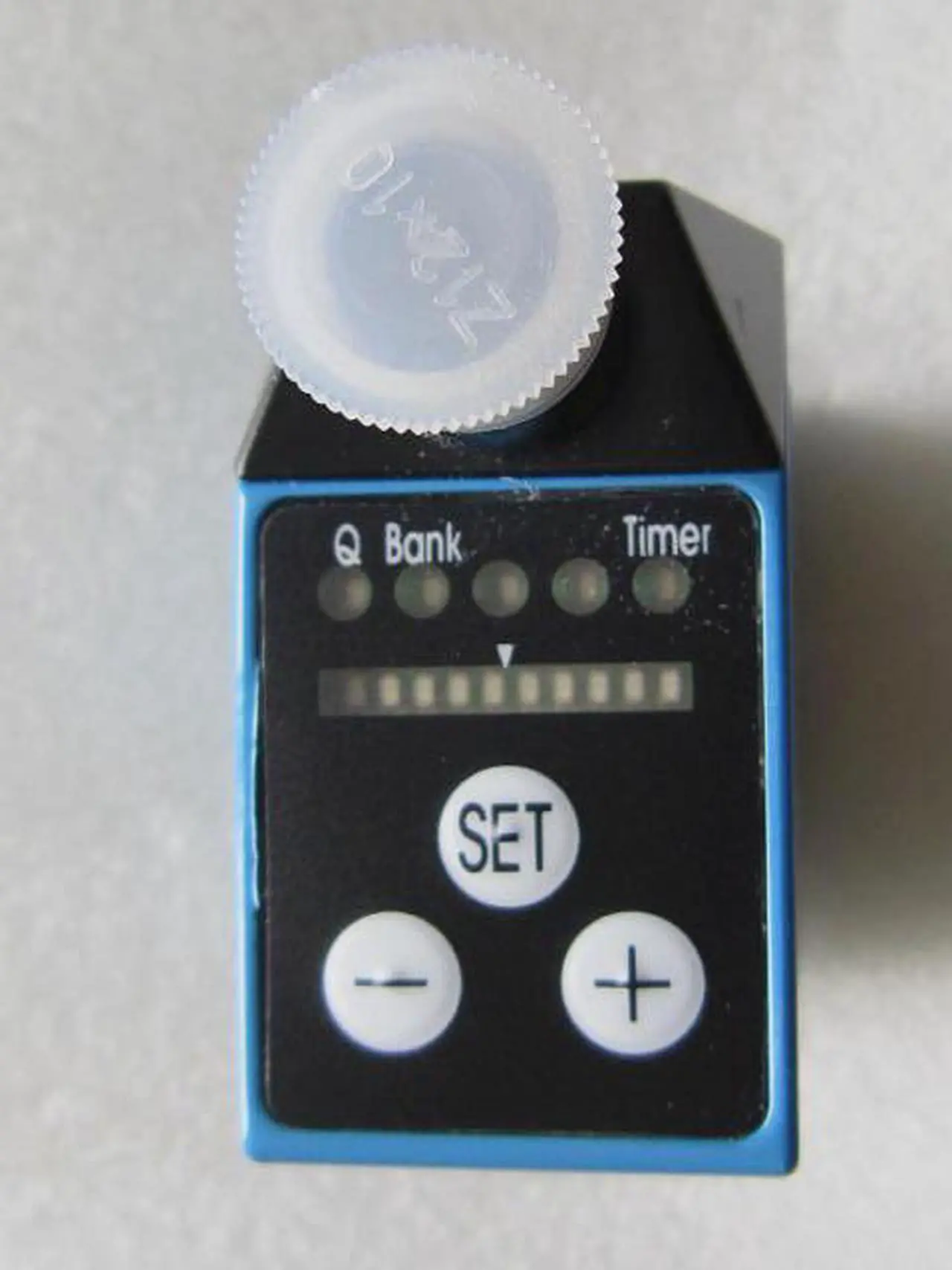

Adjustment Teach-in button
Teach-in mode
Static 2-point teach-in
Dynamic teach-in (min/max)
Function Automatic drift correction
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 80 mA 3)
Switching frequency 17 kHz 4)
Response time 30 µs 5)
Jitter < 15 µs
Switching output PNP
Switching output (voltage) PNP: HIGH = VS– = 2 V / LOW approx. 0 V
Analog output 0.3 mA ... 20 mA
Output current Imax. 100 mA
Input, teach-in (ET)
PNP
Teach: U = 10 V ... < UV
Run: U < 2 V
Retention time (ET) 25 ms, non-volatile memory
Time delay 20 ms, adjustable

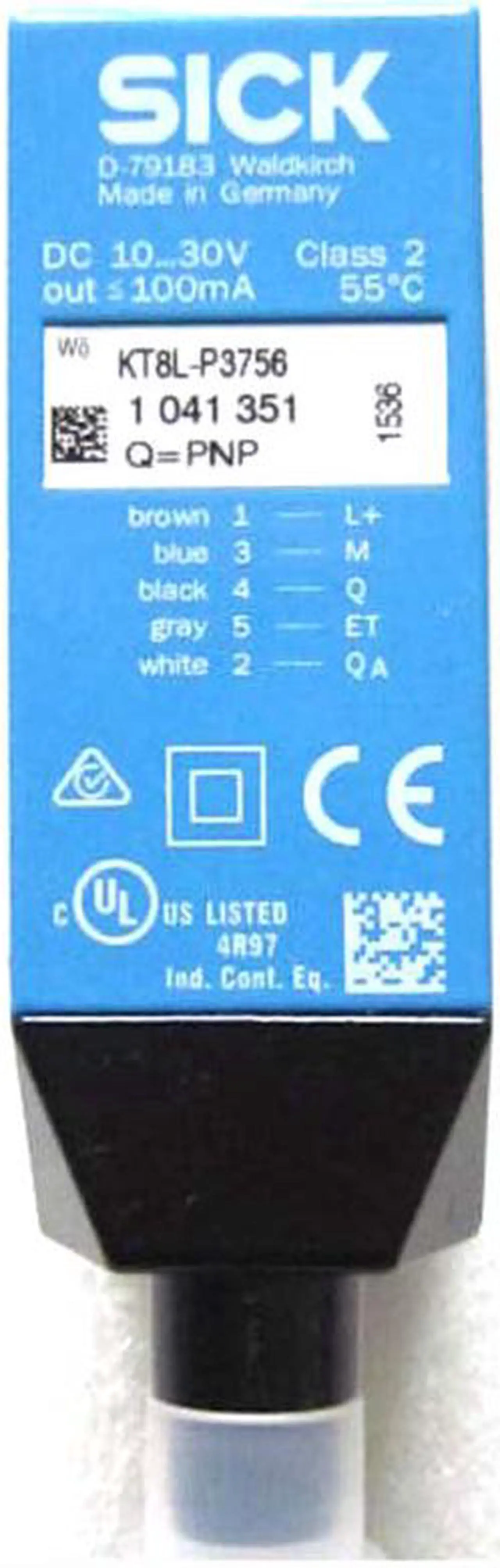

Connection type Male connector M12, 5-pin
Protection class II 6)
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 400 g
Housing material Zinc diecast
