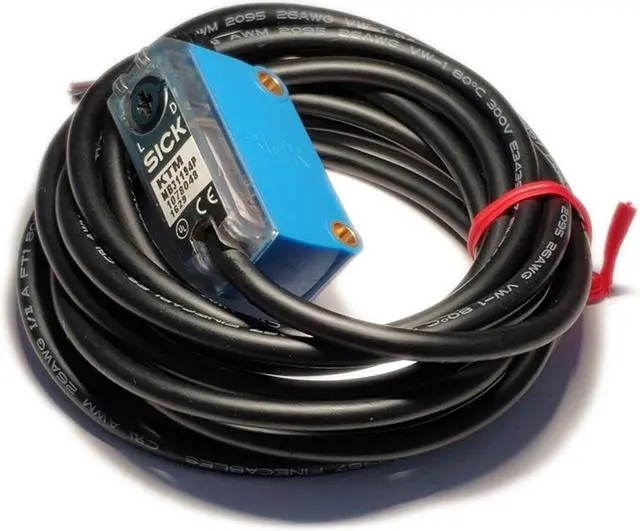

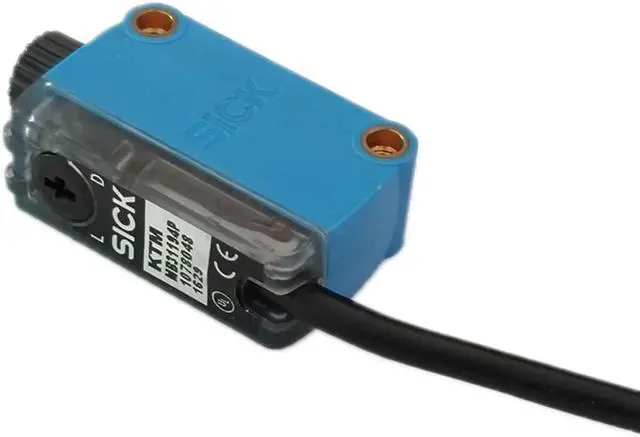

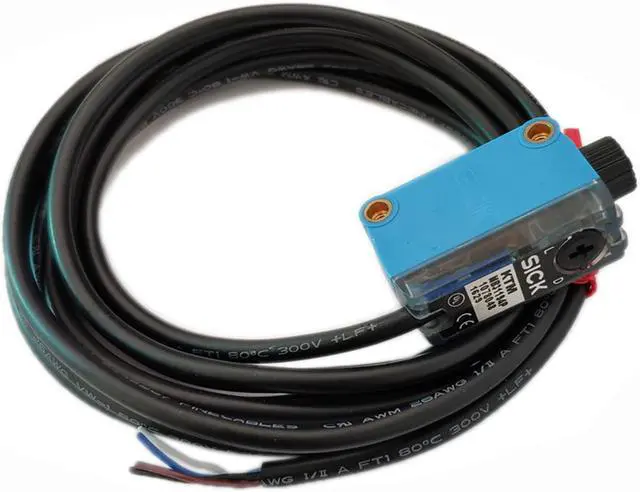

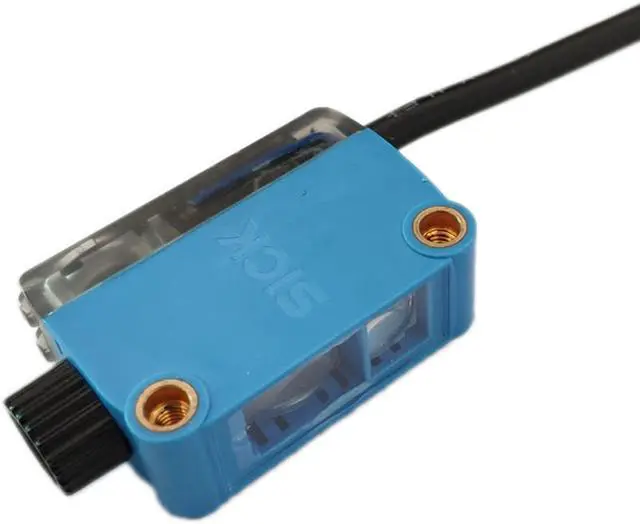

SICK KTM-MB31194P Contrast Sensors ,NPN ,PNP,New

FEATURES

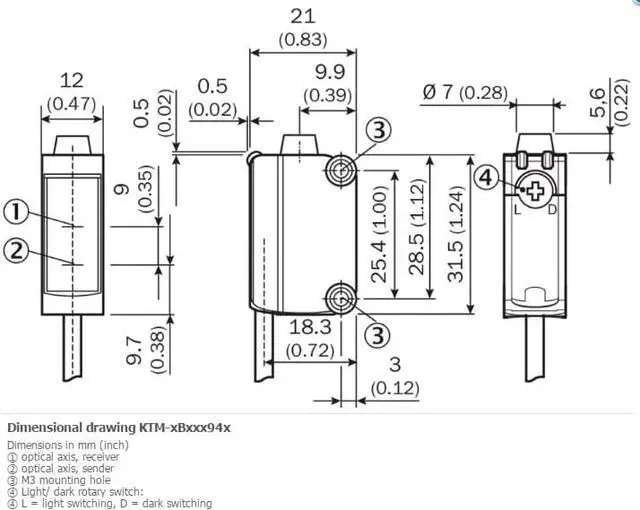

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design (light emission) Rectangular
Light source LED, White 1)
Light spot size Ø 2 mm (12.5 mm)
Light spot direction -
Adjustment Potentiometer
Output function Light/dark switching

MECHANICS/ELECTRONICS
Supply voltage 12 V DC ... 24 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 50 mA 3)
Switching frequency 10 kHz 4)
Response time 50 µs 5)
Jitter 25 µs
Switching output PNP, NPN
Switching output (voltage)
PNP: HIGH = VS– = 2 V / LOW approx. 0 V
NPN: HIGH = approx. VS / LOW = 2 V
Switching output Light/dark switching
Output current Imax. 50 mA 6)
Retention time (ET) 28 ms, non-volatile memory
Connection type Cable open end, 4-wire, 2 m
Protection class III
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 20 g
Housing material ABS
