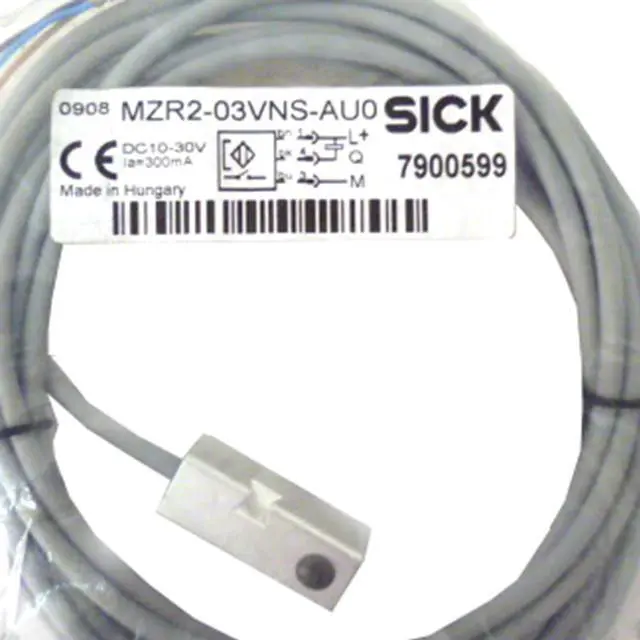

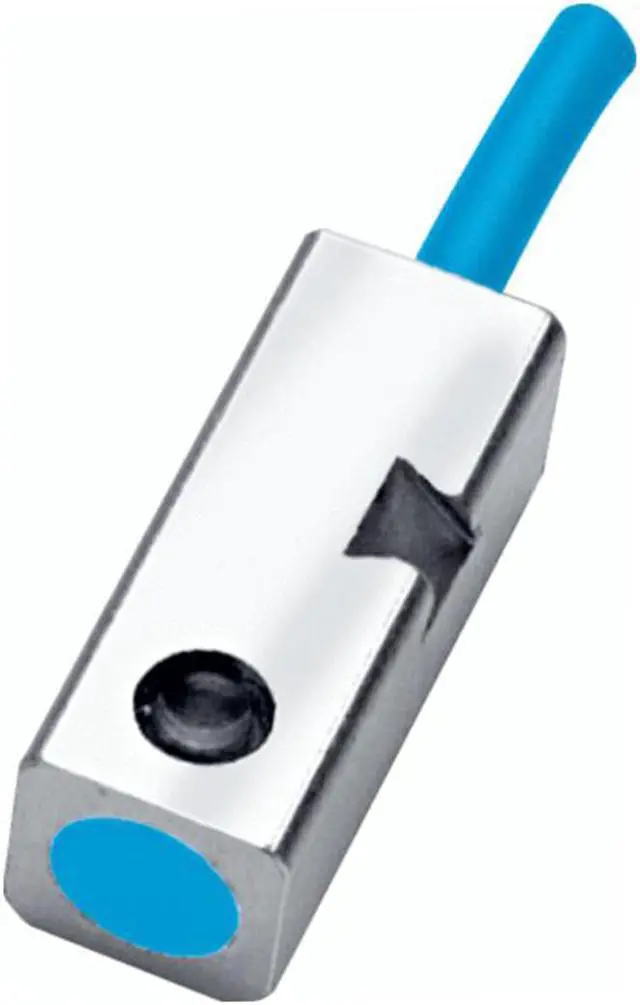

SICK MZR2-03VNS-AU0 Round Body Cylinder New
- SICK MZR2-03VNS-AU0 Round Body Cylinder New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Cylinder types with adapter Round body cylinder
Housing length 30 mm
Output type NPN
Switching frequency 5,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Sensing face Front
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Power consumption = 10 mA 1)
Voltage drop = 1.5 V 2)
Continuous current Ia = 300 mA
Time delay before availability = 2 ms
Response sensitivity, typ. = 3 mT
Reproducibility = 0.1 mm 3)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –25 °C ... +75 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Metal, Aluminum
Sensing face material Plastic, Plastic
Connection type Cable, 3-wire, 2 m
Cable material PUR/PVC
Conductor cross-section 0.25 mm²
Cylinder types with adapter Round body cylinder
Housing length 30 mm
Output type NPN
Switching frequency 5,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Sensing face Front
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Power consumption = 10 mA 1)
Voltage drop = 1.5 V 2)
Continuous current Ia = 300 mA
Time delay before availability = 2 ms
Response sensitivity, typ. = 3 mT
Reproducibility = 0.1 mm 3)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –25 °C ... +75 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Metal, Aluminum
Sensing face material Plastic, Plastic
Connection type Cable, 3-wire, 2 m
Cable material PUR/PVC
Conductor cross-section 0.25 mm²
