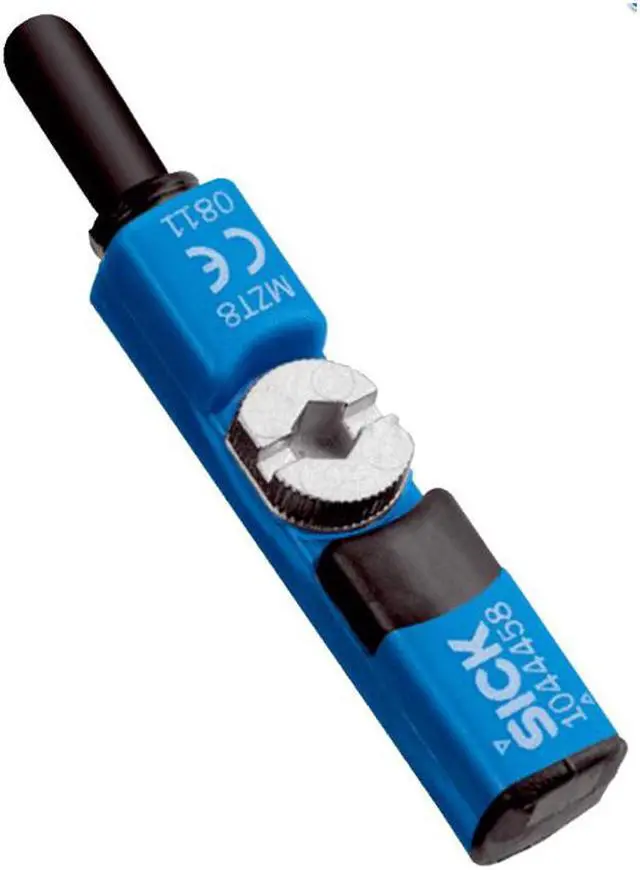

SICK MZT8-03VPS-KRO Sensors for T-slot cylinders ,PNP,New
- SICK MZT8-03VPS-KRO Sensors for T-slot cylinders ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Cylinder type T-slot
Cylinder types with adapter
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
Housing length 24 mm
Switching output PNP
Switching frequency 1,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
Cable outlet Axial
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Power consumption 10 mA 1)
Voltage drop = 2.2 V
Continuous current Ia = 200 mA
Protection class III
Time delay before availability 25 ms
Response sensitivity, typ. 2.6 mT
Overrun distance, typ. 3 mm
Hysteresis, typ. > 0.5 mT
Reproducibility = 0.1 mT 2)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –30 °C ... +80 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Plastic, PA12

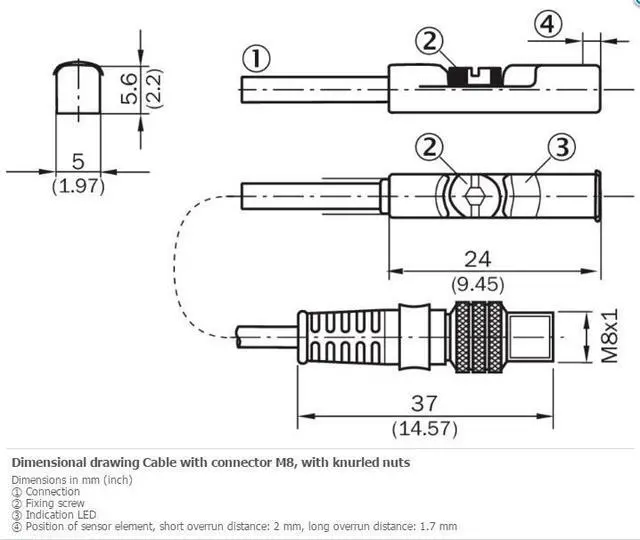

Connection type Cable with connector M8, 3-pin, with knurled nuts, 0.5 m
Cable material PUR
Conductor cross-section 0.14 mm²
UL File No. NRKH.E181493 & NRKH7.E181493
Cylinder type T-slot
Cylinder types with adapter
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
Housing length 24 mm
Switching output PNP
Switching frequency 1,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
Cable outlet Axial
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Power consumption 10 mA 1)
Voltage drop = 2.2 V
Continuous current Ia = 200 mA
Protection class III
Time delay before availability 25 ms
Response sensitivity, typ. 2.6 mT
Overrun distance, typ. 3 mm
Hysteresis, typ. > 0.5 mT
Reproducibility = 0.1 mT 2)
Reverse polarity protection ?
Short-circuit protection ?
Power-up pulse protection ?
Ambient operating temperature –30 °C ... +80 °C
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC According to EN 60947-5-2
Housing material Plastic, PA12
Connection type Cable with connector M8, 3-pin, with knurled nuts, 0.5 m
Cable material PUR
Conductor cross-section 0.14 mm²
UL File No. NRKH.E181493 & NRKH7.E181493
