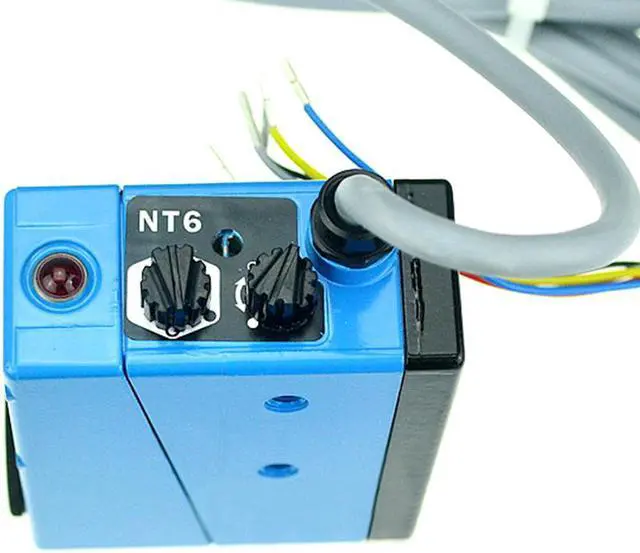

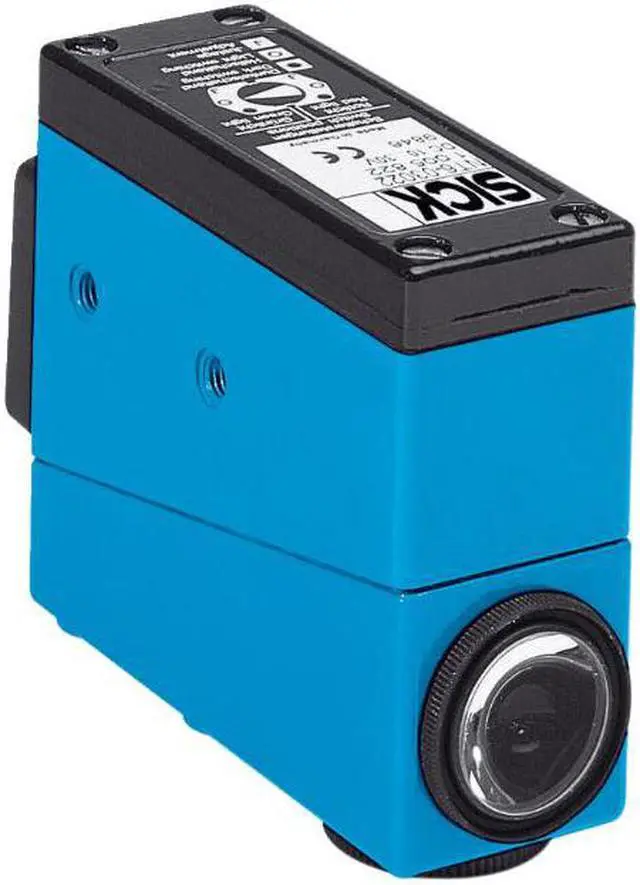

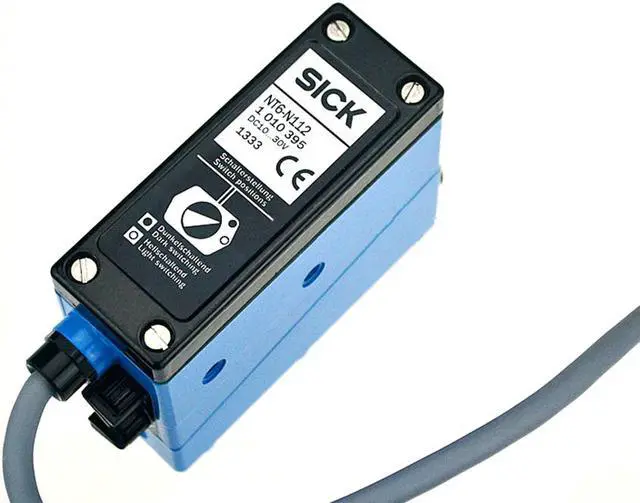

SICK NT6-N112 Photoelectric Switch Sensor,NPN New

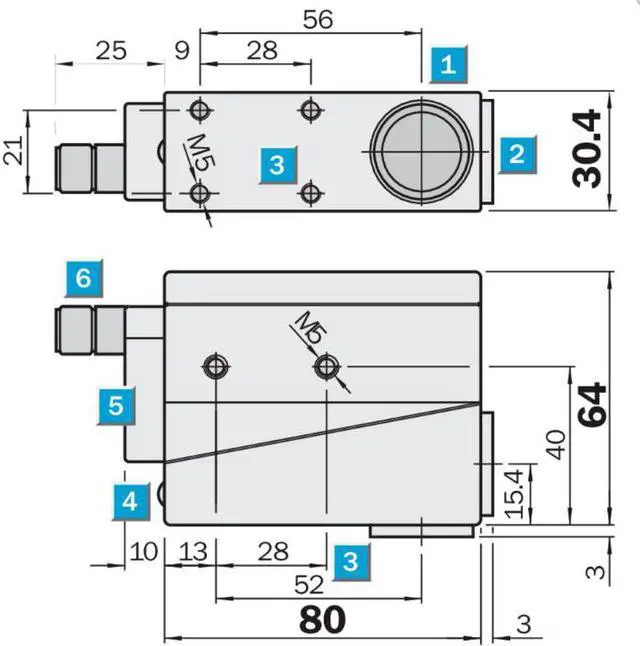

FEATURES Dimensions (W x H x D) 80 mm x 30.4 mm x 64 mm Sensing distance 9 mm Sensing distance tolerance ± 2 mm Housing design (light emission) Rectangular Light source LED, Red, green 1) Wave length 560 nm Light emission Long and short side of housing, exchangeable Light spot size Ø 2.5 mm Light spot direction Round 2) Pull-up/Pull-down resistor 22 k OHM 3) Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple 5 Vpp Power consumption 80 mA 1) Switching frequency 5 kHz 2) Response time 100 µs 3) Switching output NPN Switching output (voltage)
NPN: HIGH = approx. VS / LOW 2 V Analog output 0.15 V... 6 V 4) Output current Imax. 200 mA Connection type Cable with male connector, 2 m 5) Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Zinc diecast
