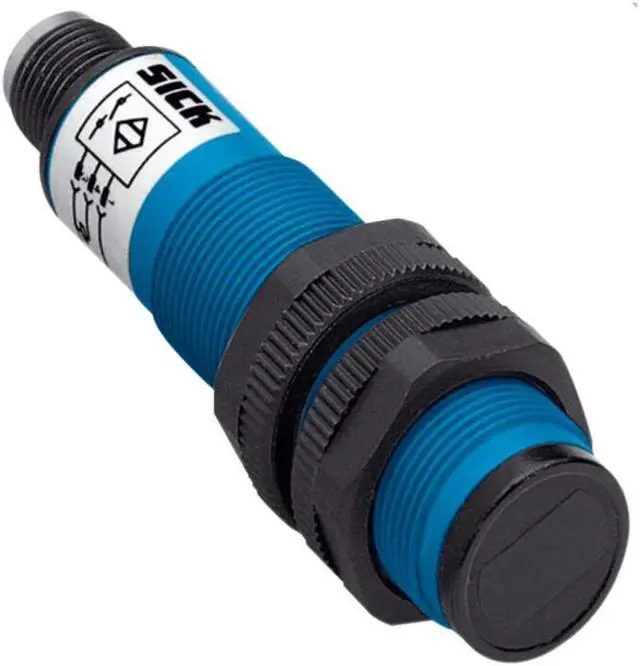

SICK VL18-2T2460 Photoelectric retro-reflective sensor New
- SICK VL18-2T2460 Photoelectric retro-reflective sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical

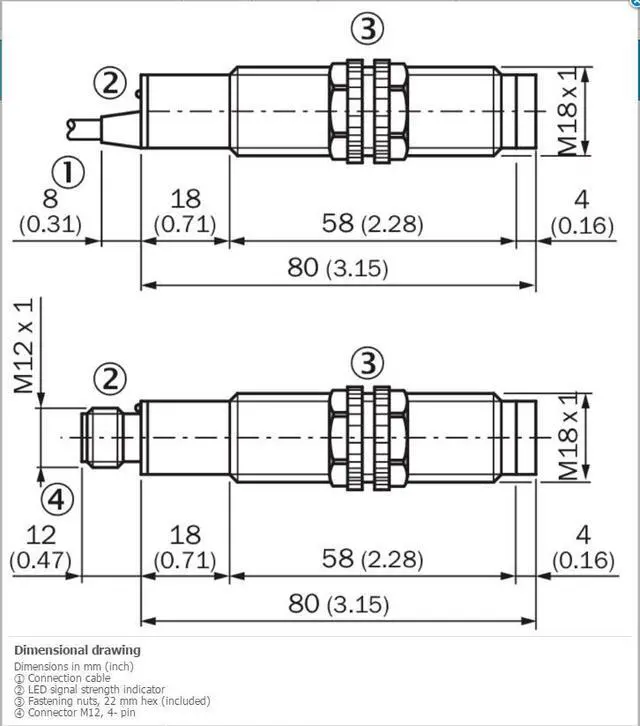

Housing length 92 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.005 m ... 3.5 m 1)
Sensing range 0.01 m ... 3 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 30 mm (3 m)
Angle of dispersion 6°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 30 mA 2)
Switching output TRIAC
Switching mode Dark switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection C 6)
Protection class III
Weight 30 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical
Housing length 92 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.005 m ... 3.5 m 1)
Sensing range 0.01 m ... 3 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 30 mm (3 m)
Angle of dispersion 6°
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 20 V AC ... 253 V AC 1)
Mains frequency 50 Hz, 60 Hz
Power consumption 30 mA 2)
Switching output TRIAC
Switching mode Dark switching
Output current Imax. 300 mA 3)
Response time = 20 ms 4)
Switching frequency 25 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection C 6)
Protection class III
Weight 30 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +60 °C
UL File No. NMFT2.E175606
