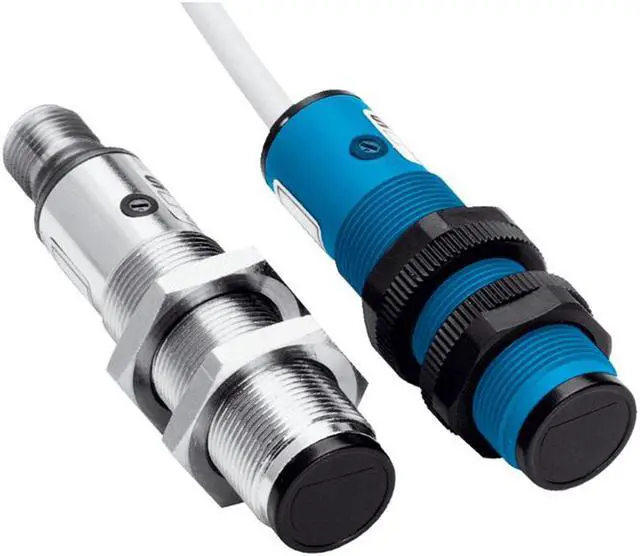

SICK VTE18-3N2440 Photoelectric proximity sensor ,NPN New
- SICK VTE18-3N2440 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 75 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 3 mm ... 200 mm 1)
Sensing range 3 mm ... 170 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Dark switching
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 75 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 3 mm ... 200 mm 1)
Sensing range 3 mm ... 170 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Dark switching
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
