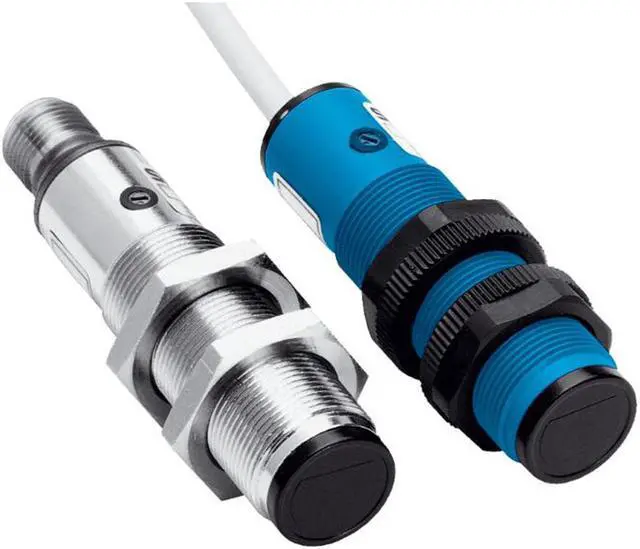

SICK VTE18-4N8140 Photoelectric proximity sensor NPN ,New
- SICK VTE18-4N8140 Photoelectric proximity sensor NPN ,New
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 78 mm
Housing design (light emission) Cylindrical, straight
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 78 mm
Housing design (light emission) Cylindrical, straight
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
