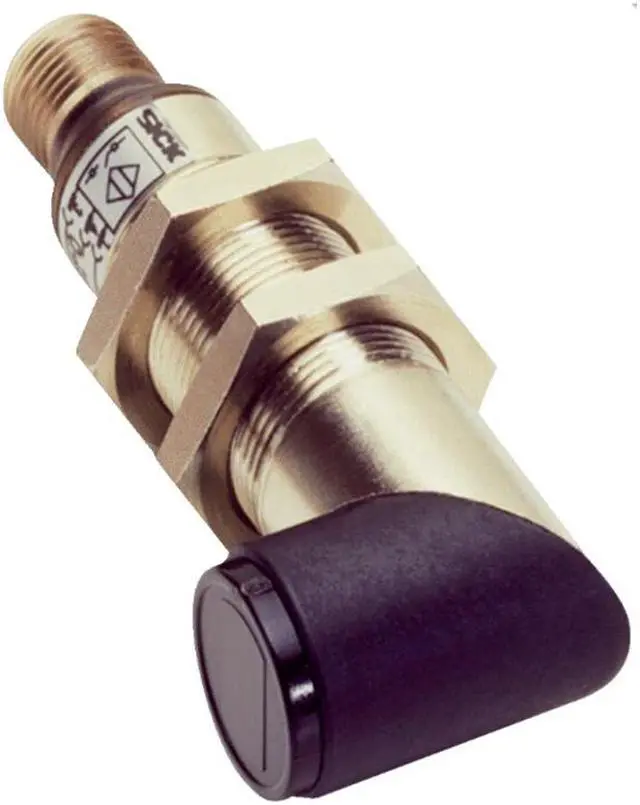

SICK VTF18-3F5440 Photoelectric proximity sensor ,PNP,New
- SICK VTF18-3F5440 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical

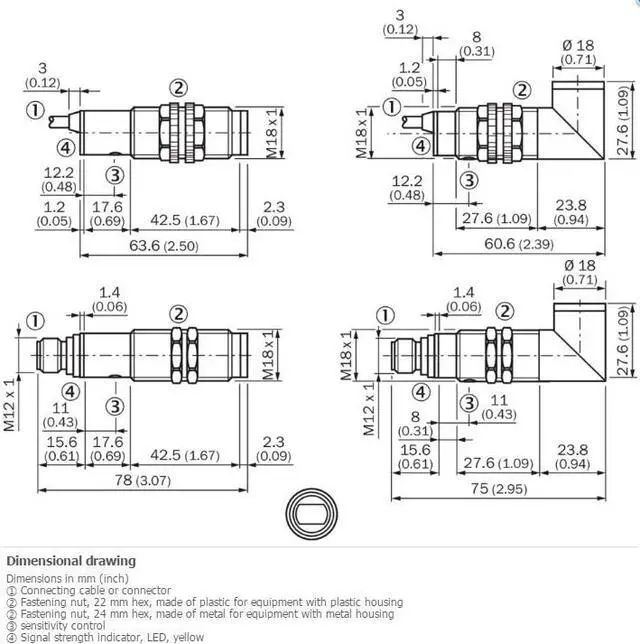

Housing length 75 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 0 mm ... 50 mm 1)
Sensing range 0 mm ... 45 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (25 mm)
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical
Housing length 75 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 0 mm ... 50 mm 1)
Sensing range 0 mm ... 45 mm
Focus 2)
Type of light Infrared light
Light source LED 3)
Light spot size (distance) Ø 3 mm (25 mm)
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Focused optics
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
