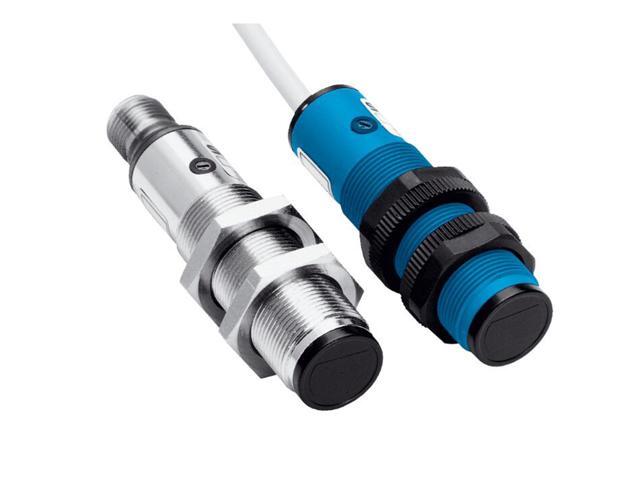

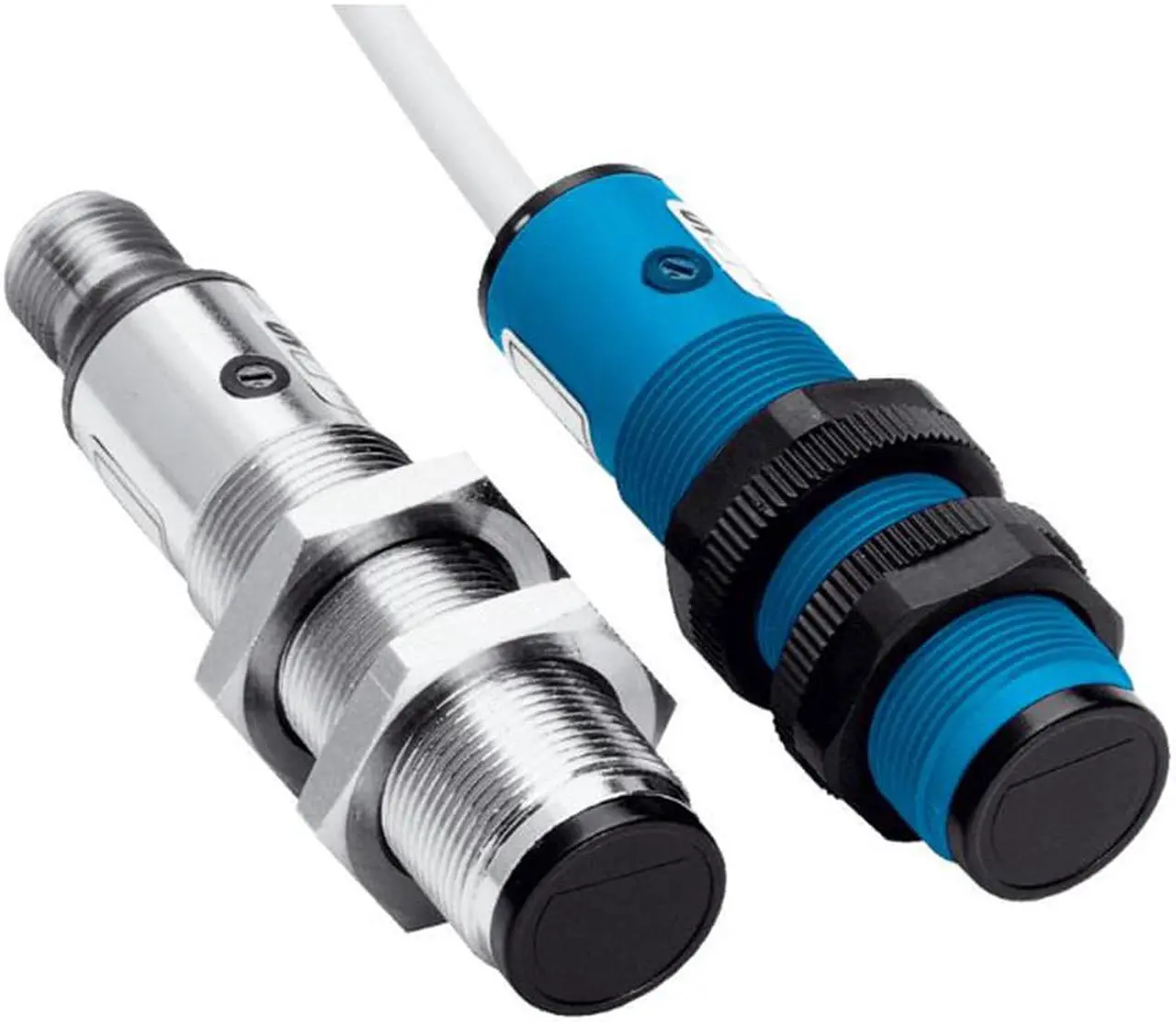

SICK VTF18-4P5340 Photoelectric proximity sensor ,PNP,New
- SICK VTF18-4P5340 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 75 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 0 mm ... 50 mm 1)
Sensing range 0 mm ... 45 mm 1)
Type of light Infrared light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 75 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 0 mm ... 50 mm 1)
Sensing range 0 mm ... 45 mm 1)
Type of light Infrared light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
