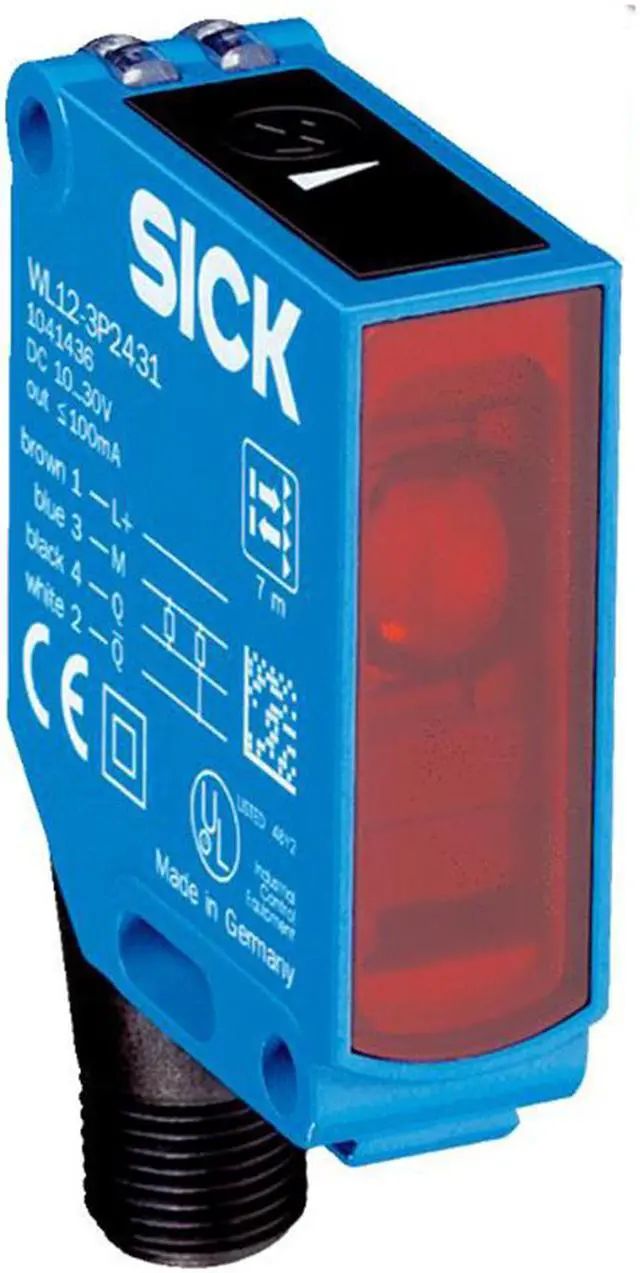

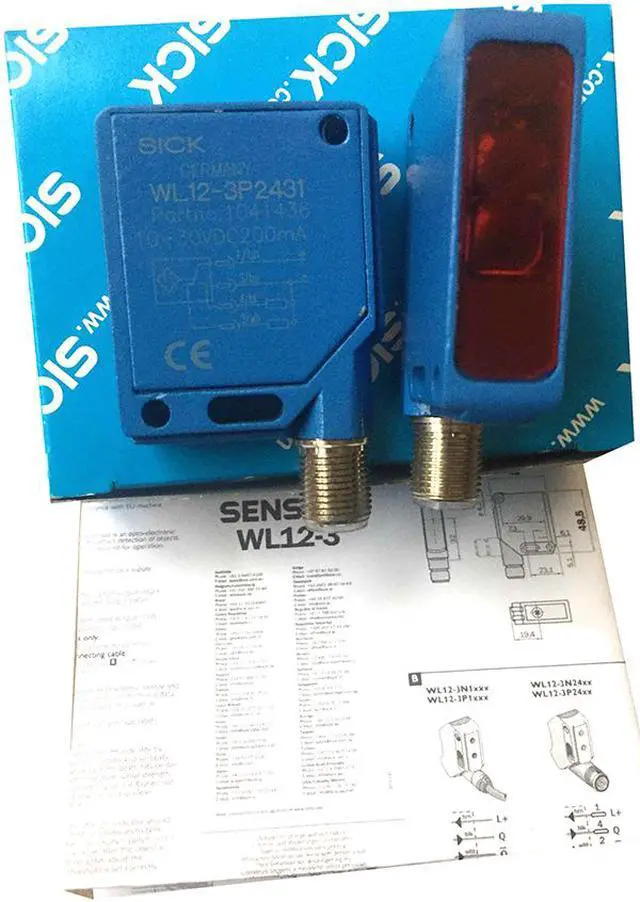

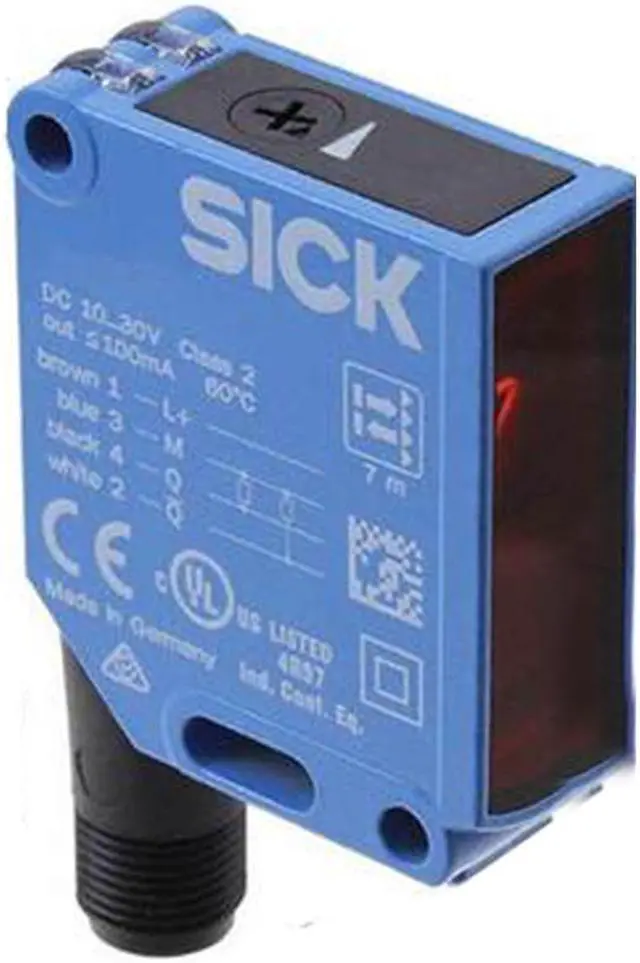

SICK WL12-3P2431 Small Photoelectric Sensors PNP,New
Limited time offer, ends 07/25 By TERRA HAVEN
- SICK WL12-3P2431 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation

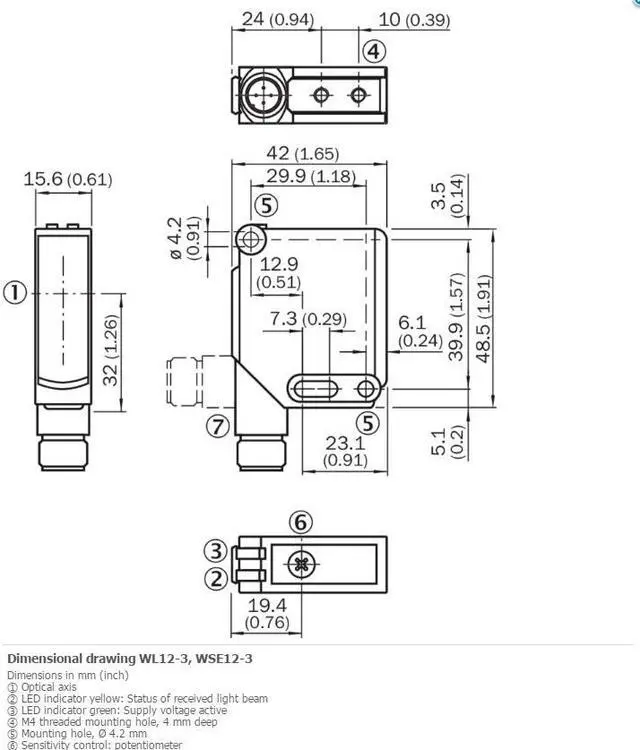

Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 7 m 1)
Sensing range 0 m ... 5 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 100 mm (3 m)
Angle of dispersion Approx. 1.5°
Wave length 640 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW > Uv - 2,5 V / ca. 0 V
Output current Imax. 100 mA
Response time = 330 µs 4)
Switching frequency 1,500 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 120 g
Polarisation filter ?
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 7 m 1)
Sensing range 0 m ... 5 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 100 mm (3 m)
Angle of dispersion Approx. 1.5°
Wave length 640 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW > Uv - 2,5 V / ca. 0 V
Output current Imax. 100 mA
Response time = 330 µs 4)
Switching frequency 1,500 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 120 g
Polarisation filter ?
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
