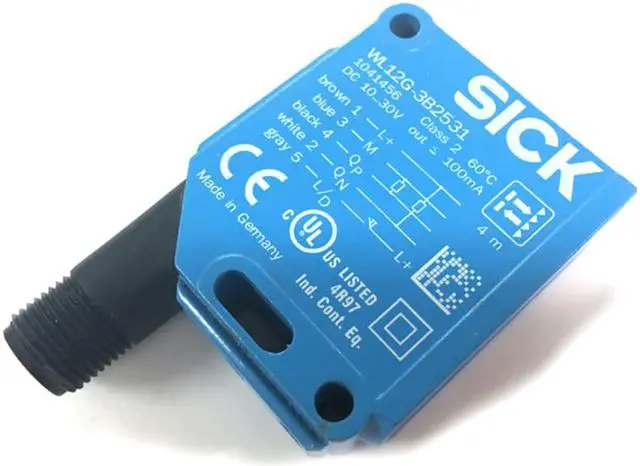

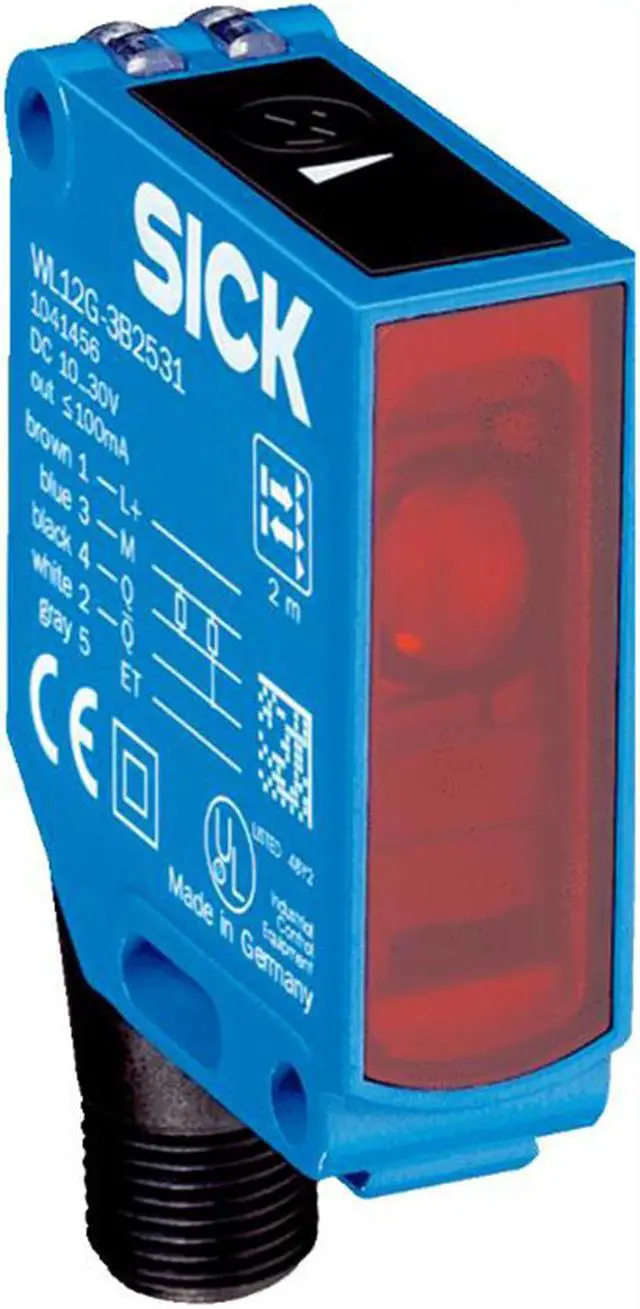

SICK WL12G-3B2531 Small Photoelectric Sensors ,NPN ,PNP,New

FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation

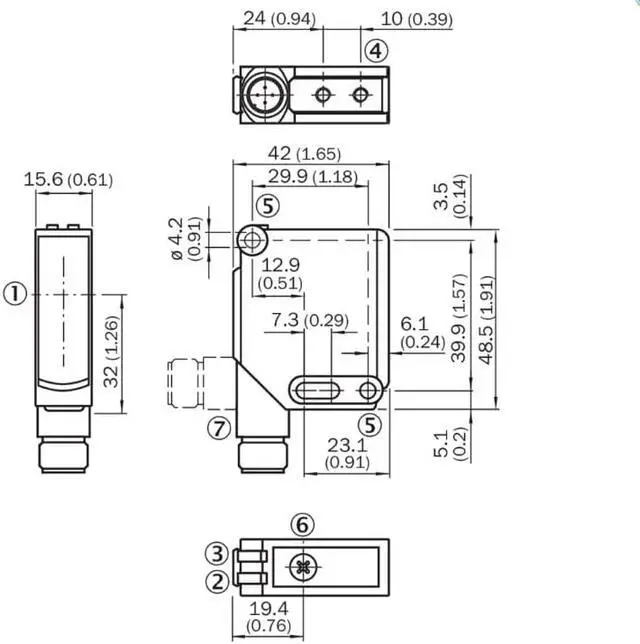

Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 4 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 25 mm (1.5 m)
Angle of dispersion Approx. 1.5°
Wave length 640 nm
Adjustment Potentiometer, 11 turns
Special applications Detecting transparent objects

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 30 mA 3)
Switching output
PNP
NPN
Switching mode
Light switching
Dark switching
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW > Uv - 3 V / ca. 0 V
Output current Imax. 100 mA
Response time = 330 µs 4)
Switching frequency ± 1,500 Hz 5)
Connection type Male connector M12, 5-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 120 g
Polarisation filter ?
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Items supplied 2 x clamps incl. screws
Special feature Detecting transparent objects
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
