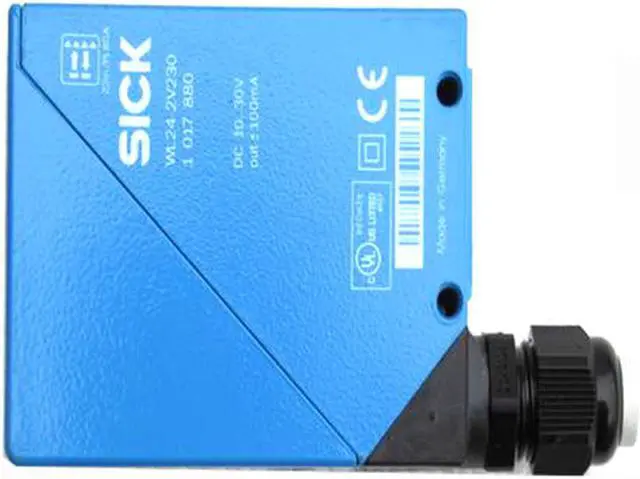

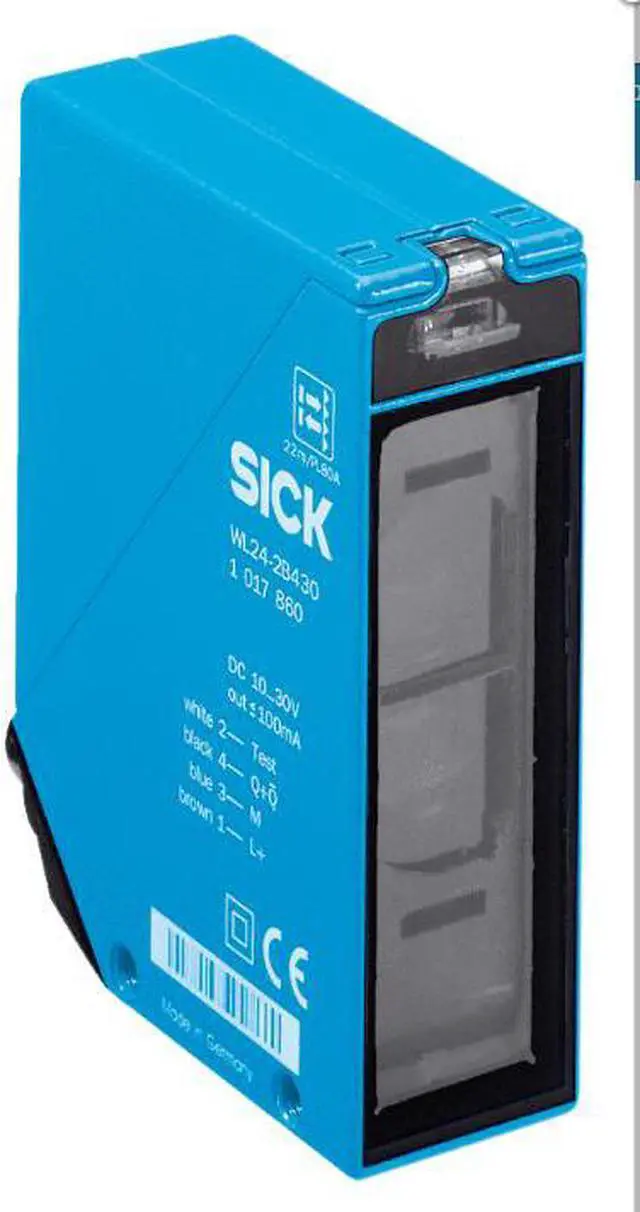

SICK WL24-2V230 Compact Photoelectric Sensors NPN ,PNP,New

FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

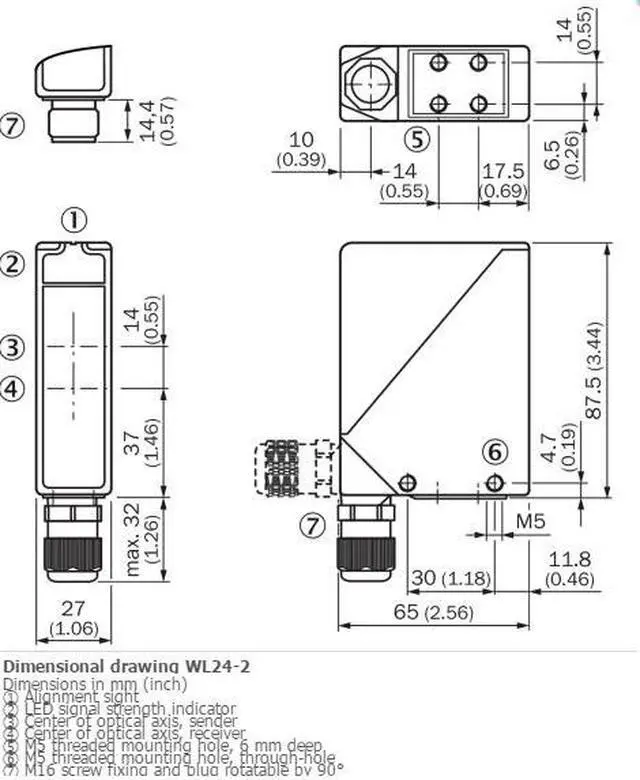

Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 22 m 1)
Sensing range 0 m ... 15 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 250 mm (15 m)
Adjustment Potentiometer
Alarm output ?
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 50 mA 3)
Switching output
NPN
PNP
Switching mode Light/dark switching
Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax. = 100 mA
Response time = 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Terminal connection with M16 gland
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 330 g
Polarisation filter ?
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
