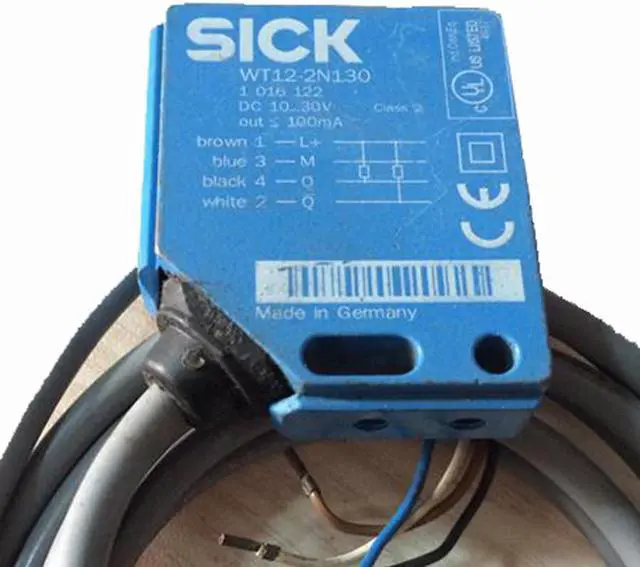

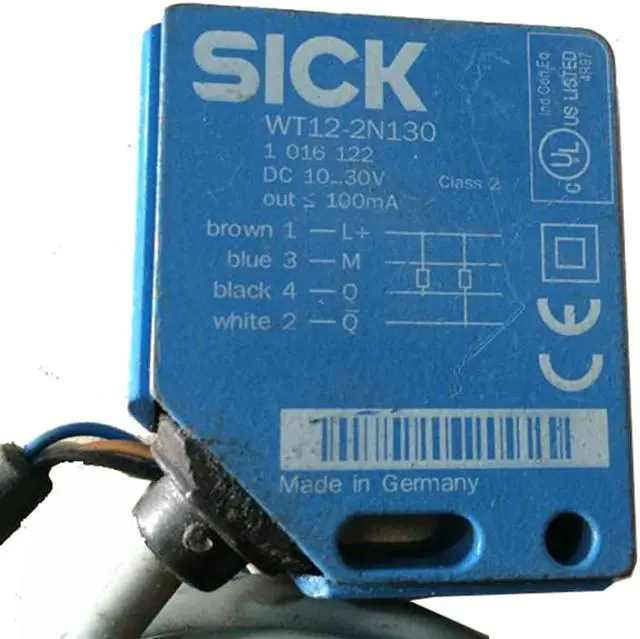

SICK WT12-2N130 Photoelectric Proximity Sensor ,NPN New
- SICK WT12-2N130 Photoelectric Proximity Sensor ,NPN New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

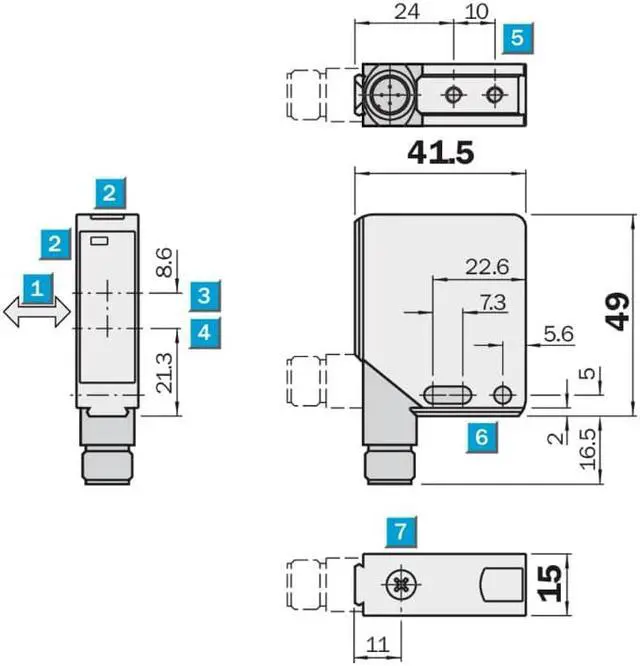

Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm ... 250 mm 1)
Sensing range 20 mm ... 250 mm 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 5 Vpp
Power consumption = 40 mA 1)
Switching output NPN
Switching mode Light/dark switching
Response time = 330 µs 2)
Connection type Cable, 2 m 3)
Cable material PVC
Conductor cross-section 0.25 mm²
Cable diameter Ø 5 mm
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm ... 250 mm 1)
Sensing range 20 mm ... 250 mm 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 5 Vpp
Power consumption = 40 mA 1)
Switching output NPN
Switching mode Light/dark switching
Response time = 330 µs 2)
Connection type Cable, 2 m 3)
Cable material PVC
Conductor cross-section 0.25 mm²
Cable diameter Ø 5 mm
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
