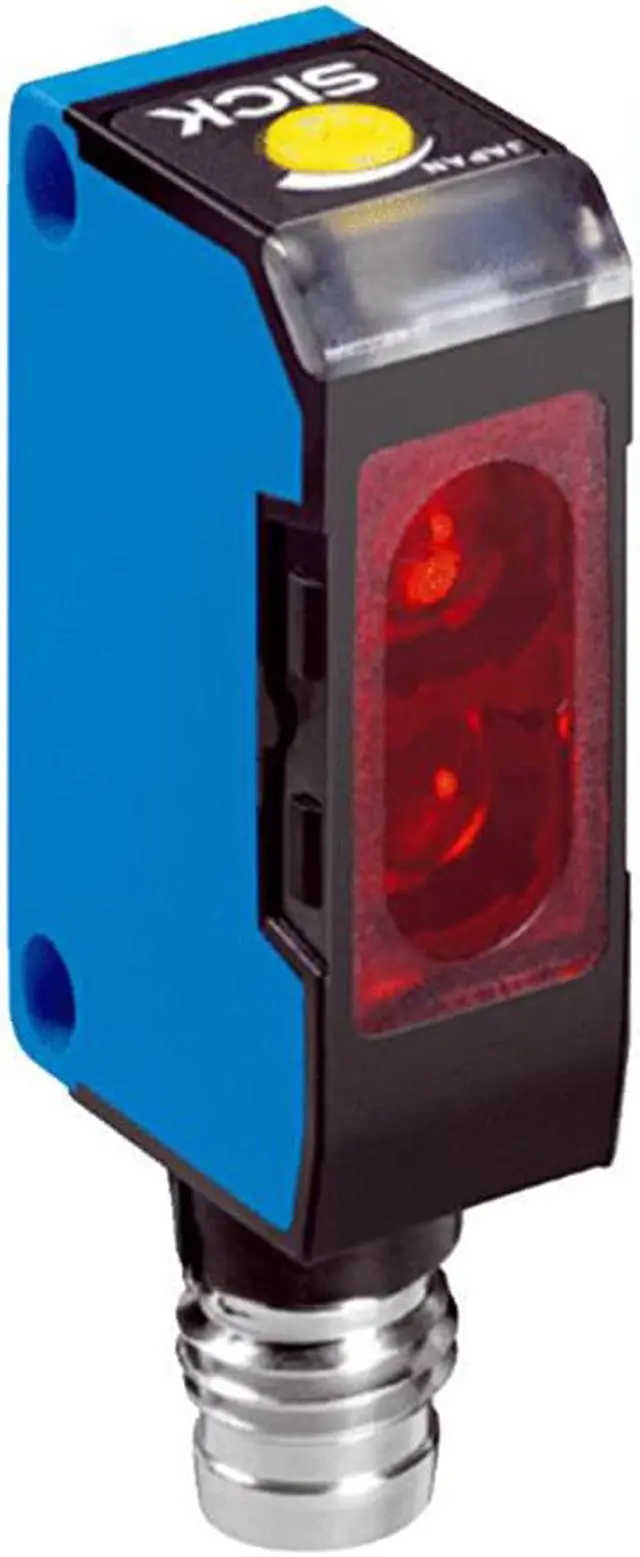

SICK WT150-P132 Photoelectric Proximity Sensor ,PNP,New
- SICK WT150-P132 Photoelectric Proximity Sensor ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic

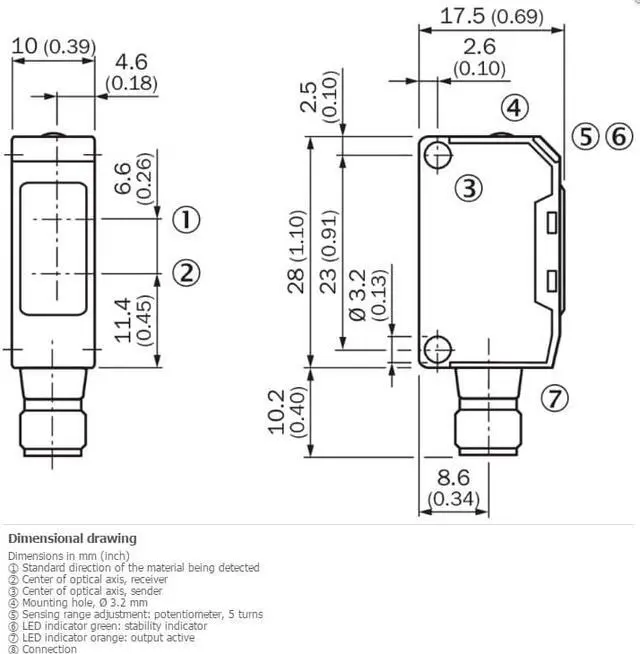

Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 250 mm 1)
Sensing range 10 mm ... 200 mm
Type of light Visible red light
Light source LED 2)
Angle of dispersion Approx. 6°
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 20 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm2
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class II
Weight 44 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied BEF-W150-A mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Sensor/ detection principle Photoelectric proximity sensor, energetic
Dimensions (W x H x D) 10 mm x 28 mm x 17.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 250 mm 1)
Sensing range 10 mm ... 200 mm
Type of light Visible red light
Light source LED 2)
Angle of dispersion Approx. 6°
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 20 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm2
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class II
Weight 44 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied BEF-W150-A mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
