SICK WT150-P162 Photoelectric Proximity Sensor,PNP,New
- SICK WT150-P162 Photoelectric Proximity Sensor,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

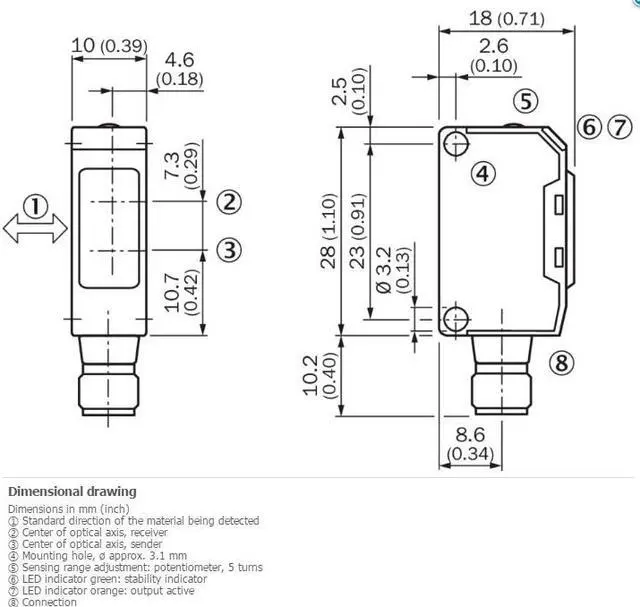

Dimensions (W x H x D) 10 mm x 28 mm x 18 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 100 mm 1)
Type of light Visible red light
Light source LED 2)
Angle of dispersion Approx. 5°
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 20 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm2
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class II
Weight 44 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied BEF-W150-A mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 10 mm x 28 mm x 18 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 100 mm 1)
Type of light Visible red light
Light source LED 2)
Angle of dispersion Approx. 5°
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 20 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm2
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class II
Weight 44 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied BEF-W150-A mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
