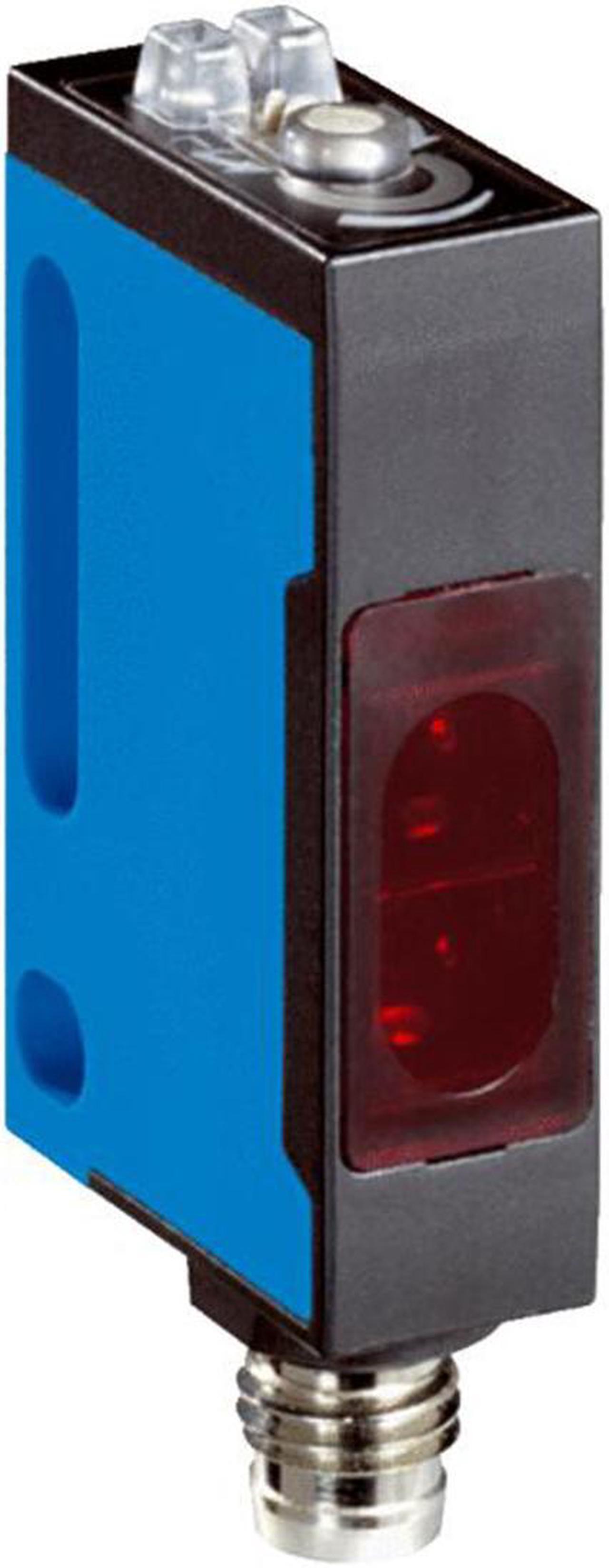

SICK WT160-F460 Photoelectric Proximity Sensor ,PNP,New
- SICK WT160-F460 Photoelectric Proximity Sensor ,PNP,New
+
+
Overview
Specs
Reviews

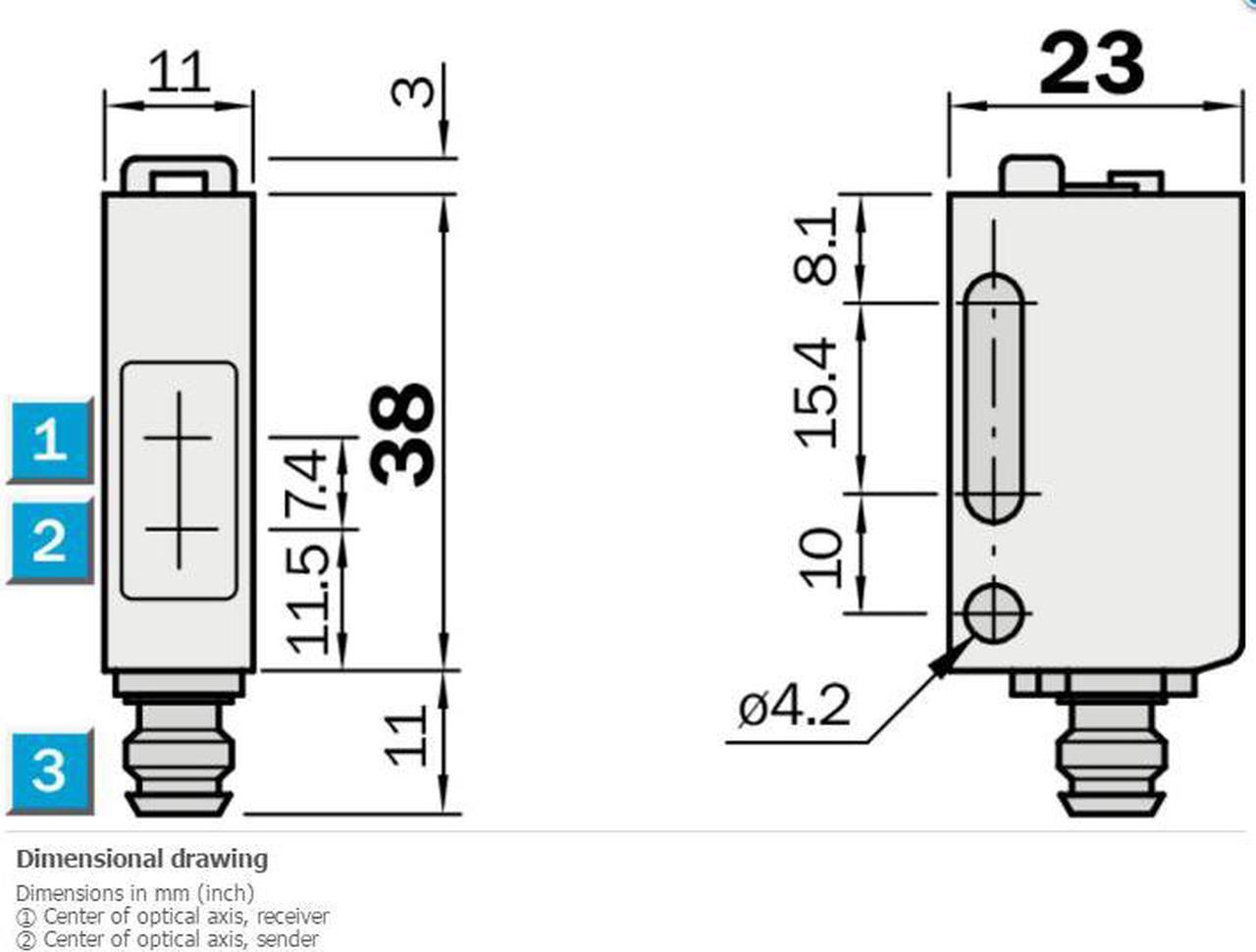

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 11 mm x 38 mm x 23 mm Housing design (light emission) Rectangular Sensing range max. 0 mm... 115 mm 1) Sensing range 0 mm... 100 mm 1) Type of light Visible red light Light source LED Wave length 680 nm MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple ± 10 % Power consumption 25 mA 1) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Response time = 0.5 ms 2) Connection type Male connector M8, 4-pin Housing material Plastic, PBT Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +55 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRNT2. E128350 & NRNT8. E128350
.. +55 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRNT2. E128350 & NRNT8. E128350
