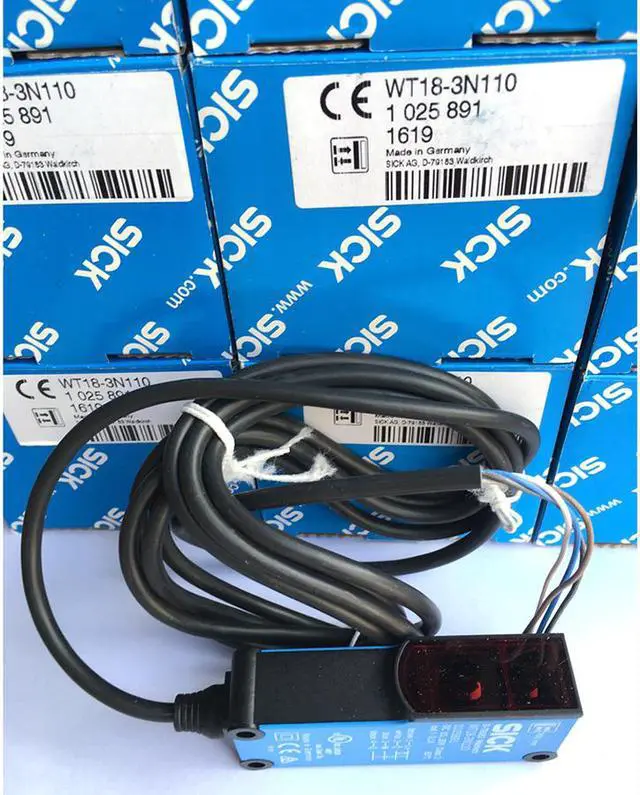

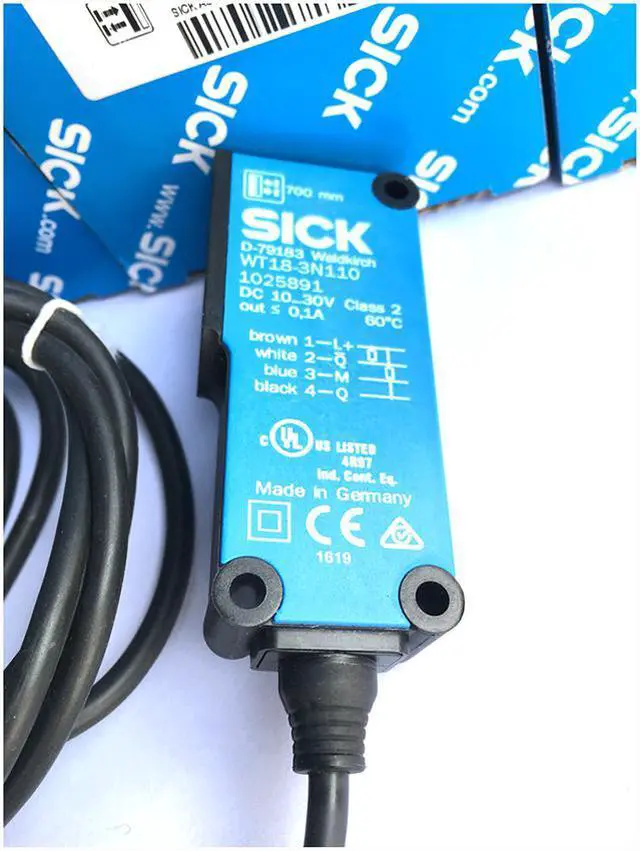

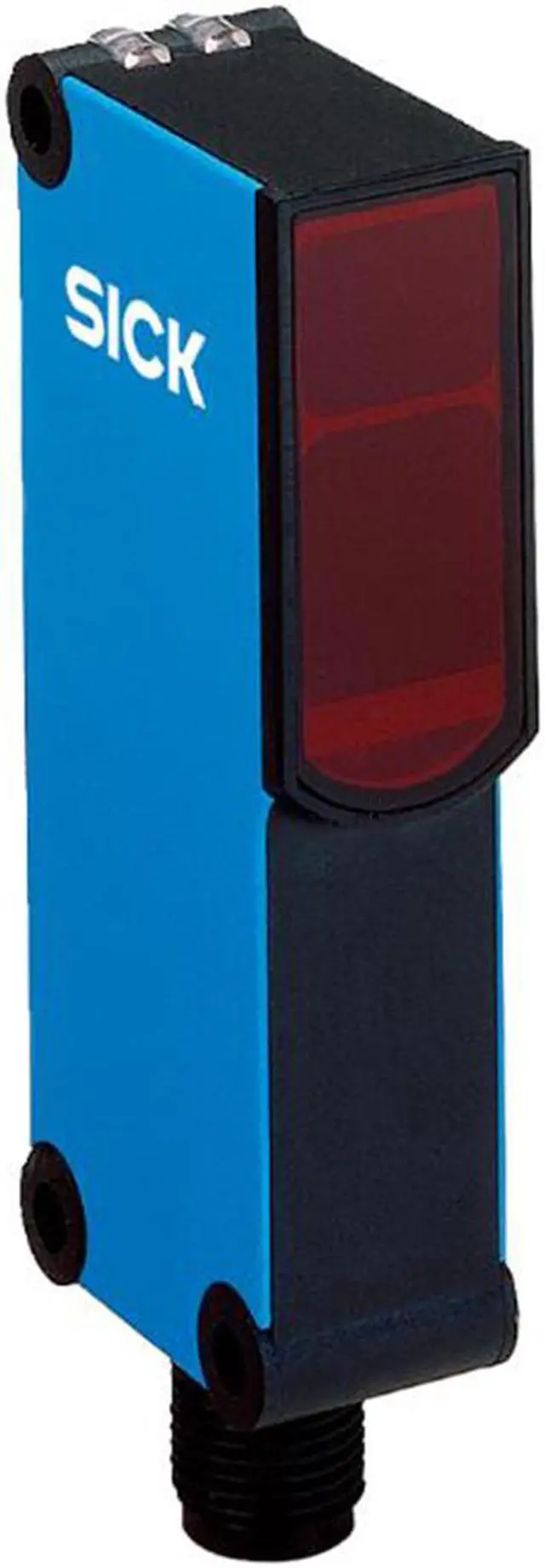

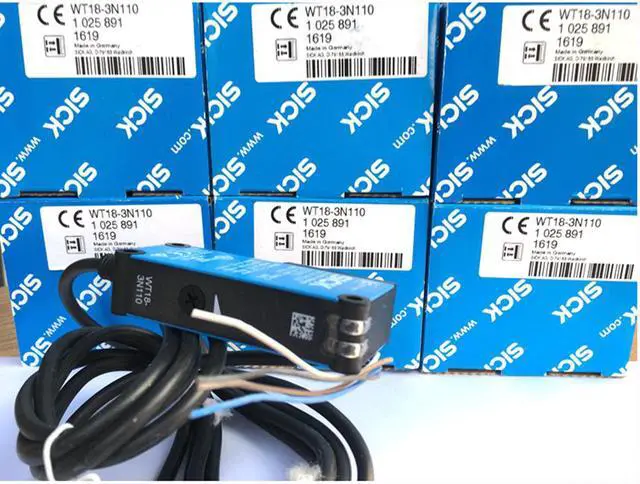

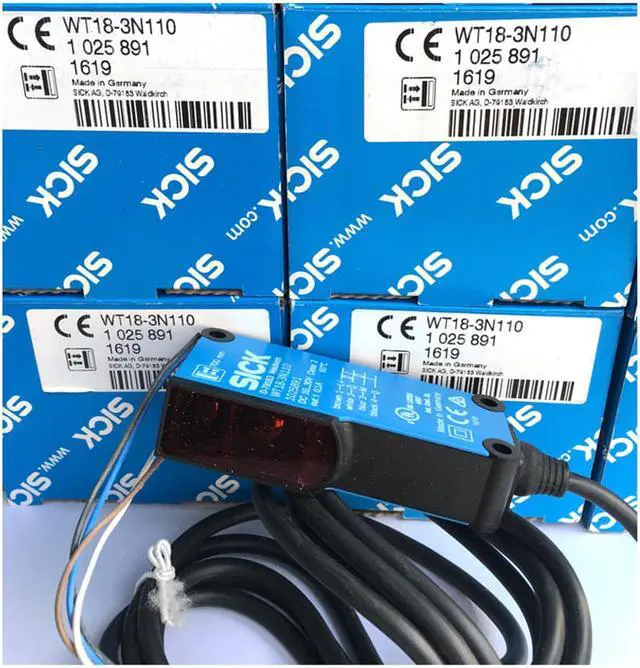

SICK WT18-3N110 Small Photoelectric Sensors ,NPN New
- SICK WT18-3N110 Small Photoelectric Sensors ,NPN New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

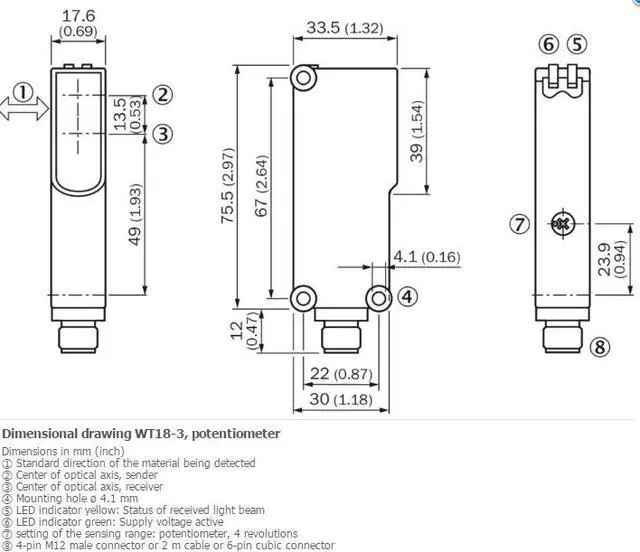

Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 700 mm 1)
Sensing range 50 mm ... 700 mm 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 20 mm (400 mm)
Wave length 870 nm
Adjustment Potentiometer, 4 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 55 mA 3)
Switching output NPN
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 100 mA
Response time < 700 µs 4)
Switching frequency 700 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
C 8)
D 9)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 10 mm ... 700 mm 1)
Sensing range 50 mm ... 700 mm 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 20 mm (400 mm)
Wave length 870 nm
Adjustment Potentiometer, 4 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 55 mA 3)
Switching output NPN
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 100 mA
Response time < 700 µs 4)
Switching frequency 700 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
C 8)
D 9)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
