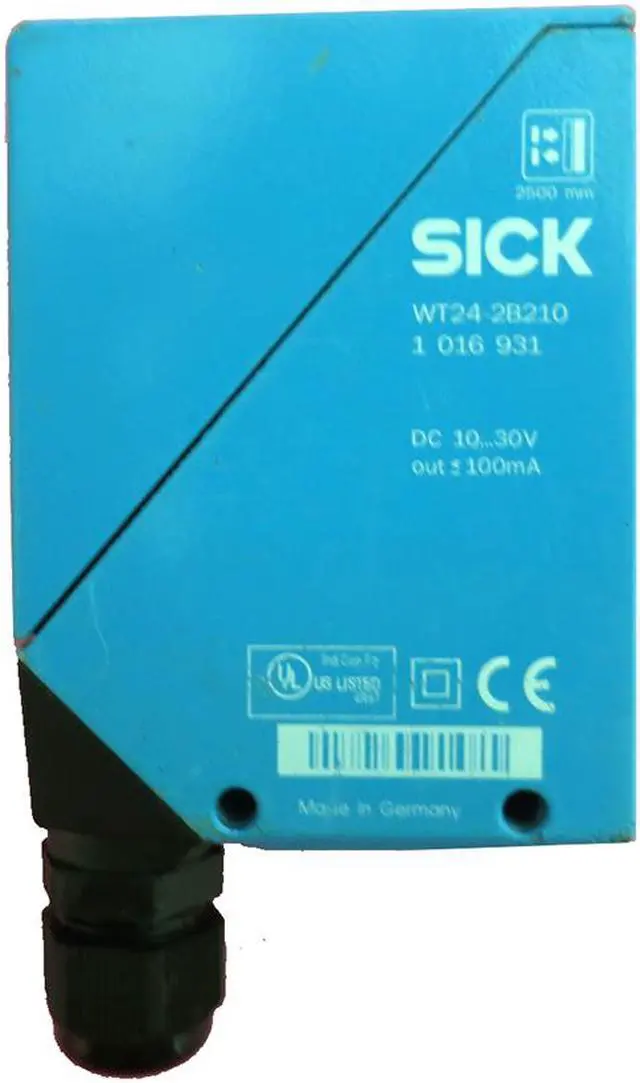

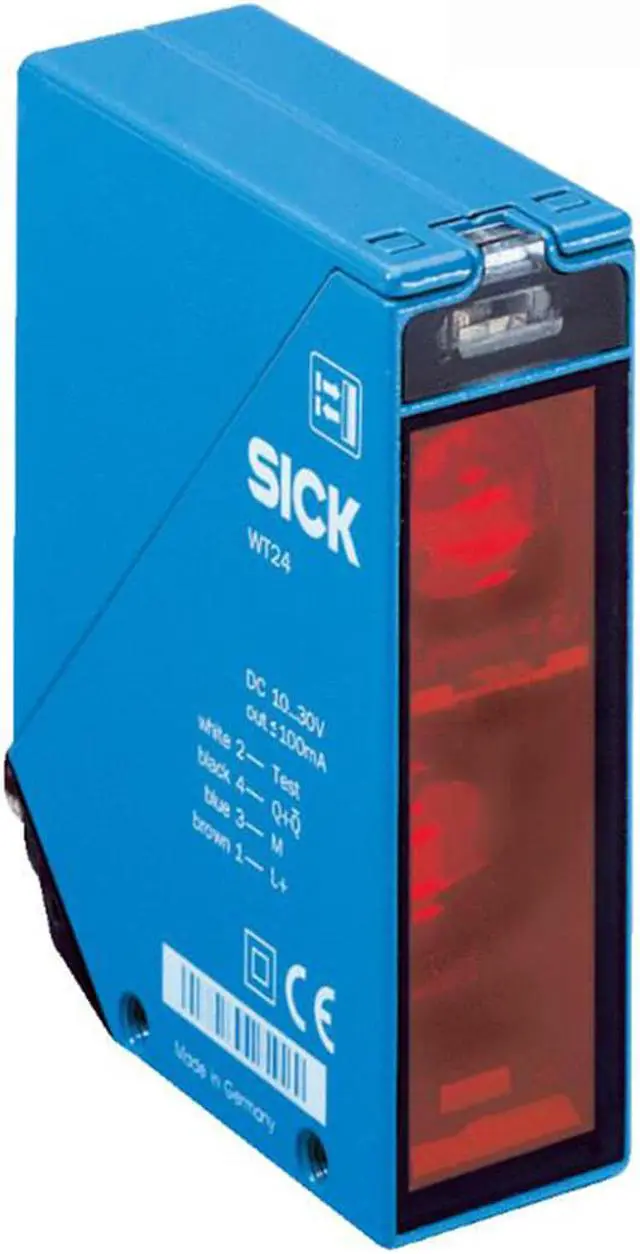

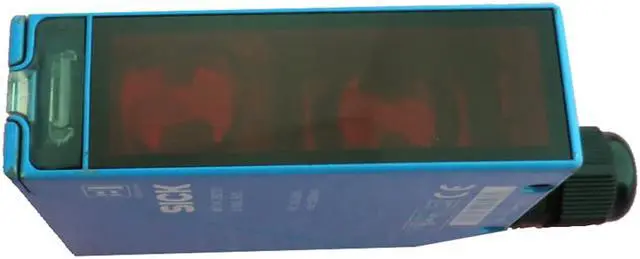

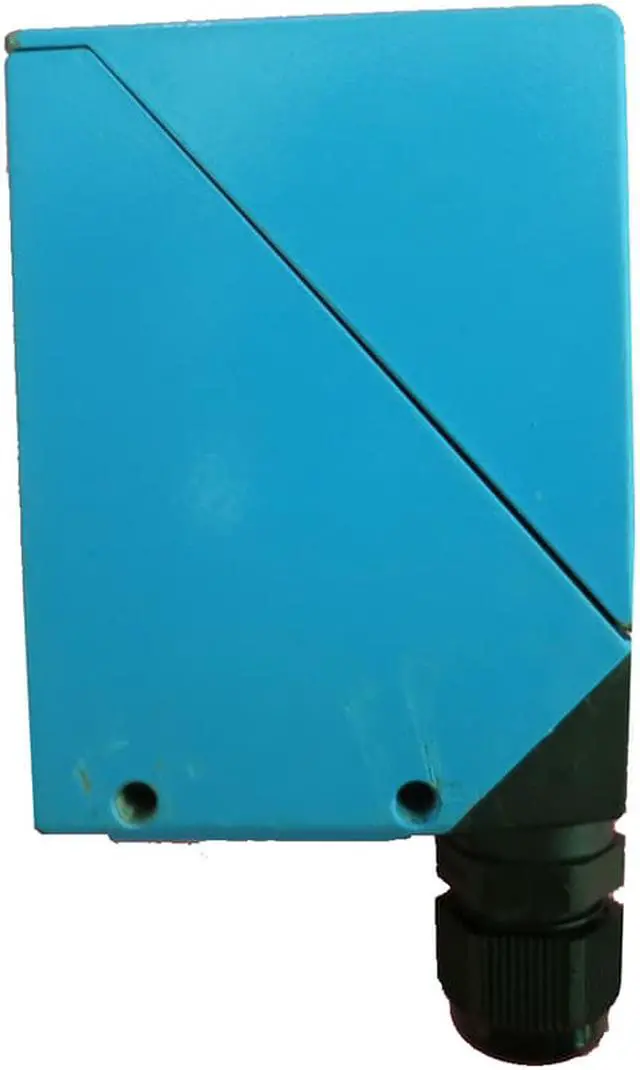

SICK WT24-2B210 Compact Photoelectric Sensors ,NPN ,PNP,New

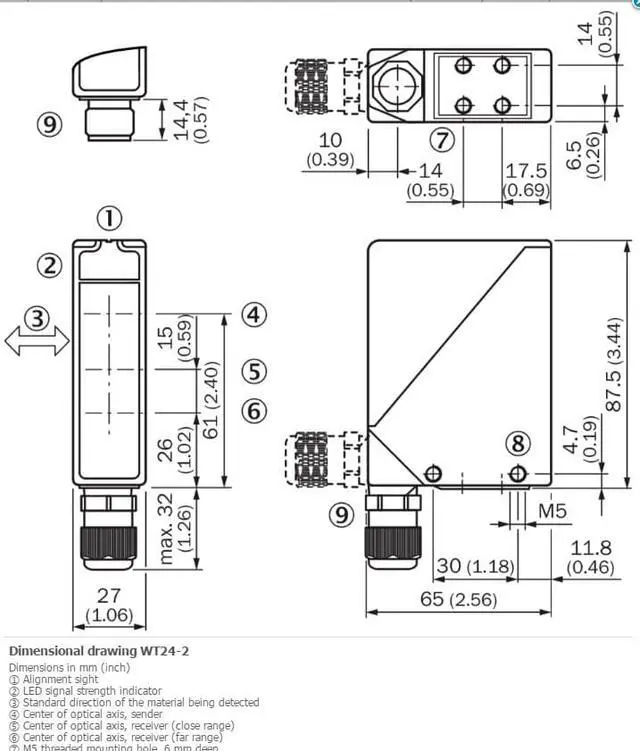

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm Housing design (light emission) Rectangular Sensing range max. 100 mm... 2, 500 mm 1) Sensing range 100 mm... 2, 500 mm 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 80 mm (2, 500 mm) Adjustment Potentiometer Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 50 mA 3) Switching output NPN PNP Switching mode Light/dark switching Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector Output current Imax.

= 100 mA Response time = 500 µs 4) Switching frequency 1, 000 Hz 5) Connection type Terminal connection with M16 gland Circuit protection A 6) C 7) D 8) Protection class II 9) Weight 330 g Housing material Metal, Zinc diecast Optics material Plastic, PMMA Enclosure rating IP67 Test input sender off TE to 0 V Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
