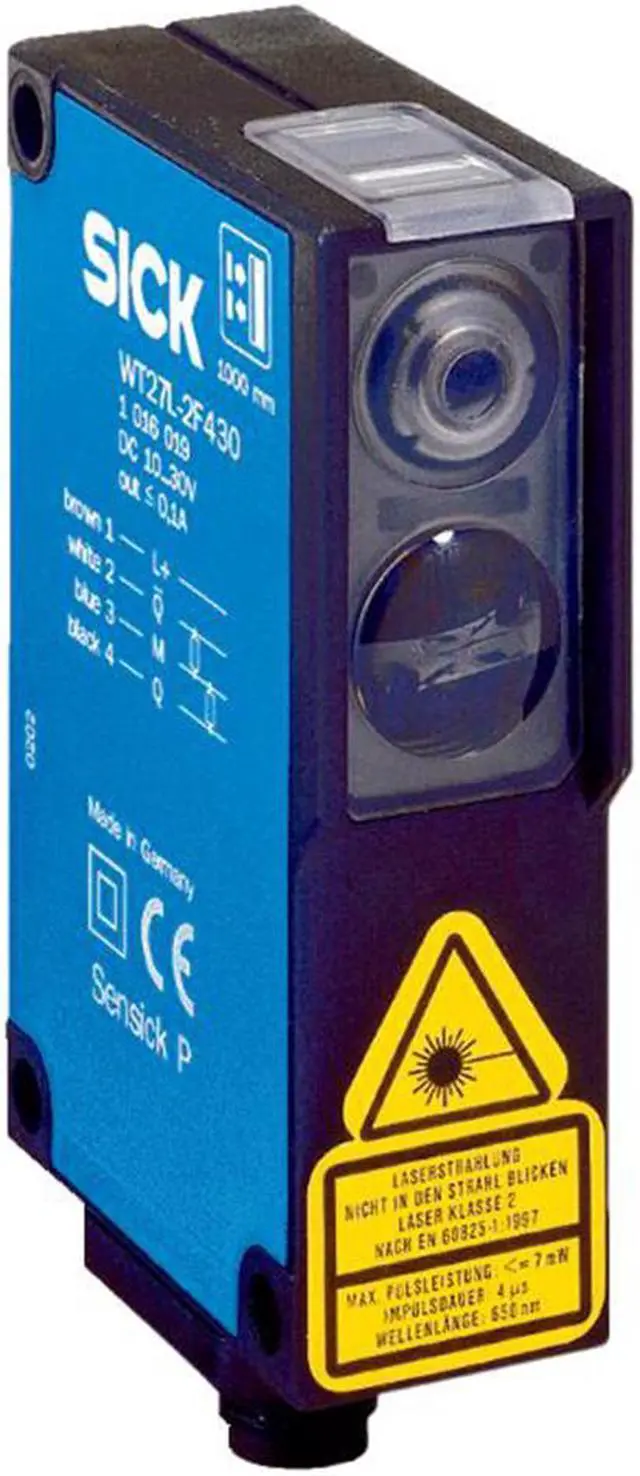

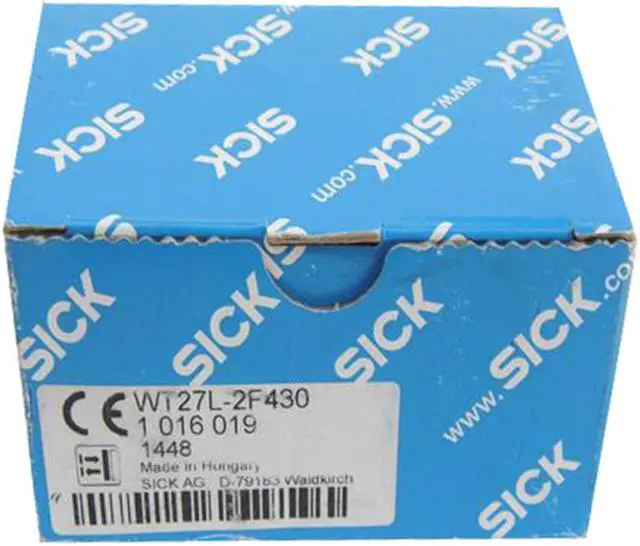

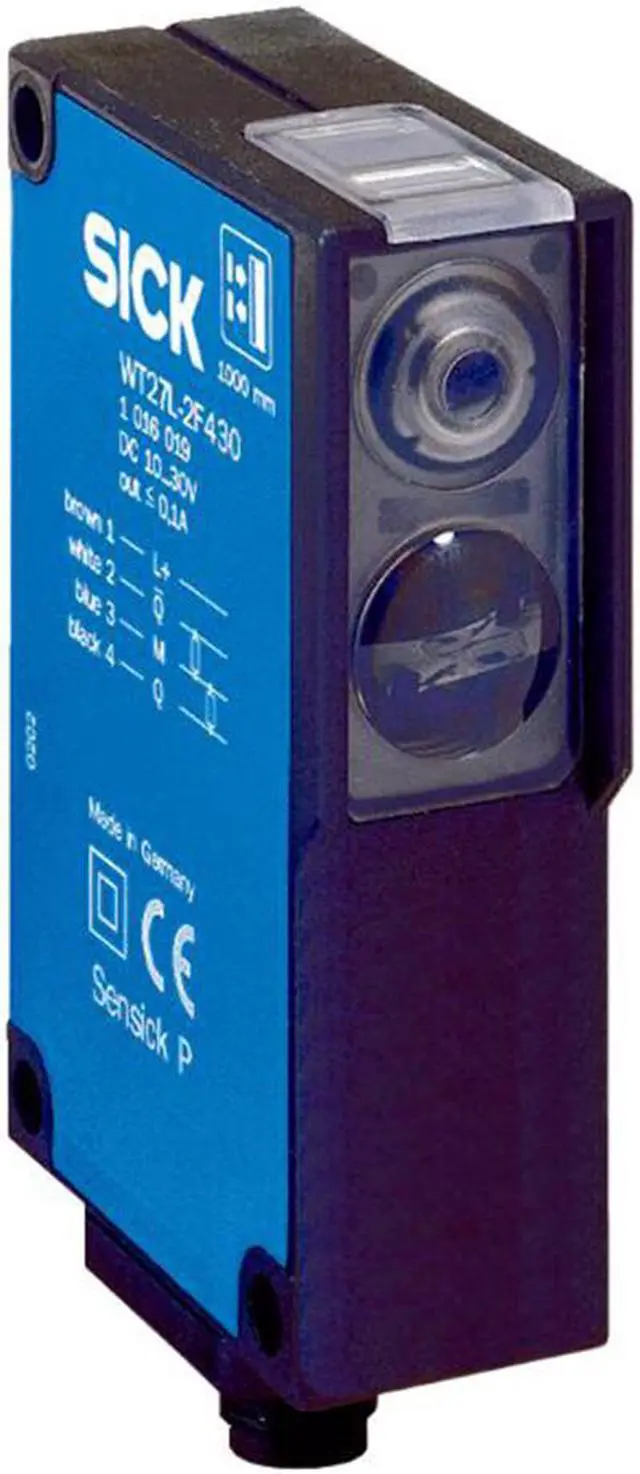

SICK WT27L-2F430 Photoelectric Proximity Sensor,PNP,New

FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

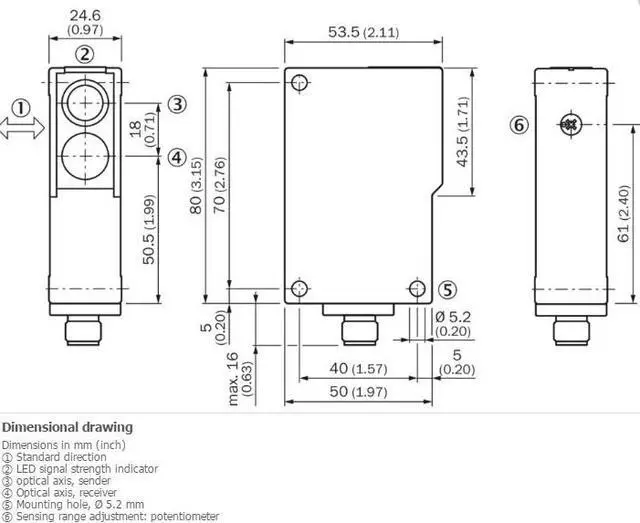

Dimensions (W x H x D) 24.6 mm x 80 mm x 53.5 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 800 mm 1)
Sensing range 100 mm ... 800 mm
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 2 mm (400 mm)
Wave length 650 nm
Laser class 2 (EN 60825-1), low power. Eyes are normally protected by averting reaction and eyelid closing reflex.
Adjustment Potentiometer
Potentiometer
Special applications Detecting small objects

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 % 2)
Power consumption 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. = 100 mA
Response time < 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 100 g
Housing material Plastic, ABS
Enclosure rating IP67
Ambient operating temperature –10 °C ... +45 °C
Ambient storage temperature –10 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
