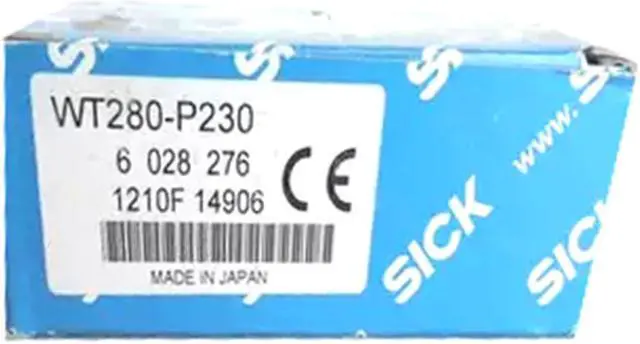

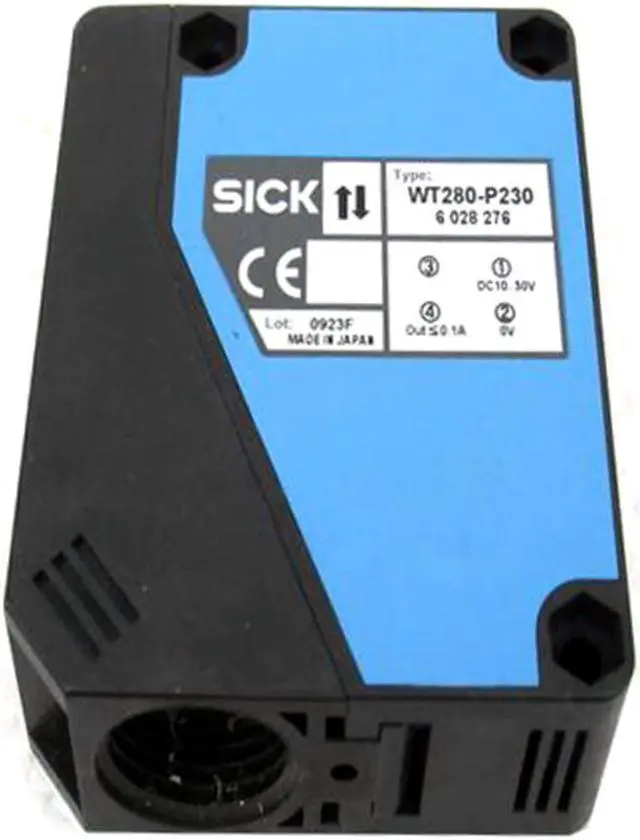

SICK WT280-P230 Photoelectric proximity sensor ,PNP,New
- SICK WT280-P230 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Dimensions (W x H x D) 23.5 mm x 74.5 mm x 63 mm Housing design (light emission) Rectangular Sensing range max. 10 mm... 1, 700 mm 1) Sensing range 10 mm... 1, 200 mm Type of light Visible red light Light source LED 2) Light spot size (distance) 38 mm ( 1.3 mm) Angle of dispersion 1° Adjustment Potentiometer adjustable via sensing range adjustment MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Output current Imax.
100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable gland Circuit protection A 6) B 7) C 8) D 9) Protection class II 10) Weight 150 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP66 Items supplied Mounting bracket BEF-W280 Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable gland Circuit protection A 6) B 7) C 8) D 9) Protection class II 10) Weight 150 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP66 Items supplied Mounting bracket BEF-W280 Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
