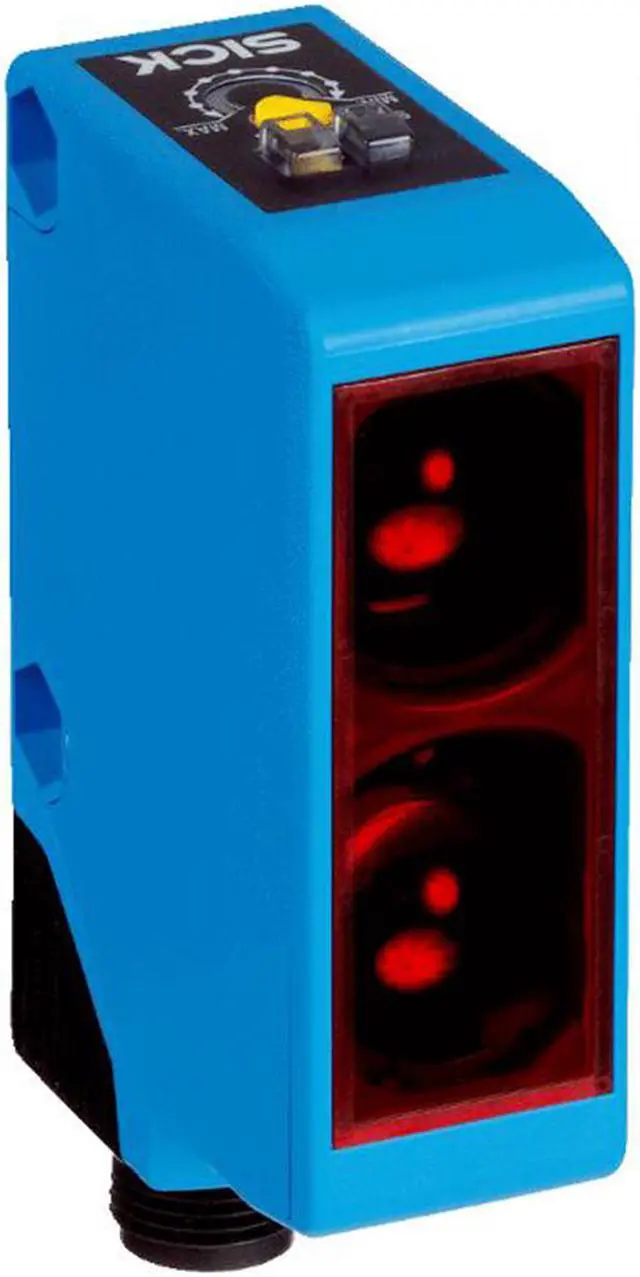

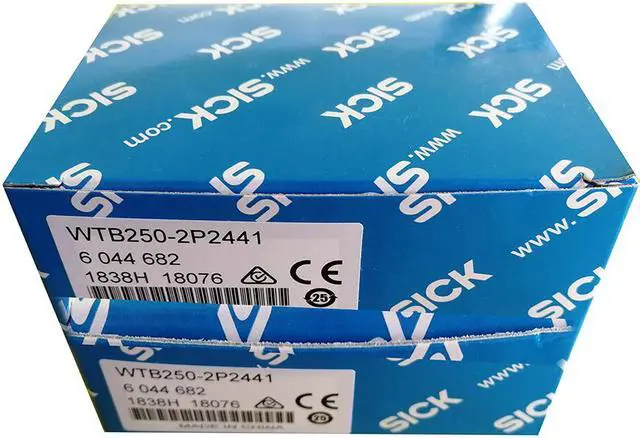

SICK WTB250-2P2441 Photoelectric proximity sensor ,PNP,New
- SICK WTB250-2P2441 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

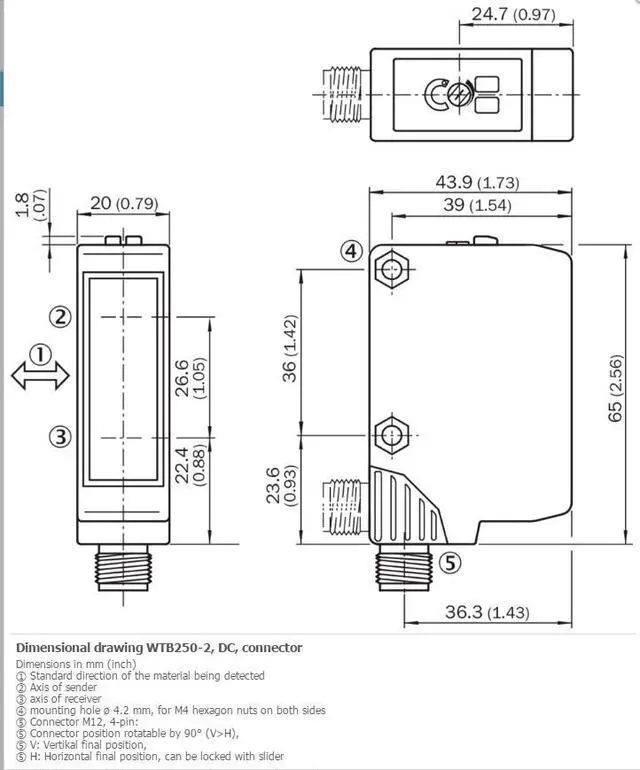

Dimensions (W x H x D) 20 mm x 65 mm x 43.9 mm
Housing design (light emission) Rectangular
Sensing range max. 150 mm ... 500 mm 1)
Sensing range 150 mm ... 500 mm 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 30 mm (500 mm)
Angle of dispersion Approx. 3°
Adjustment Potentiometer, 2 turns 3)
Potentiometer, 2 rotations
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 3 ms 4)
Switching frequency 160 Hz 5)
Connection type Male connector M12, 4-pin 6)
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 40 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67

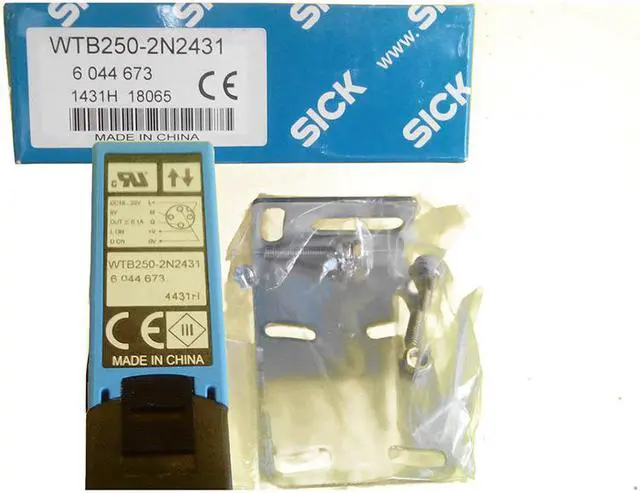

Items supplied BEF-W250 mounting bracket
EMC EN 60947-5-2 11)
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH2.E300503 & NRKH8.E300503
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 20 mm x 65 mm x 43.9 mm
Housing design (light emission) Rectangular
Sensing range max. 150 mm ... 500 mm 1)
Sensing range 150 mm ... 500 mm 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 30 mm (500 mm)
Angle of dispersion Approx. 3°
Adjustment Potentiometer, 2 turns 3)
Potentiometer, 2 rotations
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Output current Imax. = 100 mA
Response time = 3 ms 4)
Switching frequency 160 Hz 5)
Connection type Male connector M12, 4-pin 6)
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 40 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied BEF-W250 mounting bracket
EMC EN 60947-5-2 11)
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH2.E300503 & NRKH8.E300503
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by FeiPengLin Return Policy
