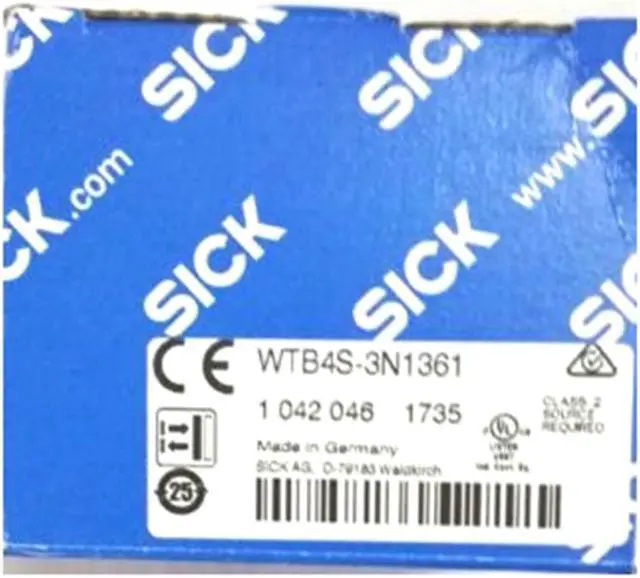

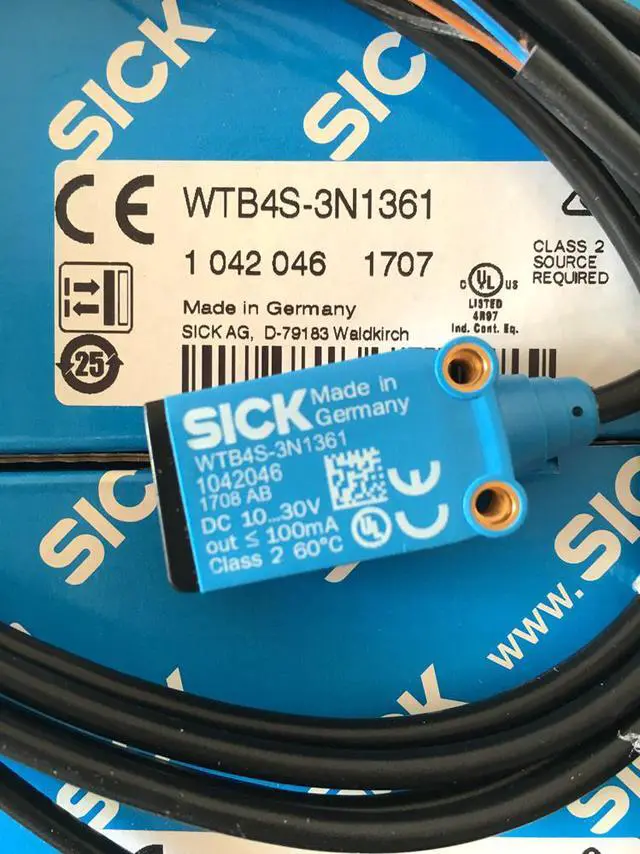

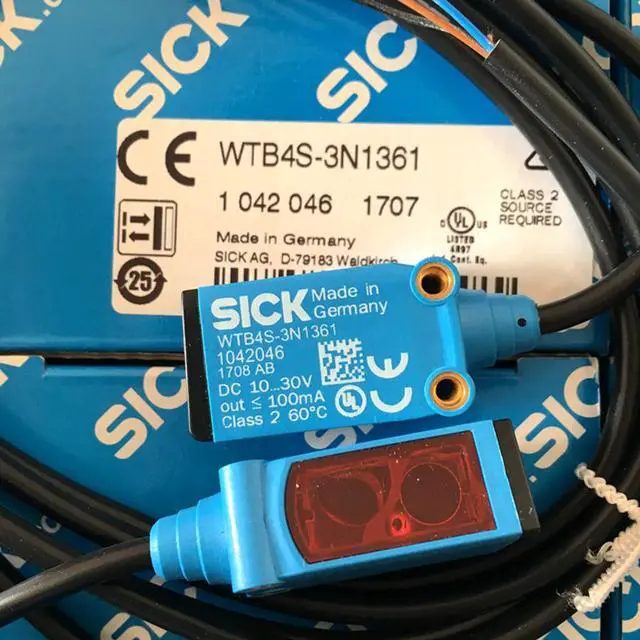

SICK WTB4S-3N1361 Miniature Photoelectric Sensors,NPN,New
- SICK WTB4S-3N1361 Miniature Photoelectric Sensors,NPN,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SICK WTB4S-3N1361 Miniature Photoelectric Sensors, NPN, New FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Housing design (light emission) Rectangular Sensing range max. 4 mm... 180 mm 1) Sensing range 10 mm... 180 mm 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 6.5 mm (150 mm) Wave length 650 nm Adjustment Potentiometer, 5 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 20 mA 3) Switching output NPN Switching mode Light switching Output current Imax.
= 100 mA Response time < 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A 7) C 8) D 9) Protection class III Weight 30 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
= 100 mA Response time < 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A 7) C 8) D 9) Protection class III Weight 30 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C
