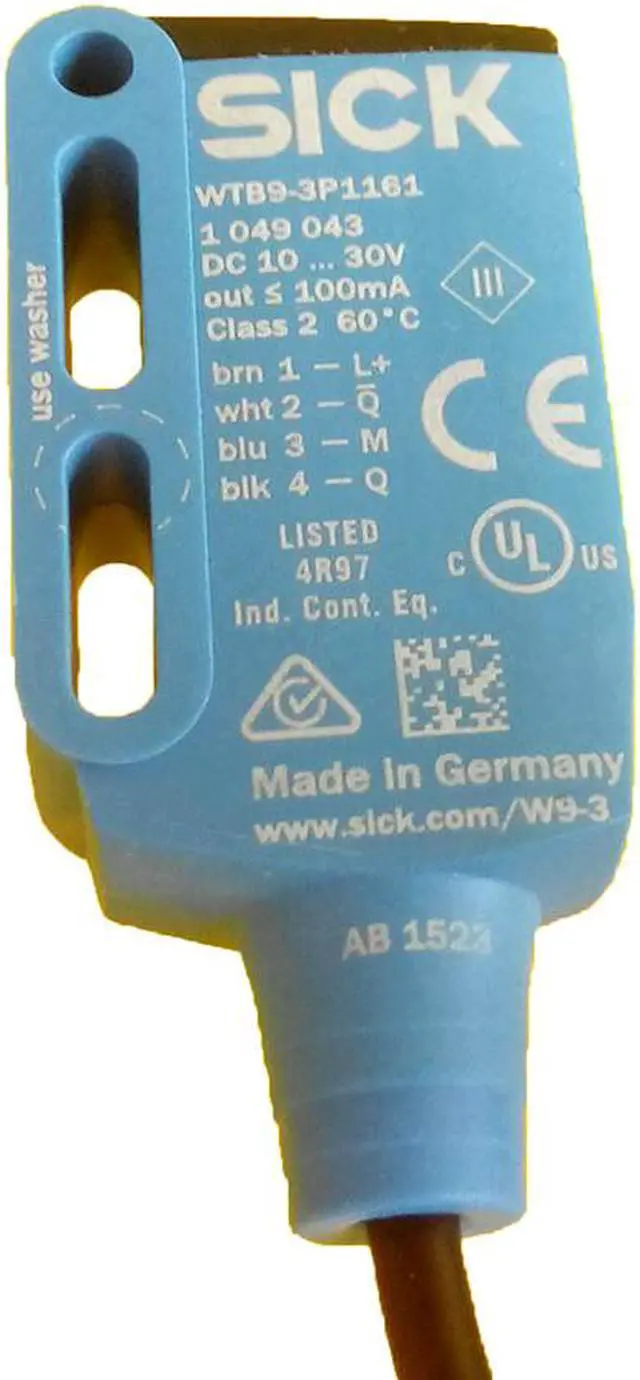

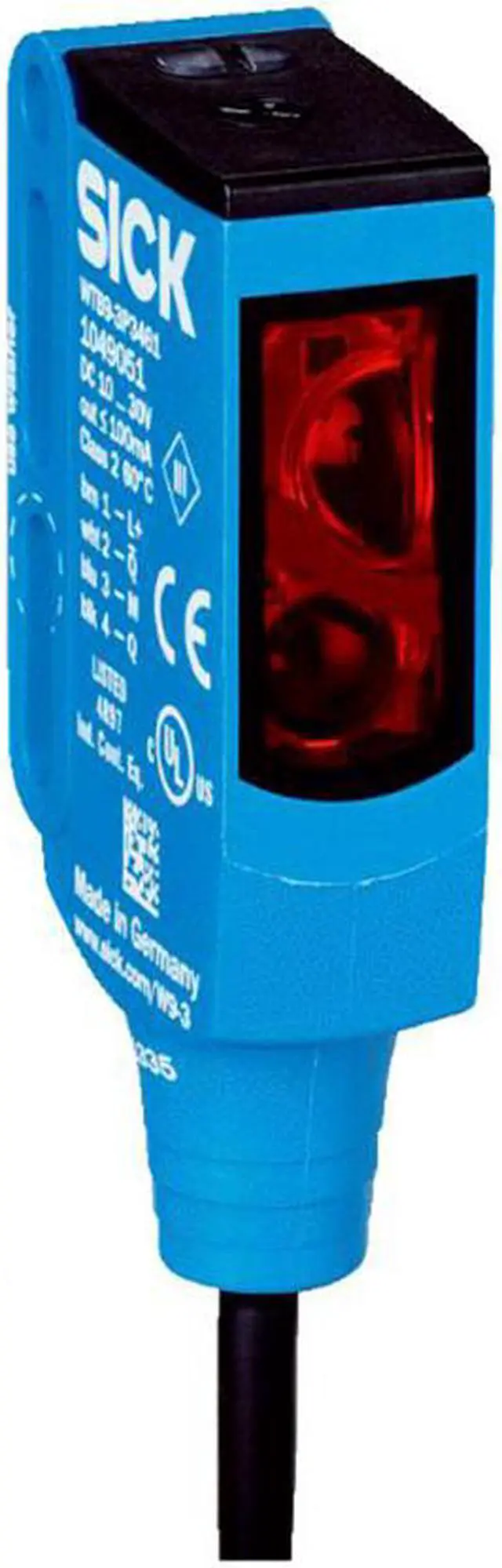

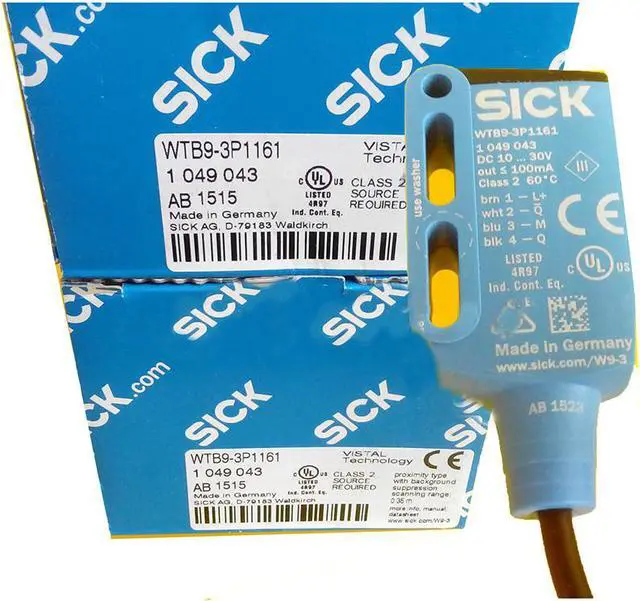

SICK WTB9-3P1161 Small Photoelectric Sensors PNP,New
- SICK WTB9-3P1161 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

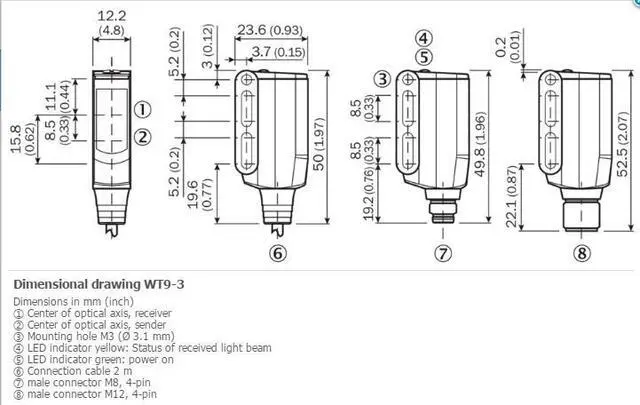

Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 20 mm ... 350 mm 1)
Sensing range 20 mm ... 200 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 4.5 mm (75 mm)
Wave length 650 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Output function Complementary
Switching mode Light/dark switching 4)
Output current Imax. = 100 mA 5)
Response time < 0.333 ms 6)
Switching frequency 1,500 Hz 7)
Connection type Cable, 4-wire, 2 m 8)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection
A 9)
B 10)
C 11)
Protection class III
Weight 80 g
Housing material Plastic, VISTAL®
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm
Housing design (light emission) Rectangular
Mounting hole M3
Sensing range max. 20 mm ... 350 mm 1)
Sensing range 20 mm ... 200 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 4.5 mm (75 mm)
Wave length 650 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Output function Complementary
Switching mode Light/dark switching 4)
Output current Imax. = 100 mA 5)
Response time < 0.333 ms 6)
Switching frequency 1,500 Hz 7)
Connection type Cable, 4-wire, 2 m 8)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection
A 9)
B 10)
C 11)
Protection class III
Weight 80 g
Housing material Plastic, VISTAL®
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493
