SIIG CE-DP0F11-S1 2-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media Ports - 4K@60Hz
- Video Resolution 3840 x 2160
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-657-8688
- Support Website
- View other products from SIIG, Inc
LOADING...
The SIIG CE-DP0F11-S1 is a 2-port DisplayPort 1.2 KVM switch for controlling two computers with one console, making it suitable for workstations that need to share a display, USB peripherals, and audio while supporting up to 4K at 60Hz.
Recommended For
- People who regularly switch between two DisplayPort computers at one desk and want to share one monitor, keyboard, mouse, and USB peripherals.
- Work-from-home users sharing a DisplayPort monitor between a work computer and a personal computer, with switching by keyboard hotkey or front-panel button.
- Single-monitor users who need up to 4K at 60 Hz or supported lower-resolution high-refresh modes, and want to share USB 3.0 devices between two computers.
- Organizations that need a two-computer DisplayPort KVM for a shared workstation and require TAA-compliant equipment.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Switching a DisplayPort setup between two computers while sharing USB peripherals and audio |
| Video And DisplayPort | DisplayPort 1.2 supports 3840 × 2160 at 60 Hz with YUV 4:4:4 8-bit and bandwidth up to 21.6 Gbps; maximum DisplayPort cable length is 3 m |
| USB Connectivity And Chipset | Four USB 3.0 Type-A ports support up to 5 Gbps, and two USB 1.1 Type-A ports support up to 12 Mbps; TI SN75DP130 chipset |
| Audio | Supports 7.1-channel surround sound and PCM 2.0-channel stereo digital audio |
| Operating System Compatibility | Windows 10 and macOS 10.10 or later |
| Power | AC input: 100–240 V, 50/60 Hz; DC output: 12 V, 2 A; UL-listed power adapter, Level VI |
| Environmental Conditions | Operating temperature: 32–104 °F; storage temperature: −4–140 °F; relative humidity below 85%, non-condensing |

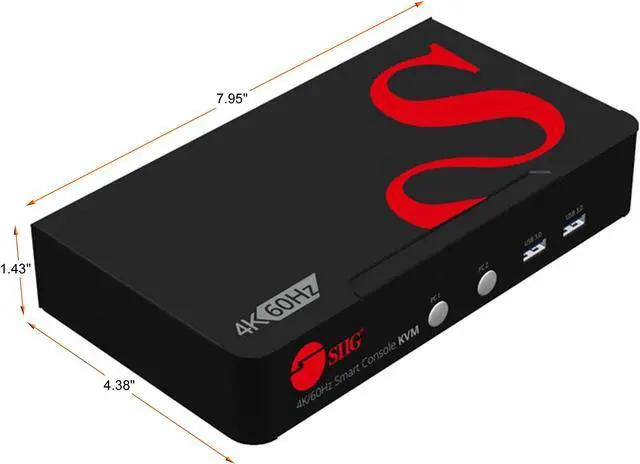

| Construction And Dimensions | Metal housing; 1.43 × 4.38 × 7.95 in; weight: 1.54 lb |
| Certifications And Compliance | FCC, CE, RoHS, and TAA compliant; cables UL listed, E301195 |
| In The Box | KVM switch, two 1.8 m DisplayPort 1.2 cables, two 1.8 m 3-in-1 USB 3.0/mic/stereo cables, 12 V/2 A power adapter, and user reference guide |
| Model Identifiers | SIIG CE-DP0F11-S1 |
