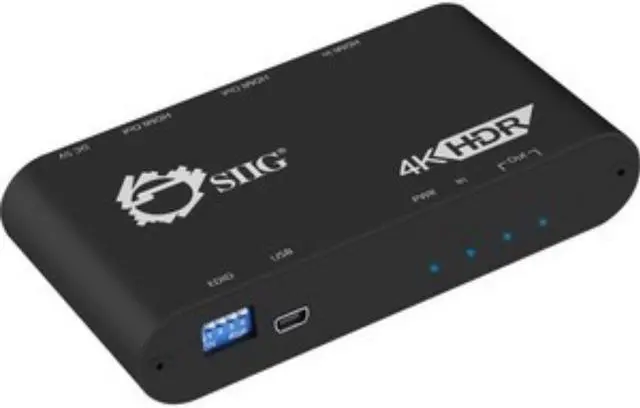

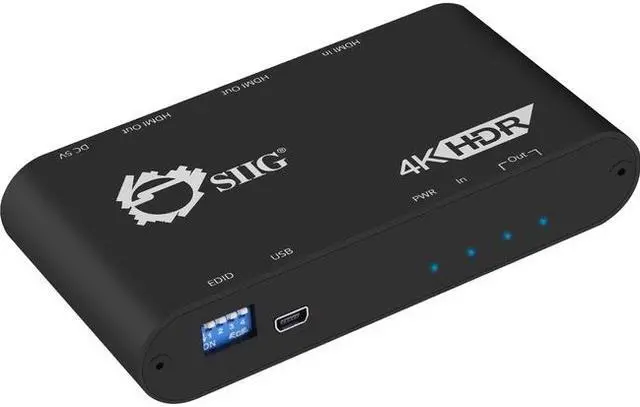

1X2 HDMI 2.0 SPLITTER/DIST AMP

Be the first to review this product...

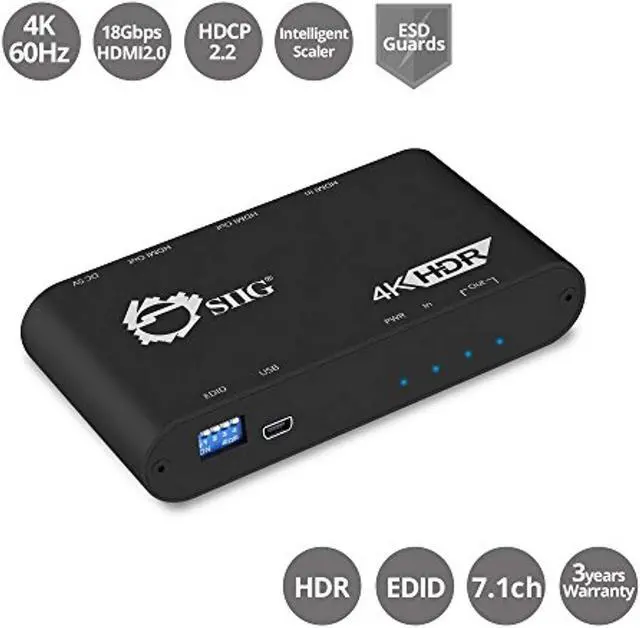

Supports HDR, HDMI 2.0, HDCP 2.2, 4Kx2K@60Hz (4:4:4) and 7.1 ch surround sound audio

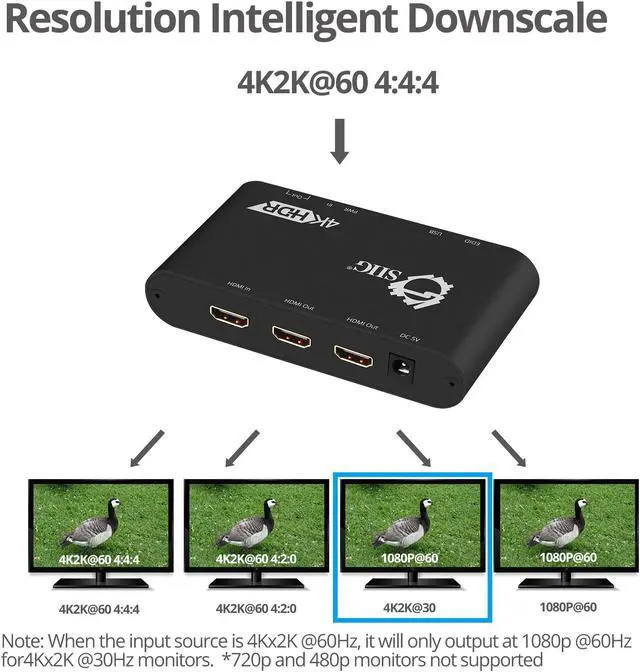

Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor Note: When the input source is 4Kx2K @60Hz, it will only output at 1080p @60Hz for 4Kx2K @30Hz monitors
High quality materials with metal housing extend the stability and durability, allowing for long hours of operation

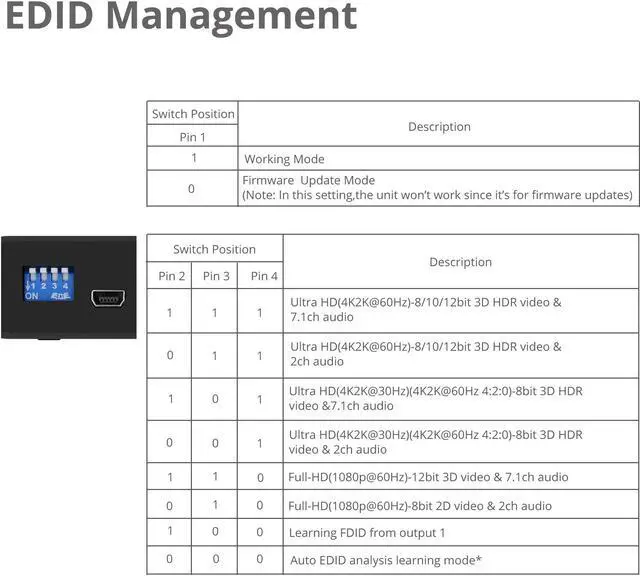

Built-in EDID management and firmware update mechanism further expands compatibility
Individual LED indicators for power and signal allow for easy and quick recognition

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Minimum
Frequency: 25
MHzMaximum Frequency: 600 MHzMaximum
Video Resolution: 3840 ? 2160HDMI
In: YesHDMI
Out: YesNumber of
HDMI Inputs: 1Number of
HDMI Outputs: 2Maximum
Operating Distance: 49.21 ftInput
Voltage: 5
V DCMaterial:
AluminumMetalHeight: 0.9"W
idth: 2.4"L
ength: 4.7"W
eight (Approximate): 13.44 ozEnvironmentally
Friendly: YesEnvironmental
Certification: RoHSCountry of
Origin: TaiwanTAA
Compliant: YesLimited
Warranty: 3 Year

Model
Brand	SIIG
Model	CE-H22X11-S1

Details
Color	Black

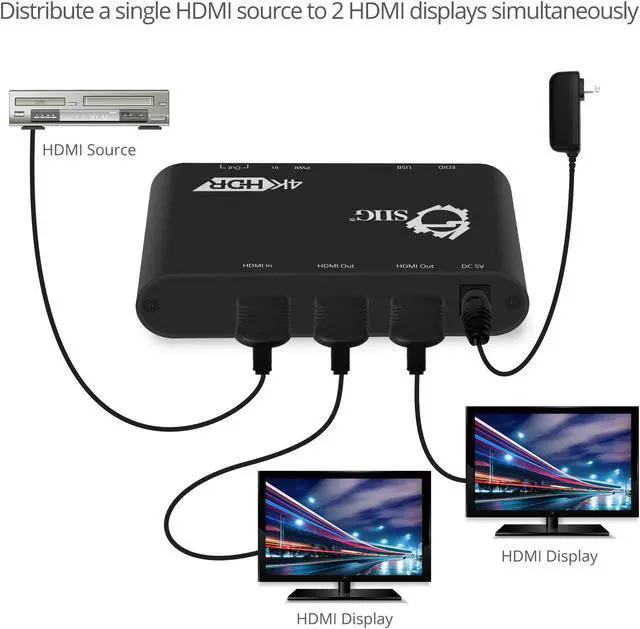

Specifications	The 1x2 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz broadcasts HDMI A/V signals from one HDMI source to two displays simultaneously, an advanced HDMI splitter solution.

Connectors
Connector A	1x 19-Pin, HDMI, Type A, Female, Input
Connector B	2x 19-pin, HDMI, Type A, Female, Output
Audio	DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

Features
Features	Supports HDR, HDMI 2.0, HDCP 2.2, 4Kx2K@60Hz (4:4:4) and 7.1 ch surround sound audio Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor Note: When the input source is 4Kx2K @60Hz, it will only output at 1080p @60Hz for 4Kx2K @30Hz monitors High quality materials with metal housing extend the stability and durability, allowing for long hours of operation Built-in EDID management and firmware update mechanism further expands compatibility Individual LED indicators for power and signal allow for easy and quick recognition

Dimensions & Weight

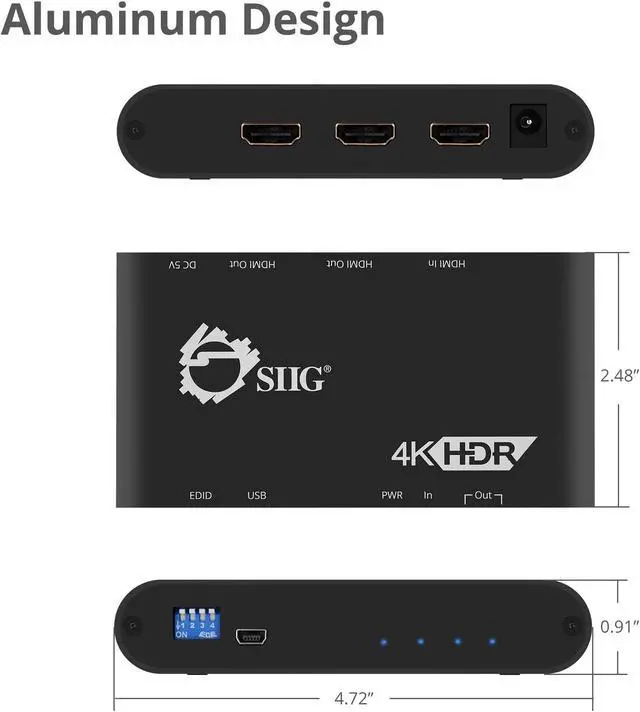

Dimensions	4.72" (W) x 0.91" (H) x 2.48" (D)
Weight	0.42lbs

Package Contents

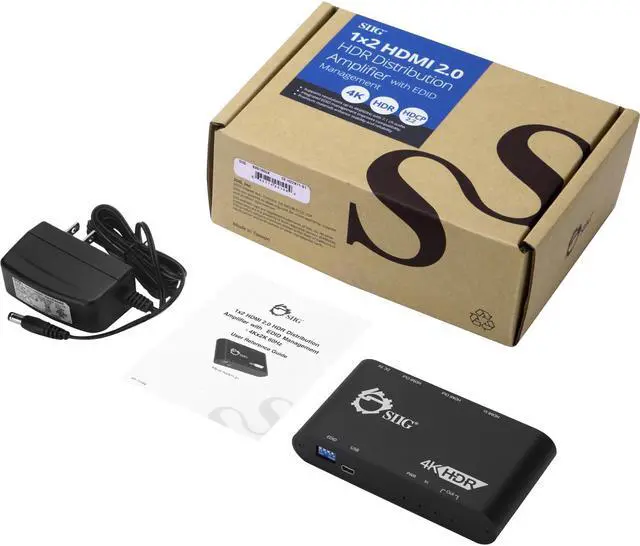

Package Contents	1x2 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz Power adapter User Reference Guide

Additional Information
First Listed on Newegg	May 25, 2018
