| Specifications | Compliant with HDCP 2.2
Supports EDID pass through, CEC, Deep Color 36bit
Supports 3840x2160@60Hz YUV 4:4:4 8bit
Supports 3840x2160@60Hz HDR10 YUV 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Video latency: <20µs
Auto skew equalization
Audio support: DTS-HD Master Audio and Dolby True HD
Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
Full Duplex RS-232 control up to 115200 bps through connector
Resolution: 480p / 720p / 1080i / 1080p / 3840x2160@60Hz YUV 4:4:4 8bit / HDR 3840x2160@60Hz YUV 4:2:0 10bit

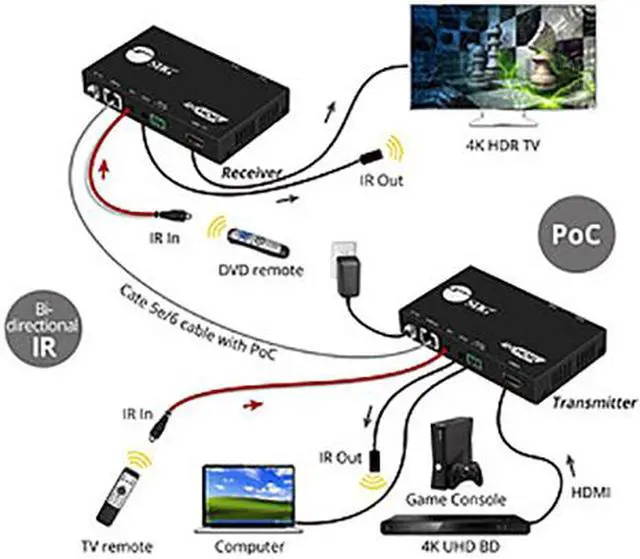

Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through one power adapter connected to either unit
Power consumption: 10 watts (max)
ESD protection: +/-15kV Air & +/-8kV Contact
Aluminum housing with wall mount design
Transmission protocol: HDBaseT
Note: Does not support connecting to Router or Switch
Transmission Distance:
1080p@60Hz: up to 60 meters
3840x2160@30Hz/60Hz: up to 35 meters
HDMI cable length:
1080P: 10m (Input & Output)
3840x2160 (4K): 5m (Input & Output)
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, output
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator

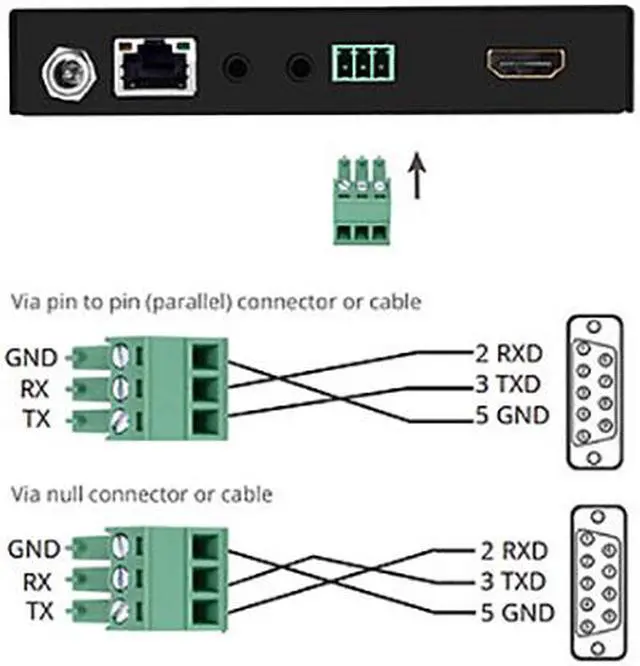

1x 3-Pin, RS-232, Phoenix connector
1x 3-Pin, DIP Switch
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, Input
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connector
1x 3-Pin, DIP Switch
1x Power jack
Power adapter:
Input: AC 100-240V / 50-60Hz
Output: DC 12V/2A
UL Listed: E163743 / Class VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant |
|---|
