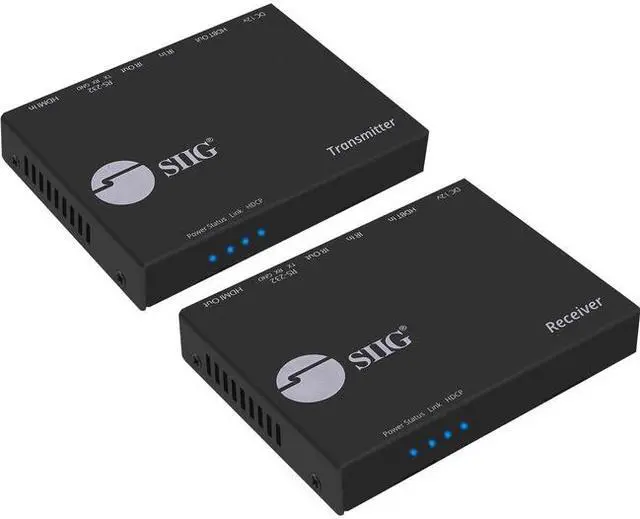

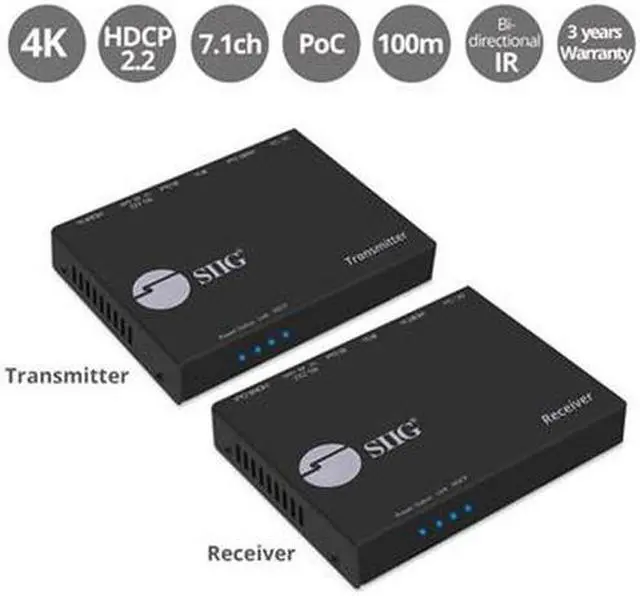

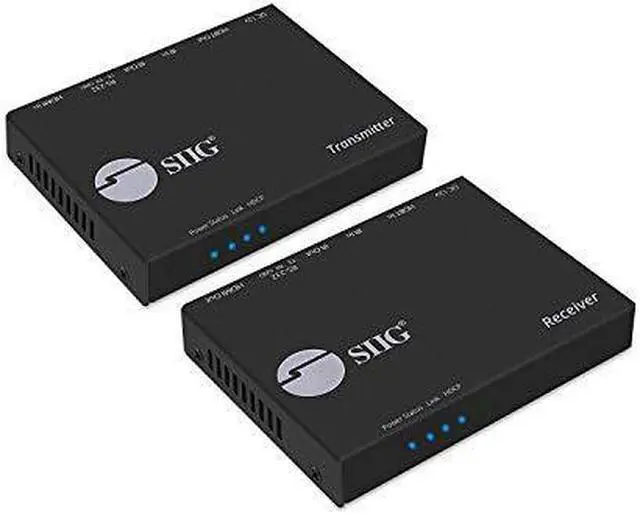

Siig 4K Hdmi Hdbaset Extender Over Single Cat5e/6 With Rs-232 Ir & Poc - 100M
- ADVANCED FEATURES: Extends HDMI 1.4 audio and video signal up to 330ft (100m) at Full HD 1080p or 230ft (70m) at UHD 4K @30Hz through a single premium quality CAT5e/6 cable.
- DELIVERS CRYSTAL clear picture quality with resolution up to 4K (3840x2160) @30Hz YUV 4:4:4 8-bit and 4K@60Hz YUV 4:2:0. SUPPORTS HDMI 1.4, HDCP 2.2/1.4, DTS-HD Master Audio and Dolby TrueHD high bit rate audio, and 7.1ch digital HDMI over CAT cable transmission.
- BI-DIRECTIONAL IR sensors allow you to remotely control the signal from source to receiver, or from transmitter to receiver. Note: Does not support connecting to Router or Switch. Compatible with HDMI source display and devices such as Roku, Apple TV, Amazon Fire TV, PS4, and more.
- FULL DUPLEX RS-232 & PoC: Control RS-232 devices such as scanners and touchscreen displays up to 115,200 bps. PoC allows both the transmitter and receiver units to be powered through only one power adapter that is connected to either RX or TX unit.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Connectivity
Technology: WiredNumber of
Input Devices Supported: 1Number of
Output Devices Supported: 1Maximum
Operating Distance: 328.08 ftGraphics
Modes: 4KMaximum
Video Resolution: 3840
x 2160Network (RJ-45): YesHDMI
In: YesHDMI
Out: YesSerial
Port: YesNumber of
Network (RJ-45) Ports: 2Number of
HDMI Inputs: 1Number of
HDMI Outputs: 1Media
Type Supported: Twisted PairTwisted Pair
Cable Standard: Category 6Transmitter
Height: 0.83"T ransmitter
Width: 2.87"T ransmitter
Depth: 4.06"F orm
Factor: Wall MountableTransmitter
Weight (Approximate): 8 ozPackage
Contents: 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m Power Adapter IR Blaster Extension Cable & IR Receiver Extension Cable 4 x Mounting Ears 8 x Screw kit 2 x Terminal Block kit User Reference
Guide Environmentally Friendly: YesEnvironmental
Certification: RoHSCountry of
Origin: TaiwanTAA
Compliant: YesLimited
Warranty: 3 Year
Technology: WiredNumber of
Input Devices Supported: 1Number of
Output Devices Supported: 1Maximum
Operating Distance: 328.08 ftGraphics
Modes: 4KMaximum
Video Resolution: 3840
x 2160Network (RJ-45): YesHDMI
In: YesHDMI
Out: YesSerial
Port: YesNumber of
Network (RJ-45) Ports: 2Number of
HDMI Inputs: 1Number of
HDMI Outputs: 1Media
Type Supported: Twisted PairTwisted Pair
Cable Standard: Category 6Transmitter
Height: 0.83"T ransmitter
Width: 2.87"T ransmitter
Depth: 4.06"F orm
Factor: Wall MountableTransmitter
Weight (Approximate): 8 ozPackage
Contents: 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m Power Adapter IR Blaster Extension Cable & IR Receiver Extension Cable 4 x Mounting Ears 8 x Screw kit 2 x Terminal Block kit User Reference
Guide Environmentally Friendly: YesEnvironmental
Certification: RoHSCountry of
Origin: TaiwanTAA
Compliant: YesLimited
Warranty: 3 Year
