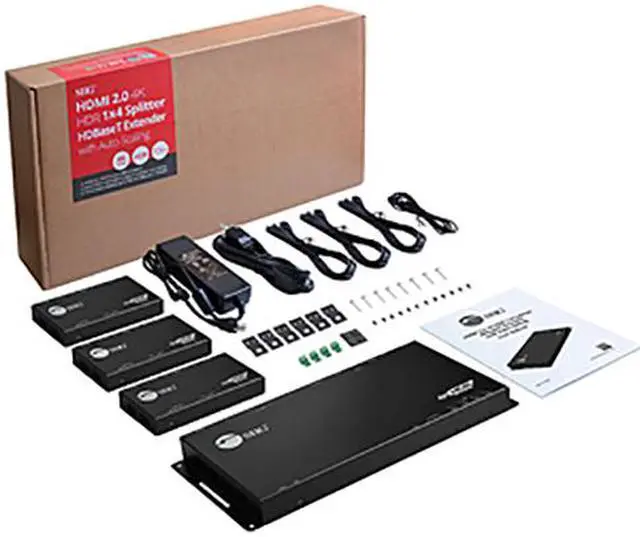

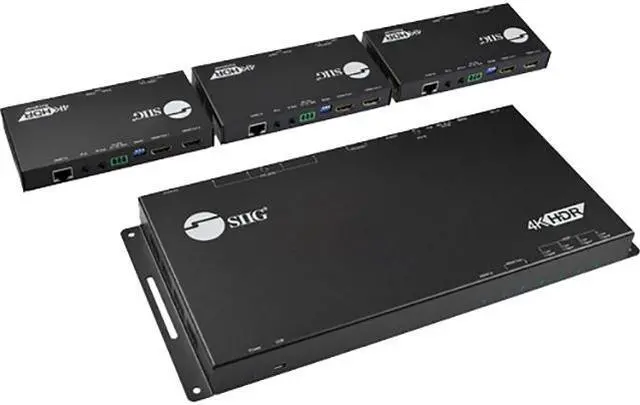

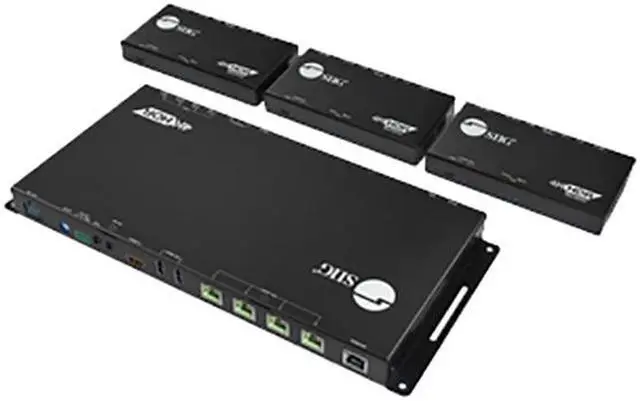

SIIG CE-H24N11-S1 HDMI 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	SIIG
Model	CE-H24N11-S1

Details
Type	HDMI Splitters
Color	Black

Connectors

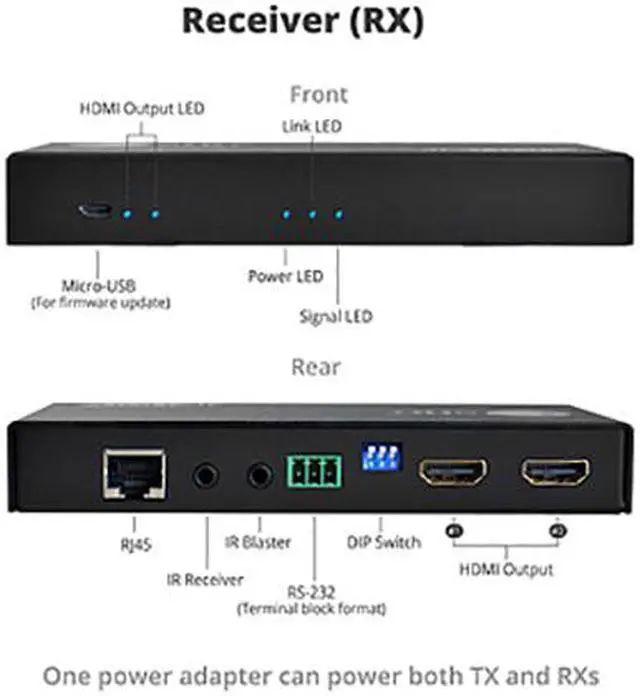

Input Connector	Transmitting unit (TX): 1 x 3.5mm jack, IR, Input 1 x 19-pin HDMI, Type A, Female, Input 1 x RS-232, Input/Output Receiving unit (RX): 1 x 3.5mm jack, IR, Input 1 x 8-pin, RJ45, HDMI signal, input 1 x RS-232, Input/Output

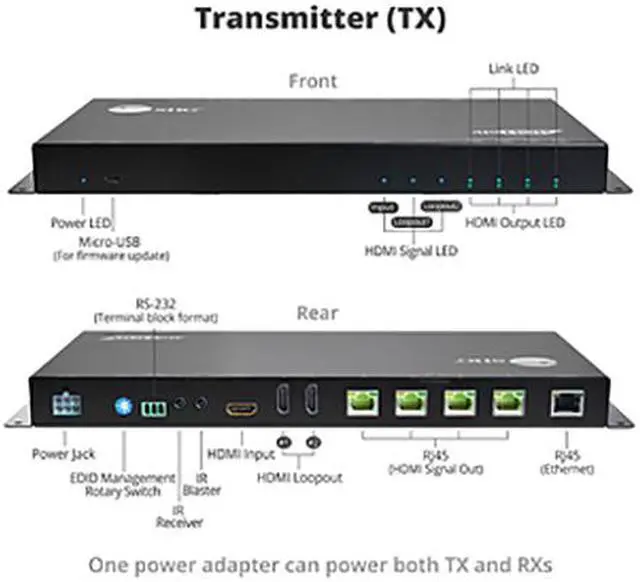

Output Connector	Transmitting unit (TX): 1 x 3.5mm jack, IR, Output 4 x 8-pin, RJ45, HDMI signal, Output 2 x 19-pin HDMI, Type A, Female, Loop-out Receiving unit (RX): 1 x 3.5mm jack, IR, Output 2 x 19-pin HDMI, Type A, Female, Output

Performance
Maximum Resolutions	3840 x 2160

Features

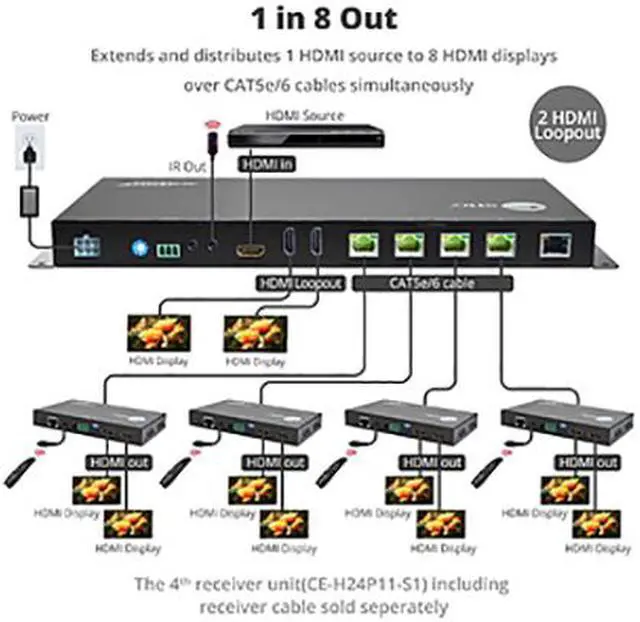

Features	Extends Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit Transmitter unit supports two HDMI loop-outs for addition local display connections Receiver unit supports 2 HDMI outputs for more display connections Note: Additional Receiver (part# CE-H24P11-S1) sold separately. Supports EDID management for increased device compatibility Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency *Notes: Below are limitations associated with 4K content down scaling: - Down scaling to 720p and 480p is not supported - YUV 4:2:2 down scaling is not supported - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported - 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz - The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally

Dimensions & Weight
Dimensions	Transmitting unit (TX): 0.98" x 12.80" x 5.83" Receiving unit (RX): 0.75" x 5.47" x 2.76"
Weight	Transmitting unit (TX): 3.06 lbs. Receiving unit (RX): 0.39 lb.

Additional Information
First Listed on Newegg	March 24, 2022
