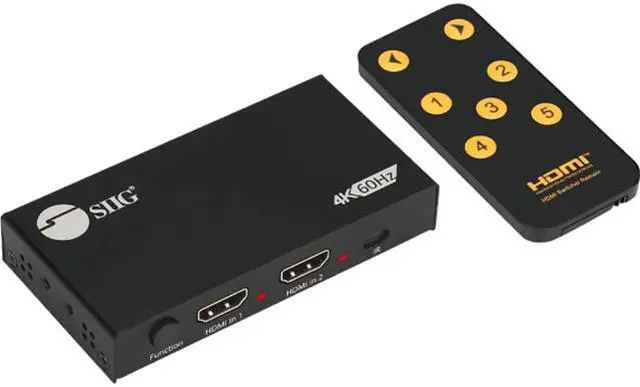

Learn more about the SIIG, Inc CE-H26D11-S1
| Brand | SIIG |
|---|---|
| Model | CE-H26D11-S1 |
| Type | HDMI Switchers |
|---|---|
| Color | Black |
| Ports | 2 |
| Specifications | Compliant with HDMI 2.0, HDCP 2.2/1.4 Video bandwidth: 18Gbps Resolution: 480p/720p/1080i/1080p/ HDR 4K2K@60Hz (4:2:0 10bit) / 4K2K@60Hz (YUV 4:4:4 8bit) Audio: LPCM up to 7.1, Dolby Atmos and DTS-X (Copy EDID) Down scaling: 4K@60Hz (YUV 4:4:4) to 1080p@60Hz. Note: 4K@60Hz (YUV 4:2:2) down scaling is not supported Display mode (output): Mirror Housing: Metal EDID management (controlled by the included Remote Control): Auto EDID: 4K@60Hz Copy EDID: The EDID of the monitor connected to HDMI Out 1 is used for the connected displays Mixed EDID: The EDID of the monitor with the lowest resolution/audio capability is used for the connected displays Power Adapter: Input: 100-240VAC, 50/60 Hz Output: 5V/1A Environmental conditions: Operating temperature: 23 to 104 degrees F Storage temperature: -4 to 140 degrees F Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards: FCC, CE, RoHS |
| Input Connector | 2 x 19-Pin, HDMI, Type A, Female, Input |
|---|---|
| Output Connector | 2 x 19-pin, HDMI, Type A, Female, Output 1 x Push button for Switch function & EDID Selection 1 x 5-pin Micro USB, Female, Power & F/W update 1 x 3.5mm jack, Stereo audio, Output |
| Features | Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors High quality materials and metal housing extends the stability and durability, allowing for long hours of operation Built-in EDID management and firmware update mechanism further expands compatibility EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes Individual LED indicators for power and EDID mode allow for easy and quick operating status Compatibility Notes: 4K@30Hz monitors will display in 1080p @60Hz resolution Does not support 4K/60Hz YUV 422 down scaling The 2 HDMI outputs mirror each other, extended displays are not supported |
|---|
| Dimensions | 0.67" x 2.05" x 3.86" |
|---|---|
| Weight | 0.33 lb. |
| Package Contents | 2-Port HDMI 2.0 4K HDR Splitter / Switcher Power adapter USB A to Micro-B cable Remote control Mounting kit Quick Start Guide |
|---|
| First Listed on Newegg | January 12, 2021 |
|---|
