SIIG ID-DS0711-S1 2-Port RS-232/422/485 Serial over IP Ethernet Device Server

Be the first to review this product...

ID-DS0711-S1
Device Server

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

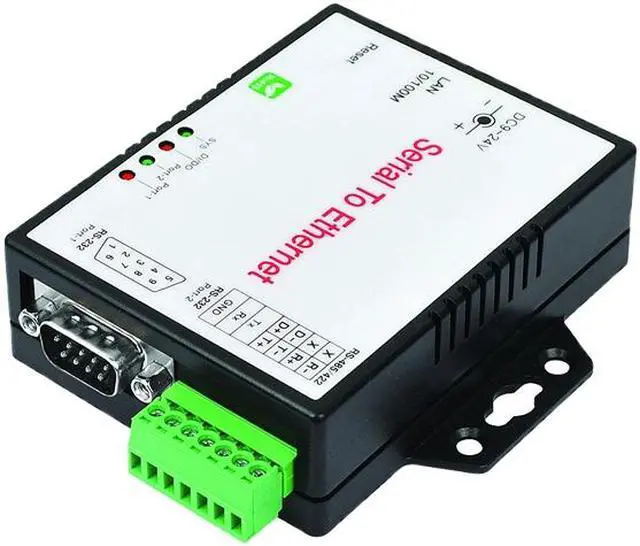

SIIG's 2-Port RS-232/422/485 Serial over IP Ethernet Device Server is designed to let users share up to 2 serial devices within the IP network. Its easy-to-configure Web Server Management application allows users to remotely control the serial devices via TCP/IP protocol. 15KV ESD protection safeguards both the unit and its connected devices to ensure seamless performance. Built-in wall mount mechanism makes integration convenient and organized. It is a versatile and cost-effective solution to share serial devices among users over the network, saving the cost to equip dedicated device for individual user.

Model
Brand	SIIG
Model	ID-DS0711-S1

Details
Type	Device Server
Specifications	Chipset ID: ARM Cortex-M3 32-bit processor , 50MHz RAM: 64K Bytes SRAM ROM: 256K Bytes Flash ROM Ethernet: - Port Type : RJ-45 Connector - Speed: 10/100 Mbps (Auto Detecting) - Protocols: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, TELNET - Mode: TCP Server/TCPIP Client/UDP Client - Setup: HTTP Browser Setup - Protection: Built-in 1.5KV Magnetic Isolation Serial: - Ports: 1x RS-232 & 1x RS-422/485 (auto-detect) - Speed: 300 bps - 115.2 Kbps - Parity: None, Odd, Even, Mark, Space - Data Bit: 5, 6, 7, 8 - Stop Bit: 1, 2 - RS-232 signals: Rx, Tx, GND, RTS, CTS, DTR, DSR, DCD - RS-422/485 (auto-detect) signals: -- RS-422: Rx+, Rx-,Tx+, Tx- (Surge Protection) -- RS-485: Data+, Data- (Surge Protection) -- Built-in RS422/RS485 Pull High/Low Resistor Digital I/O Port: Digital I/O * 8 TTL 15KV ESD for all signals Watch Dog Function Interfaces/Ports: - Ethernet LAN Port - DC Jack - 1x RS-232 - 1x RS 422/485 (auto-detect) Power Requirements:Input voltage: DC 9–12V , 500mA Environmental conditions: - Operating Temperature: 0°C to 70°C (32°F to 158°F) - Storage Temperature: -10°C to 85°C (-14°F to 185°F) - Storage humidity: 10 % to 90% RH - Operating Humidity: 10 % to 90% RH Certifications/Standards: FCC, CE, RoHS

Features
Features	ARM Cortex-M3 32-bit high performance CPU Auto reset on Idle detection Easy to use Web Server Management 115.2Kbps data throughput Power output: 12V, 500mA Built-in 1.5KV Magnetic Isolation 15KV ESD for all signals

Additional Information
First Listed on Newegg	September 18, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
