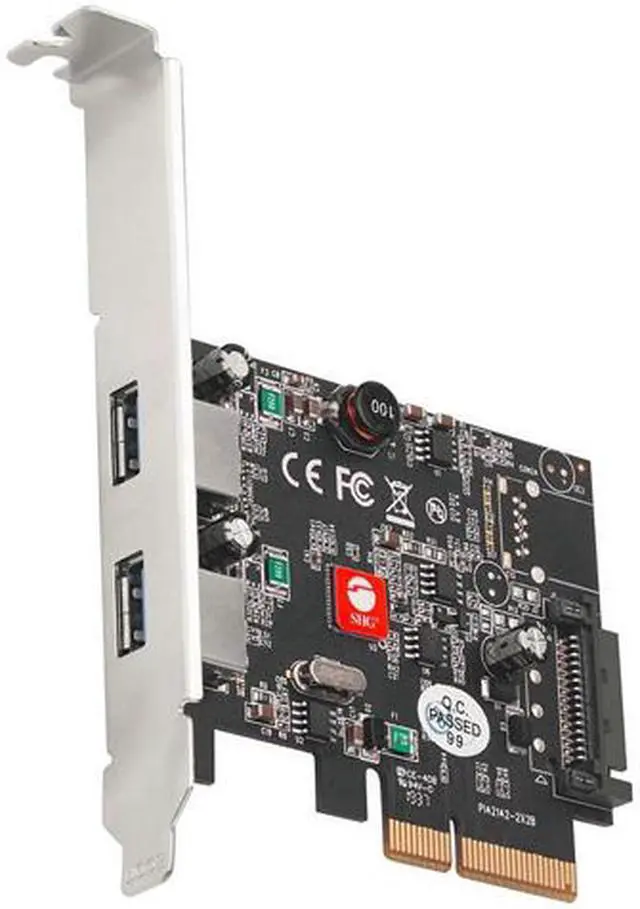

SIIG JU-P20912-S2 USB 3.1 2-Port PCIe Host Adapter - Type-A
- PCI Express to USB Card
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the SIIG, Inc JU-P20912-S2
| Brand | SIIG |
|---|---|
| Model | JU-P20912-S2 |
| Type | PCI Express to USB Card |
|---|---|
| External USB Ports | 2x USB Ports |
| Specifications | Chipset: Asmedia ASM3142 Compliance: USB 3.1 Gen 2 and PCI Express 3.0 specification Form factor chassis installation: Full size and low-profile Bus connector: Four lanes (4x) PCI Express USB data transfer rate: 10Gbps / 5Gbps / 480Mbps / 12Mbps / 1.5Mbps Power output: Up to 900mA, each USB port Power consumption: 3W (max) Connector: - 1 x 15-pin, SATA power connector, Input - 2 x 9-pin, USB 3.1 Gen 2, Type A, Female, Output |
| Features | Complies with PCI-Express 3.0 standard Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0 Each USB port provides up to 900mA power output to better support the power consumption of your connected device Each USB port features independent over-current protection to further protect your device Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports Dual-profile design installs into different form factor system chassis with the included full and low profile brackets |
|---|
| First Listed on Newegg | November 16, 2020 |
|---|
