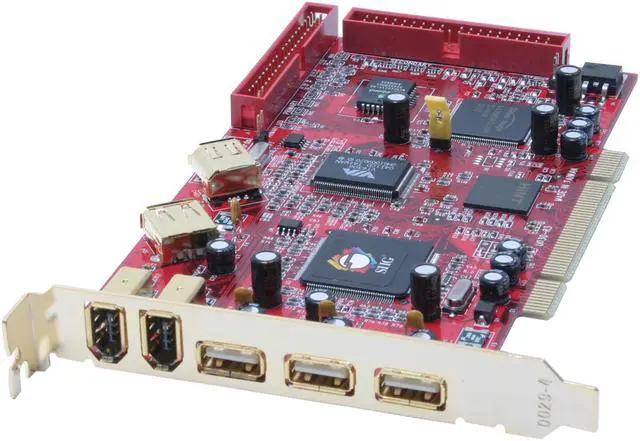

| Features | Fully compliant with PCI Plug-n-Play 2.2

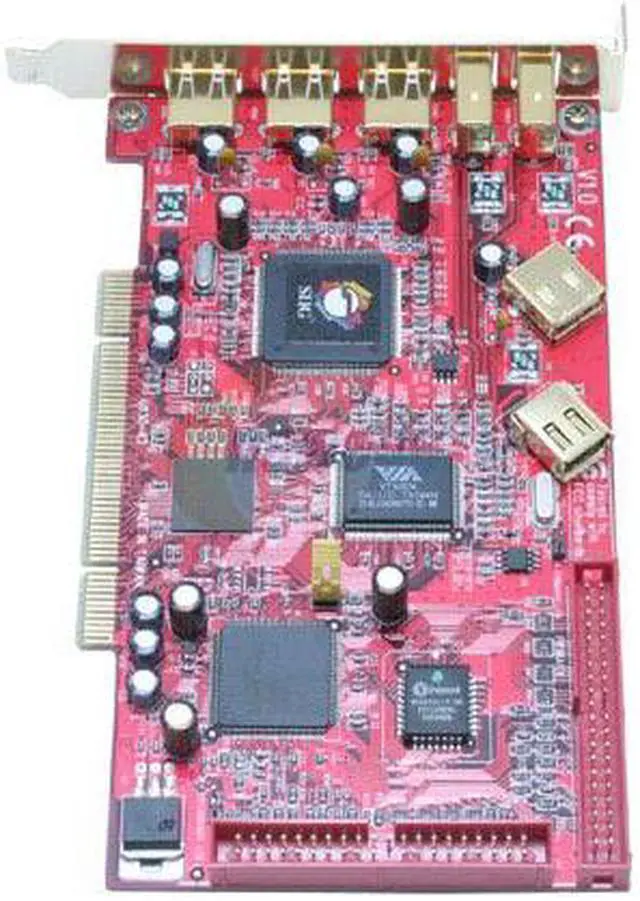

Chip: 1394-VIA, USB-NEC, ATA133-SiI
USB 2.0 Interface:
Hot-swapping feature allows you to connect/disconnect devices without first turning your system off
Works with various types of USB devices including hubs, PC video cameras, printers, scanners, CD-R/Ws, DVD-RAMs, CF/SM/SD/MMC/Memory Stick memory card readers, removable drives, digital cameras, and more
1394a (FireWire) Interface:
IEEE 1394-1995, P1394a (rev. 1.1) and OHCI Interface specification 1.0 compliant
Hot-swapping feature allows you to connect/disconnect devices without first turning your system off
Works with various types of 1394 devices including DV camcorders/cameras, hard disk drives, CD-RWs, DVDRAMs, removable drives, scanners, and other audio/video devices
UltraATA 133 RAID Interface:
Provides backward compatibility with ATA 100/66/33 and EIDE/Fast ATA-2 hard disk drives
Supports RAID 0, RAID 1 and RAID 0+1 and allows RAID set to act as bootable drive
Built-in 256-byte FIFO per ATA channel for faster data transfer
Allows HDDs with different sizes to be configured in a RAID set
Functions as regular controller when RAID function is not configured
System GUI monitoring utility to manage RAID arrays
Supports Ultra DMA (0-6) and Multi-word DMA mode (0-2)
Supports up to four devices including hard disk drives, DVD/CD-ROM/Writers, LS-120, tape, MO, and other ATAPI devices
Supports spare drive feature to easily restore failed hard disk in an mirrored array
Bus mastering reduces I/O processing load on CPU to increase system performance
CRC error-checking provides data verification and achieves flawless data transfer |
|---|
