RM-1U1043HE12

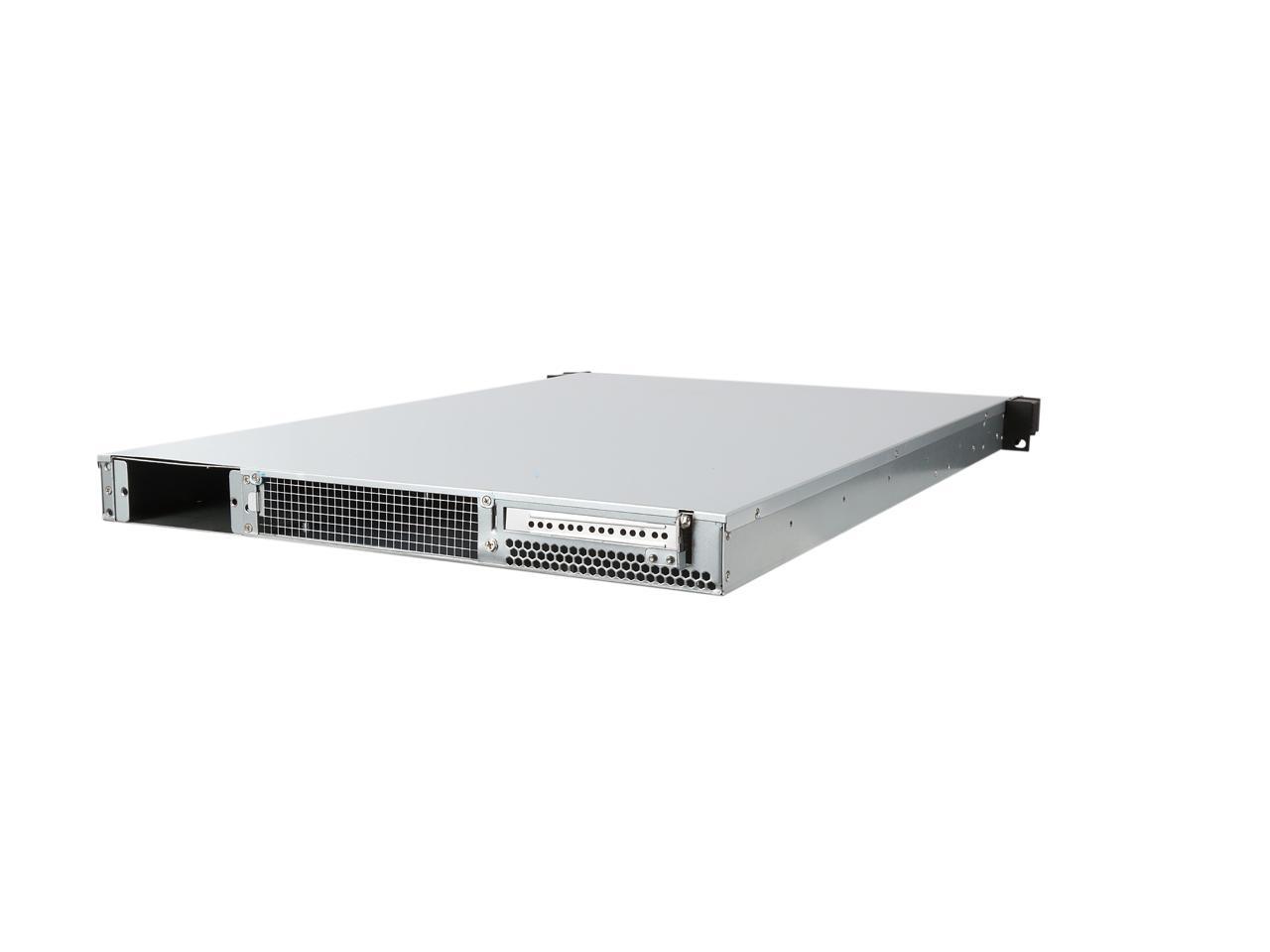

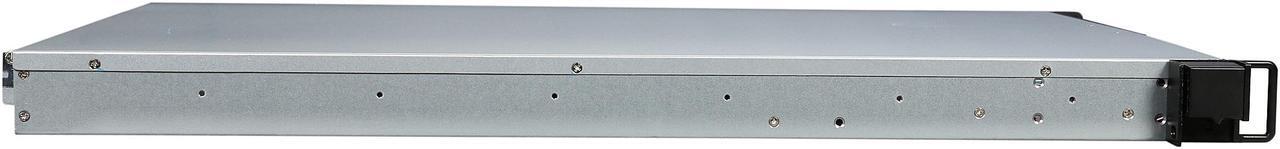

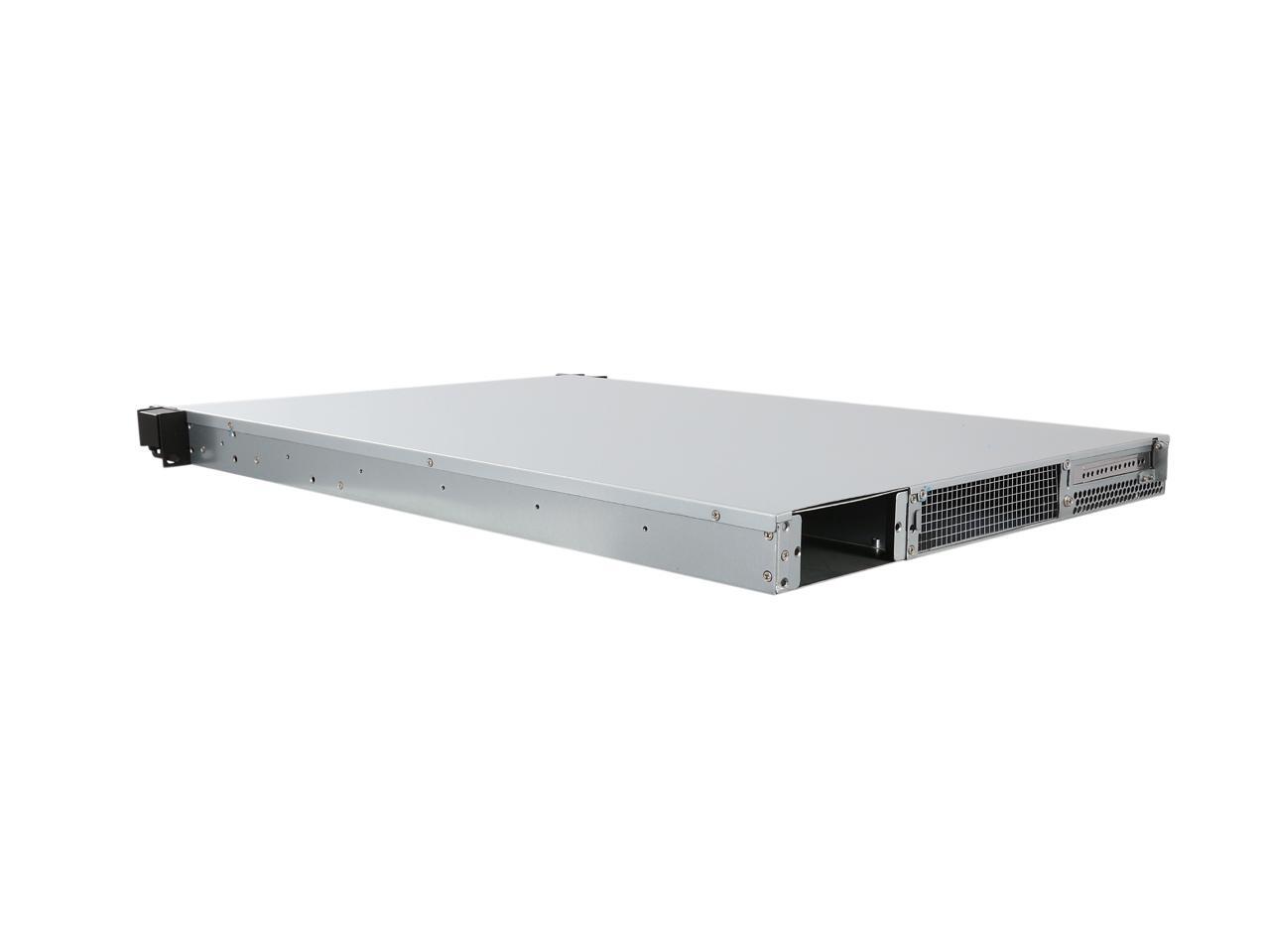

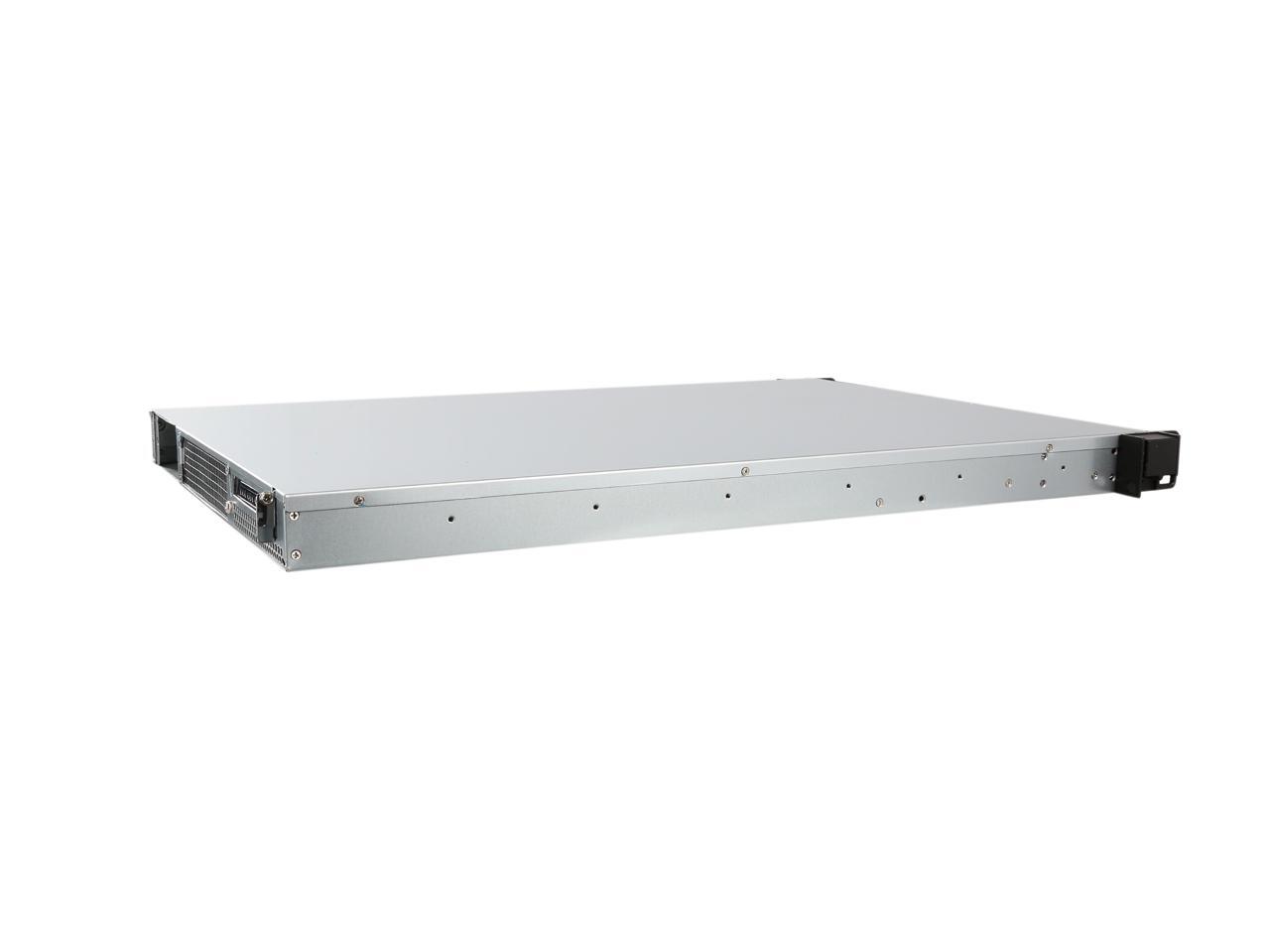

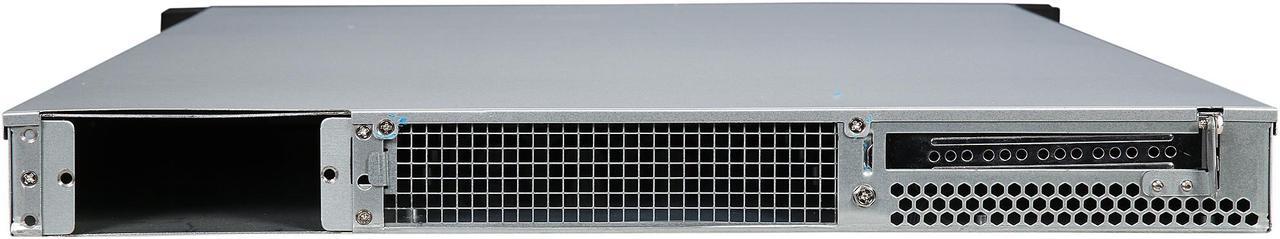

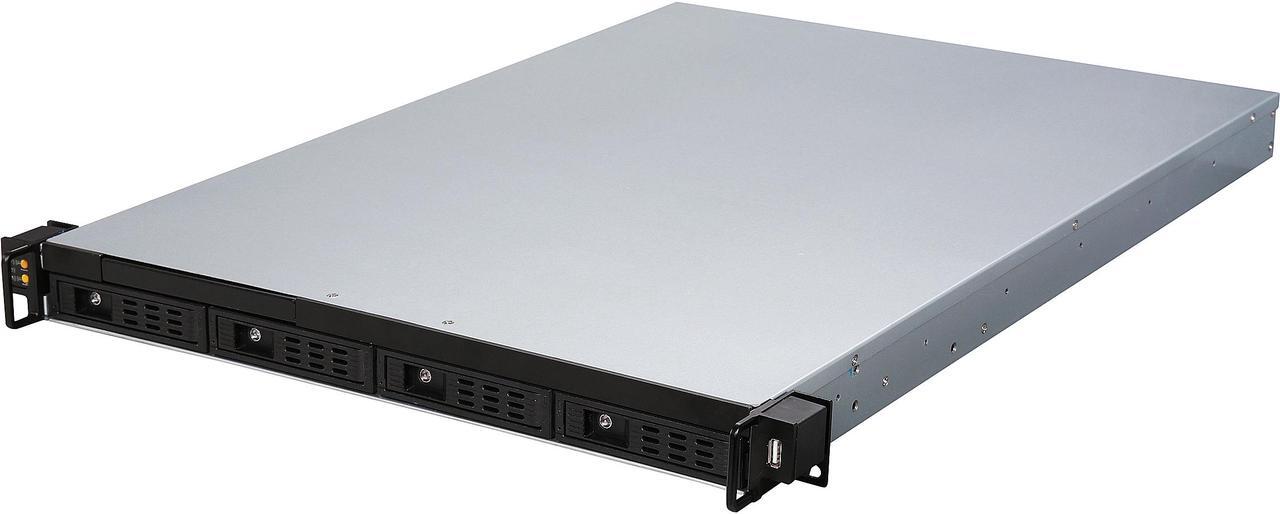

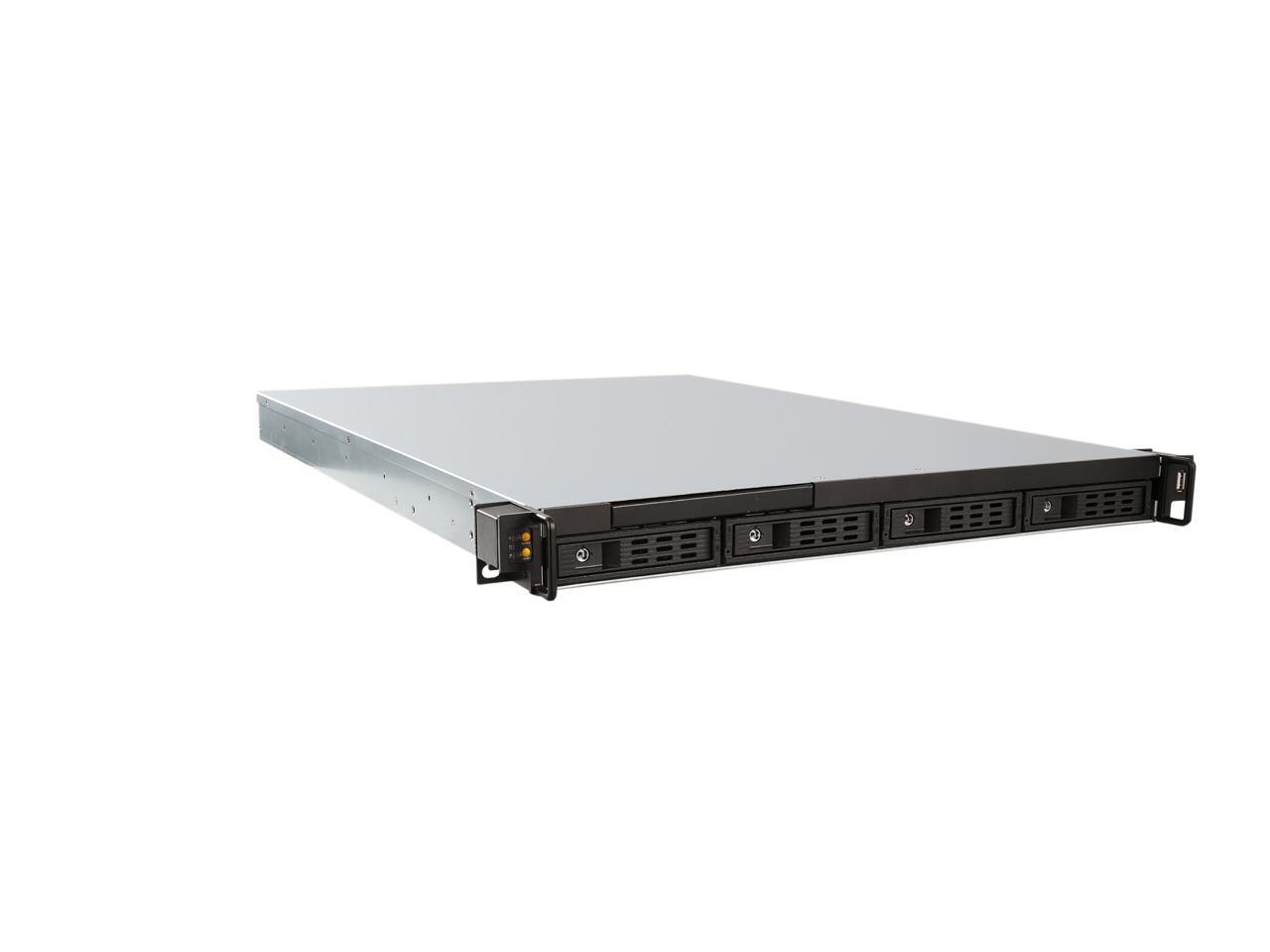

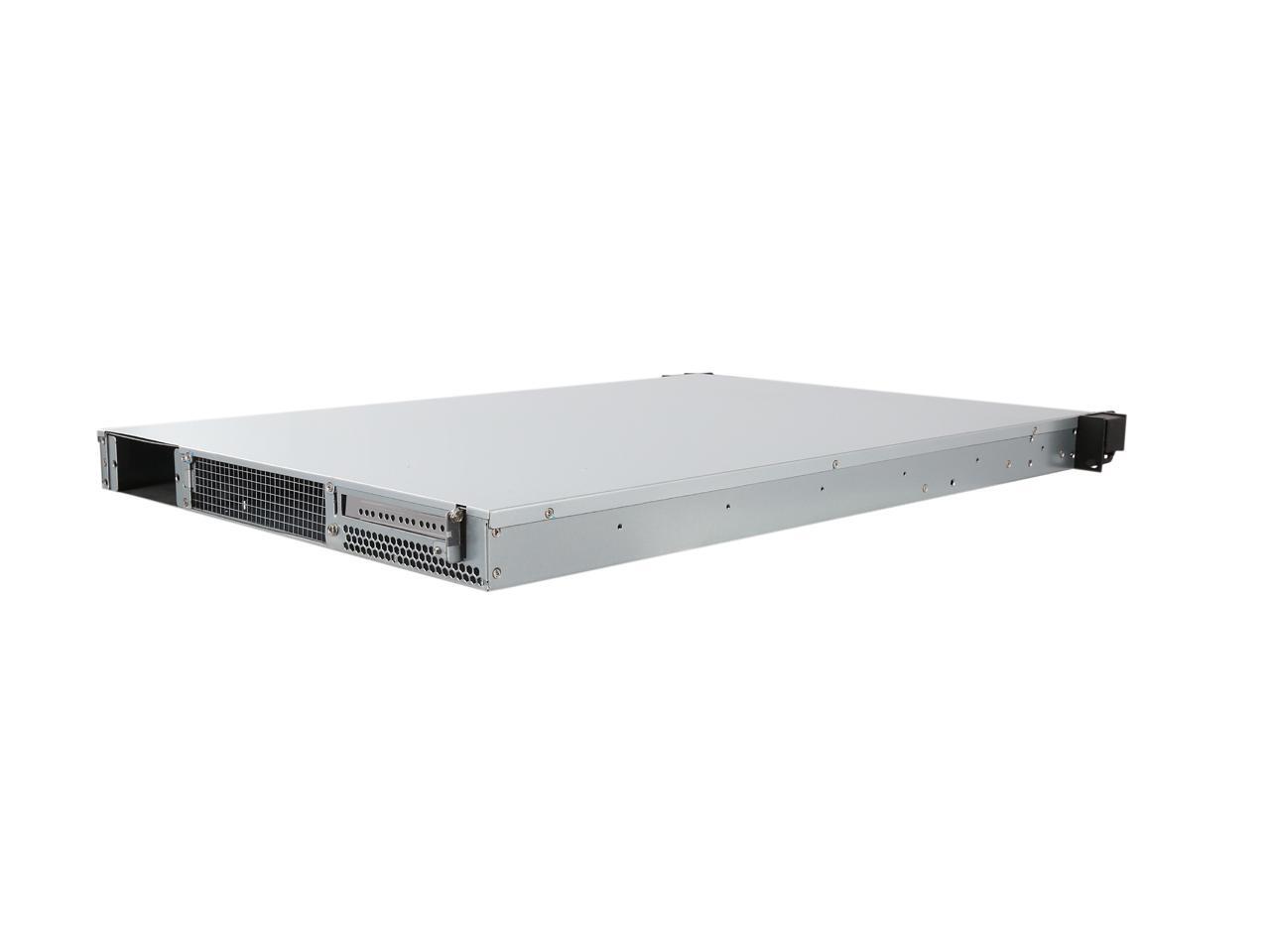

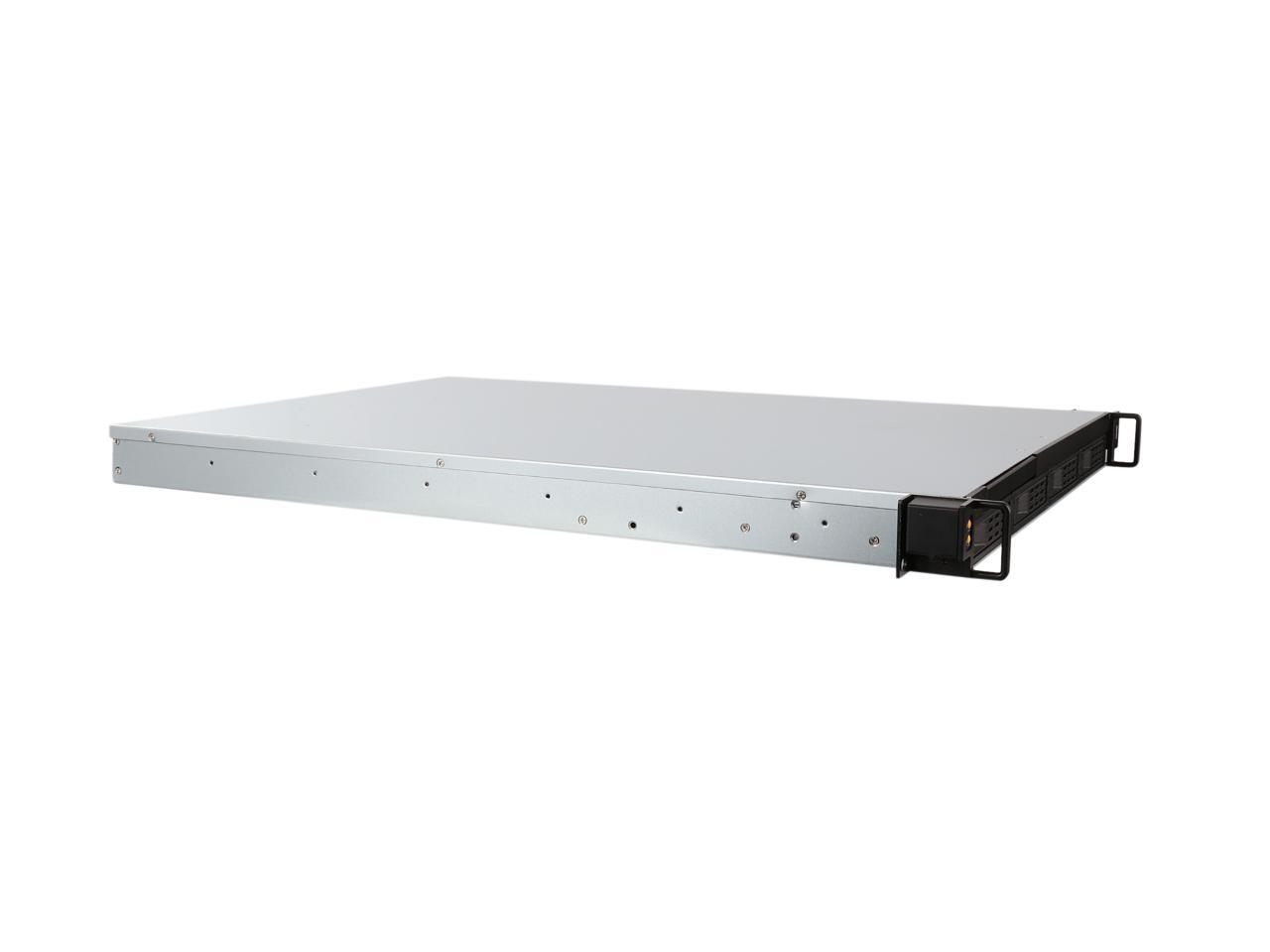

This 1U rackmount server chassis lets you install a motherboard with size ranging from mini-ITX to E-ATX. A 4-Port 12Gb/s backplane supports four hot-swappable SSDs/HDDs. Six 40mm fans deliver optimal airflow to keep the whole system cool for stable performance.
Key Features
- Supports a standard ATX form factor motherboard, such as mini-ITX (6.7"x6.7"), Micro ATX (9.6"x9.6"), ATX (12"x9.6"), or E-ATX (12"x13")

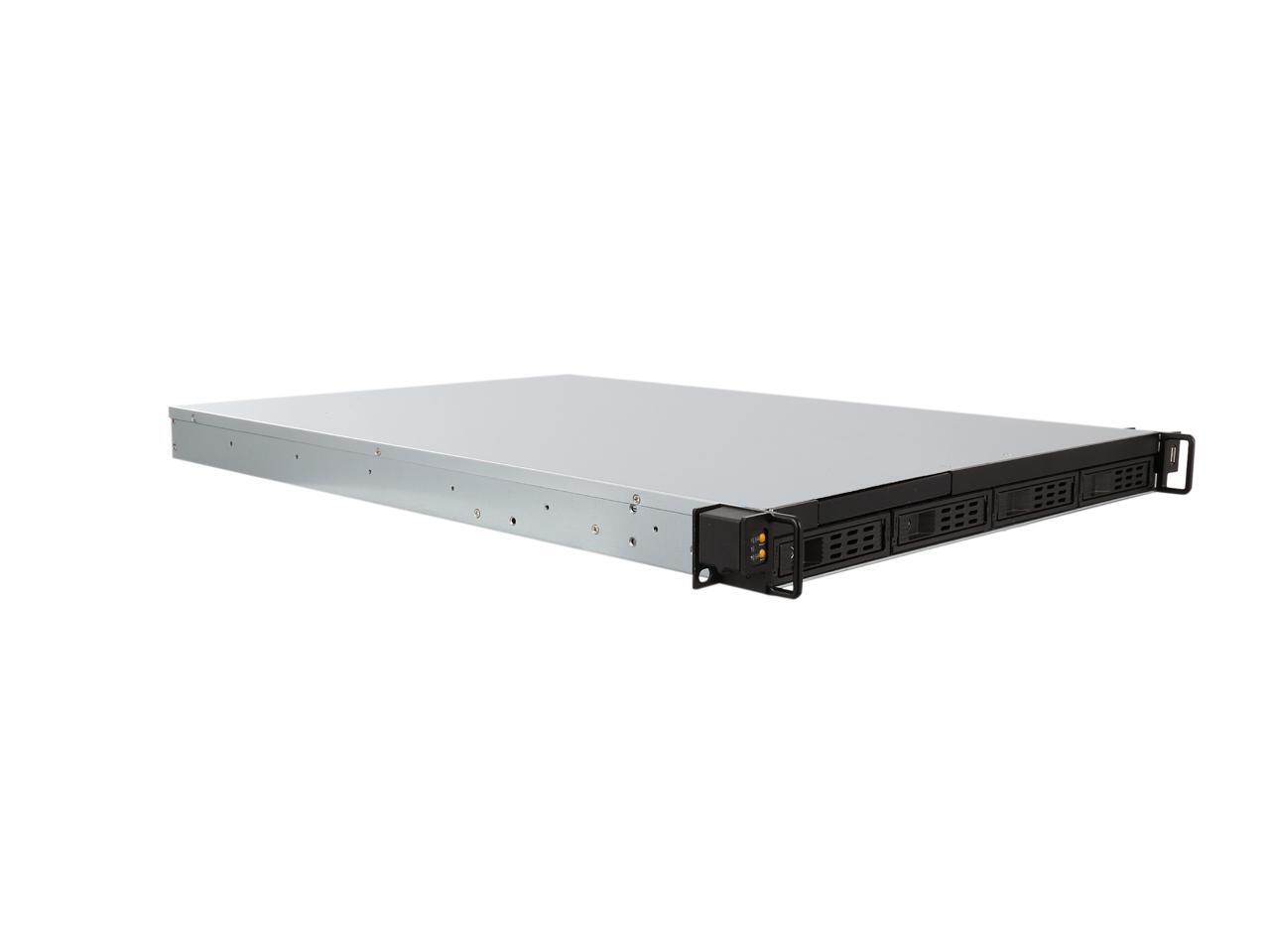

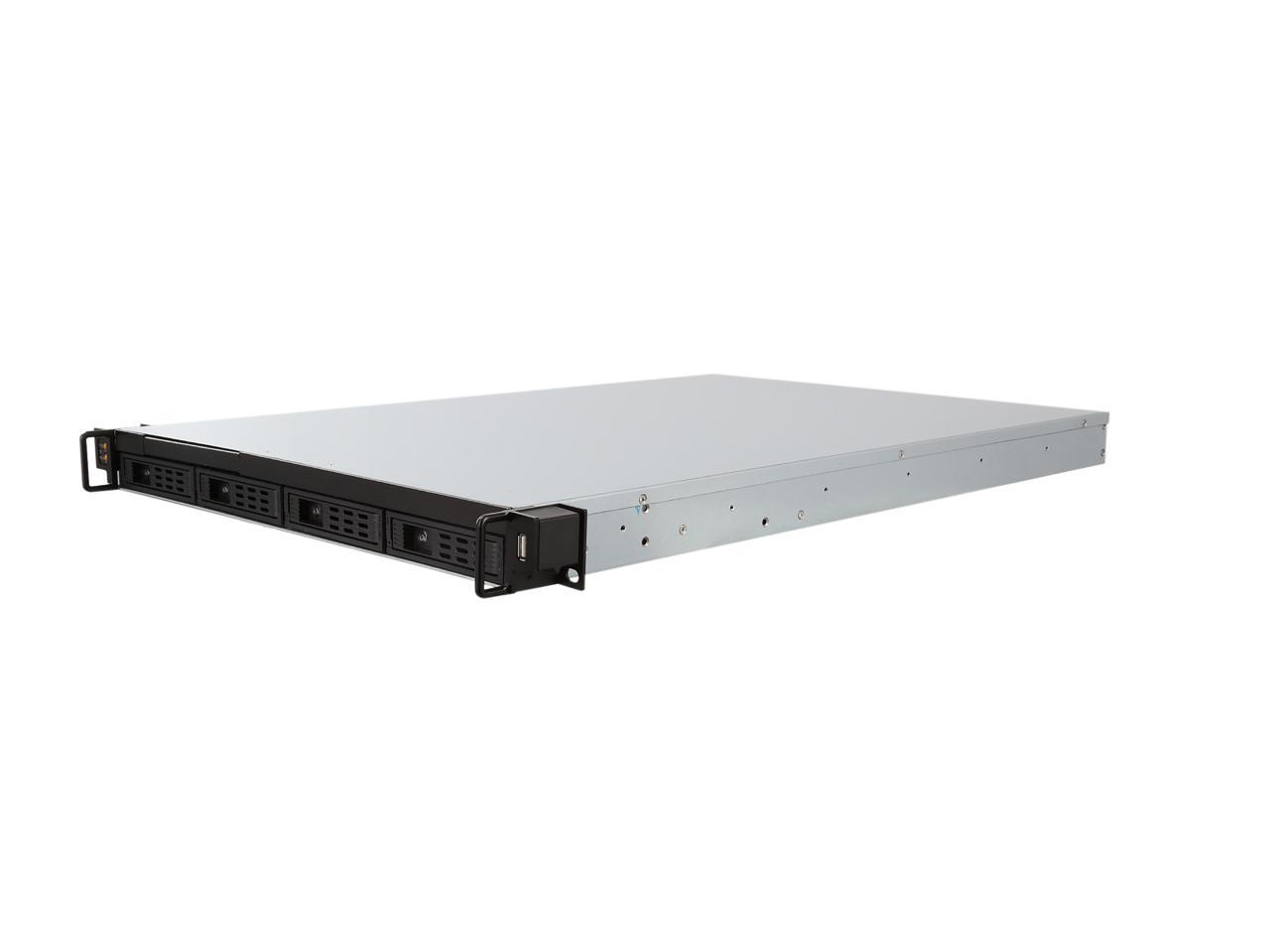

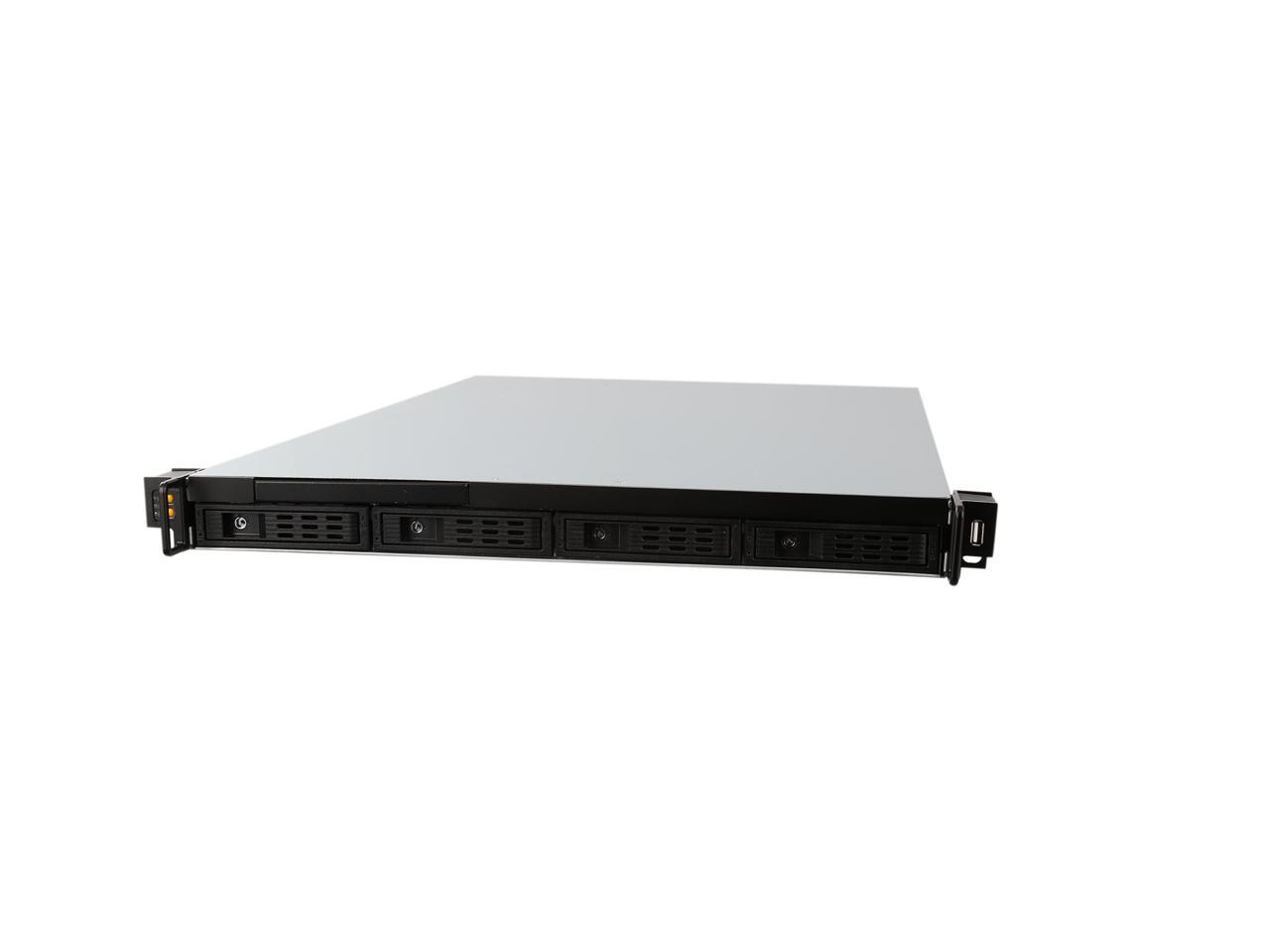

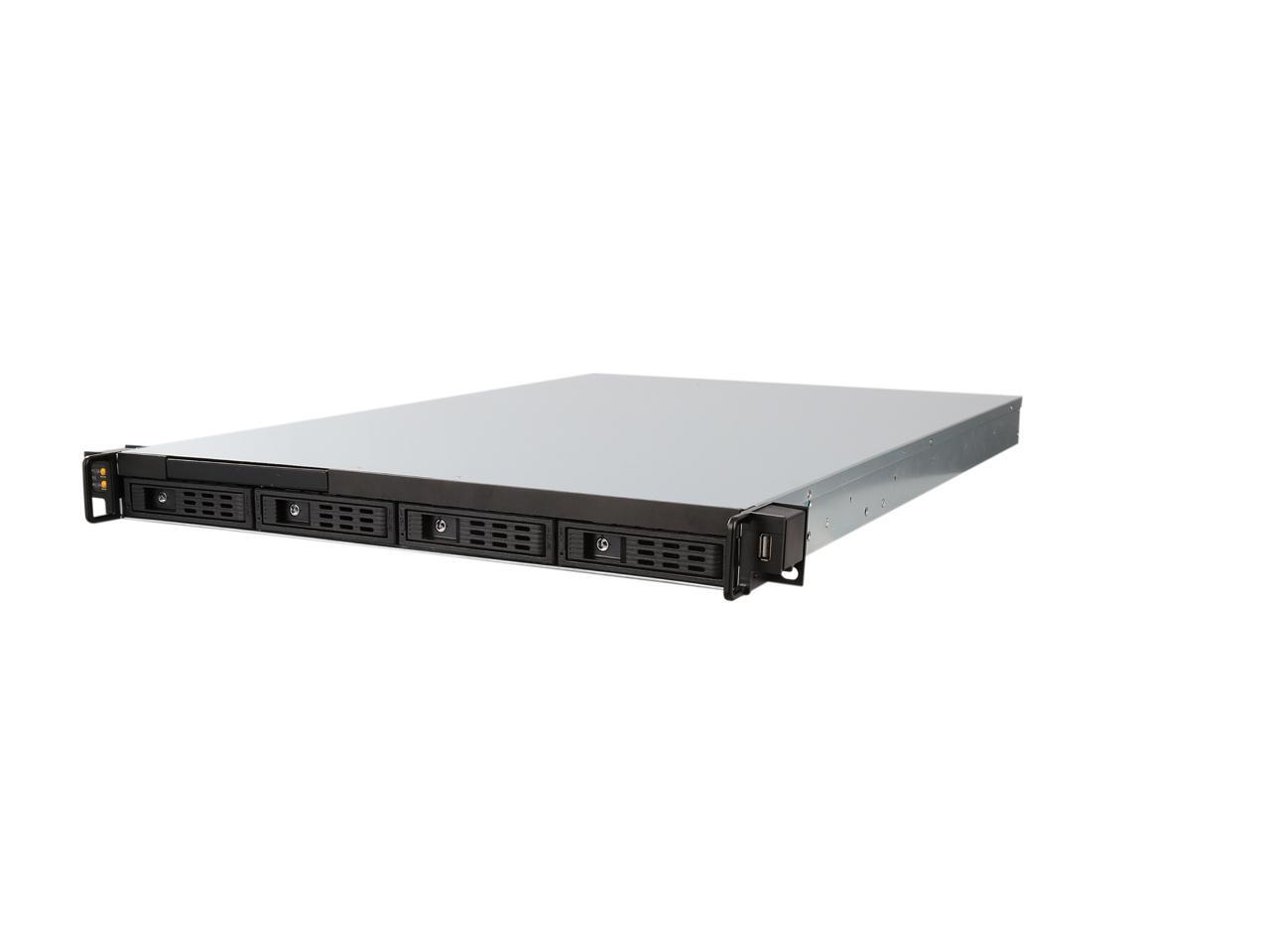

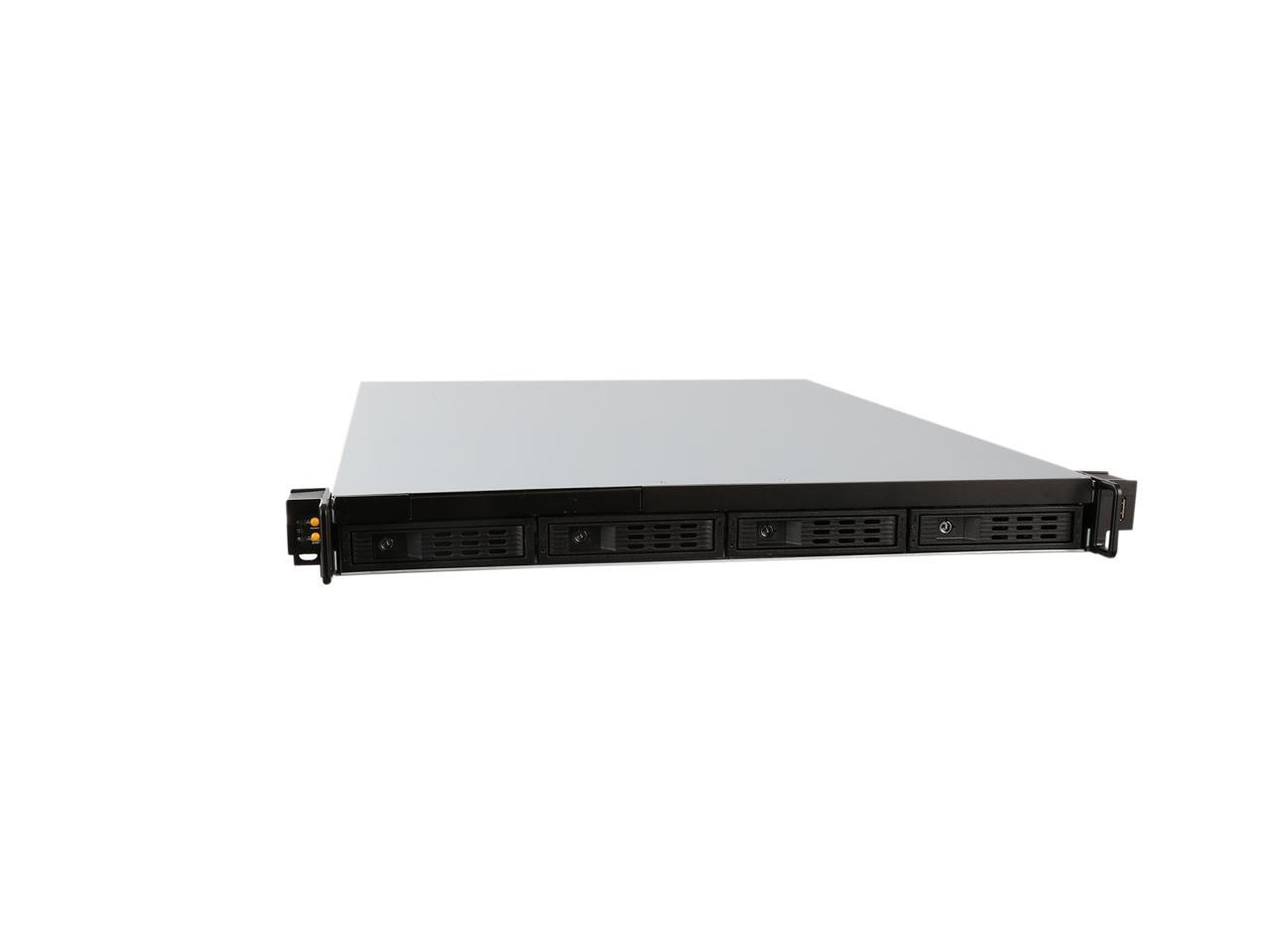

- Features a 4-Port 12Gb/s backplane that supports up to 4 hot-swappable SSDs/HDDs

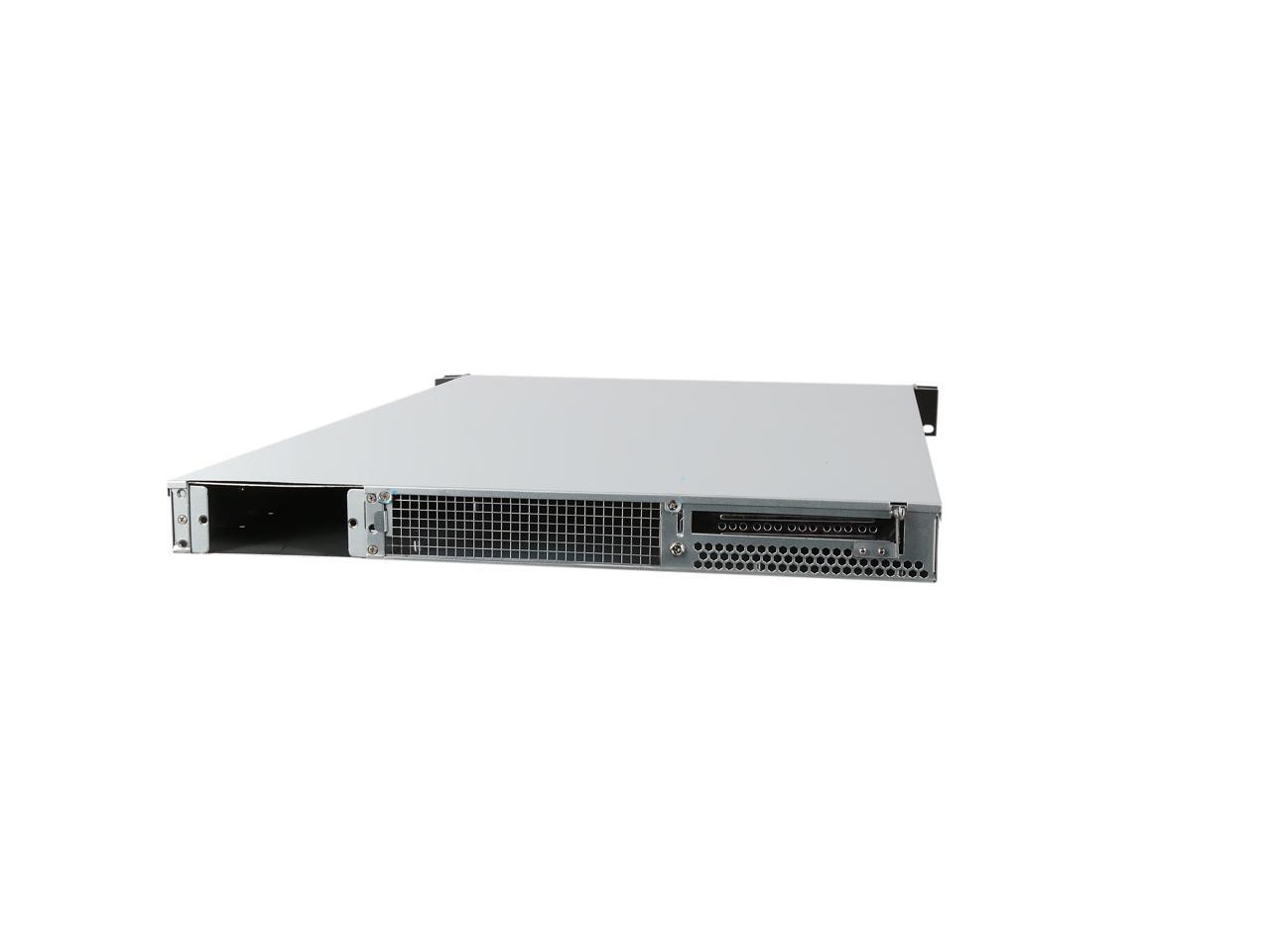

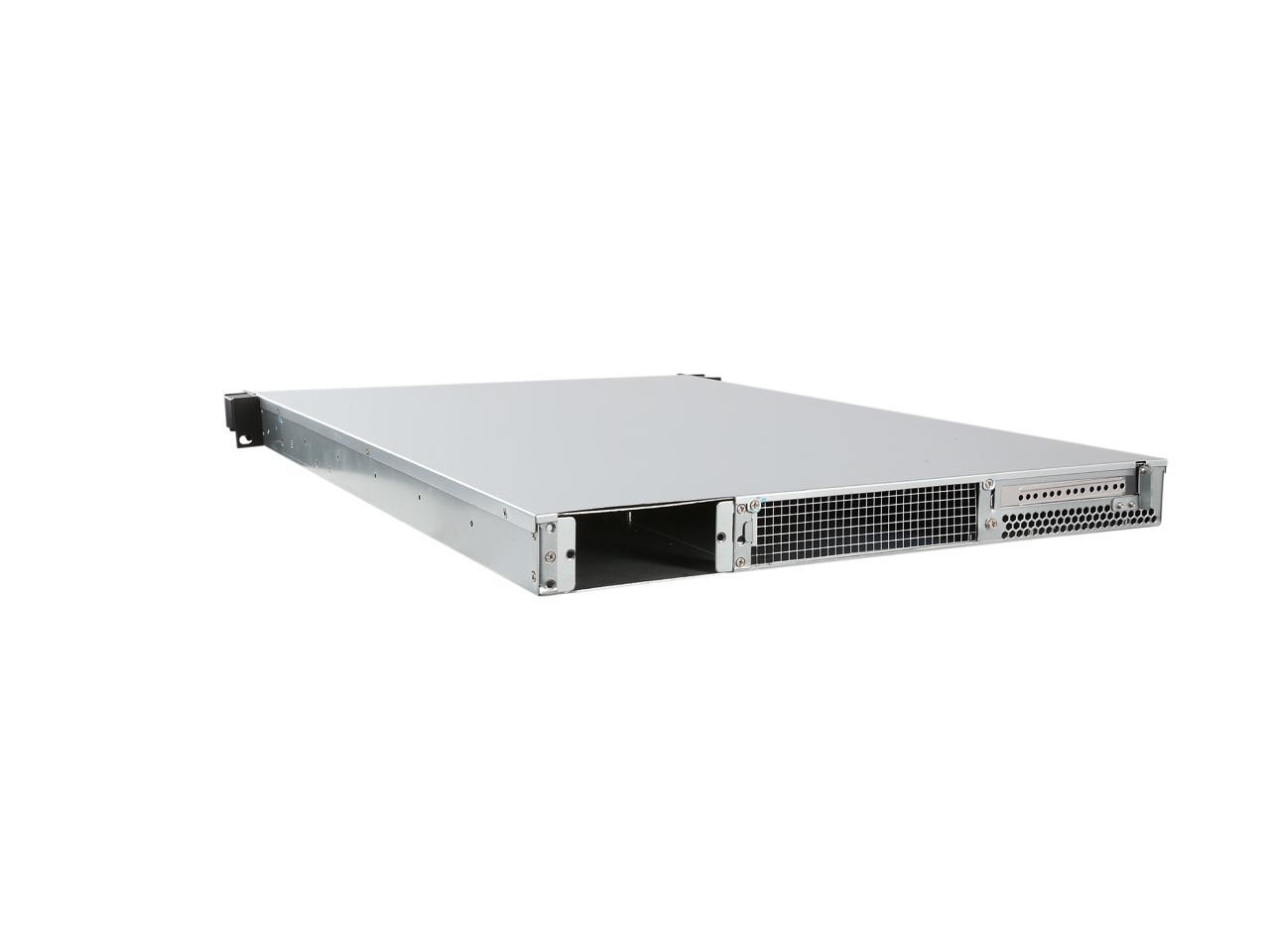

- Supports 1U redundant, 1U single or Flex ATX power supply
- Features one external slim ODD bay and two Internal 2.5" HDD bay
- Feature 1 x USB 2.0 port and Power On/HDD Activity/LAN1/LAN2/Warning LED Indicators

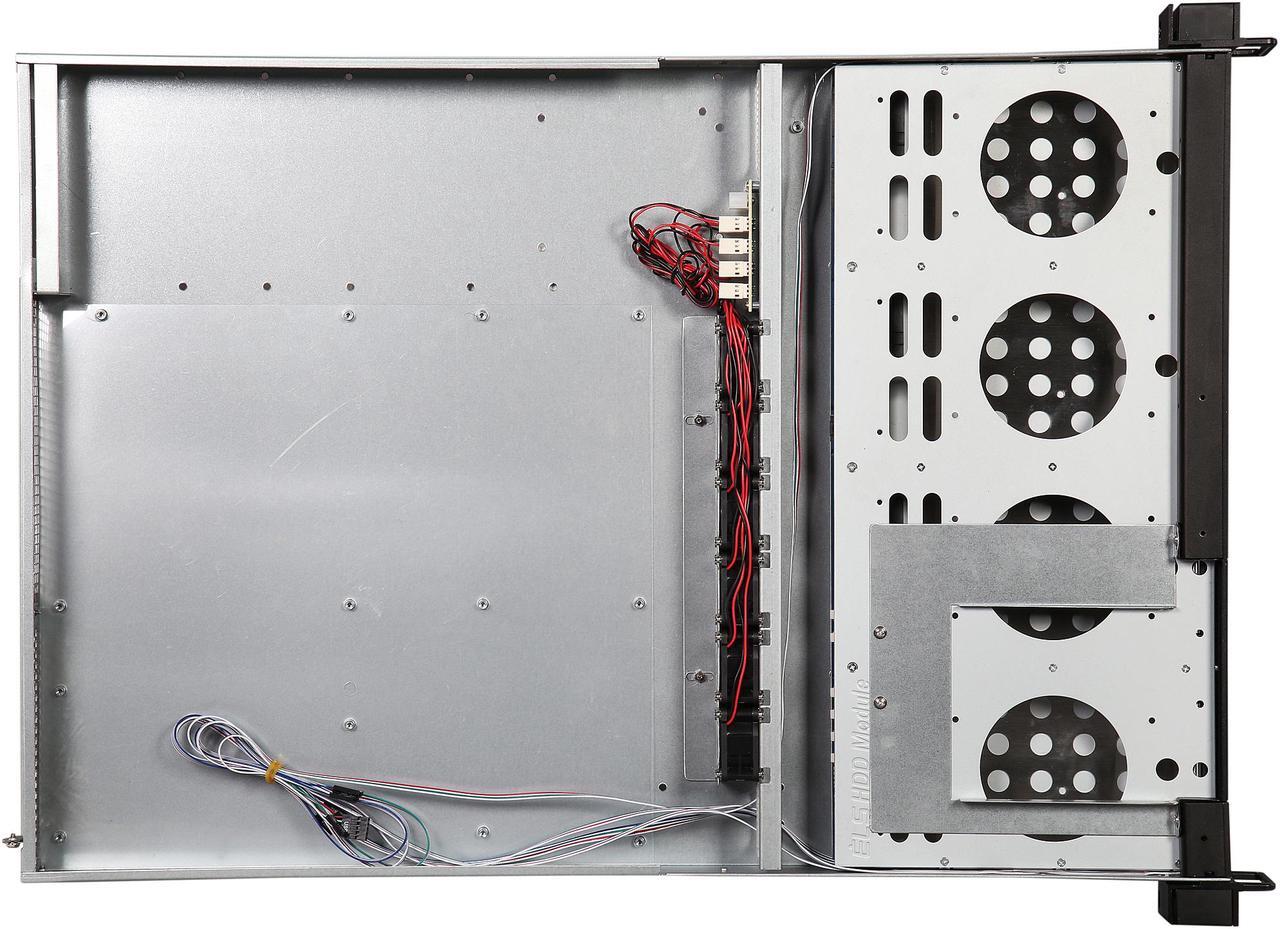

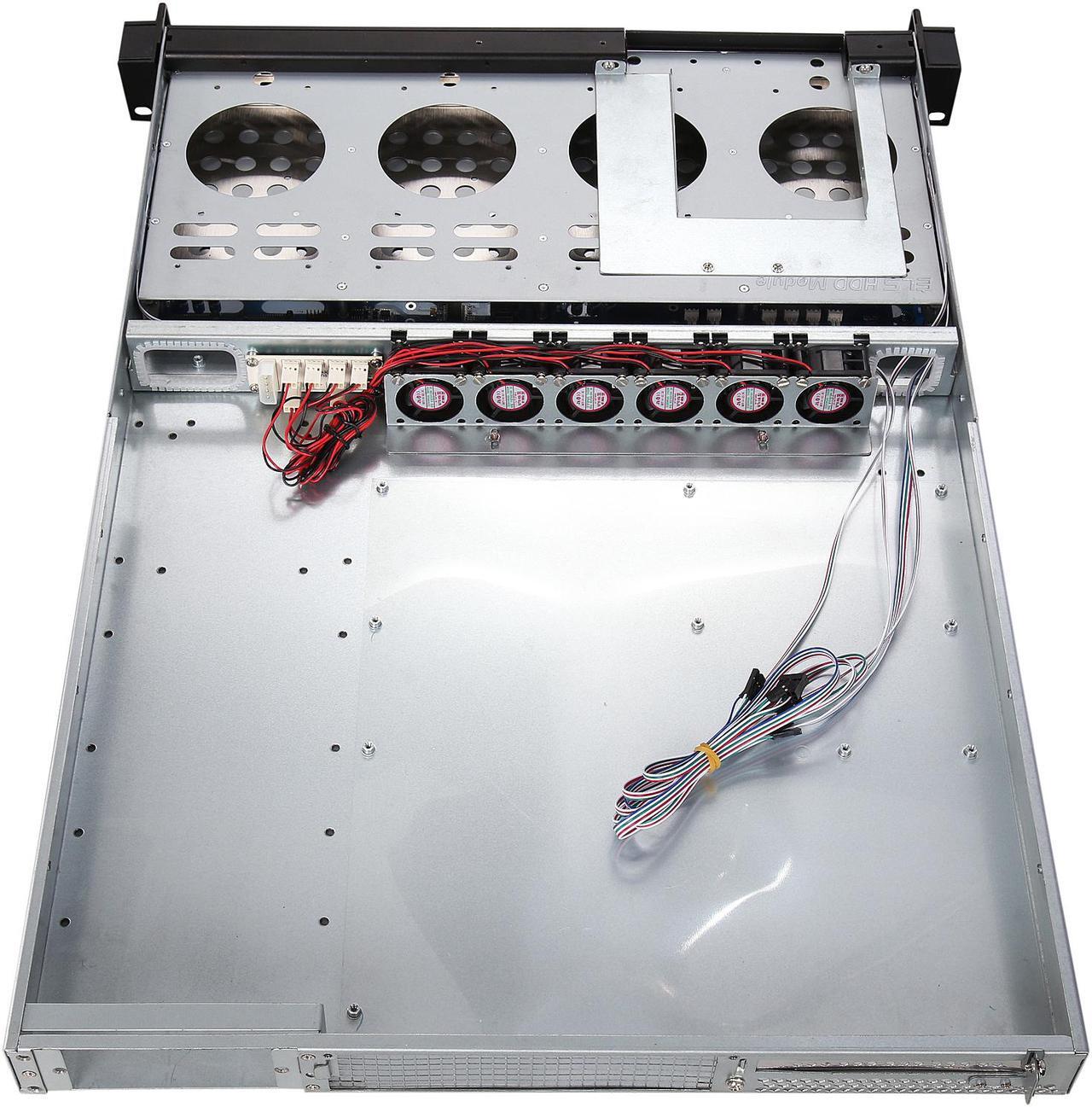

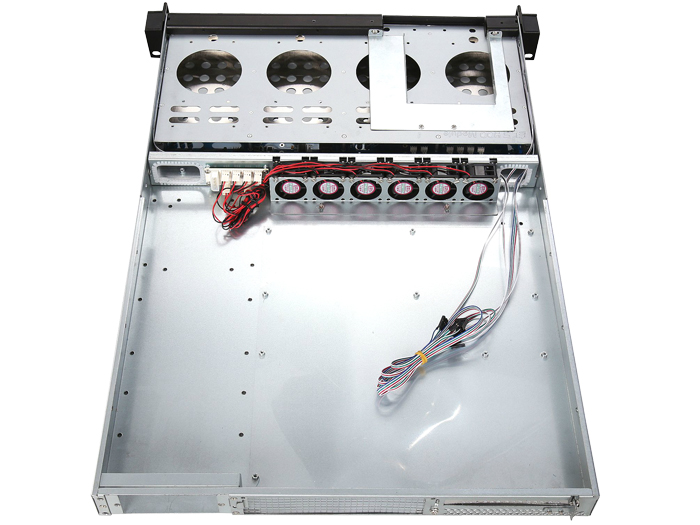

- Features six 40mm fans for efficient cooling
12Gb/s Backplane
- Support up to 4 hot-swap 3.5" or 2.5" SSDs/HDDs that use SAS (III, II, I) or SATA (III, II, I) interface
- Features 1 x Mini-SAS HD SFF-8643 (4-Port)

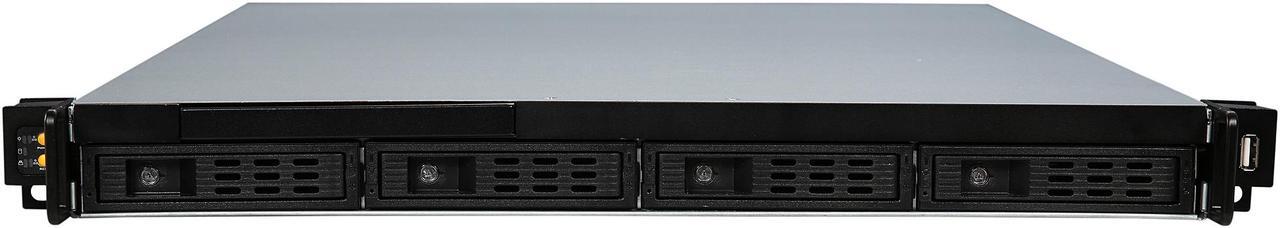

- Features 4 hot-swap 3.5"or 2.5" HDD cages
- Backplane was designed installed in horizontal position in order to have max airflow
3.5" or 2.5" HDD Caddy
- Compatible with a 3.5" or 2.5" SSD/HDD
- Features anti-vibration and EMI grounding spring fingers
- Features 2-segment metal lock
- Features optical lightpipe LED indicator
