Question 1

I can't seem to google "Super-slim mini-its" as a standard motherboard form factor. The form factor description is confusing.

What is the official system board size requirement ? is it:
1) mini-itx
or
2) thin mini-itx

Accepted Answer

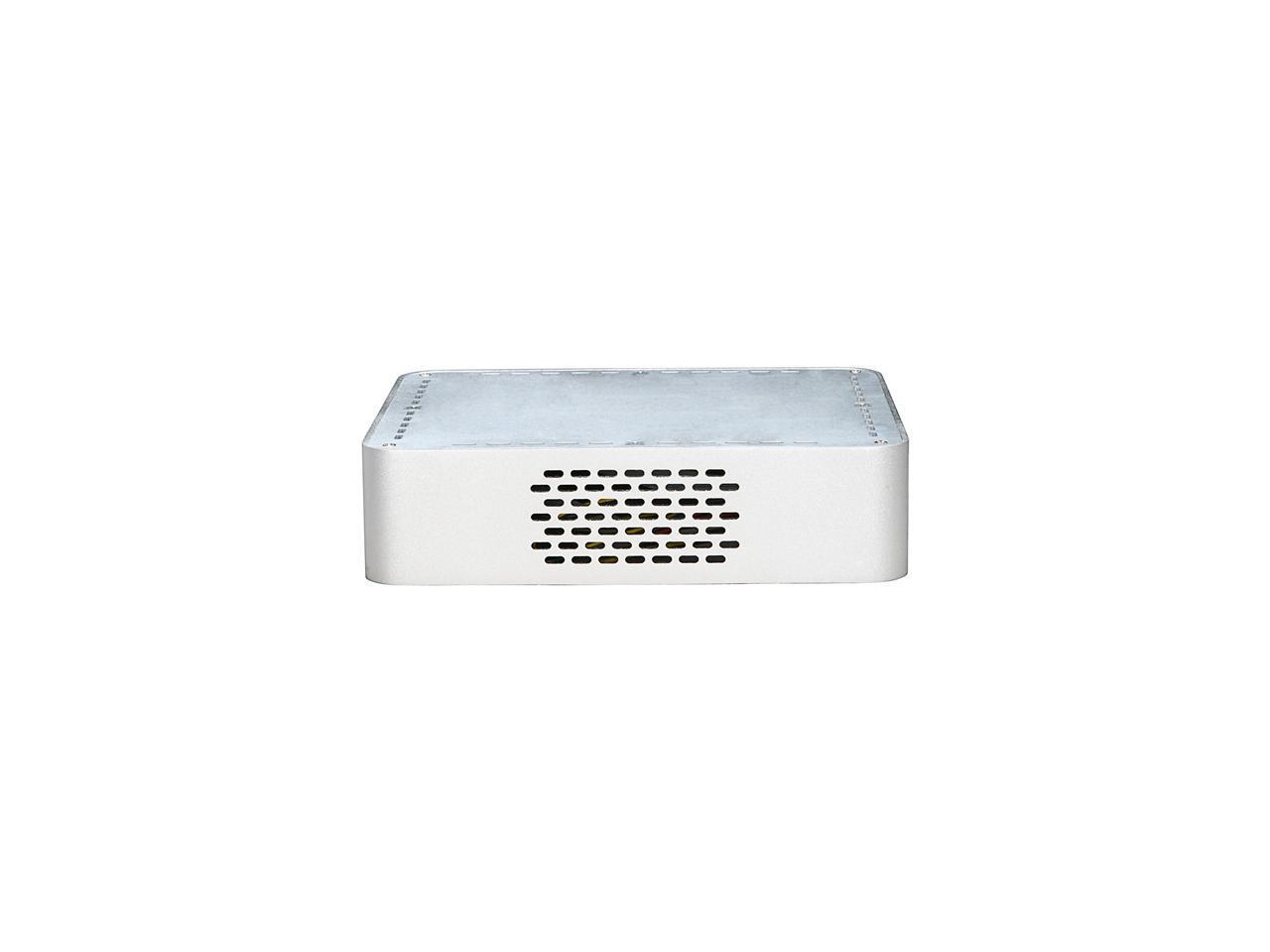

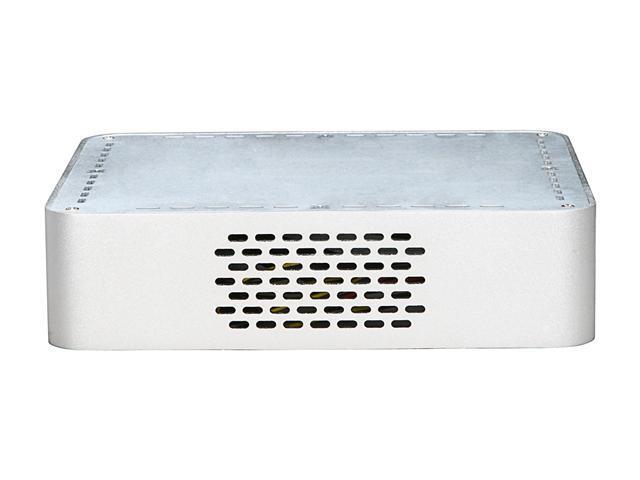

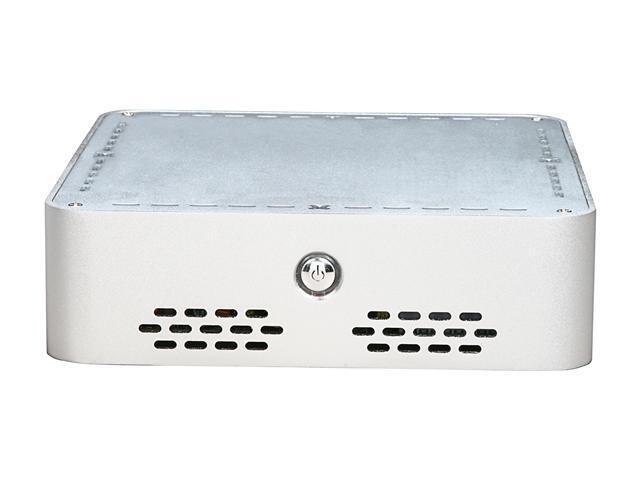

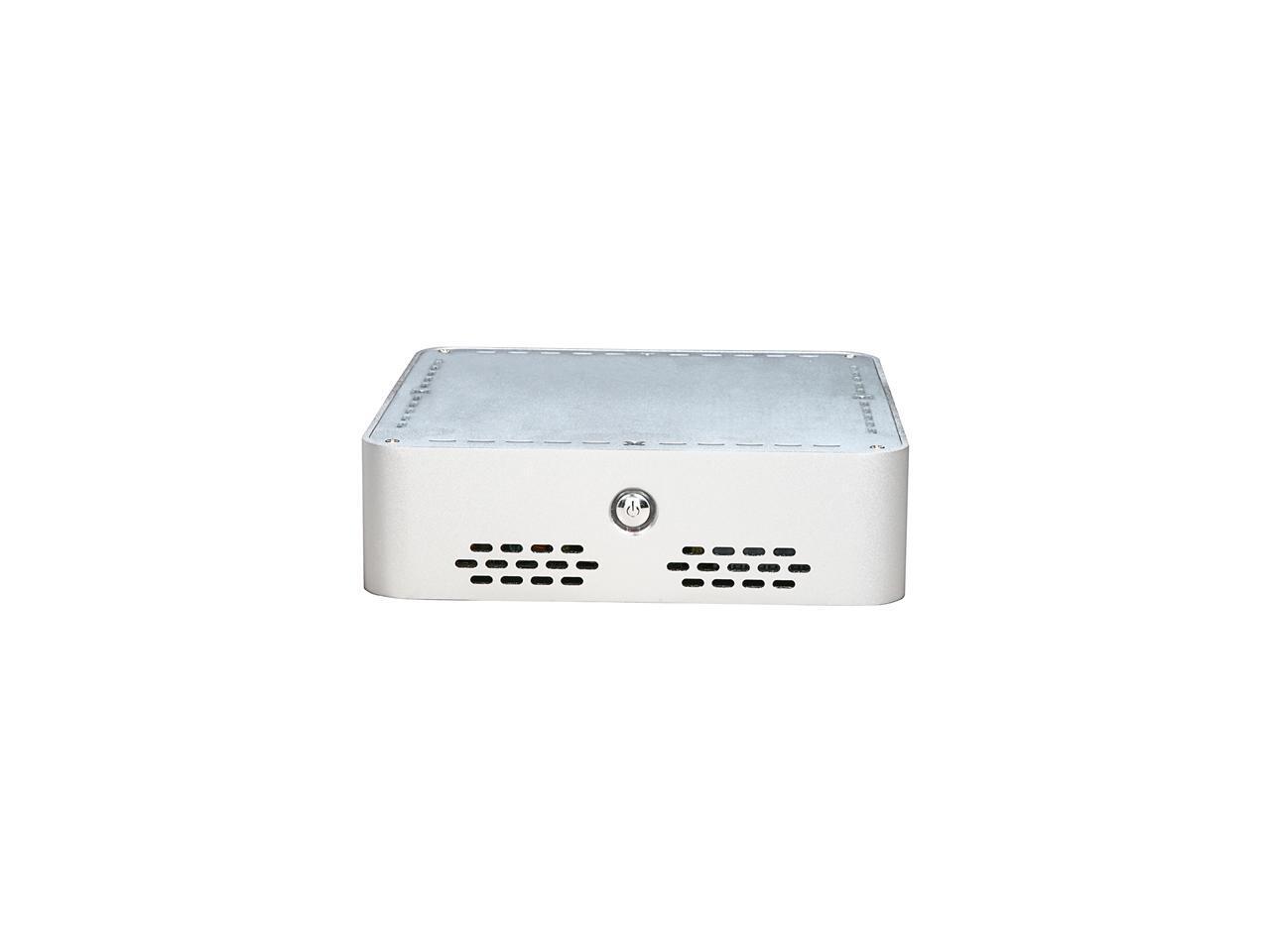

The "super slim" refers to the case itself (it's height), and not what type of mother-board is needed.

That being said, it's form factor is Mini-ITX and I would suggest a motherboard with a low TDP (possibly an atom board or similar.

I tried using this case with an FM1 A4 series chip, and it would have overheating problems if I didn't limit clockspeed

Hope that helps

Question 2

Can you give me more information about the power supply. What size is the plug? I need an inner diameter of 2.5 mm and an outer diameter of 5.5 mm, where the inner contact is 12 V and the shell is GND.  If this power supply will work then this is a great deal.

Accepted Answer

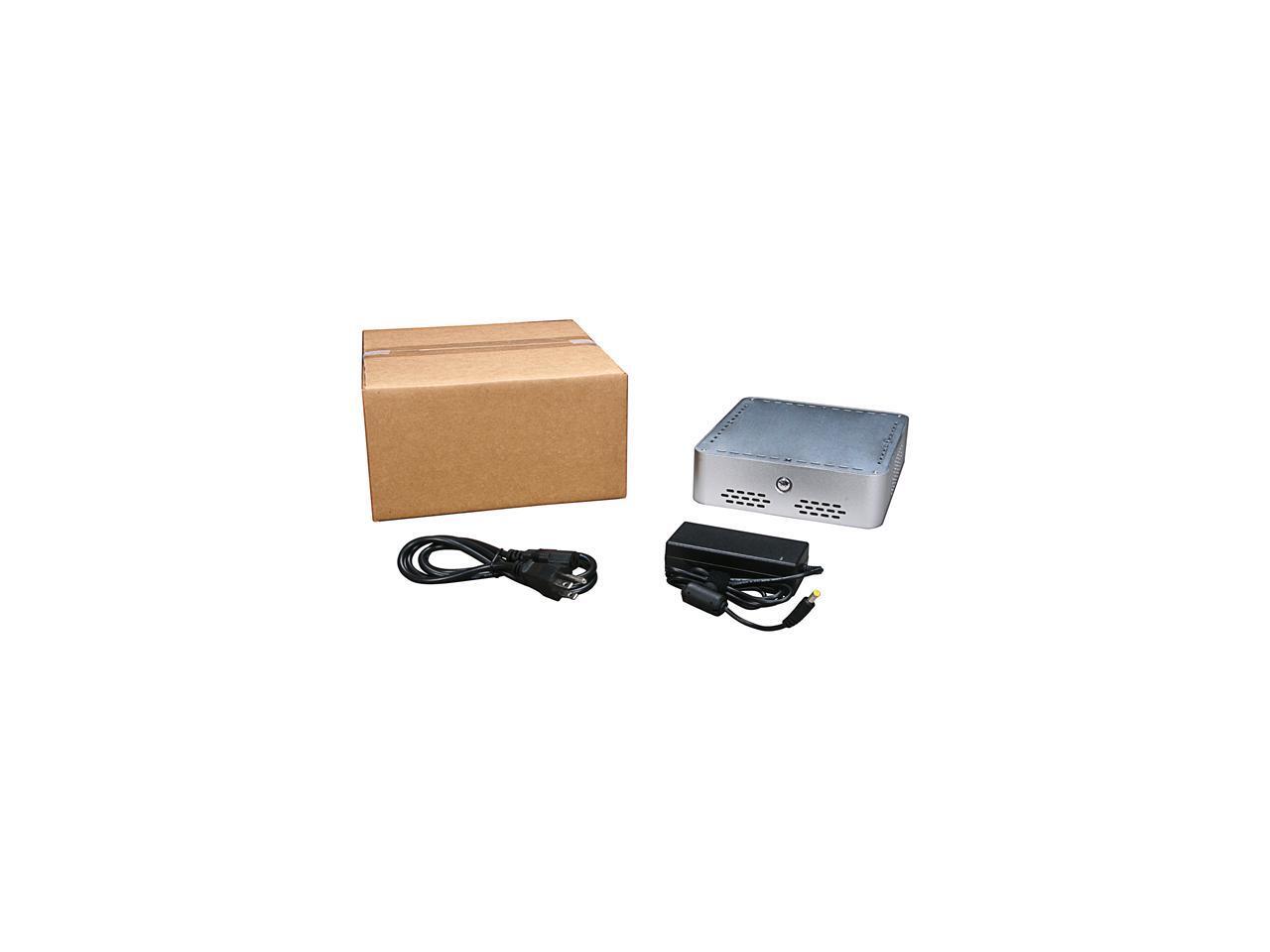

The unit comes with a small PS "brick" about 60W that plugs into a 2.5x5mm DC jack on the rear panel. Careful, DC jack is not very robust.
