Question 1

I can't find an aftermarket CPU cooler for FM2+ socket would this fit in an FM2+ socket?

Accepted Answer

I believe FM2 & FM2+ sockets are the same size (not same # pins) so it will work. Be sure and measure your case dimensions because this is a tall cooler.

Question 2

How do you use this on a motherboard that requires a cooler that snaps in?

Accepted Answer

Which Motherboard?  Assuming it's an Intel socket 1150 / 1155, there would be 4 holes at the corners of the CPU socket.  There is a back plate that goes behind the motherboard which aligns with the 4 holes, and then the cooler is attached with screws / lugs and a bracket assembly.

If it's an AMD motherboard, I don't know about that.  As long as your motherboard supports one of the socket configurations listed in the description, it should fit just fine.  The instruction manual will show you how to attach it.

I tried to post a link to the product manual but it would not let me. You can find the manual on the manufacturer's website.

For future reference, when viewing any product on Newegg, go to the SPECIFICATIONS section of the item and scroll down. There will be a link to the manufacturers product page from which you should be able to download the product manual or get more information.

I hope this helps.

Question 3

Does this cooler come with thermal paste pre applied?

Accepted Answer

No, the paste comes in a plastic squeeze packet. Application was pretty simple, just cut the corner off squeeze a little onto the base. Make sure you don't apply too much, there is plenty in there.

Question 4

Will this work with LGA2011 v3 motherboard?

Accepted Answer

I would say yes. I believe the difference between the 2011 and 2011-3 sockets are purely functional and not dimensional. Tom's Hardware has a couple of threads on heatsinks working for 2011's working for 2011-3's if you want to check those out.

This heatsink is surprisingly tall though. I would check to see if it would fit in your case. My old Sentey CS3-3340 TAC2.0 barely fit it, and it was 7.08" wide. If you need a case, and you live near Ozark, MO (on my almost baseless assumption that you're the Alden Smith I knew in high school) I can sell it to you (this is Nik Burks fyi). I know, no soliciting or asking for private info, but it was a real problem for me, and I'm trying to help. Look me up on Facebook if you want. Or disregard. Just trying to help.

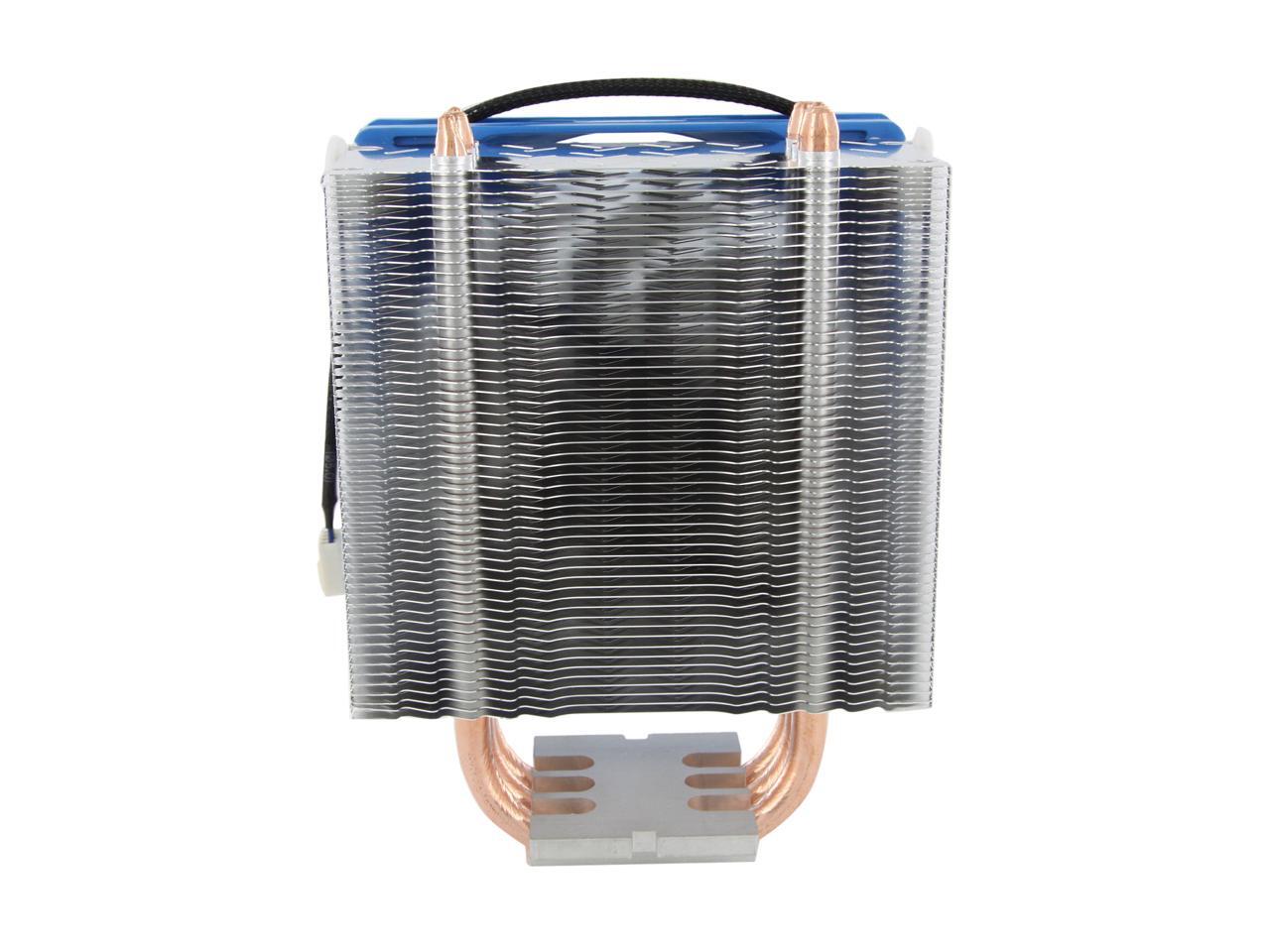

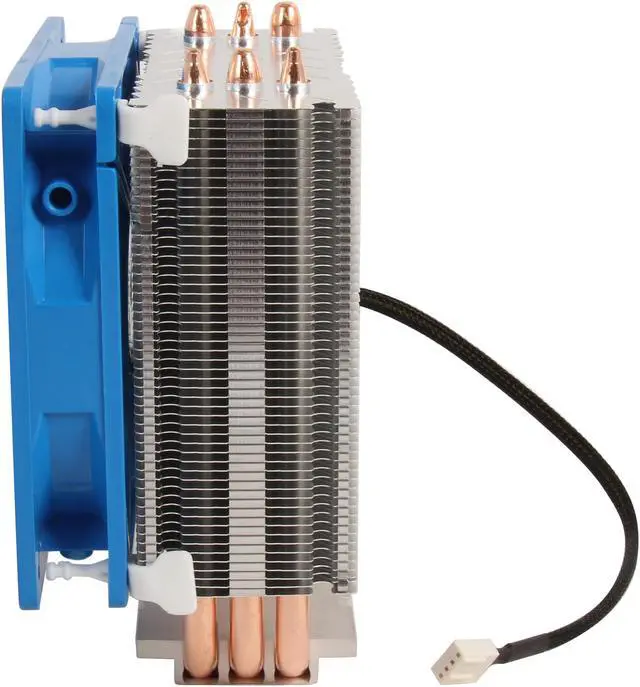

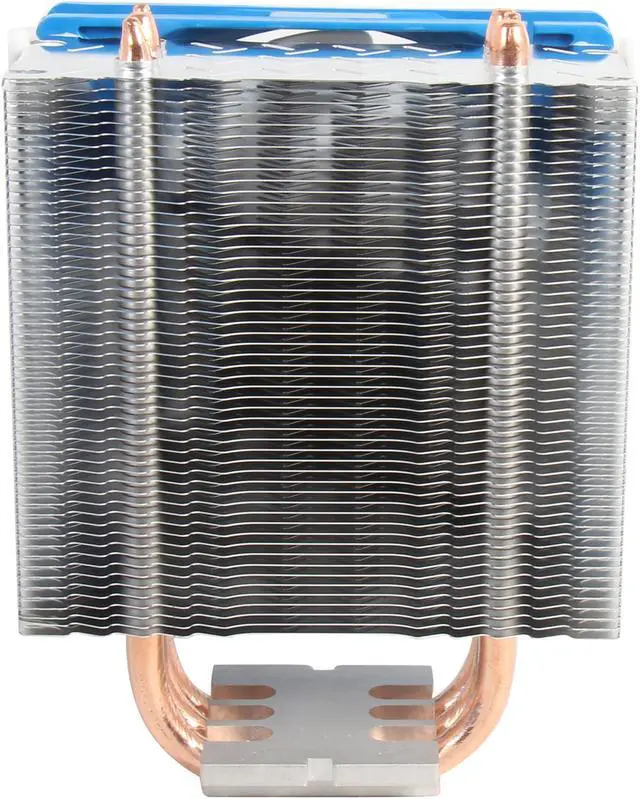

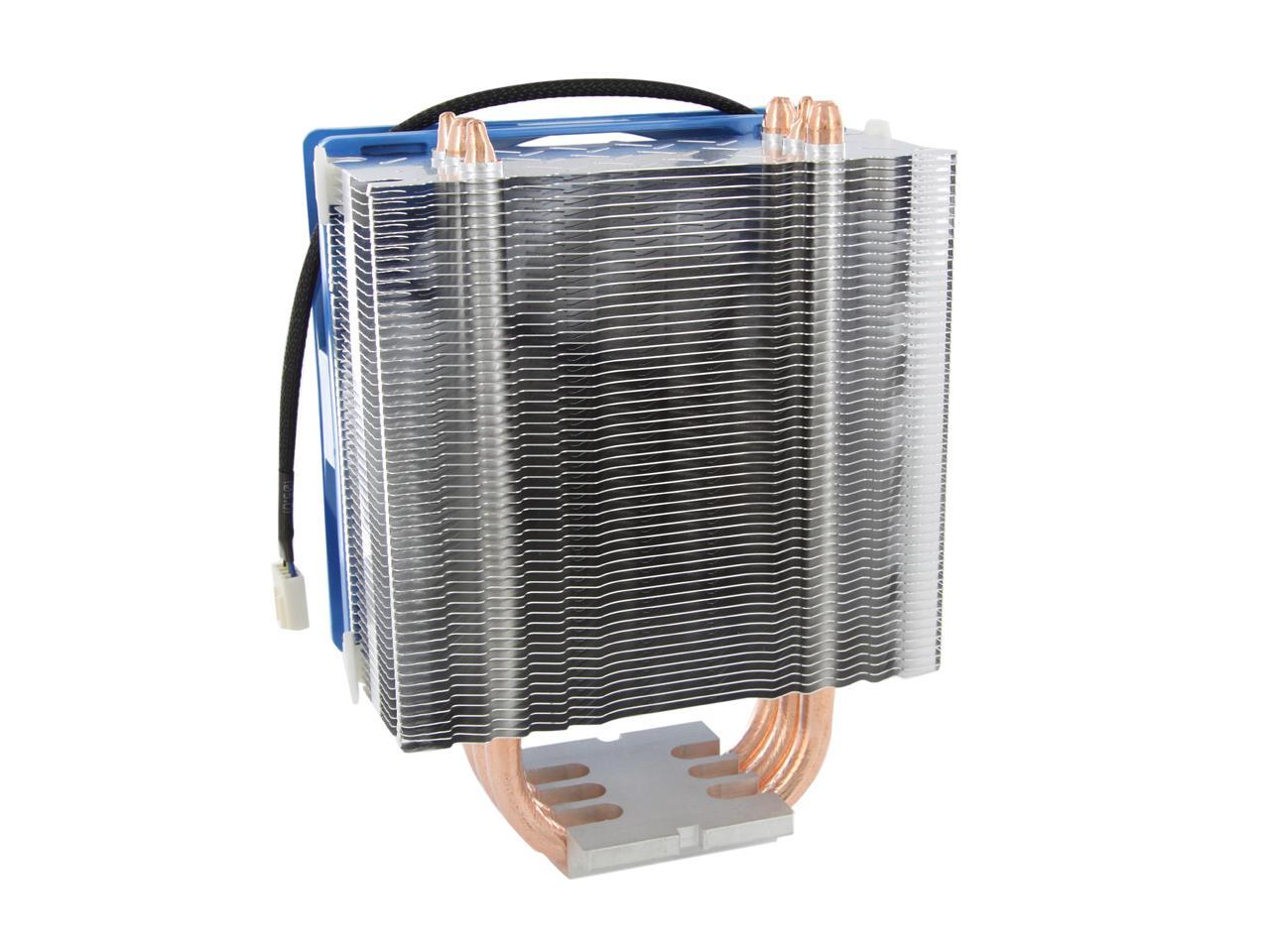

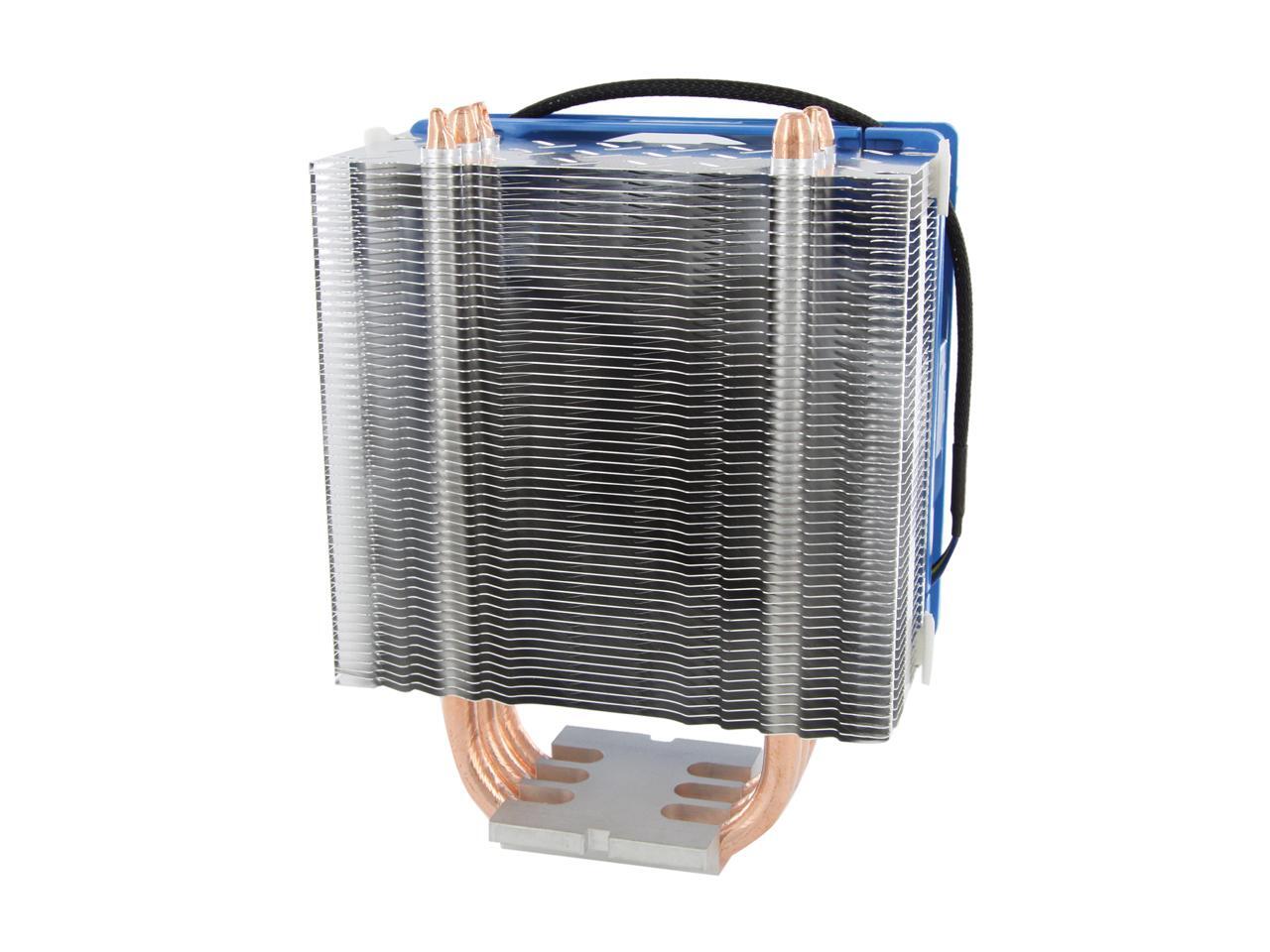

Heat-pipe direct contact (HDC) technology The three 8mm heat pipes with heat-pipe direct contact (HDC) technology connect directly to your CPU when installed for extremely efficient first-level heat conduction. Transfer more heat from your CPU for maximum computing performance.

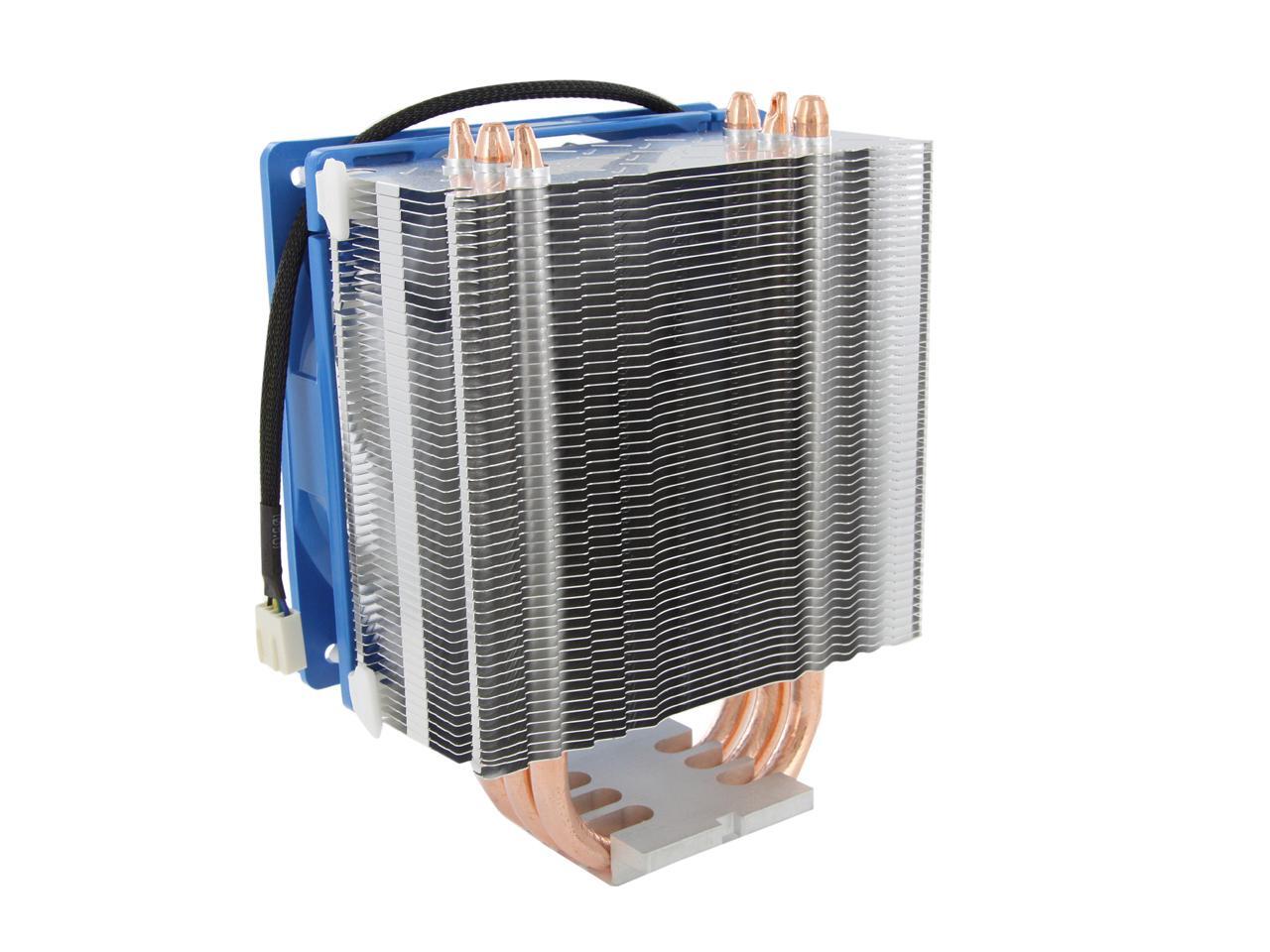

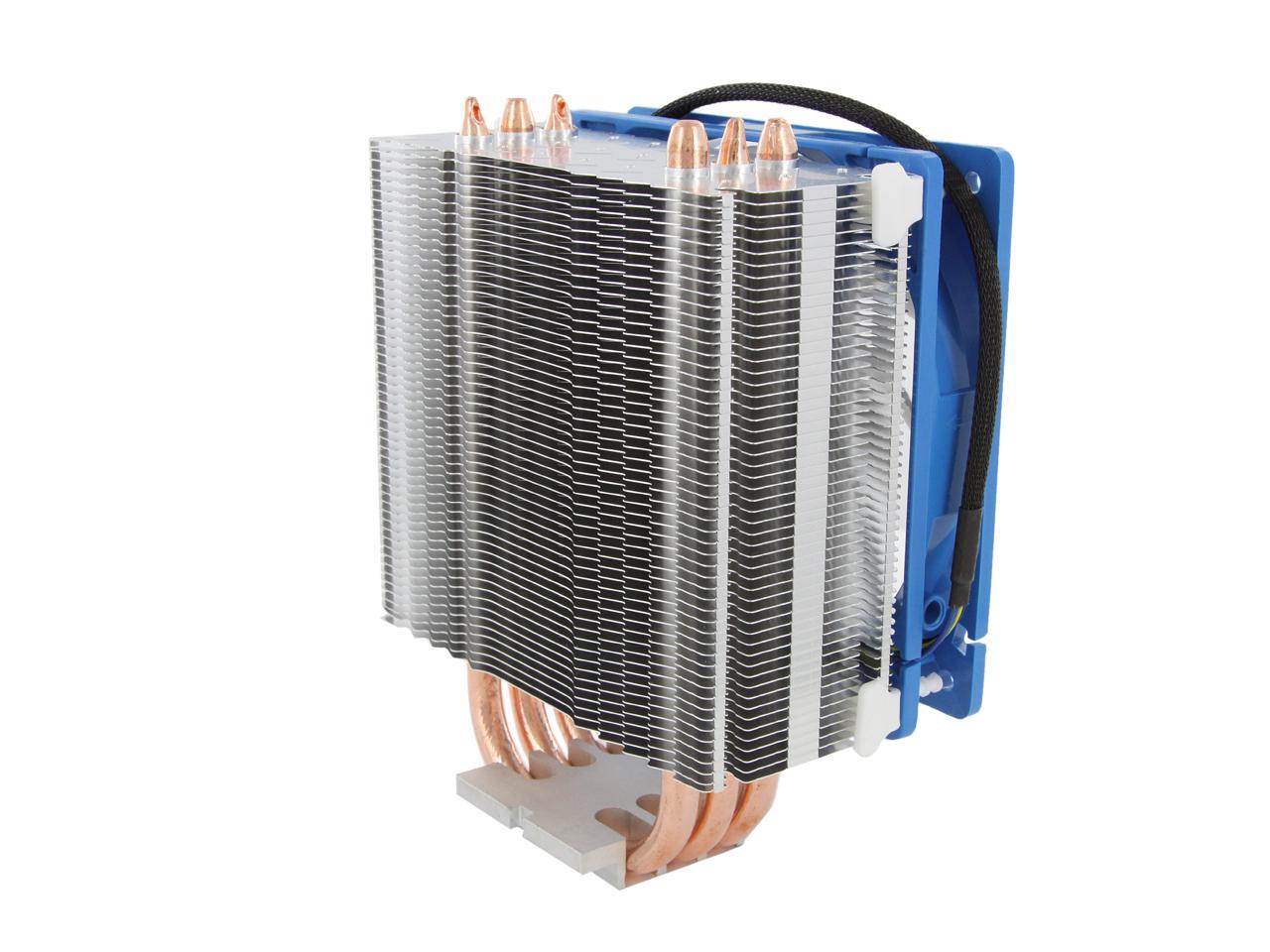

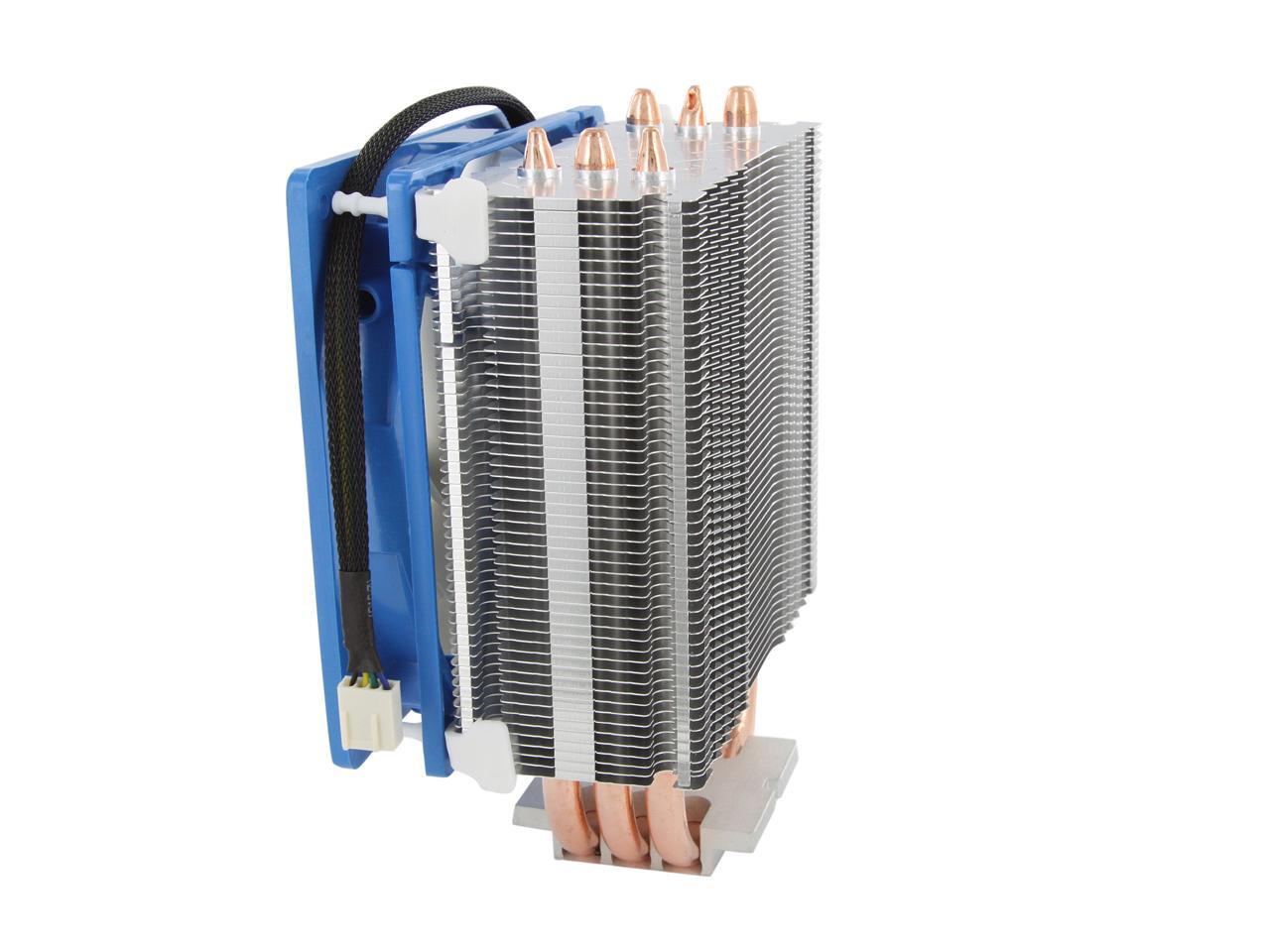

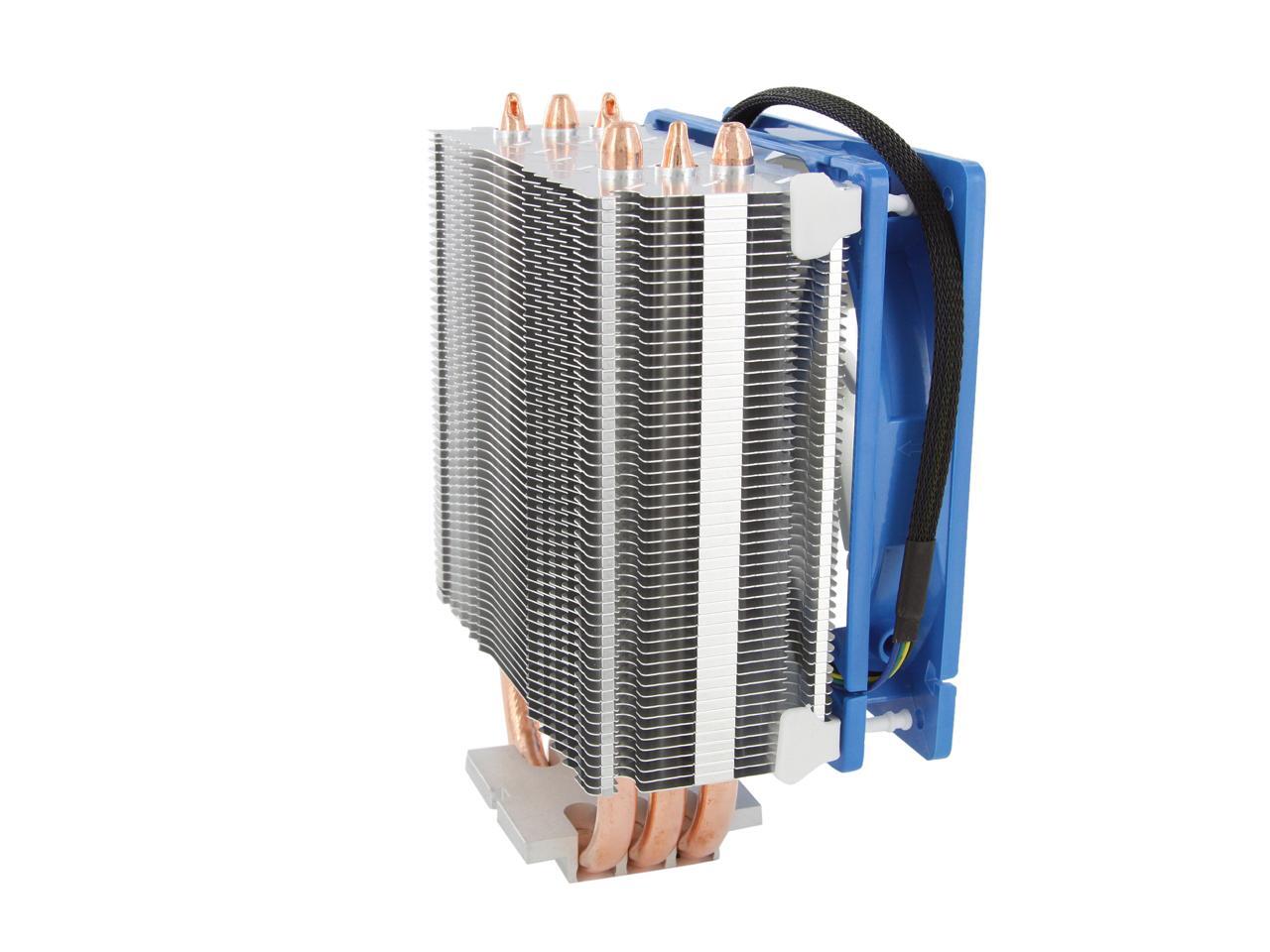

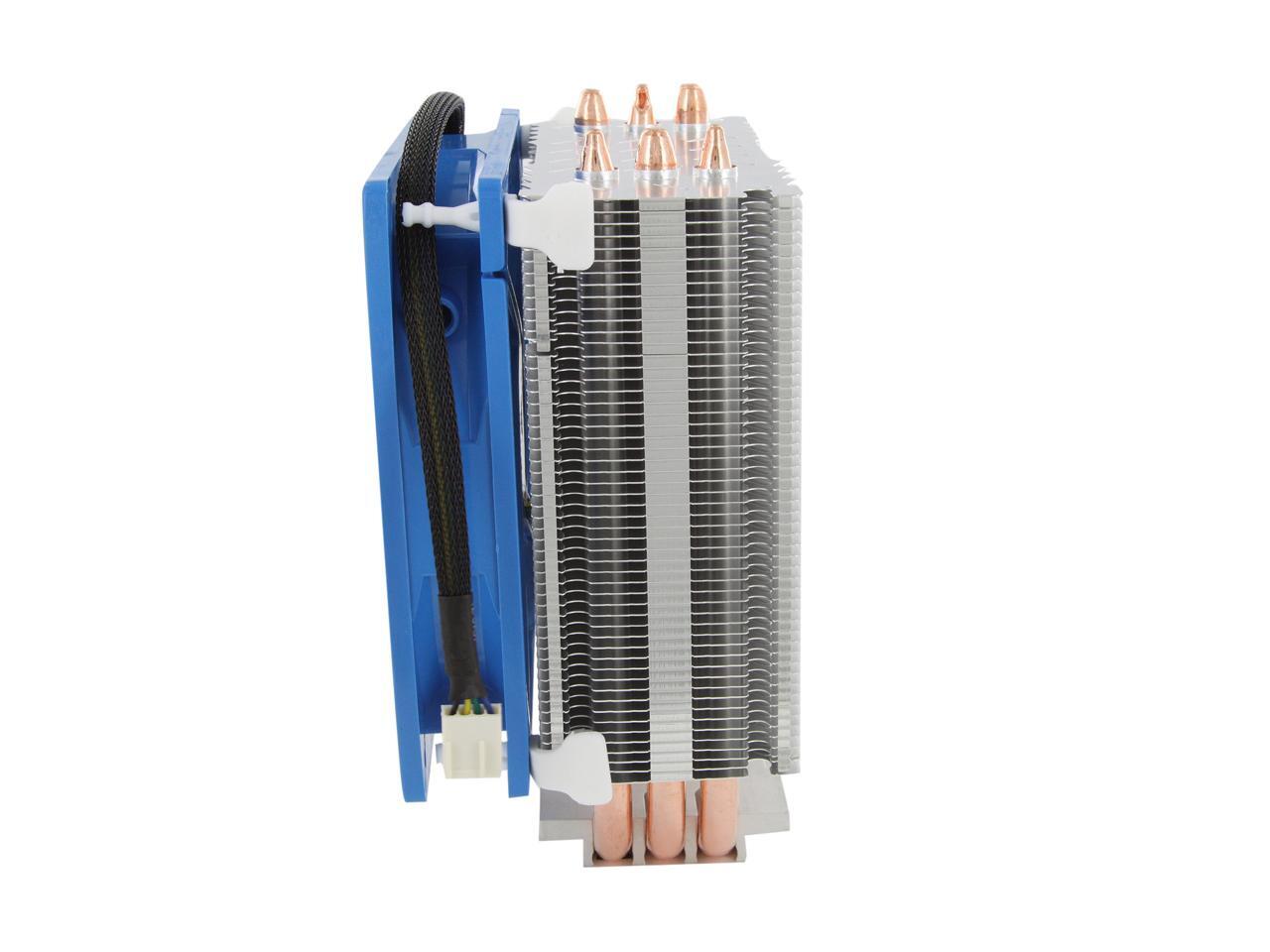

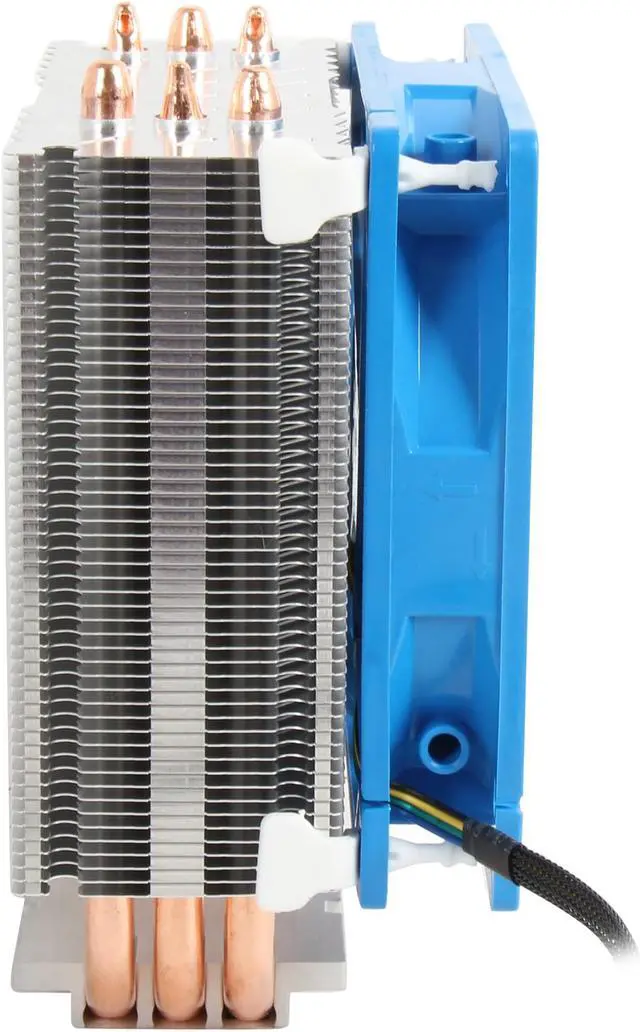

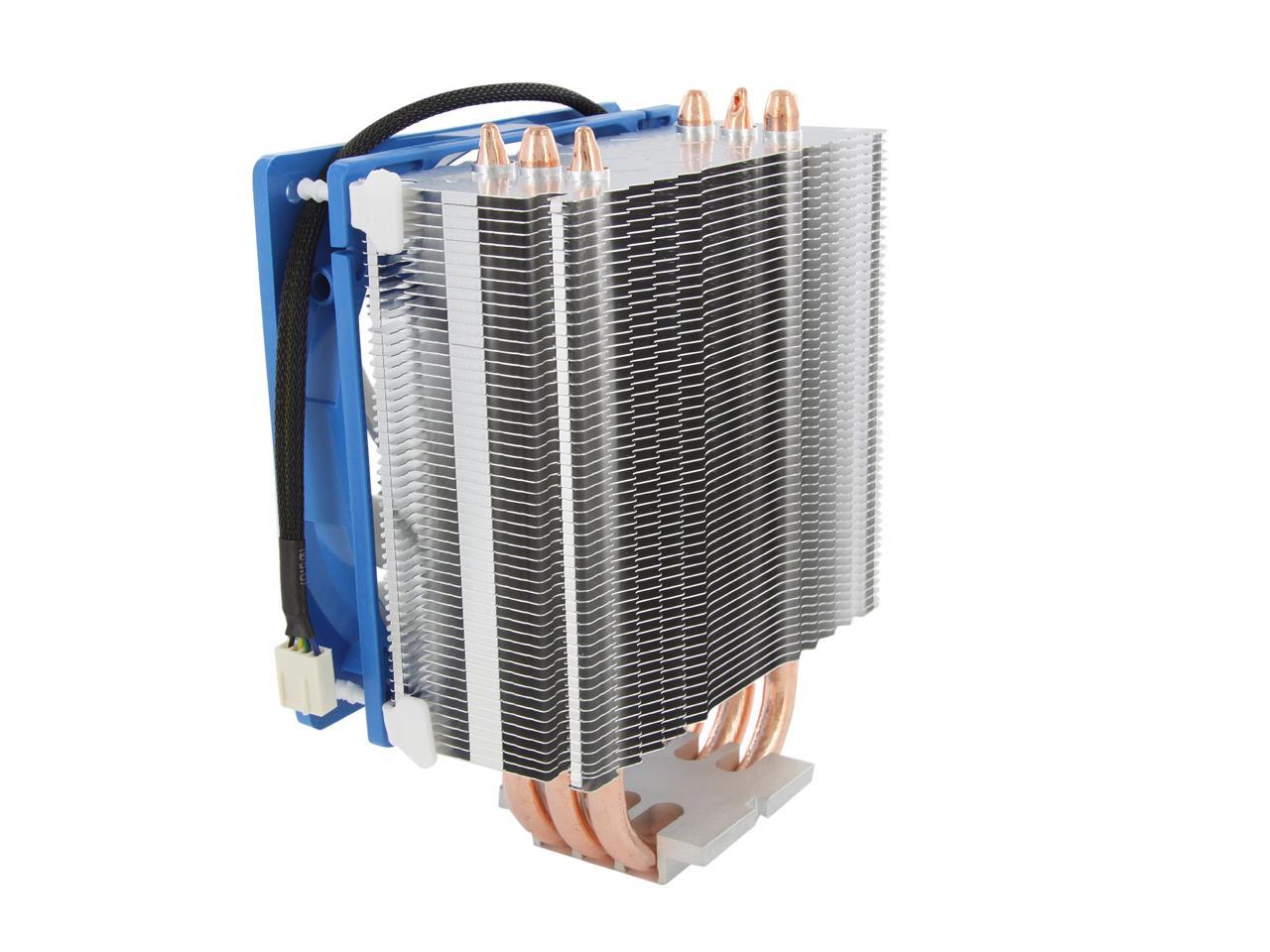

	Widely spaced aluminum fins The three 8mm heat pipes pass through aluminum fins in U shape for maximum heat transfer from the heat pipes. The aluminum fins are widely spaced for unobstructed air circulation while the surface is T-shaped for better heat conduction.

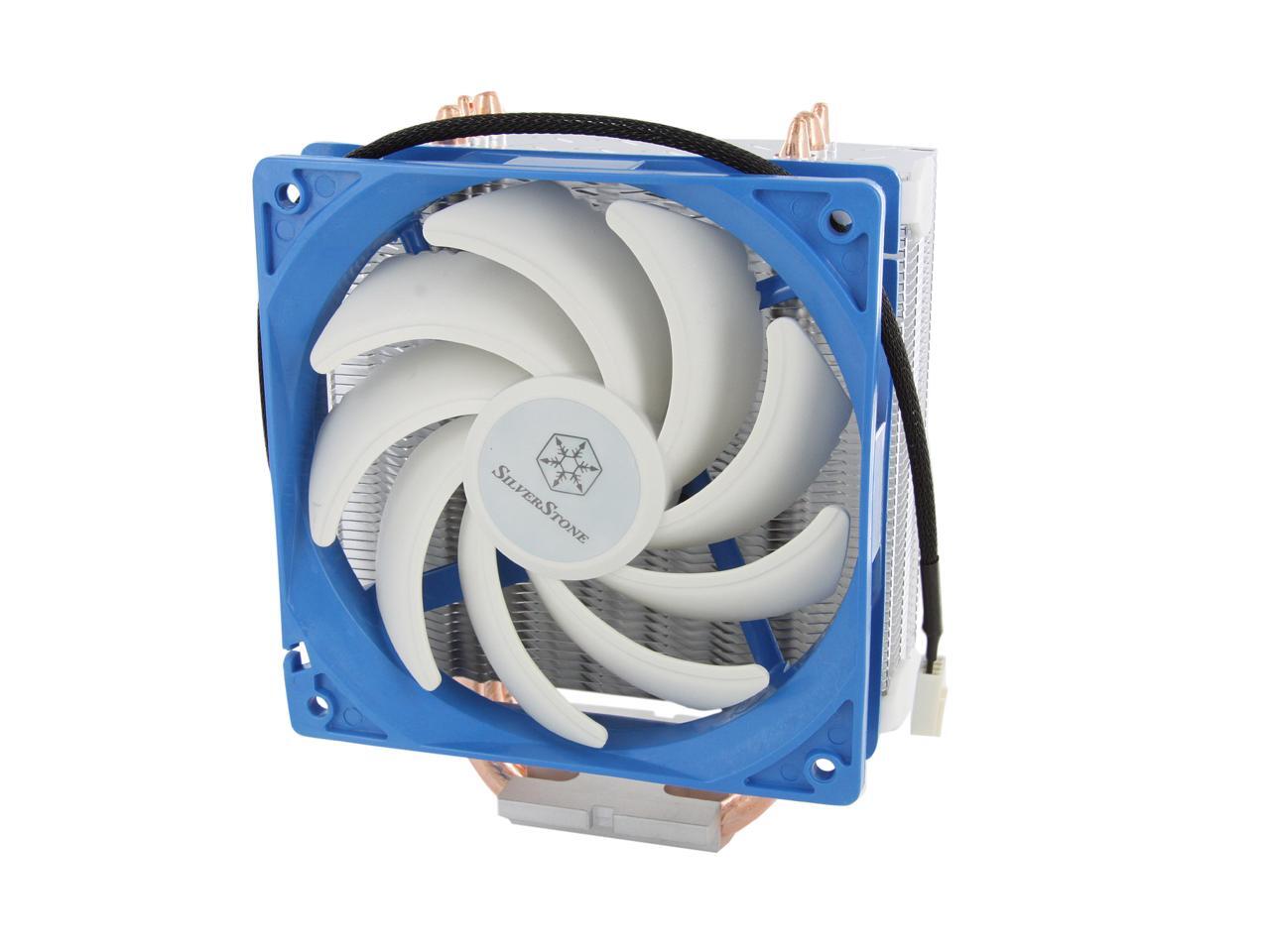

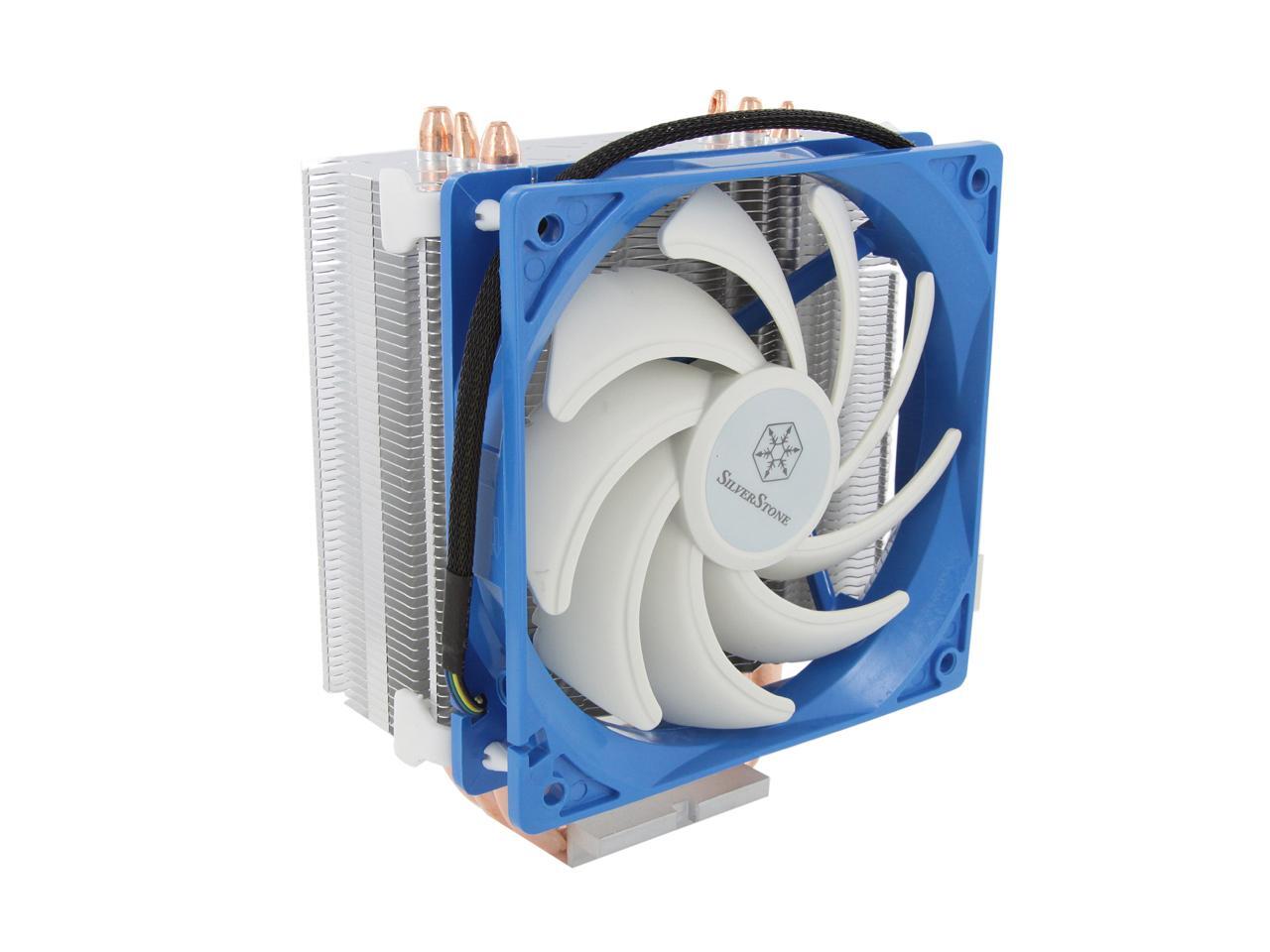

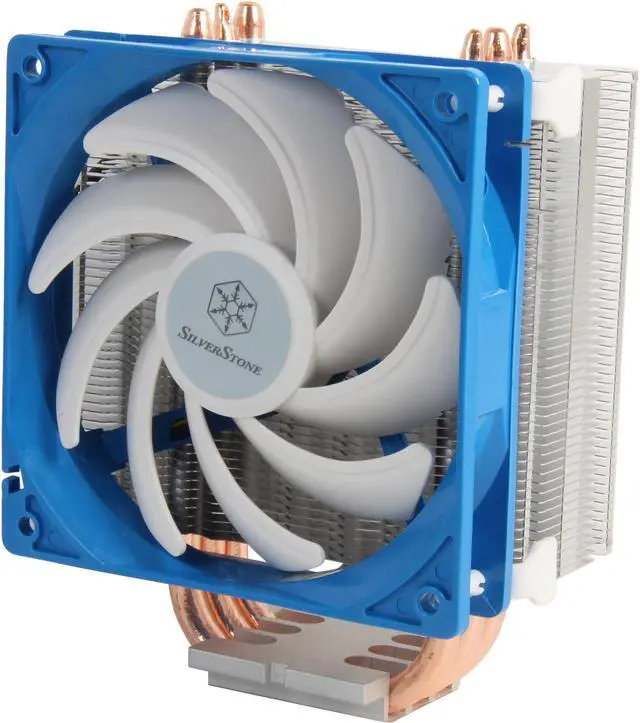

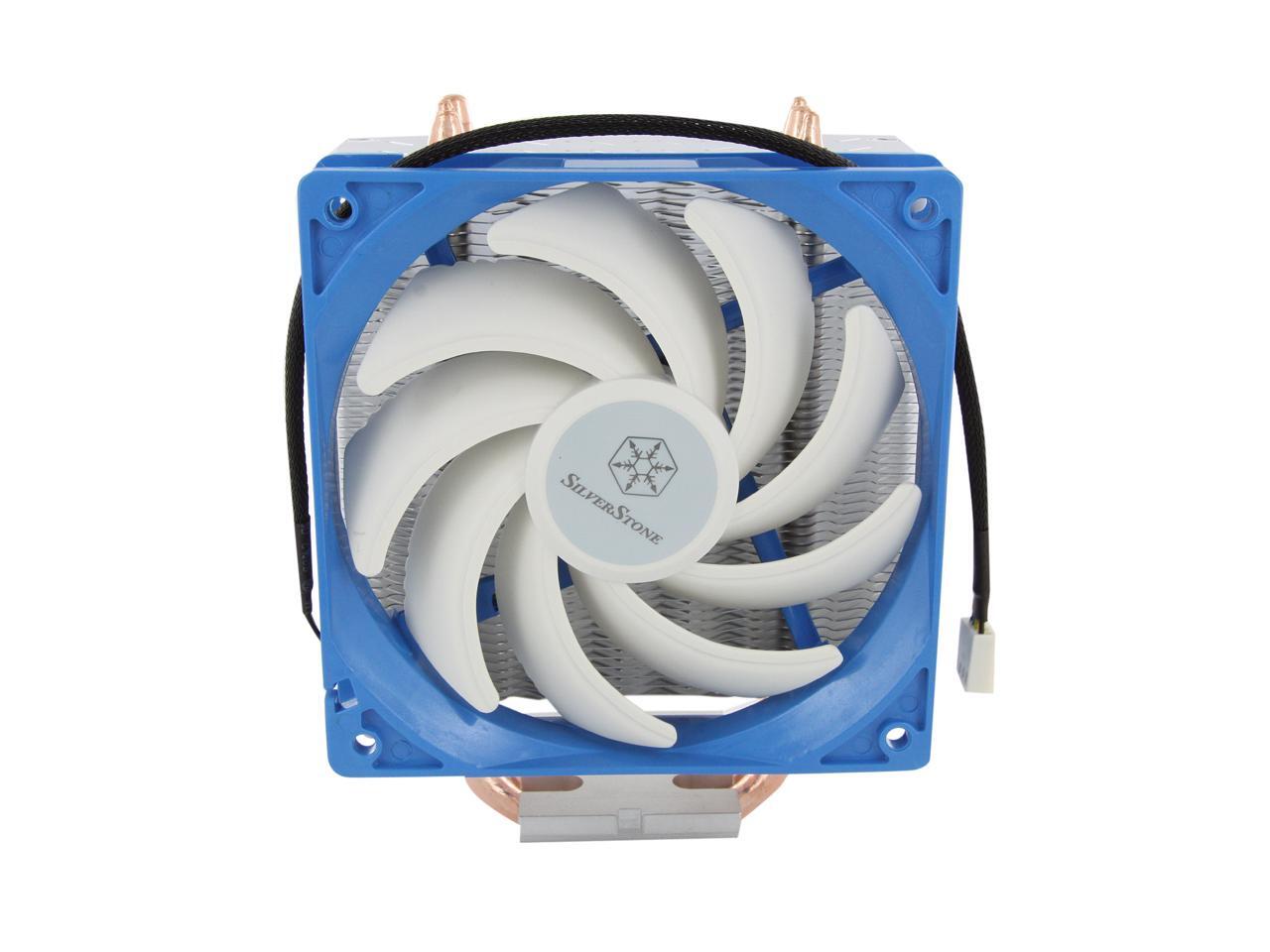

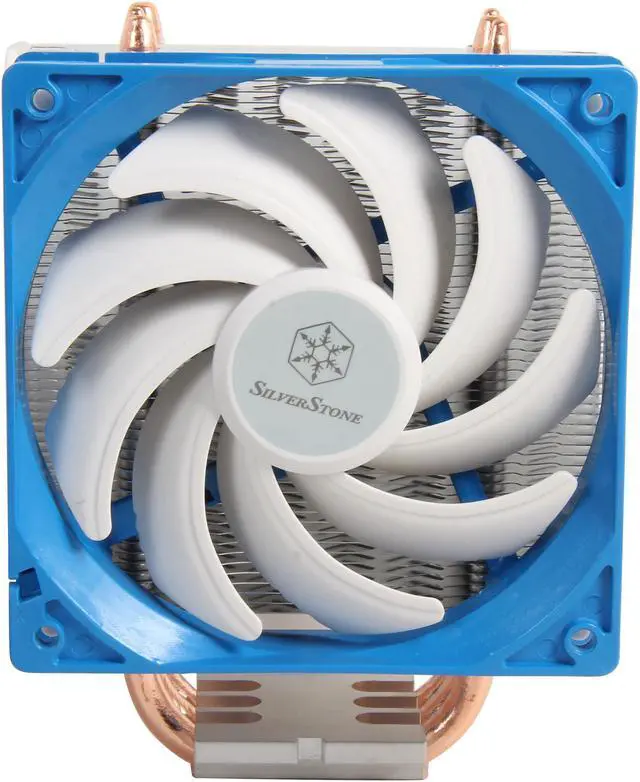

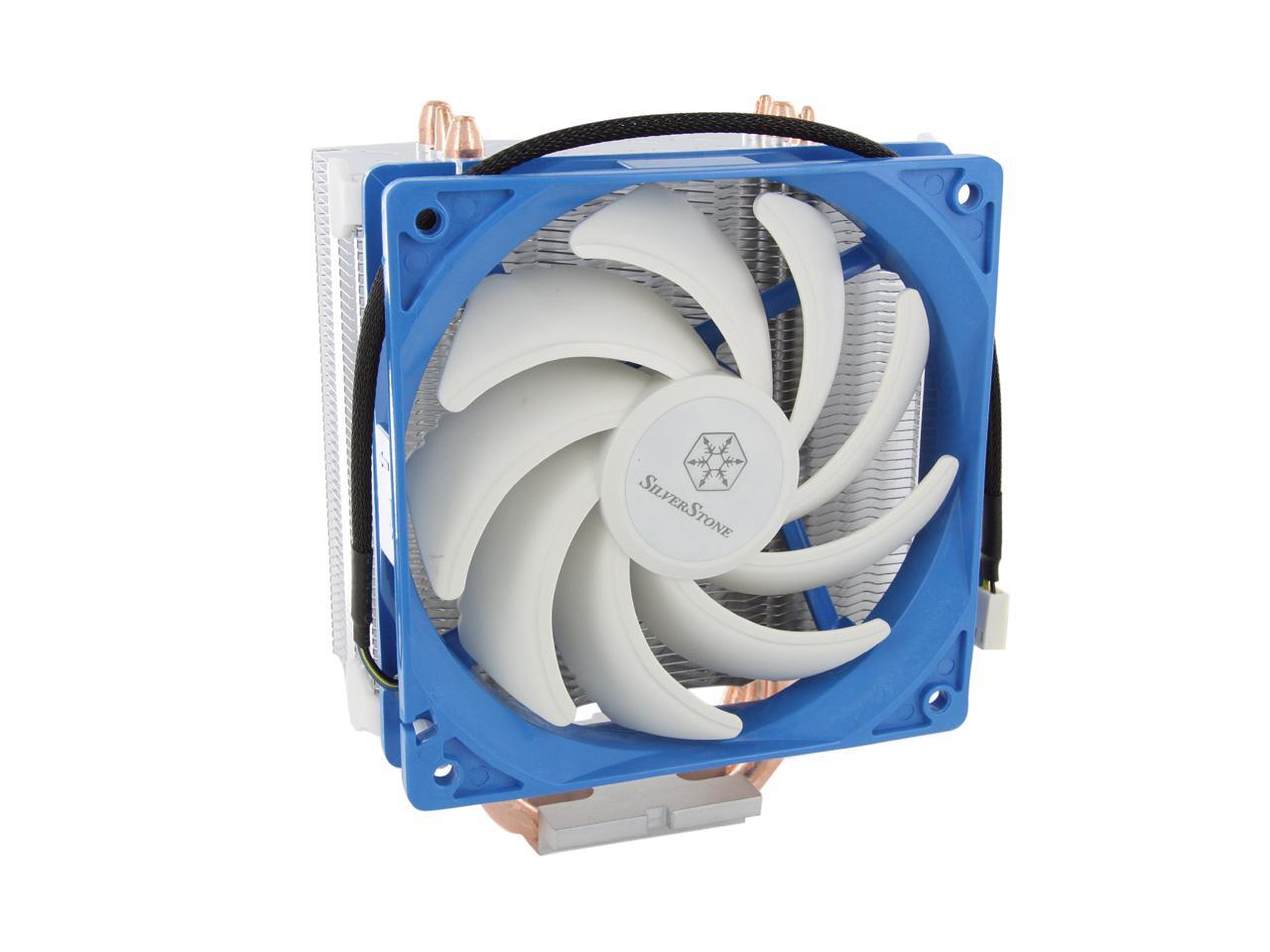

Forced-air heat dissipation The SilverStone Argon Series AR01 comes with a compact 120mm PWM fan for smart cooling. Cool aggressively at full loads and silently at low loads. Aerodynamic design allows for quieter operation.
	Anti-vibration rubber mounting The fan is offed anti-vibration rubber mounting not only for stable rotating but also for silent computing.
Universal compatibility The SilverStone Argon Series AR01 is compatible with Intel Socket LGA775/115X/1366/2011 and AMD Socket AM2/AM3/FM1/FM2. Enjoy a system upgrade without the hassle of purchasing an extra CPU cooler.

Brand	SILVERSTONE
Series	Argon
Model	AR01

Color	2-Tone
Type	Fan & Heatsinks
Fan Size	120mm
CPU Socket Compatibility	Intel LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775 AMD Socket FM2 / FM1 / AM3 / AM2
Bearing Type	Sleeve
RPM	1000~2200RPM
Air Flow	37.2~81.4CFM
Noise Level	16.4-33.5 dBA
Heatsink Material	Copper heat pipes with aluminum fins
Fan Mounting Types to Heatsink	Horizontal

Max CPU Cooler Height	159 mm
Fan Dimensions	120mm x 120mm x 25mm
Weight	420g (without fan)

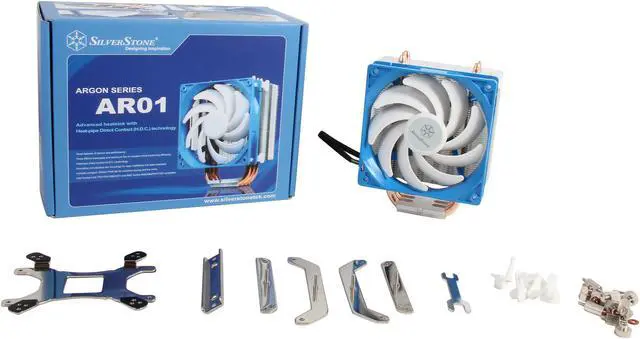

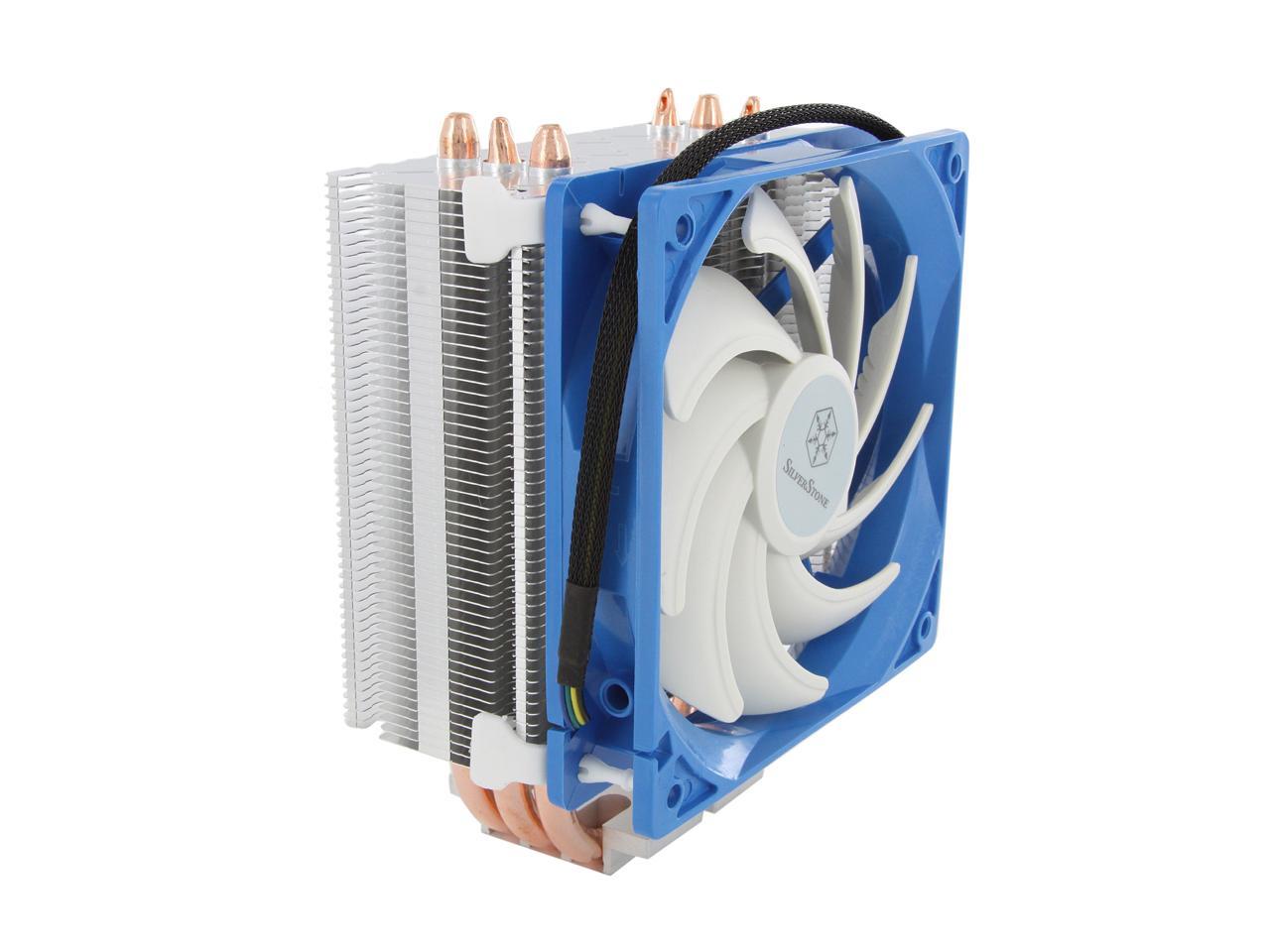

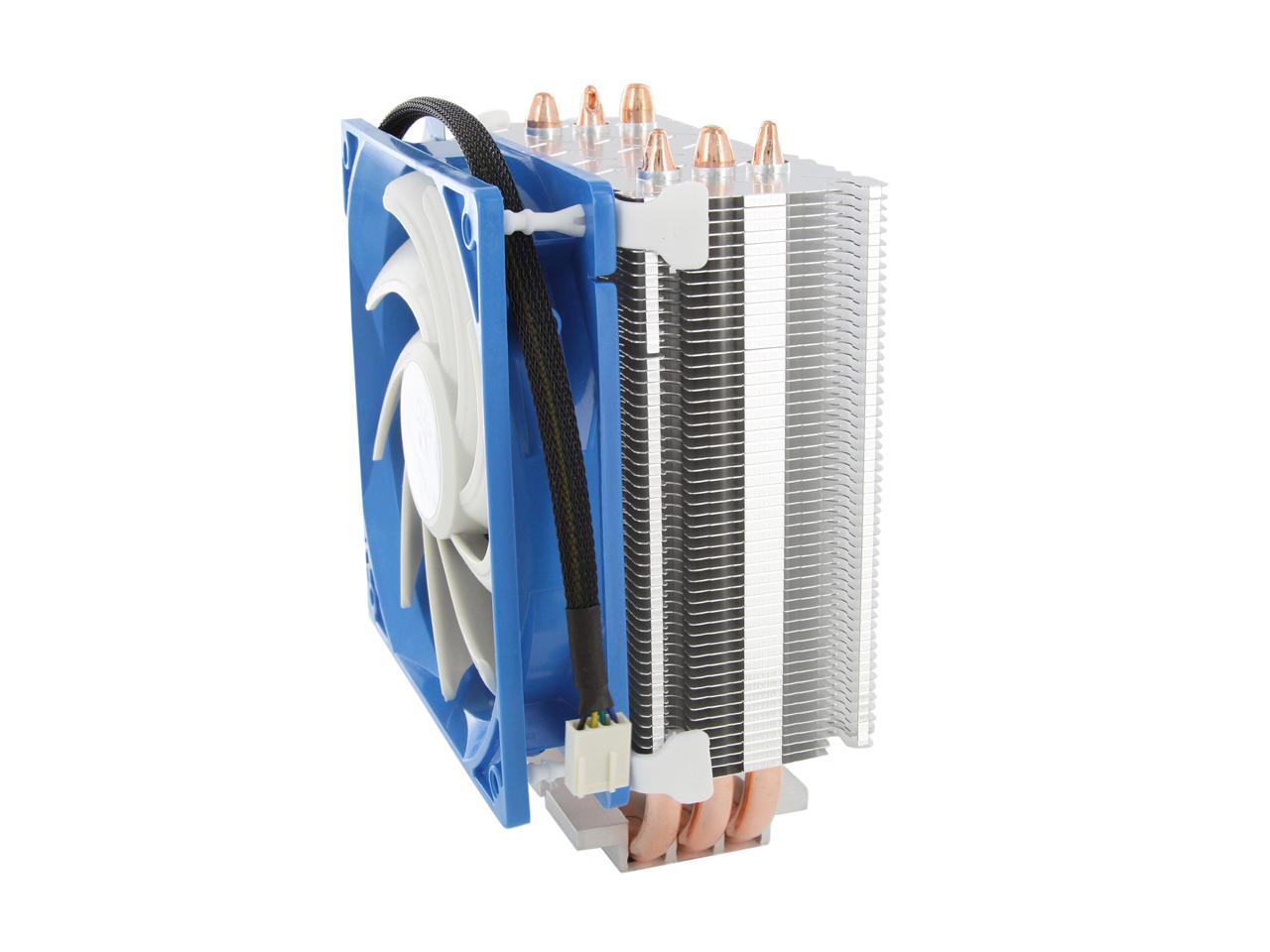

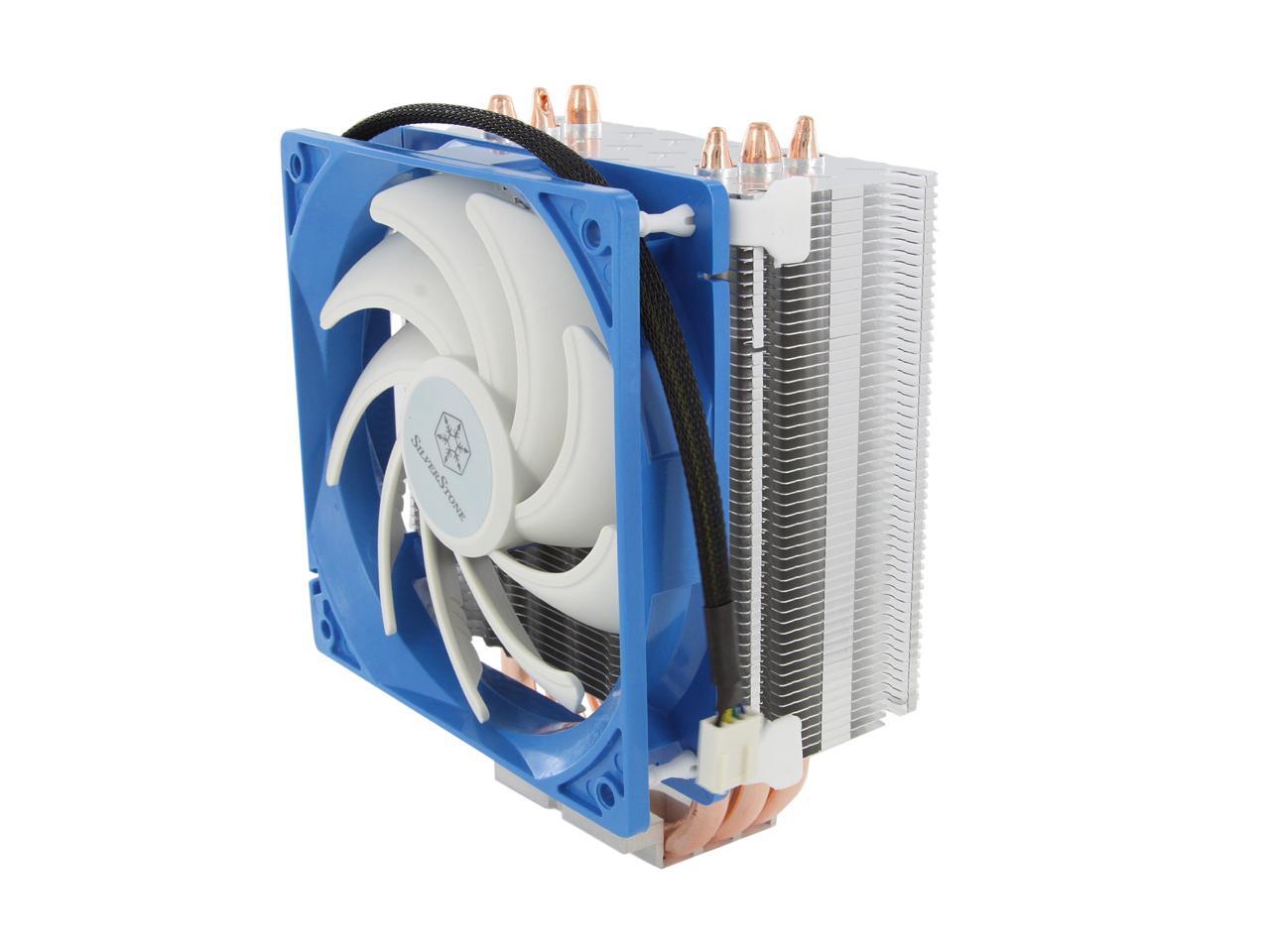

SilverStone Argon Series AR01 CPU Cooler with 120mm Fan for socket LGA775/1155/1156/1366/2011, AM2/AM3/FM1/FM2
