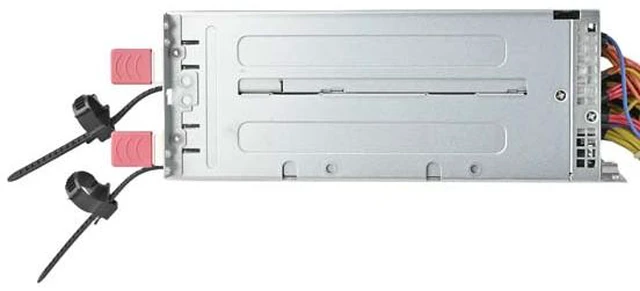

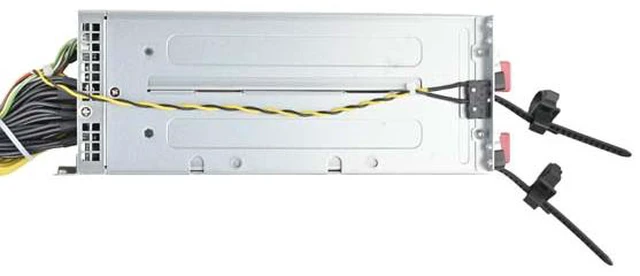

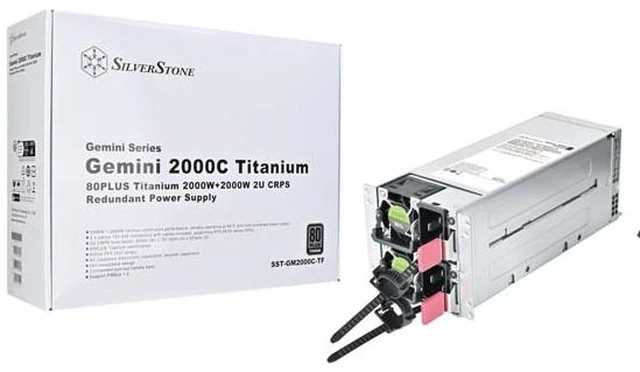

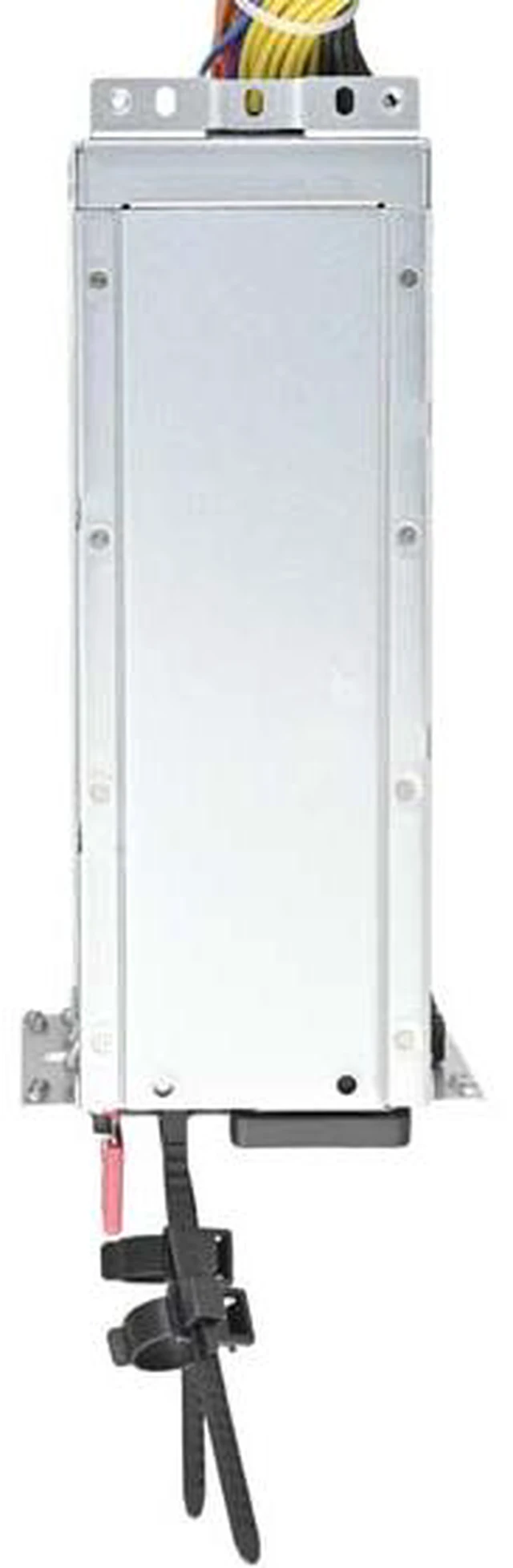

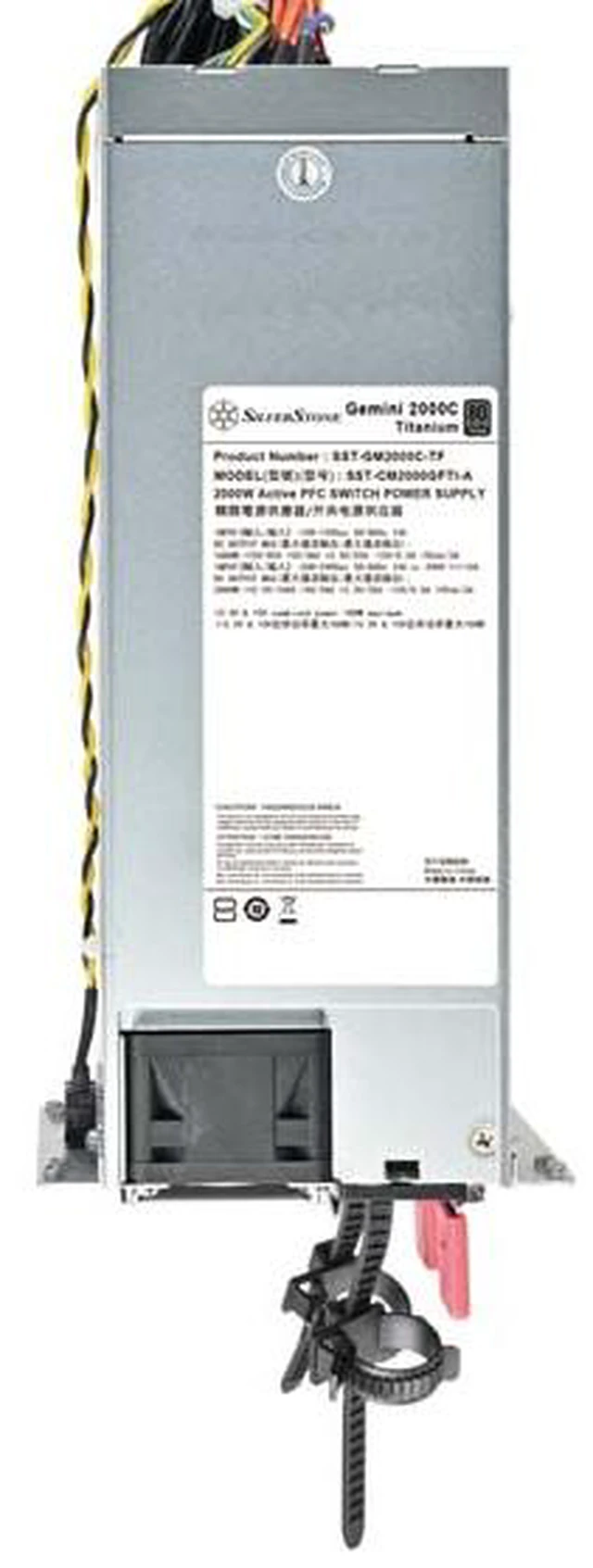

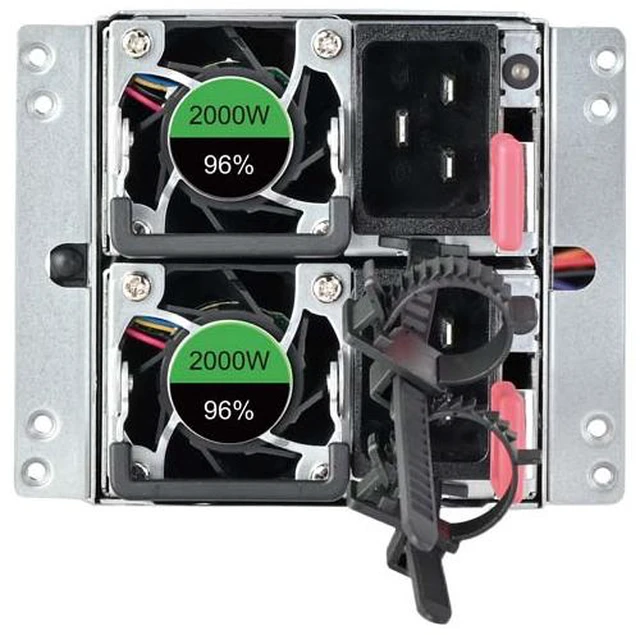

SilverStone PS-GM2000C-TF Gemini 2000Cx Titanium 80PLUS Titanium 2000W+2000W 2U CRPS Redundant Power Supply
- 2000W + 2000W 24-hour continuous performance, reliably operating at 50°C with fully sustained power output.
- Supports NVIDIA GeForce RTX 40/50 Series and RTX PRO Blackwell Workstation GPUs with 2x Native 12V-2x6 Power Connector
- 2U CRPS form factor: 82mm (W) x 101.5mm (H) x 210mm (D)
- 80PLUS Titanium certification
- Active PFC (full range)
- All Japanese electrolytic capacitors, polymer capacitors
- Hot-swappable design
- Convenient pull-out handle bars
- Support PMBus 1.2
+
+
Learn more about the SilverStone Gemini 2000Cx Titanium
| Brand | SilverStone |
|---|---|
| Model | Gemini 2000Cx Titanium |
| Part Number | PS-GM2000C-TF |
| Type | Redundant Power Supply |
|---|---|
| Form Factor | 2U Rackmount / CRPS / Redundant PSU |
| Maximum Power | 2000W |
| Energy-Efficient | 80 PLUS TITANIUM Certified |
| Fans | 40mm PWM fans |
| Main Connector | 24Pin |
| Output | +3.3V@25A, +5V@36A, +12V1@160A, +5VSB@3A, [email protected] |
| Input Voltage | 2000W: 200~240 Vrms 1000W: 100~127 Vrms |
| Input Frequency Range | 47 - 63 Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 200,000 hours |
| Efficiency | 10%~100% (90%-96% efficiency under load) |
| PSU Noise Level | 72.8 dBA |
| Protection | Over Current Protection Over Voltage Protection Over Temperature Protection Short Circuit Protection |

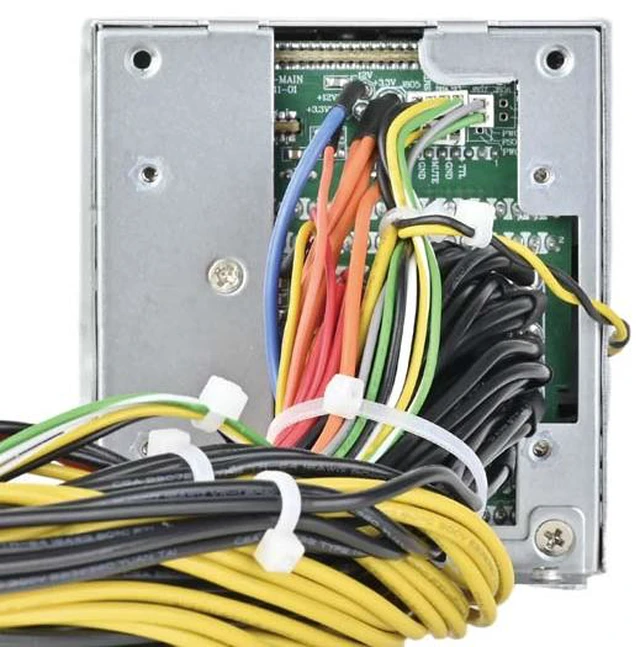

| Connectors | 1 x 24 Pin motherboard connector 2 x 8-Pin EPS / ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 2 x 12V-2x6 Connector 4 x SATA connectors 4 x 4-Pin Peripheral connectors 1 x 5-Pin PMBus connector |
| Cable Spec | 1 x 24 Pin motherboard cable (550mm, 1 connector / cable) 2 x 8-Pin EPS / ATX 12V cable (550mm, 1 connector / cable) 2 x 12V-2x6 cable (500mm, 1 connector / cable) 2 x PCIe 6+2P cable (500mm + 150mm, 2 connectors / cable) 1 x 4-Pin Peripheral cable (400mm + 150mm + 150mm + 150mm, 4 connectors / cable) 1 x SATA cable (400mm + 150mm + 150mm + 150mm, 4 connectors / cable) 1 x 5-Pin PMBus cable (500mm, 1 connector / cable) |
| Dimensions | 82mm (W) x 101.5mm (H) x 223mm (D) (Housing with bracket, without handle) 82mm (W) x 101.5mm (H) x 210mm (D) (Housing without bracket) 73.5mm (W) x 39mm (H) x 185mm (D) (Module only without handle) |
|---|---|
| Weight | 3.11kg |
| Temperature | -5°C ~ 50°C |
|---|
| First Listed on Newegg | October 12, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: +1-909-465-9596
- Support Email: usasupport@silverstonetek.com
- Support Website
- View other products from SilverStone
LOADING...
The SilverStone Gemini 2000Cx Titanium (PS-GM2000C-TF) is a 2U CRPS redundant power supply for compatible servers and GPU workstations, pairing 2000W+2000W power capacity with hot-swappable design and two native 12V-2x6 connectors for supported NVIDIA GeForce RTX 40/50 Series and RTX PRO Blackwell GPUs.
Recommended For
- Operators of compatible 2U CRPS servers who want hot-swappable redundant power modules for systems that need to stay in service during a PSU replacement.
- GPU server and workstation builders with a compatible CRPS chassis and power distribution setup who need native 12V-2x6 connections for high-power NVIDIA RTX GPUs.
- Server integrators who need a rack PSU with PMBus 1.2 support for power monitoring and management in a compatible system.
- Teams running sustained, high-load server workloads in environments with suitable rack cooling and 200–240V power, where the PSU is specified for continuous operation at elevated temperatures.
Real-World Use Scenarios
- When building a compatible 2U GPU compute or inference server with supported RTX 40/50 Series or RTX PRO Blackwell cards, the two native 12V-2x6 leads provide direct GPU power connections; confirm the chassis, cooling, input power, and total system load are suitable.
- For a continuously loaded rack server, such as a GPU or compute node, the unit is positioned for sustained operation at temperatures up to 50°C; reaching its 2000W rating requires 200–240V input.
- In a compatible redundant-power server, the Gemini can support a design where a second PSU module helps keep the system running if one module fails; the chassis and power-distribution system must support the required redundancy, and 2000W+2000W does not mean 4000W of available output.
- During server maintenance, a technician can replace a failed module without powering down only when the server’s CRPS bay and power-distribution hardware support live hot-swapping and the system retains adequate power.
- In a server with a compatible PMBus connection, administrators can integrate the power supply into system-level power management; the available monitoring depends on the server’s board, firmware, and management tools.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Redundant 2U rackmount server systems using a CRPS power supply, with a 2000W + 2000W configuration |
| Power Output And Efficiency | 2000W output per power supply in a 2000W + 2000W redundant configuration; 80 PLUS Titanium certified, with 90%–96% efficiency under load. Output rails: +3.3V at 25A, +5V at 36A, +12V1 at 160A, +5VSB at 3A, and -12V at 0.5A |
| Input And Power Regulation | 2000W operation at 200–240 Vrms or 1000W operation at 100–127 Vrms; 47–63Hz input frequency and active PFC with PF >0.9 at full load |
| Form Factor And Dimensions | 2U rackmount CRPS design; 82 × 101.5 × 223mm with bracket and without handle, 82 × 101.5 × 210mm without bracket, or 73.5 × 39 × 185mm for the module alone without handle; weight 3.11kg |
| Connectors And Cabling | Non-modular cabling with 18 connectors: 1×24-pin motherboard, 2×8-pin EPS/ATX 12V, 4×PCIe 6+2-pin, 2×12V-2x6, 4×SATA, 4×4-pin peripheral, and 1×5-pin PMBus. Includes corresponding cables, with lengths ranging from 400mm to 550mm and extensions on select cables |
| Cooling And Acoustics | 40mm PWM fans with a listed noise level of 72.8dBA |
| Protection And Reliability | Over-current, over-voltage, over-temperature, and short-circuit protection; rated MTBF of 200,000 hours |
| Operating Conditions | Operating temperature range of -5°C to 50°C |
| Model Identifiers | SilverStone Gemini 2000Cx Titanium; part number PS-GM2000C-TF |
