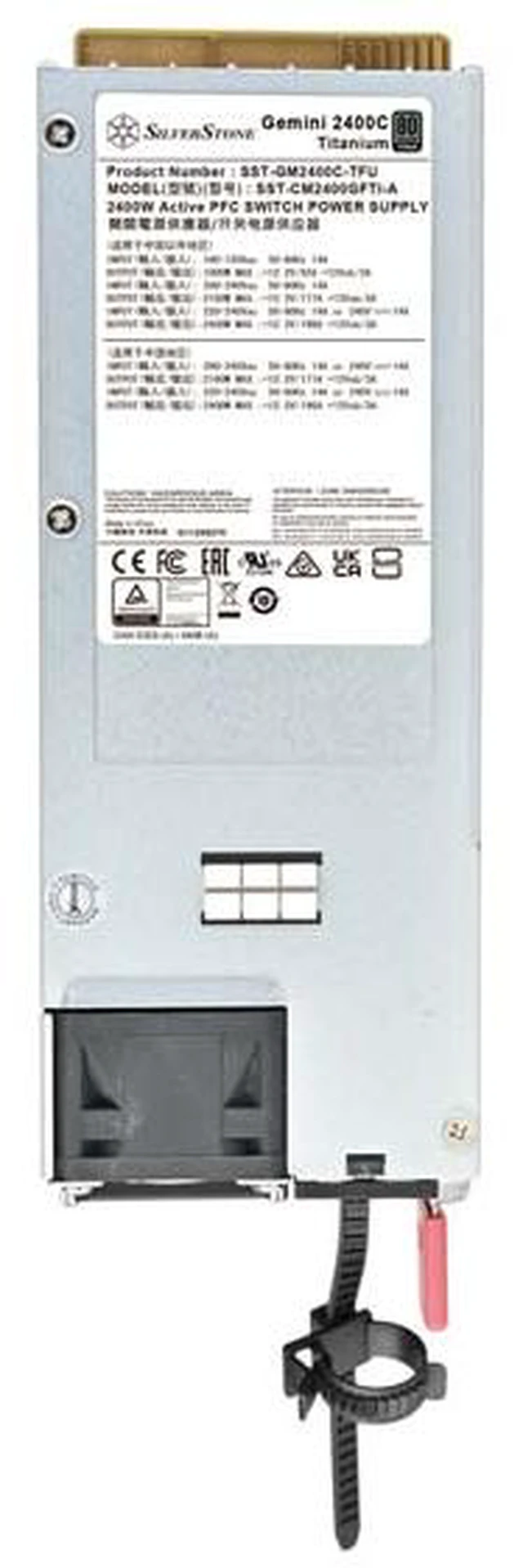

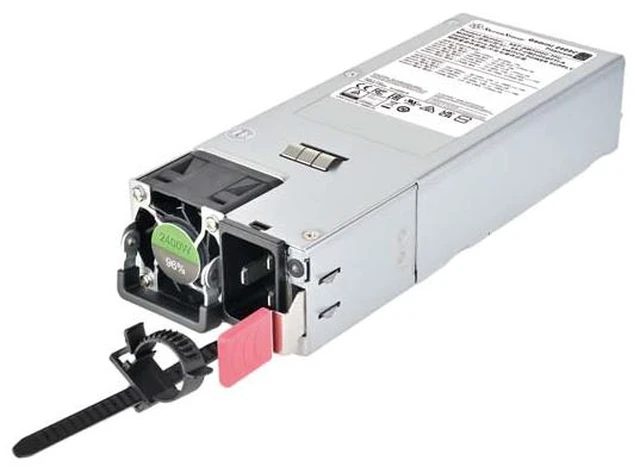

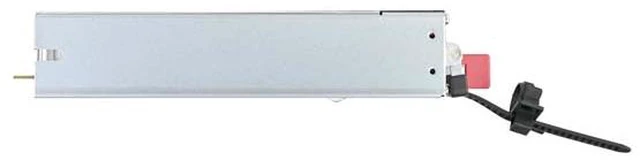

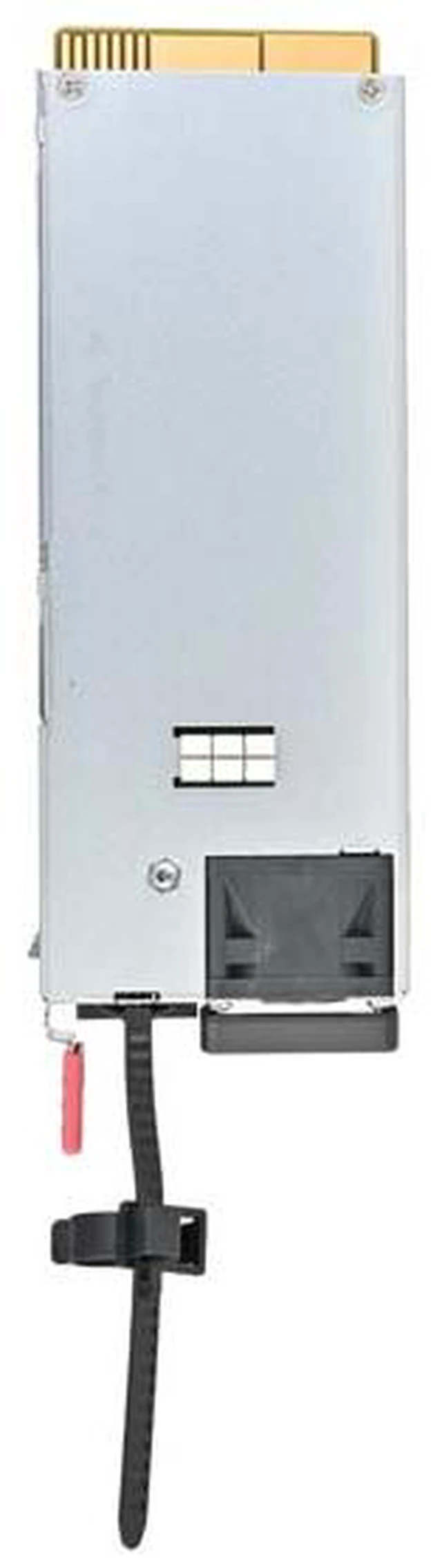

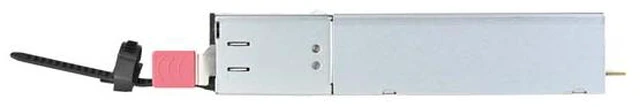

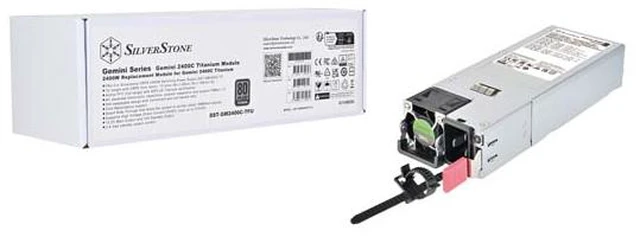

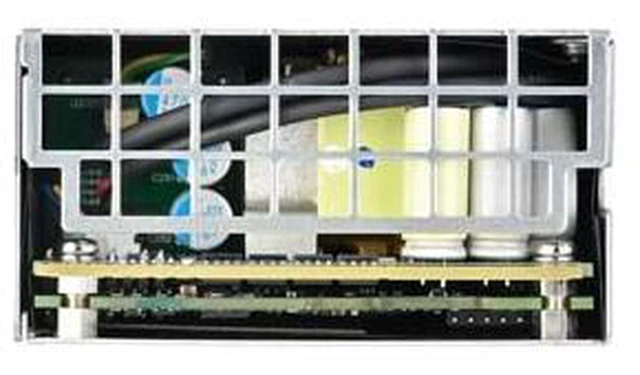

SilverStone PS-GM2400C-TFU 2400W Replacement Module for Gemini 2400Cx Titanium
- PSU For Silverstone CRPS 2400W Switching Power Supply SST-GM2400C-TF
- 1U height with CRPS form factor: 73.5mm (W) x 39mm (H) x 185mm (D)
- Active PFC (full range) with 80PLUS Titanium certification
- All Japanese electrolytic capacitors, polymer capacitors and support PMBus 1.2
- Hot-swappable design with convenient pull-out handle bars
- Cold Redundancy support
- Smart Ride Through that Allow the system to quickly obtain SMBAlert signals
- Supports High Voltage Direct Current (HVDC) input up to 310VDC.
- 12.2V Main Output and 12V Standby Output
- 3 A max standby output current
+
+
Learn more about the SilverStone Gemini 2400Cx Titanium Module
| Brand | SilverStone |
|---|---|
| Model | Gemini 2400Cx Titanium Module |
| Part Number | PS-GM2400C-TFU |
| Type | CRPS Module |
|---|---|
| Form Factor | 1U Rackmount / CRPS / Power Module |
| Maximum Power | 2400W |
| Energy-Efficient | 80 PLUS TITANIUM Certified |

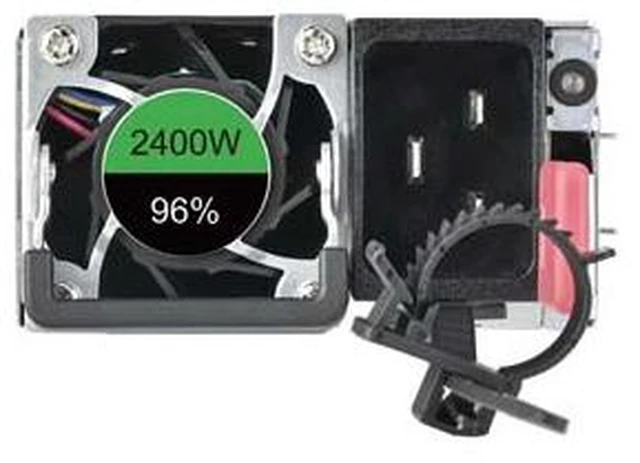

| Fans | Single 40mm dual ball bearing fan |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| PFC | Active PFC (PF>0.95 20% load, PF>0.98 50% load, PF>0.99 100% load) |
| MTBF | 200,000 hours |
| Efficiency | 10%~100% (90%–96% efficiency under load) |
| PSU Noise Level | 72.8 dBA |
| Hold-up Time | 10ms (70% load) |
| Protection | Over Current Protection Over Current Warning Short Circuit Protection Over Power Protection Over Voltage Protection Over Temperature Protection Fan Failure Protection |
| Connectors | Gold Finger (25 Pair Connector) |
| Dimensions | 39 x 73.5 x 185mm |
|---|---|
| Weight | 1kg |
| Temperature | -10°C ~ 50°C |
|---|
| First Listed on Newegg | October 12, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: +1-909-465-9596
- Support Email: usasupport@silverstonetek.com
- Support Website
- View other products from SilverStone
LOADING...
LOADING...
The SilverStone PS-GM2400C-TFU is a 2400W 80 PLUS Titanium CRPS replacement power module for the Gemini 2400Cx Titanium, suited to server operators who need a hot-swappable 1U power supply with cold-redundancy support.
Recommended For
- Server operators replacing a failed module in a compatible SilverStone Gemini 2400C CRPS system who want a hot-swappable replacement.
- System integrators building high-density servers or storage systems that require a 2400W CRPS module, a compatible power-distribution board, and PMBus monitoring.
- Operators of systems designed for redundant power who need a hot-plug module with cold-redundancy support for serviceability.
- Workstation or compute-system builders whose chassis and power distribution are specifically designed for this CRPS module and its 12V output.
Real-World Use Scenarios
- In a compatible Gemini 2400C Titanium redundant-power setup, replace a failed module while the other healthy module keeps the system powered; continuity depends on the remaining power path being correctly configured and able to carry the load.
- During planned service on a supported Gemini 2400C Titanium system, use the hot-swappable module design to replace or inspect the power module without a routine full-system shutdown, provided the redundant power path is healthy.
- For a CRPS-compatible server or compute system with sustained, high 12V power demand, install this module as a replacement for the matching Gemini 2400C Titanium supply; its maximum output depends on input conditions, so check the system’s power budget and feed voltage.
- In a facility designed for compatible high-voltage DC power, use the module’s HVDC input support to power an approved Gemini 2400C Titanium installation; it is not a general-purpose DC supply for arbitrary systems.
- For server operators monitoring power hardware, PMBus 1.2 support and SMBAlert-related ride-through features can help the compatible system report supply status and react to power events through its supported management setup.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Replacement CRPS power modules for compatible server systems |
| Power Output And Efficiency | 2400W maximum output with 80 PLUS Titanium certification and 90%–96% efficiency under load |
| Input And Power Factor | 90–264V input at 47–63Hz with active PFC; PF exceeds 0.95 at 20% load, 0.98 at 50% load, and 0.99 at full load |
| Cooling And Reliability | Single 40mm dual ball-bearing fan, 72.8 dBA noise level, 200,000-hour MTBF, and 10ms hold-up time at 70% load |
| Protection | Over-current warning and protection, short-circuit, over-power, over-voltage, over-temperature, and fan-failure protection |
| Form Factor And Connections | 1U rackmount CRPS power module measuring 39 × 73.5 × 185mm, with a 25-pair gold-finger connector |
| Operating Conditions | Operating temperature range of -10°C to 50°C |
| Weight | 1kg |
| Model Identifiers | SilverStone Gemini 2400Cx Titanium Module; part number PS-GM2400C-TFU; external model number SST-CM2400GFTI-A |
