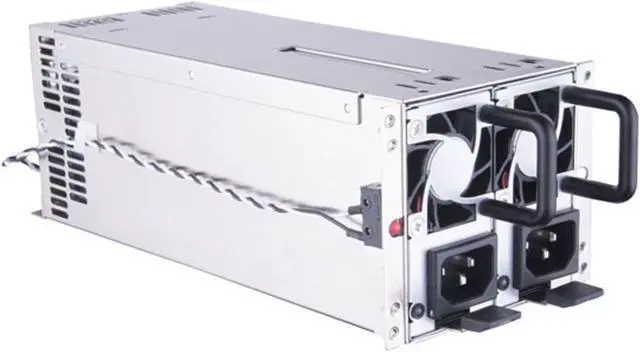

The SilverStone GM600-2UG-V2 is a 600W, 1+1 2U redundant server power supply for system builders and operators who need a redundant power configuration in compatible 2U server systems.
Recommended For
- Operators of compatible 2U servers who want two power modules so a failed module can be replaced without shutting down the system.
- Small-business and homelab server builders with a chassis designed for this 2U redundant PSU, where maintaining power during a module failure matters more than using a standard desktop PSU.

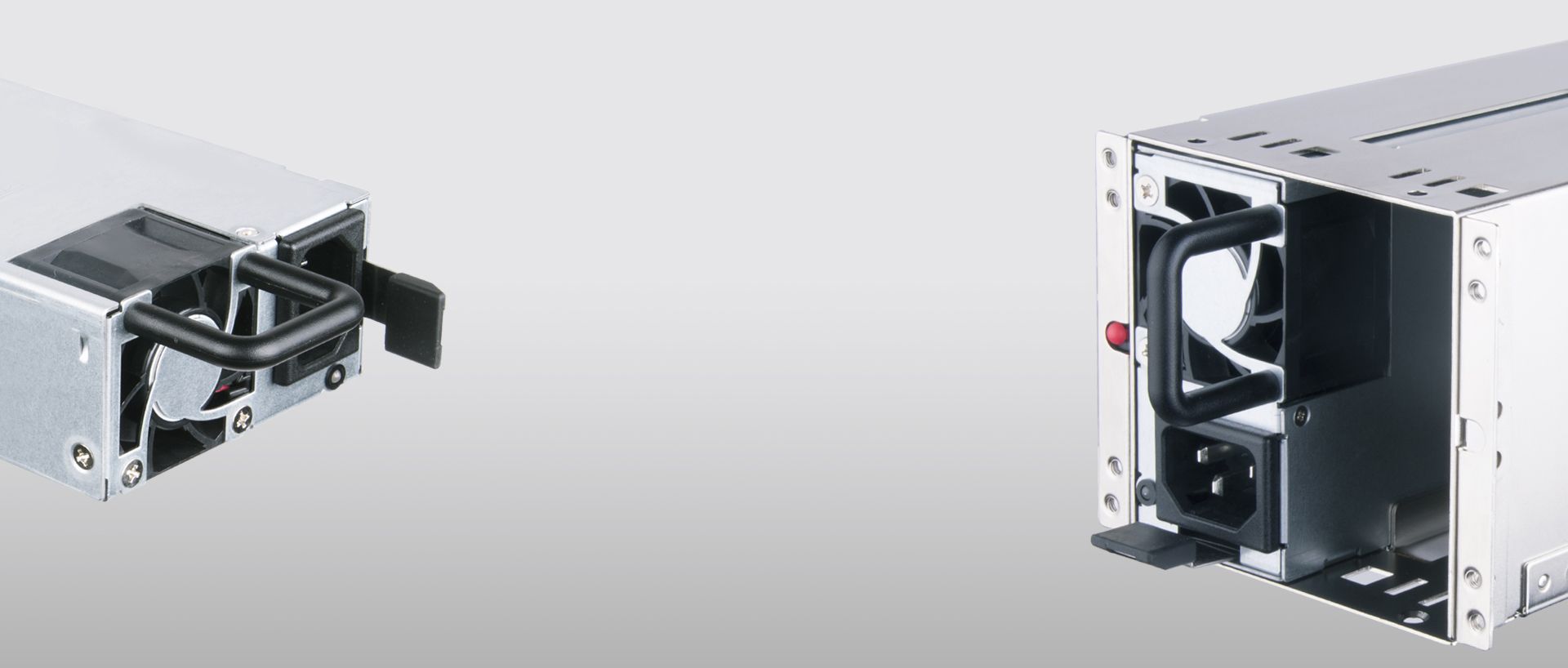

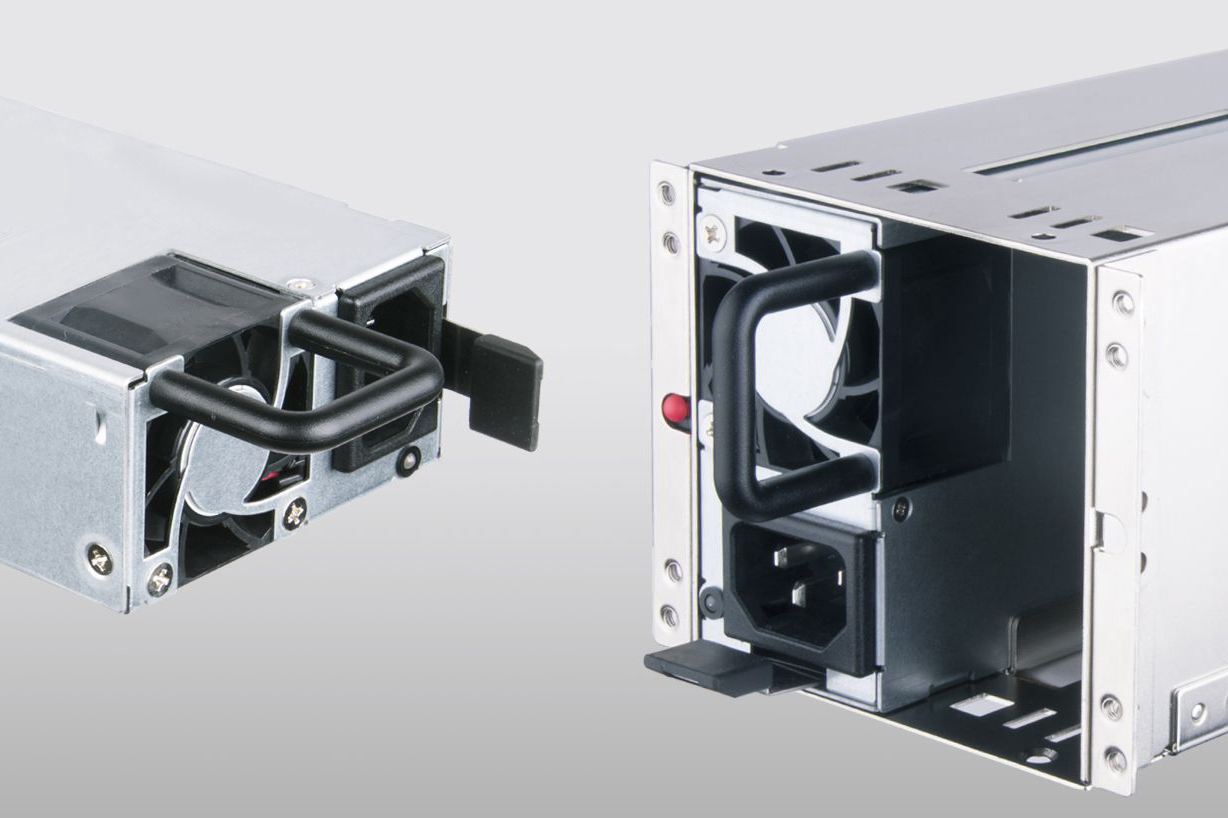

- Server maintainers who need a hot-swappable power supply module and PMBus support for a compatible server setup.
Spec Summary
| Attribute | Value |
|---|
| Best For | Redundant 2U server builds requiring up to 600W of power |
|---|
| Power Output And Redundancy | 600W redundant power supply with a single +12V rail |
|---|

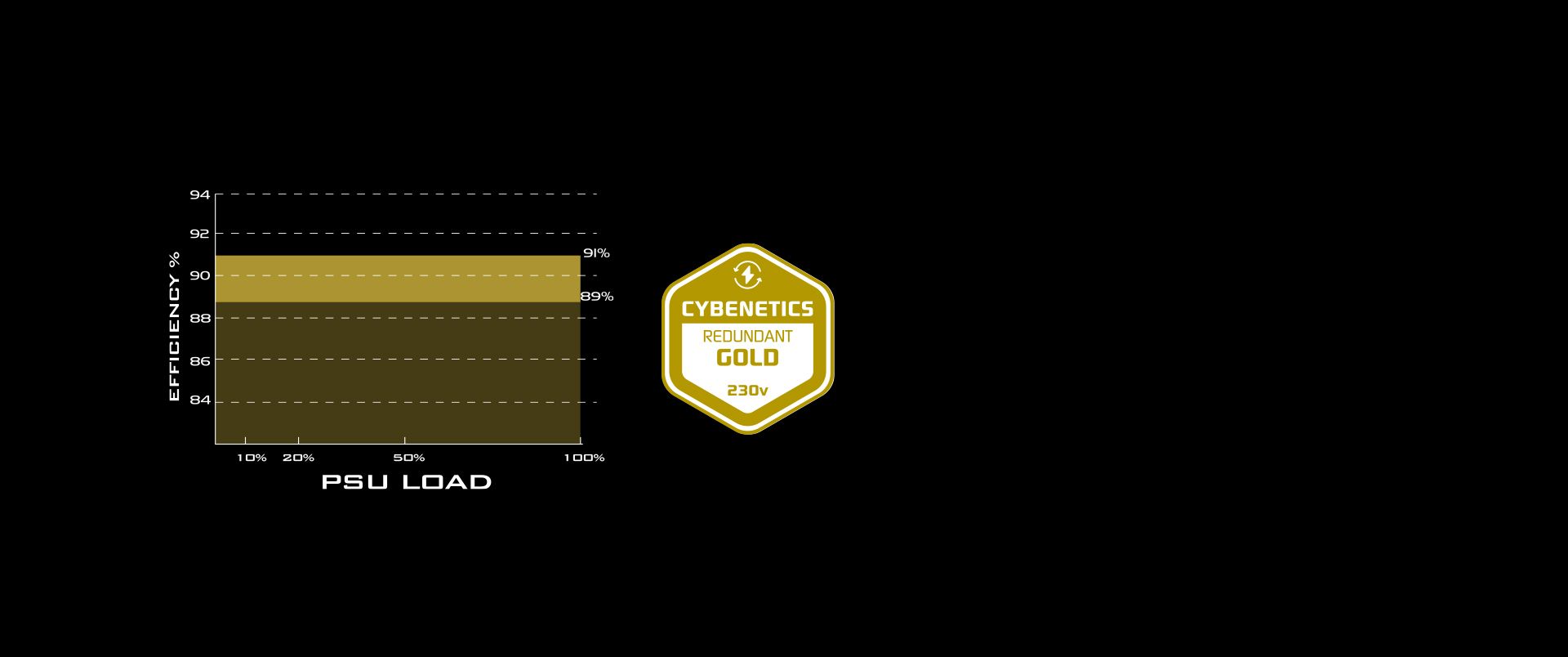

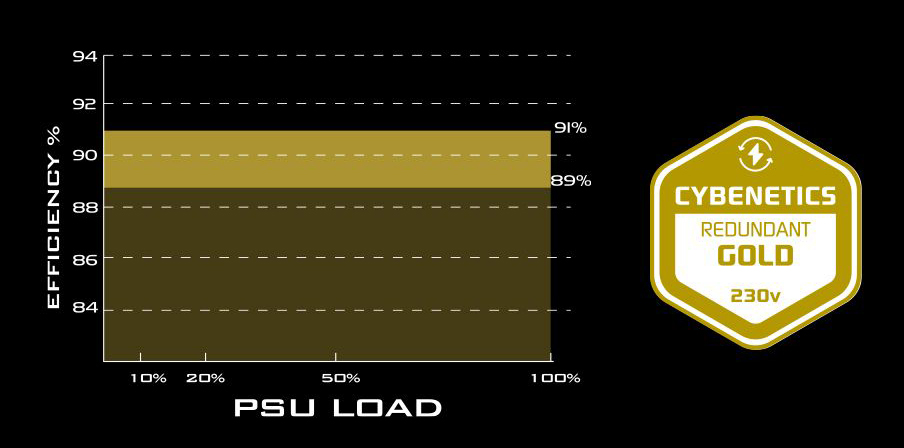

| Efficiency And Power Factor | Cybenetics Gold efficiency rating; 87% to under 89% overall efficiency with a single power supply and active PFC (PF >0.9 at full load) |
|---|
| Electrical Input And Output | 90–264V input at 47–63Hz; output rails rated at 25A on +3.3V, 25A on +5V, 50A on +12V, 3.5A on +5VSB, and 0.8A on -12V |
|---|
| Cooling And Acoustics | Air-cooled by 40mm PWM fans, with a maximum noise level of 62.5 dBA |
|---|
| Protection And Reliability | Over-current, over-voltage, short-circuit, and over-temperature protection; MTBF over 100,000 hours; operating temperature 0°C–45°C |
|---|

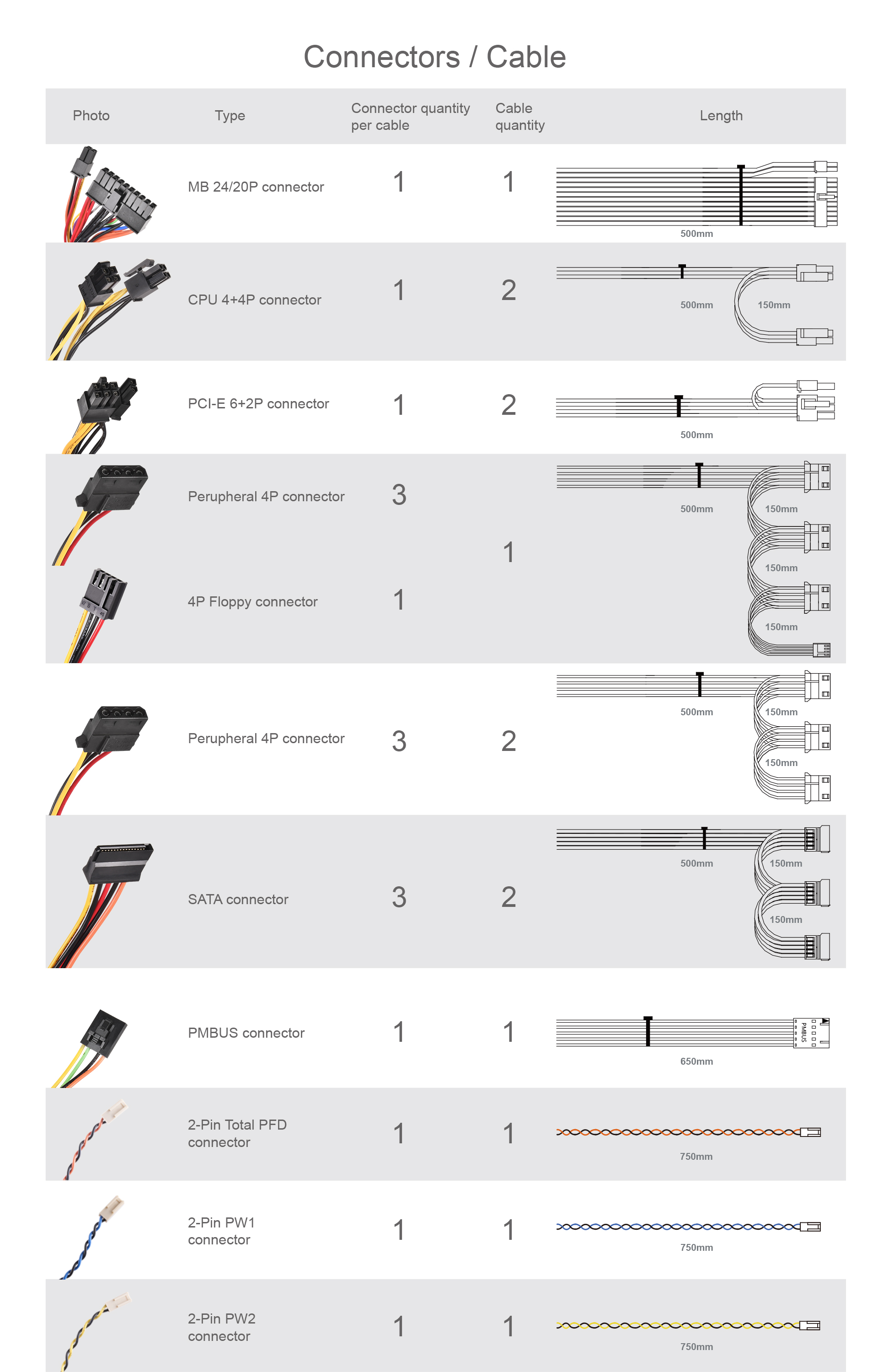

| Connectors And Cabling | Includes a 20+4-pin motherboard connection, 2 EPS/ATX 12V, 2 PCIe, 6 SATA, 9 peripheral, 1 floppy, TTL, PW1, PW2, and PM Bus connections, with corresponding cables; non-modular cable format |
|---|

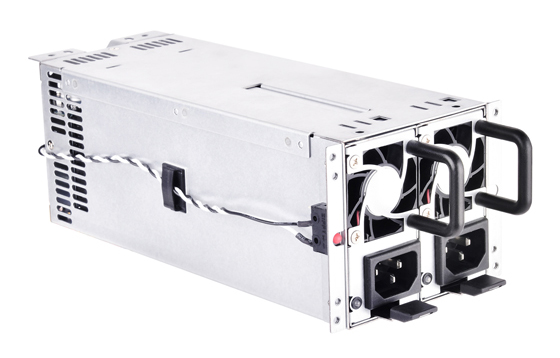

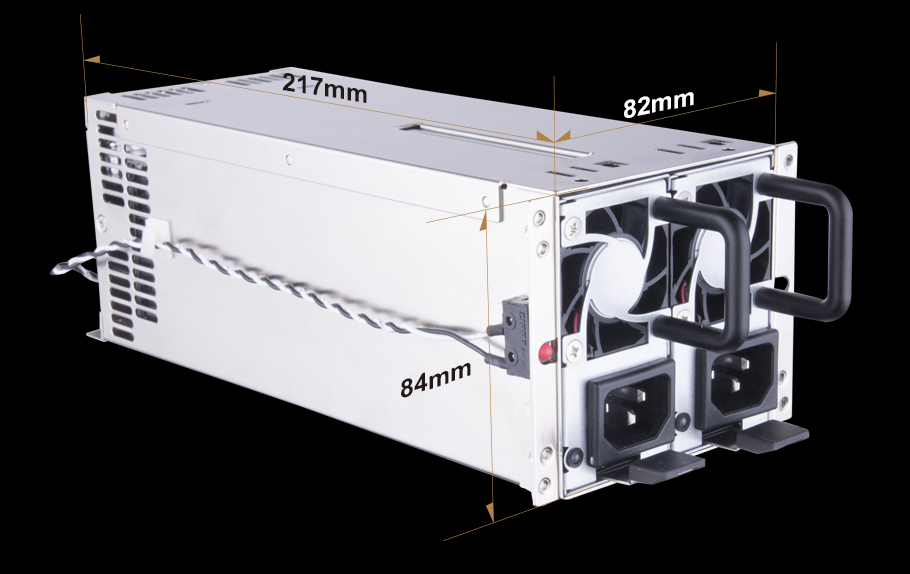

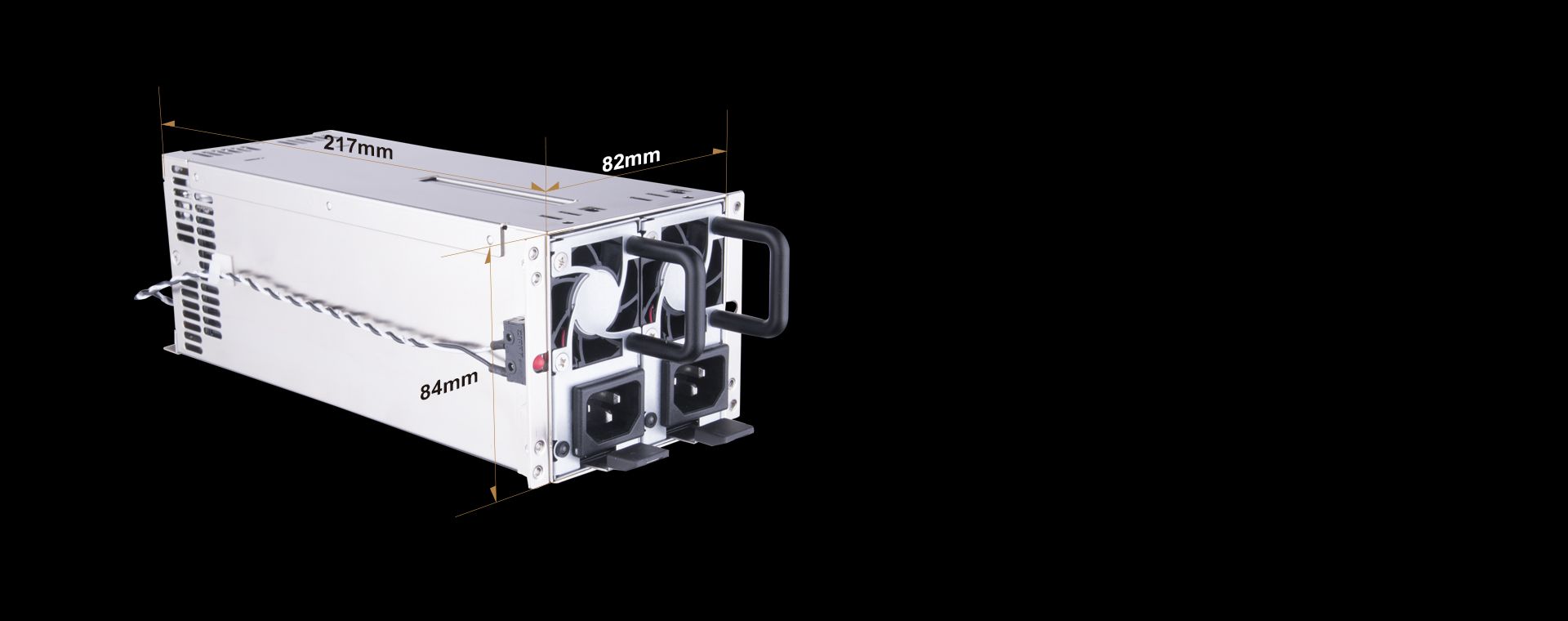

| Form Factor, Dimensions And Weight | 1+1 2U redundant form factor; module measures 78 × 39 × 190 mm without handle, housing measures 84 × 82 × 217 mm without bracket, and housing with bracket measures 102 × 82 × 231 mm without handle; weighs 6.9 lb (3.13 kg) |
|---|
| Model Identifiers | SilverStone GM600-2UG-V2; manufacturer model number PS-GM600-2UG-V2-X |
|---|
