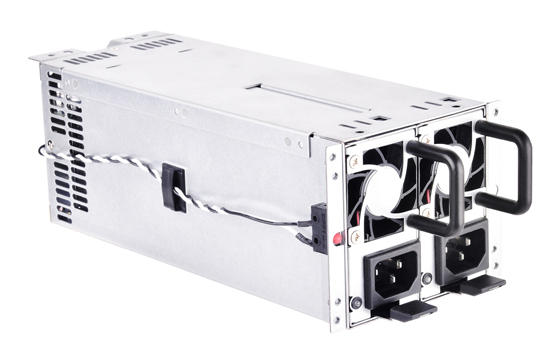

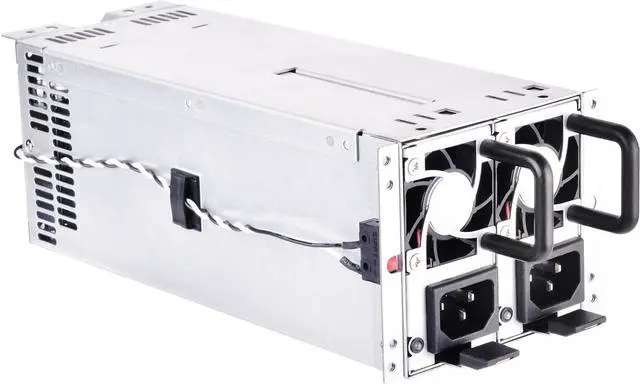

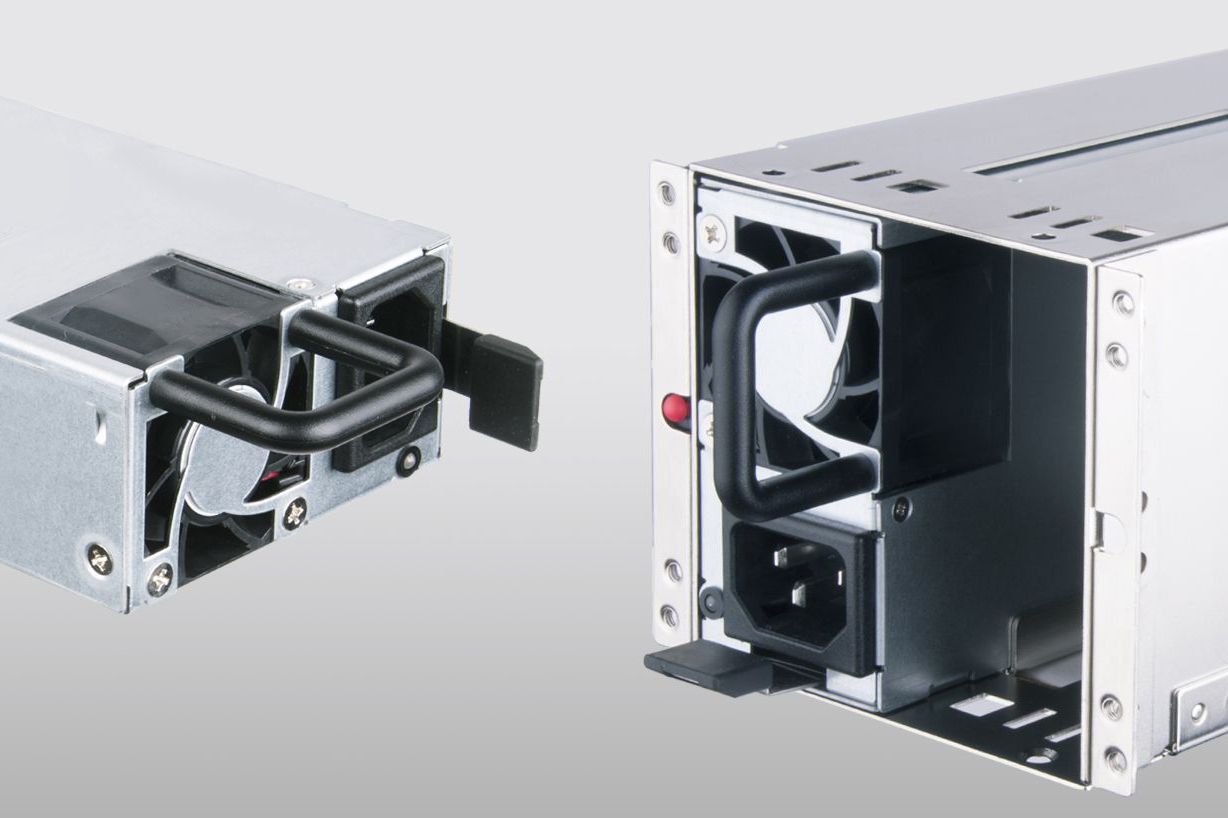

The SilverStone GM800-2UG-V2 is an 800W, Cybenetics Gold 1+1 redundant 2U server power supply for compatible rackmount servers that need redundant power and a broad mix of motherboard, CPU, PCIe, SATA, and peripheral connections.
Recommended For

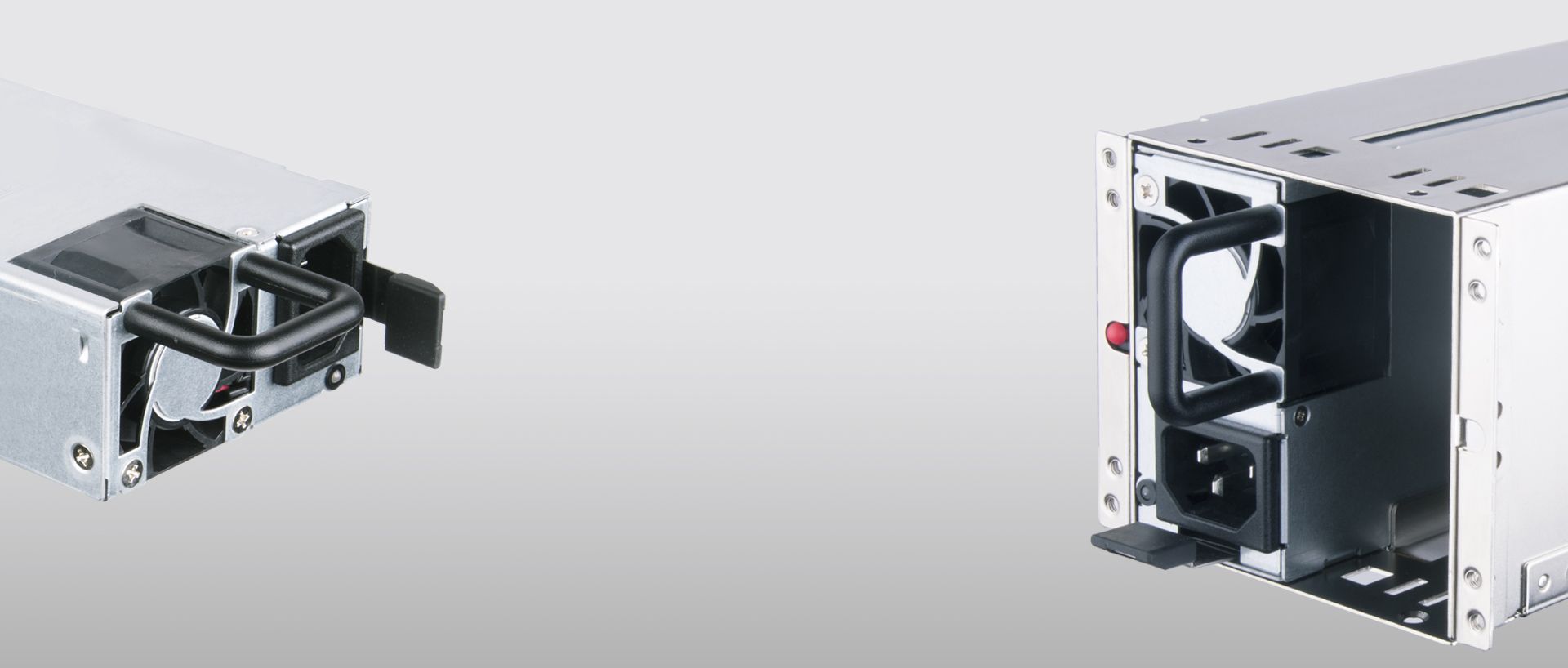

- Operators building or refreshing a 2U rack server who need a hot-swappable 1+1 redundant power supply, so a failed module can be replaced without treating the PSU as a standard single-unit desktop component.
- Small-business or edge-server administrators prioritizing power-supply redundancy in a compatible rack chassis for always-on server workloads, rather than choosing a conventional tower-PC PSU.
- Homelab builders with a rackmount chassis designed for this 2U redundant form factor who value replaceable power modules and can keep server-fan noise away from quiet living or work areas.
Spec Summary
| Attribute | Value |
|---|
| Best For | Redundant power for 2U server systems requiring an 800W supply and a 20+4-pin motherboard connection |
|---|
| Form Factor And Modularity | 1+1 redundant 2U form factor with a non-modular cable configuration |
|---|
| Power Output | 800W maximum output with a single +12V rail; output currents are 25A at +3.3V, 25A at +5V, 66.5A at +12V, 3.5A at +5VSB, and 0.8A at -12V |
|---|

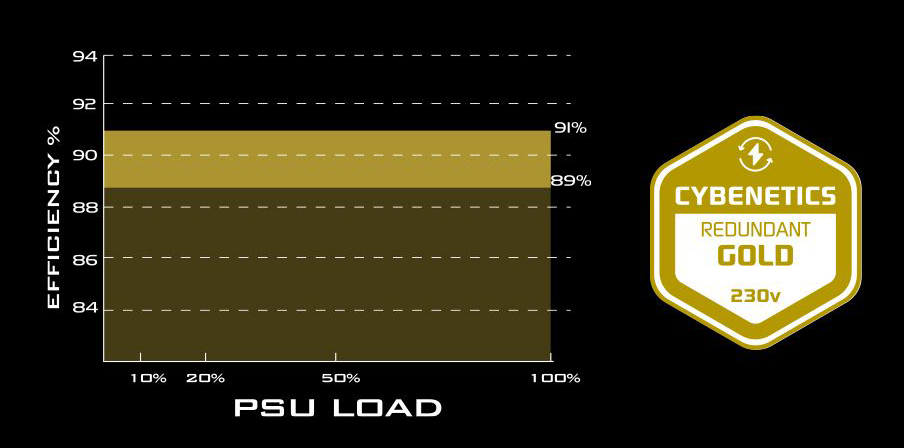

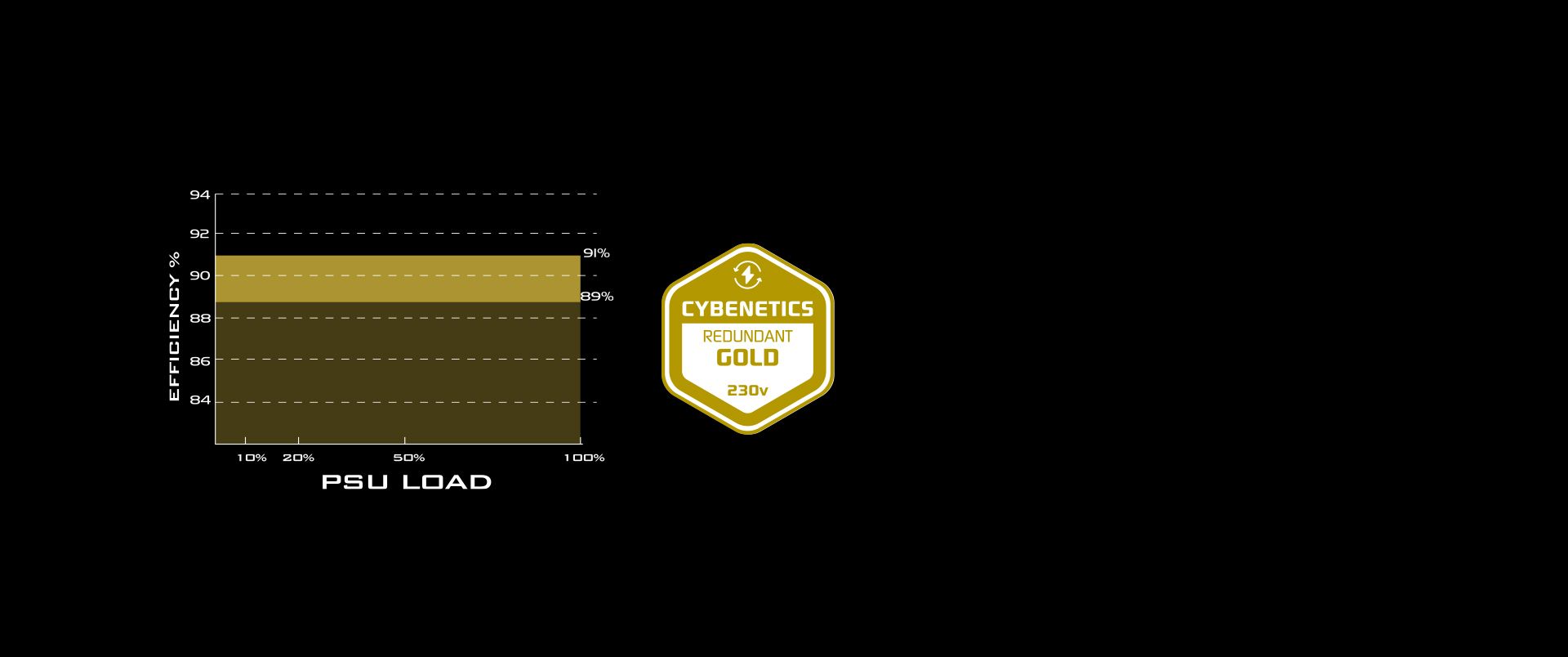

| Input And Efficiency | Accepts 90–264V AC at 47–63Hz; active PFC with PF >0.9 at full load, Cybenetics Gold rating, and 87% to under 89% overall efficiency with a single modular power supply |
|---|

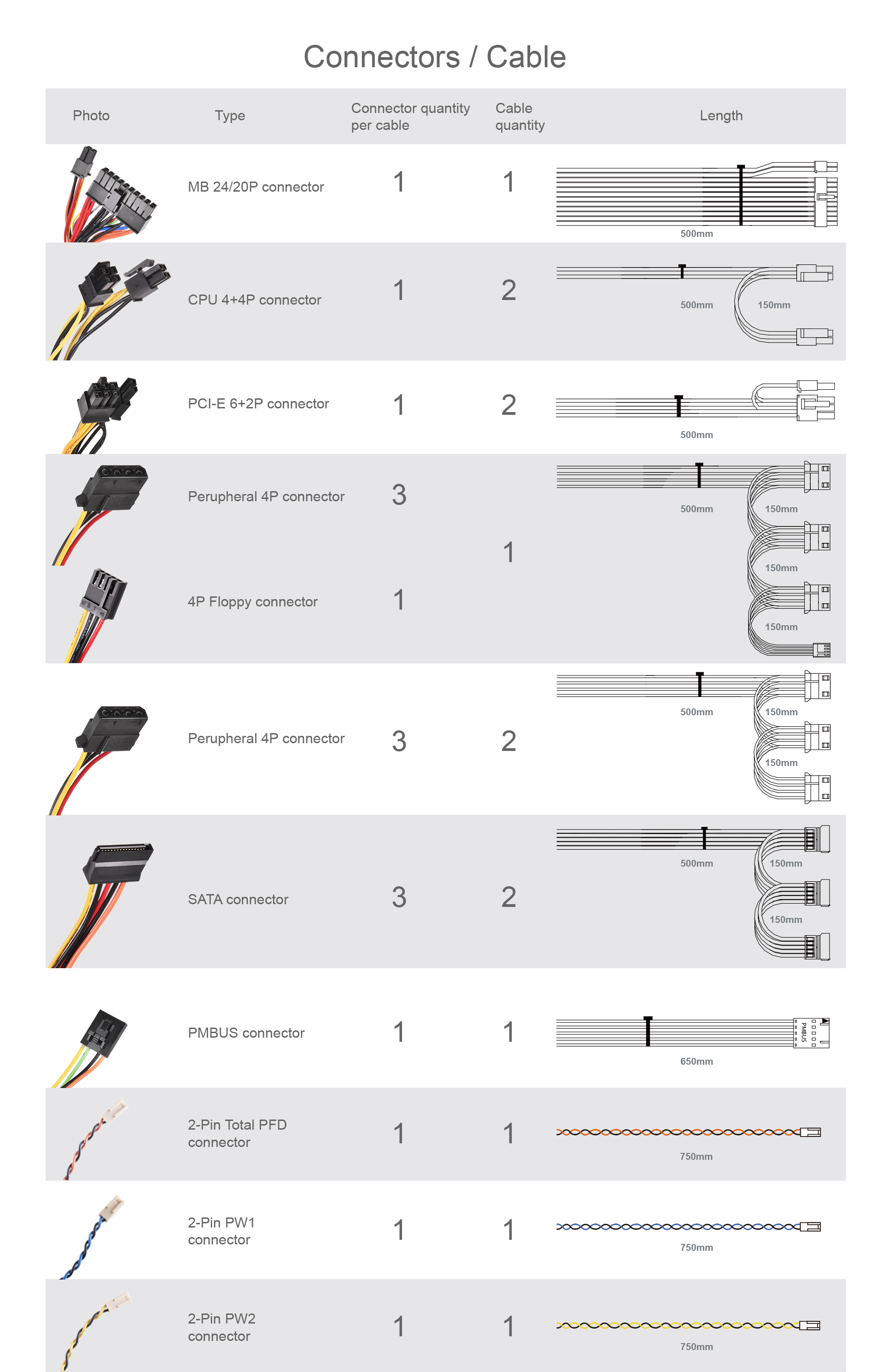

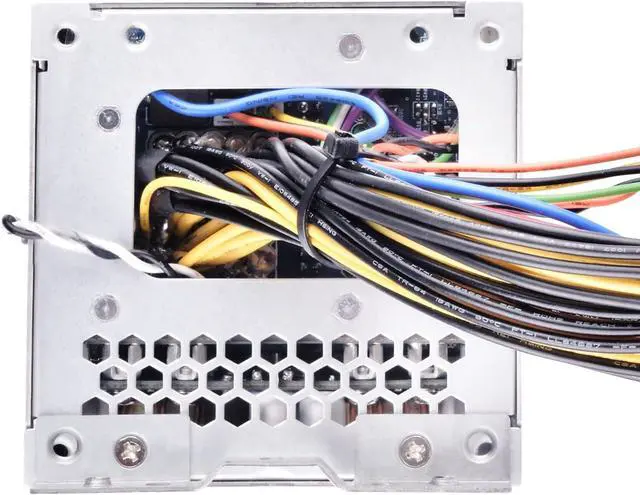

| Connectors And Cabling | Includes a 24/20-pin motherboard connector, two EPS/ATX 12V connectors, two PCIe connectors, six SATA connectors, nine peripheral connectors, and floppy, TTL, PW1, PW2, and PM Bus connections, with corresponding motherboard, CPU, PCIe, SATA, peripheral, and control cables |
|---|

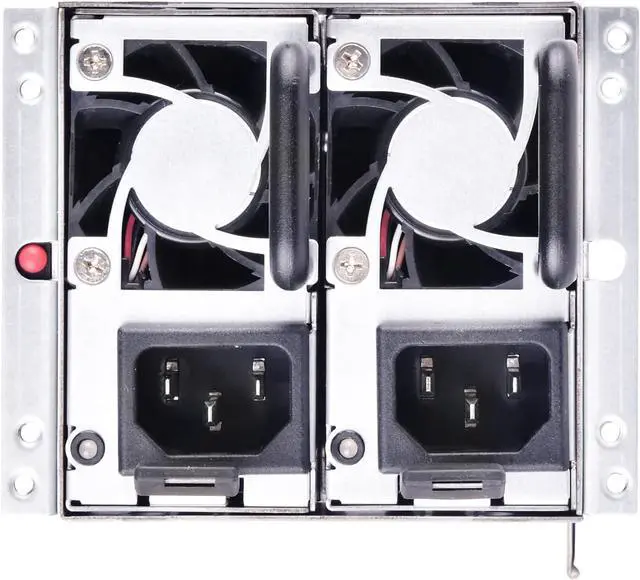

| Cooling And Acoustics | Air-cooled with 40mm PWM fans and a maximum noise level of 62.5 dBA |
|---|
| Protection | Over-current, over-voltage, short-circuit, and over-temperature protection |
|---|
| Reliability And Operating Conditions | MTBF greater than 100,000 hours; operating temperature from 0°C to 45°C |
|---|

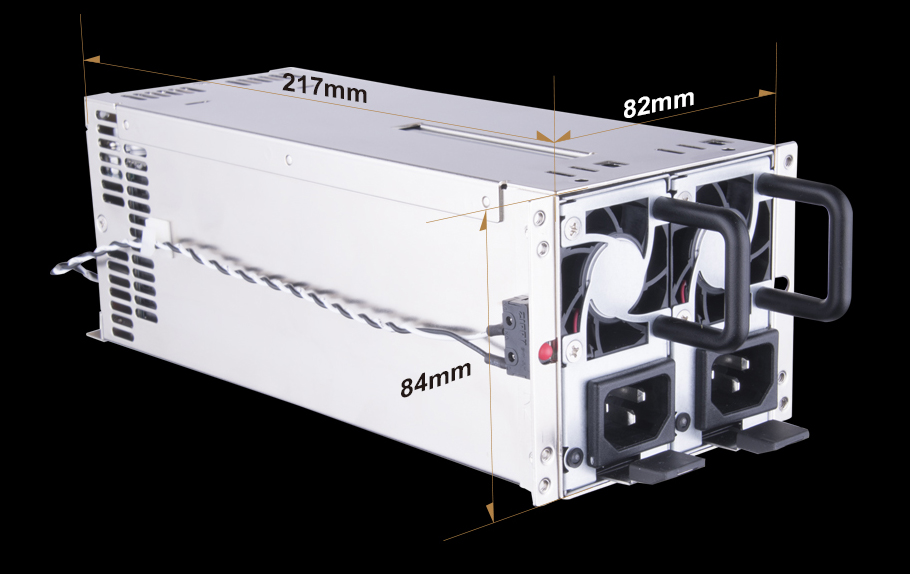

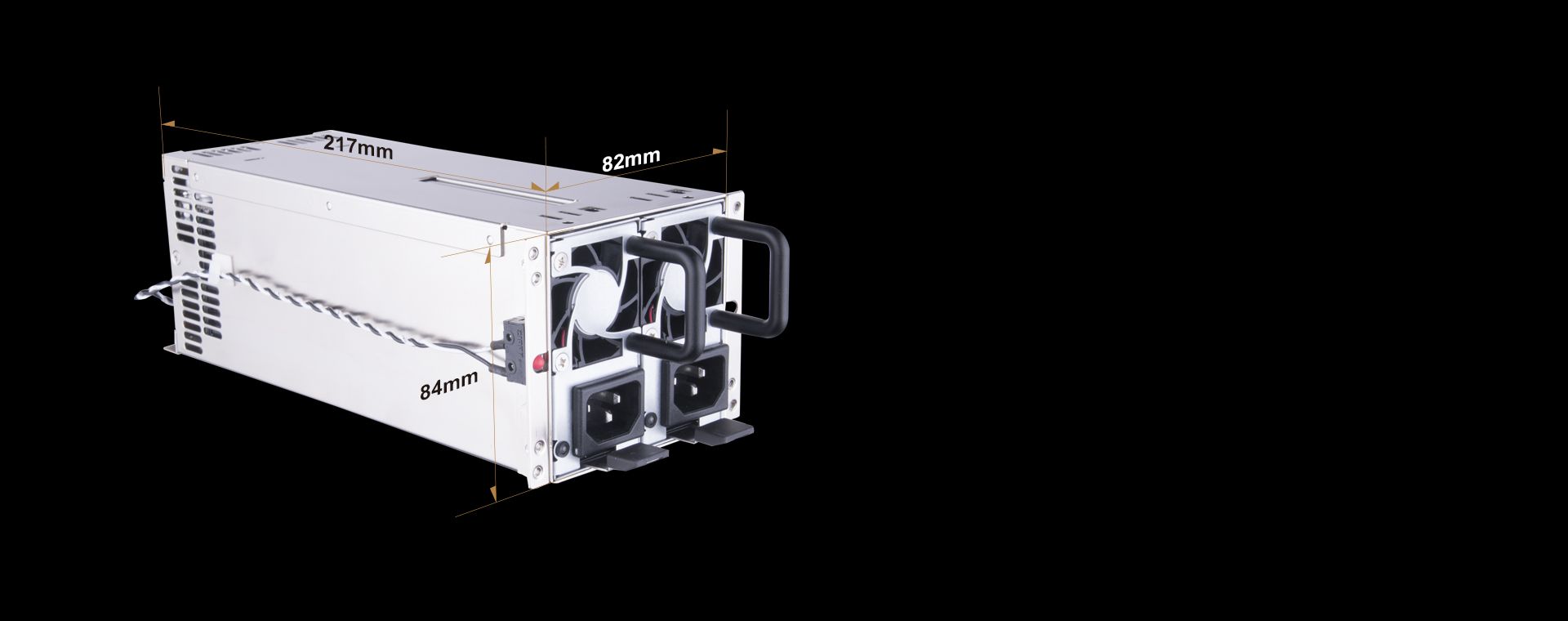

| Dimensions And Weight | Housing with bracket: 102 × 82 × 231 mm; housing without bracket: 84 × 82 × 217 mm; module only: 78 × 39 × 190 mm. Weight: 6.97 lb (3.16 kg) |
|---|
| Model Identifiers | SilverStone GM800-2UG-V2; model number SST-2R0800FCGD-A; model name GM800 2UG Gold |
|---|
