Is this compatible with an AM4 socket?

Yes, I just installed one on a Ryzen 5 2400G AM4 socket. Works great and easy to install.

Returns

& Orders

Black Friday Deals

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 2 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

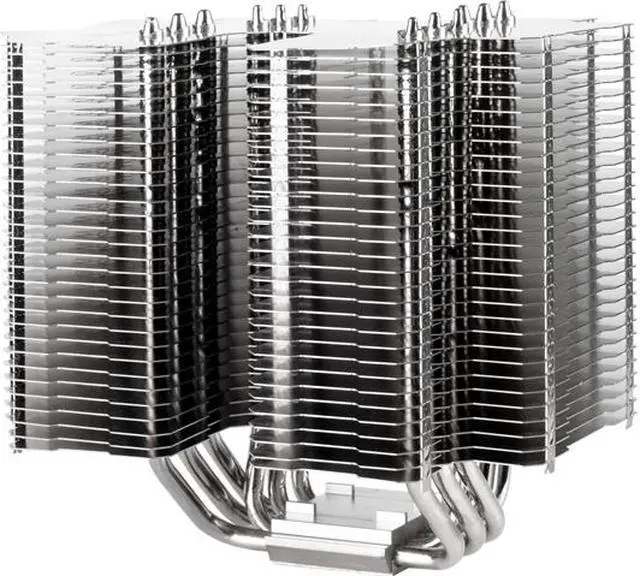

Main image of SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

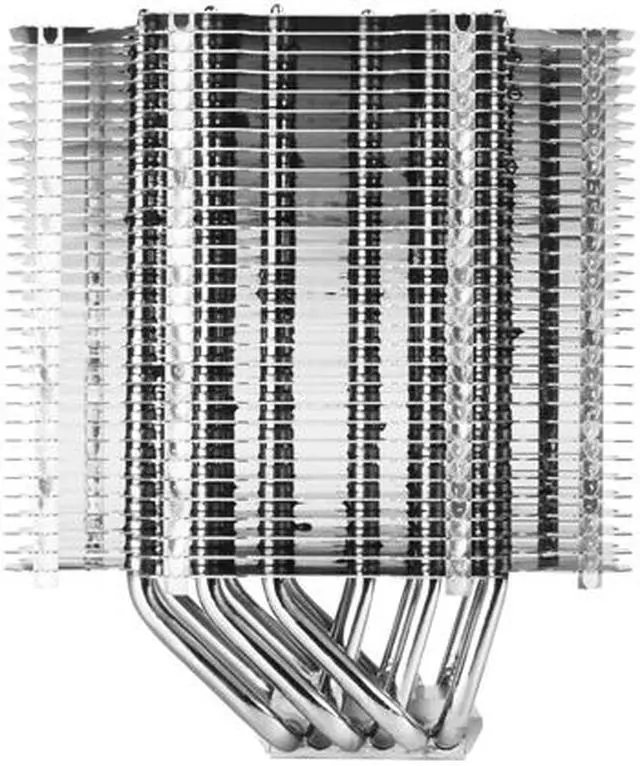

Alt view image 2 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

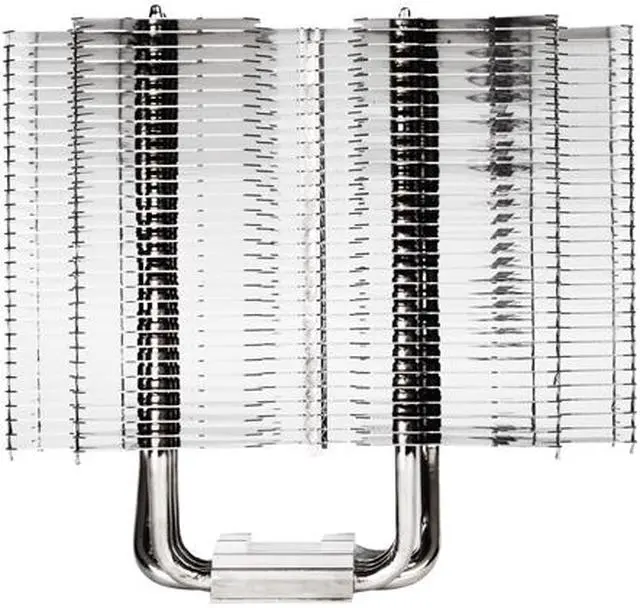

Alt view image 3 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

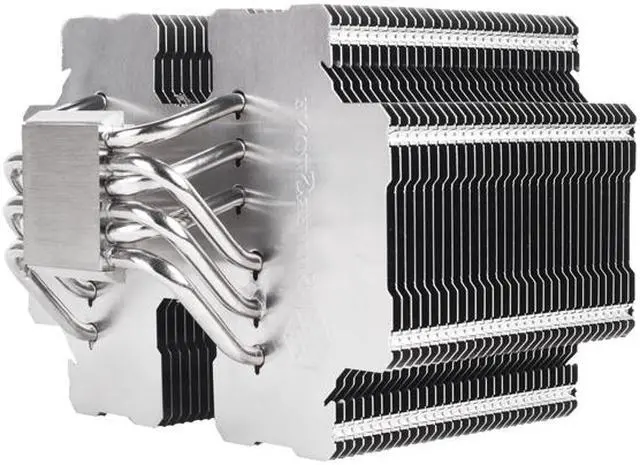

Alt view image 4 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

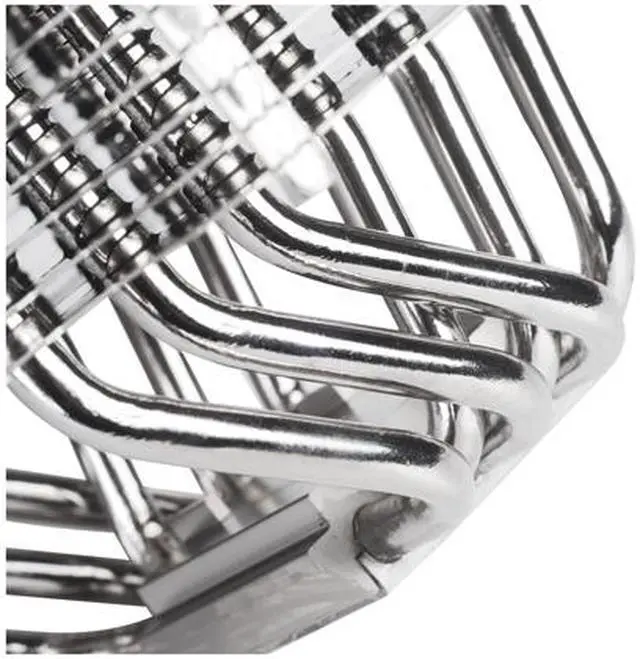

Alt view image 5 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

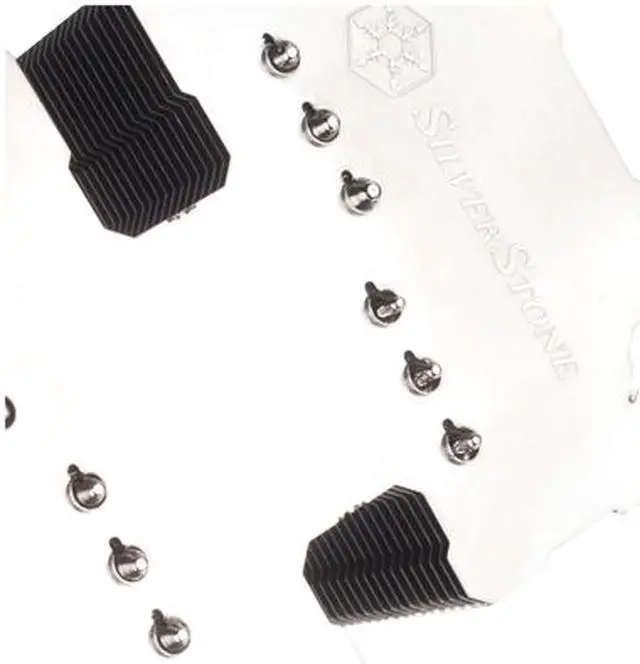

Alt view image 6 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

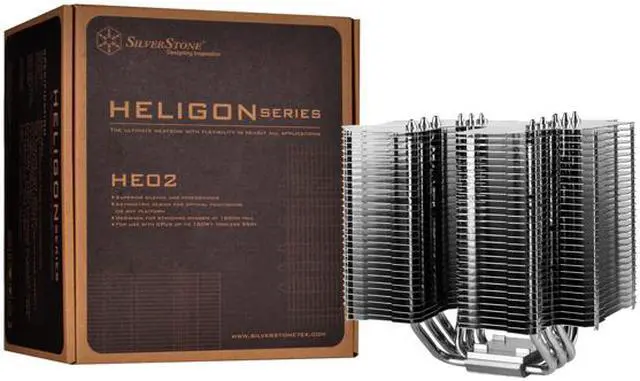

Alt view image 7 of 7 - SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

Shop All Silverstone Products

SILVERSTONE SST-HE02-V2 CPU Cooler Ultimate Heatsink with Flexibility in Nearly all Applications

(2) Write a Review

Superior silence and performance
Asymmetric design for optimal positioning on any platform
Designed for standard chassis at 160mm tall
For use with CPUs up to 150W+ (fanless 95W)
Compatible with socket LGA775/115X/1366/2011/2011-v3/2066/AM2/AM3/AM4/FM1/FM2

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

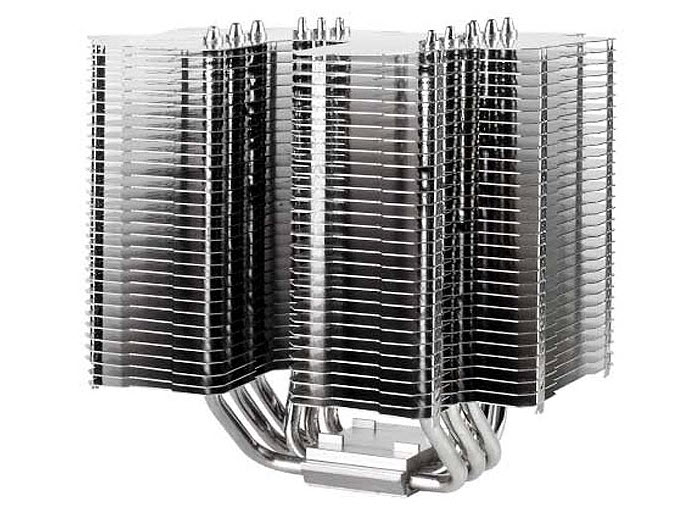

SST-HE02-V2 CPU Heatsink

Keep your Intel or AMD CPU running at full load without being held back by excessive heat with this heatsink from SilverStone. Up to six soldered heat pipes asymmetrically pass through two towers of innovatively spaced fins. It provides effective cooling for CPUs with up to 150W TDP (requires a separately-sold fan). And when working without fan, it offers extremely silent cooling for CPUs with up to 90W TDP.

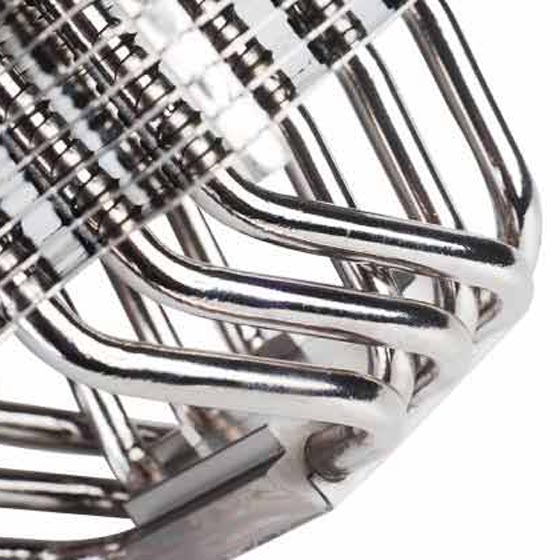

Large-sized heatsink combines six soldered heat pipes for superior silence and cooling performance
For use with CPUs up to 150W+ (95W without fan) TDP

Asymmetric design for optimal positioning on any platform
Compatible with socket LGA775/115X/1366/2011/2011-v3/2066 for Intel and AM2/AM3/AM4/FM1/FM2 for AMD

Designed for standard chassis at 160mm tall

Rich accessories are included for hassle-free installation

Model
Brand	SILVERSTONE
Series	Heligon Series HE02
Model	SST-HE02-V2

Details
Color	Silver
Type	Heatsinks only
Fan Size	120mm fan (Optional)
CPU Socket Compatibility	Intel Socket LGA 2066 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 AMD Socket AM4 / AM3 / AM2 / FM2 / FM1 AM4 / TR4 Need Bracket (sold separate)
Heatsink Material	Copper base, heat pipes with aluminum fins

Dimensions & Weight
Max CPU Cooler Height	160 mm
Heatsink Dimensions	170.00 x 130.000 x 160.00 mm / 6.69" x 5.12" x 6.30"
Weight	2.18 lbs.

Features
Features	Superior silence and performance Asymmetric design for optimal positioning on any platform Designed for standard chassis at 160mm tall For use with CPUs up to 150W+ (fanless 95W) Compatible with socket LGA775/115X/1366/2011/2011-v3/2066/AM2/AM3/AM4/FM1/FM2
