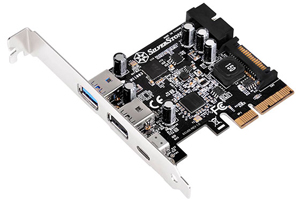

Silverstone Expansion Card Model SST-ECU05

  • PCI-E 2.0 x 2 (10Gbps)
  • USB 3.1 Gen 2.0 (10Gbps), USB 3.1 Gen 1.0 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps) Data Transfer Rate
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

General information

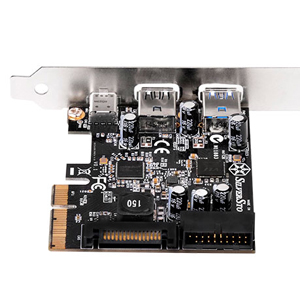

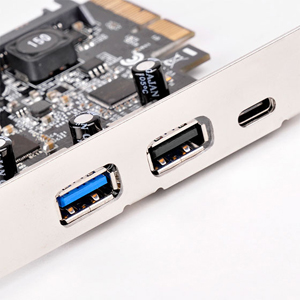

The SilverStone ECU05 PCIe expansion card instantly adds up to five SuperSpeed USB ports to your desktop computer, great for upgrade or adding additional USB ports to your system. A total of five extra USB ports mean adequate connections for your daily use - two USB 3.0 Type-A ports and a reversible USB 3.1 Type-C port are located externally on the bracket, and an internal 19-pin connector allows you to add another two USB ports to, like, the front panel of your computer case. Its single USB 3.1 Type-C port is capable of fully utilizing PCI-E 2.0 x2 slot for up to 10Gbps bandwidth. For fast charging, one of the Type-A ports (black) meets USB Battery Charging (BC) 1.2 standard to deliver quick and safe charging to your mobile devices. Plus, this add-on card supports UASP (USB Attached SCSI Protocol) for enhanced performance, and is compliant with XHCI (eXtensible Host Controller Interface) allowing easy installation in compatible PC systems. For better integration flexibility, both full- and half-height brackets are included.

General information

Includes SuperSpeed USB 3.1 external USB Type-C connector for up to 10Gbps bus bandwidth

General information

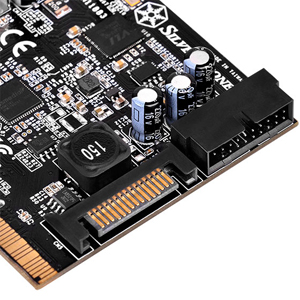

Includes USB 3.0 internal 19-pin connector

General information

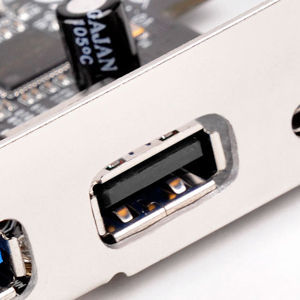

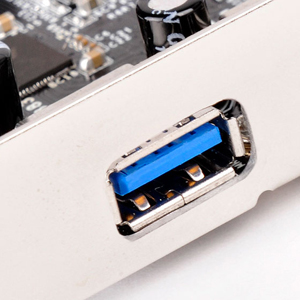

External USB 3.0 Type-A Connector

General information

External USB 3.0 Type-A, compliant with USB Battery Charging (BC) 1.2 for up to 5V, 1.5A output

General information

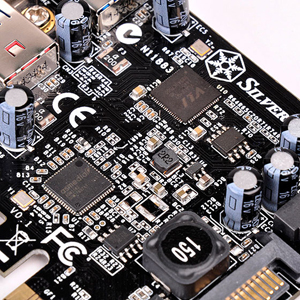

USB 3.1 Controller ASMedia ASM1142, USB 3.0 controller VIA Lab VL812

General information

Support PCI-E 2.0 x2 with throughput up to 10Gbps

General information

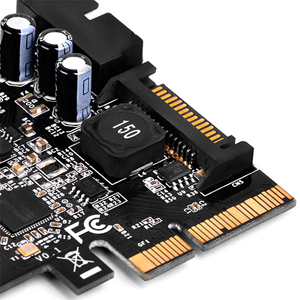

5V via SATA 15-pin power connector

General information

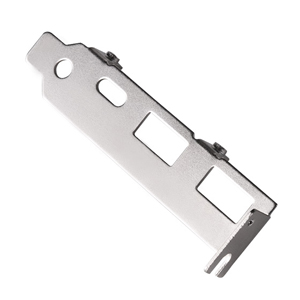

Includes optional low profile slot cover for supporting low profile cases
