Question 1

What type of SSD is this cooling kit compatible with?

Accepted Answer

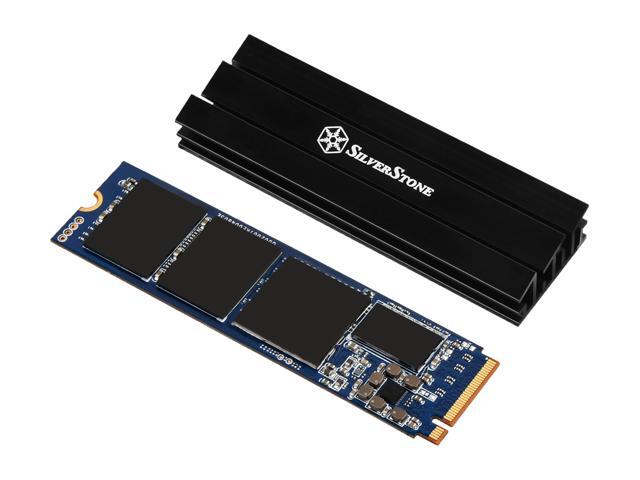

The cooling kit is compatible with M.2 SSDs of 2280 length.

Question 2

What are the dimensions and weight of the heatsink and pads?

Accepted Answer

The dimensions and weights are as follows: Heatsink - 70mm (W) x 10mm (H) x 20mm (D), 16.1g; Blue Pad - 70mm (W) x 1mm (H) x 20mm (D), 3.25g; Gray Pad 1 - 60mm (W) x 1mm (H) x 20mm (D), 2.8g; Gray Pad 2 - 60mm (W) x 1.5mm (H) x 20mm (D), 3.7g.

Question 3

Is there any concern about the SSD cooling kit interfering with other components on my PC?

Accepted Answer

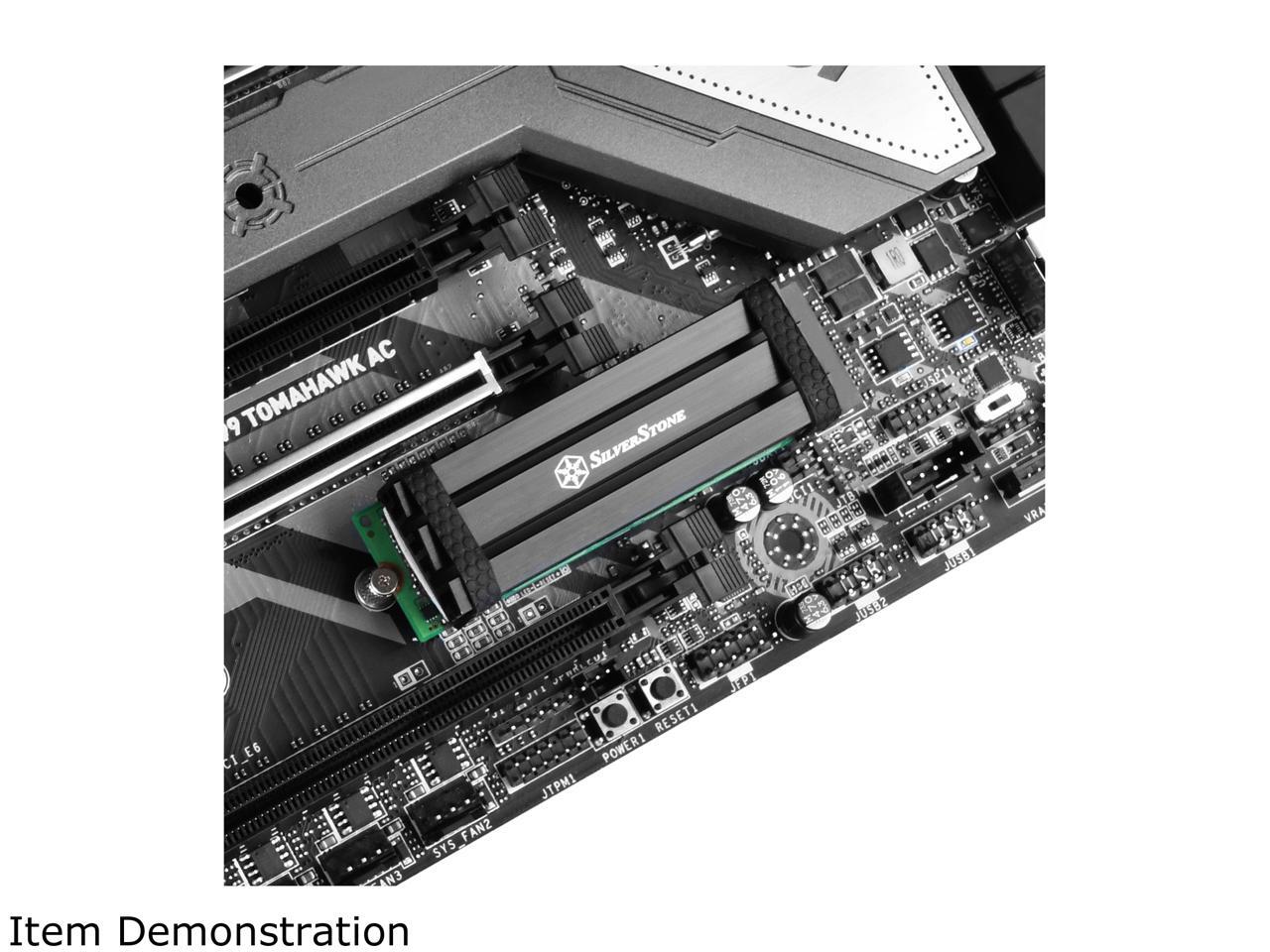

Yes, the product information mentions that if the M.2 slot on the motherboard is situated next to a PCIe slot, the height of the SST-TP02-M2's heatsink may interfere with graphic card or expansion card installation.

Question 4

How does this product help in the cooling of the SSD?

Accepted Answer

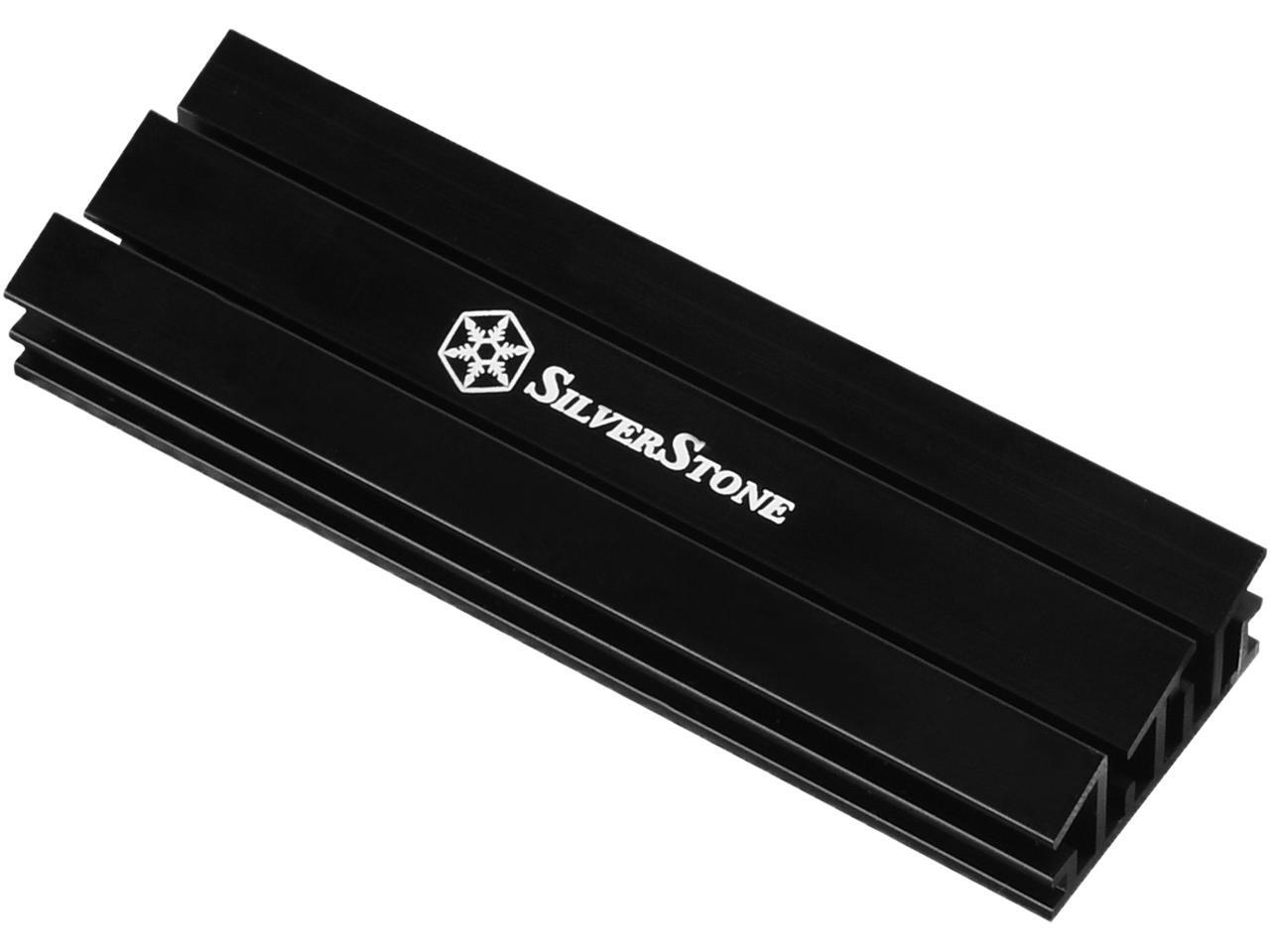

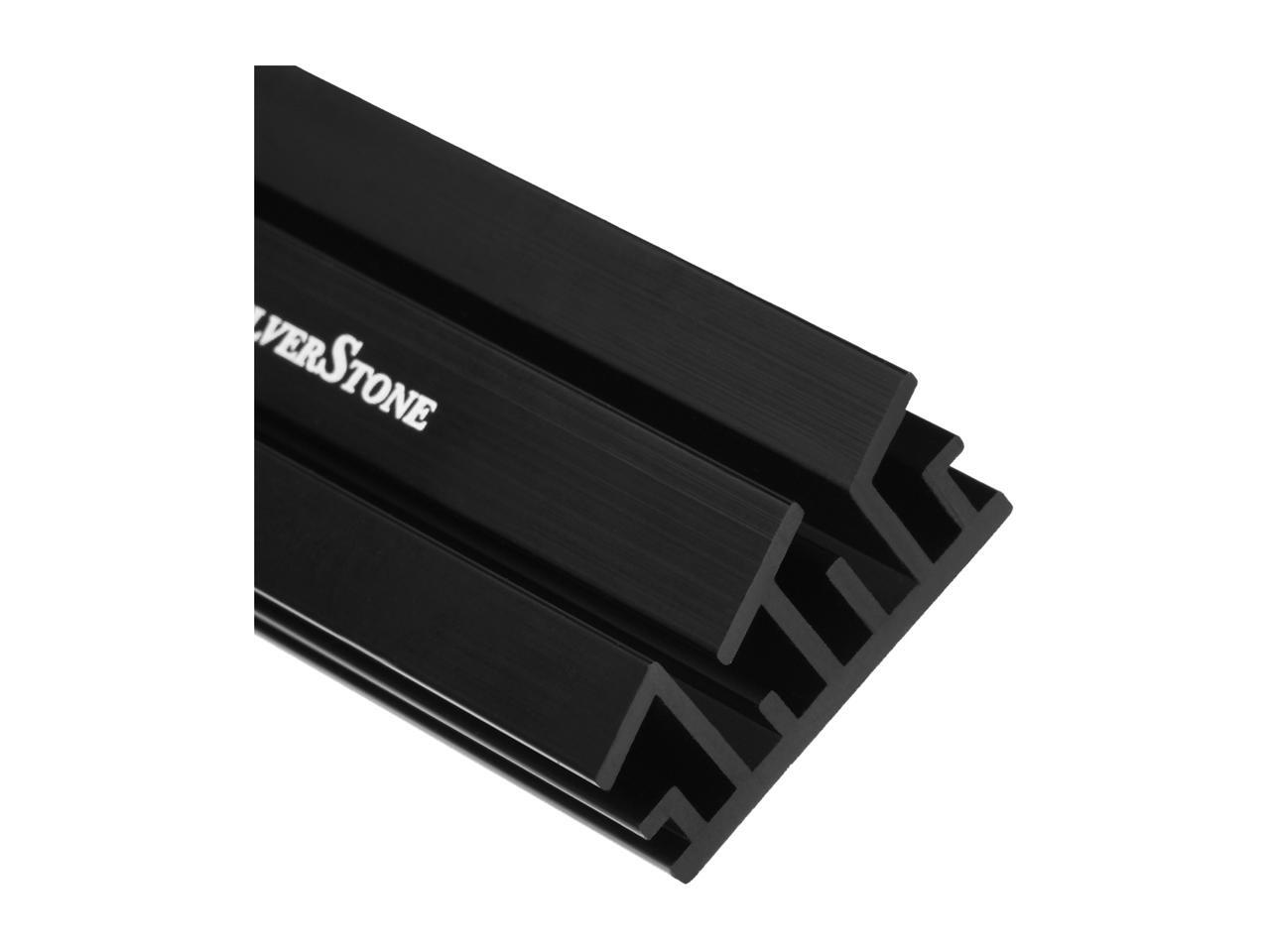

This product helps in the cooling of SSDs by using an aluminum alloy heatsink to increase the cooling area and thermal pads to enhance heat conduction, thereby reducing operating temperatures and improving performance stability.

Question 5

Has anyone tried this product in a micro ATX setup with an RTX 2080ti?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.

Something you may want to make note of with this particular unit is listed in the product features:
"If the M .2 slot on the motherboard is situated next to a PCIe slot, the height of the TP02-M2 ‘s heat sink may interfere with graphic card or expansion card installation, we recommended installing TP02-M2 onto other available M.2 slots on the motherboard to avoid interference issue."

If your particular mATX board positions the M.2 drive below the PCIe slot, you may have clearance issues.

Thank you,
Newegg Support
