INTRODUCTION

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any Wattage levels.

The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world's smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 104°F (40°C) continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.

SPECIAL FEATURES

Compact design with a depth of 150mm for easy integration
80 PLUS Gold certification

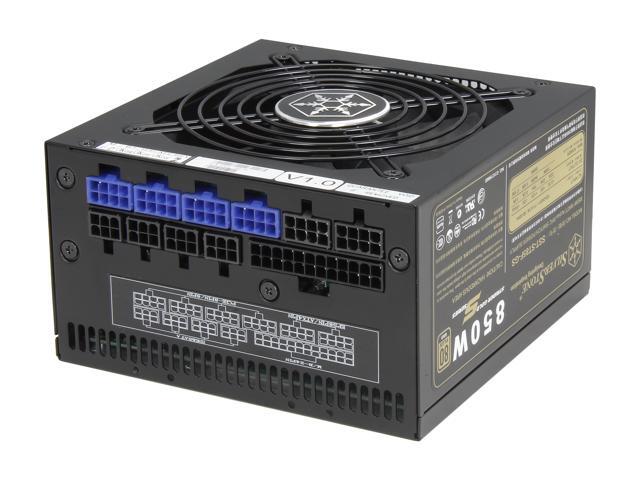

100% Modular cables
24/7 Continuous power output with 40? operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Silent running 120mm fan with 18dBA minimum

FEATURES

1. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

2. 100% Modular cable design for use with short cable kit such as SilverStone's PP05-E for easy removal in a case with cable routed and tied down.

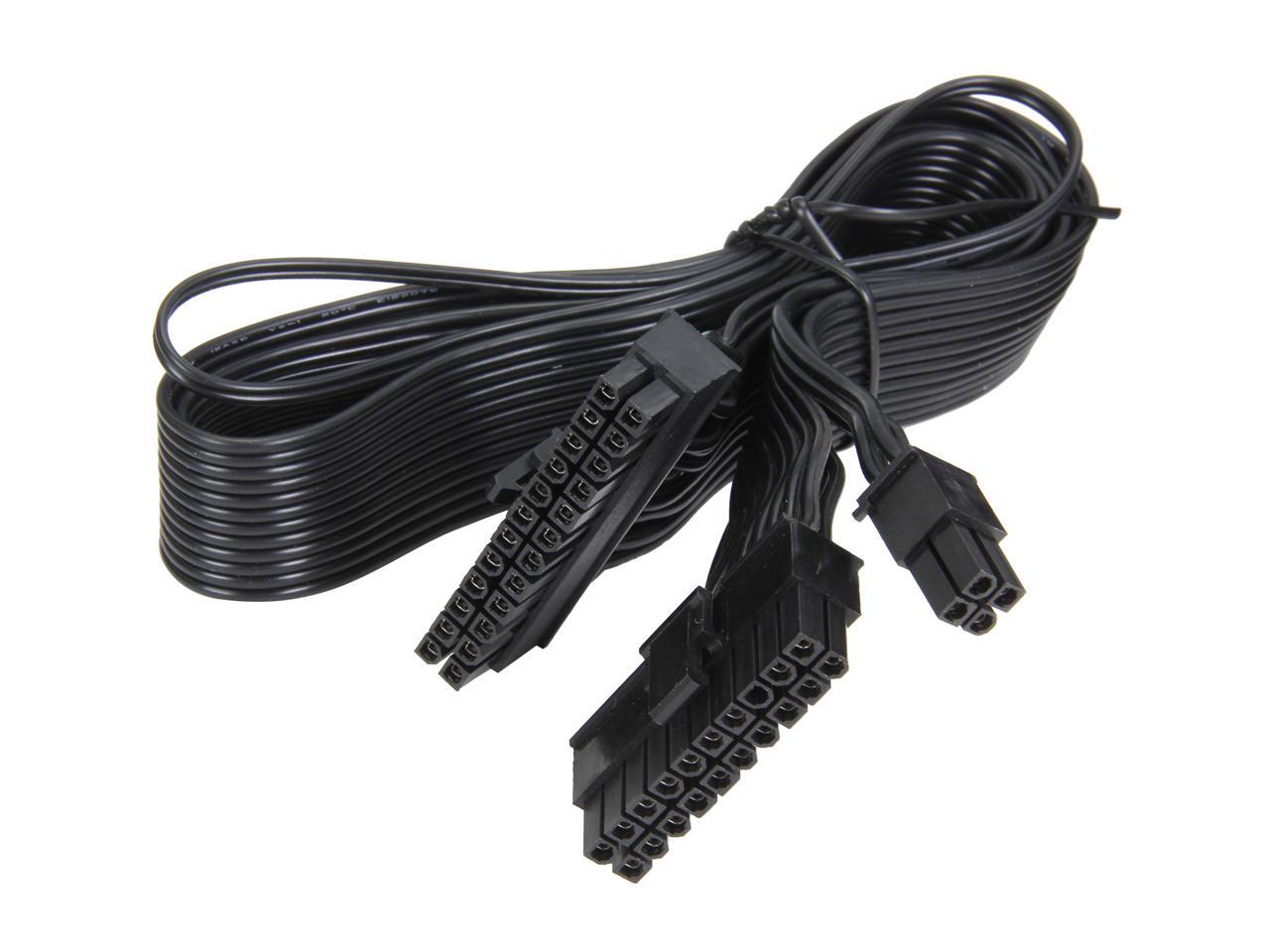

3. Strider Gold S PSUs are the first power supply models in the world to include flat 24-pin cables. This cable offer much greater flexibility for tighter folding and superior cable management.

4. 150mm Depth sets new standard for high Wattage PSUs with modular cables.

5. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

6. ±3% Regulation and low ripple & noise performance for high stability

7. Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.

GALLERY

SPECIFICATIONS

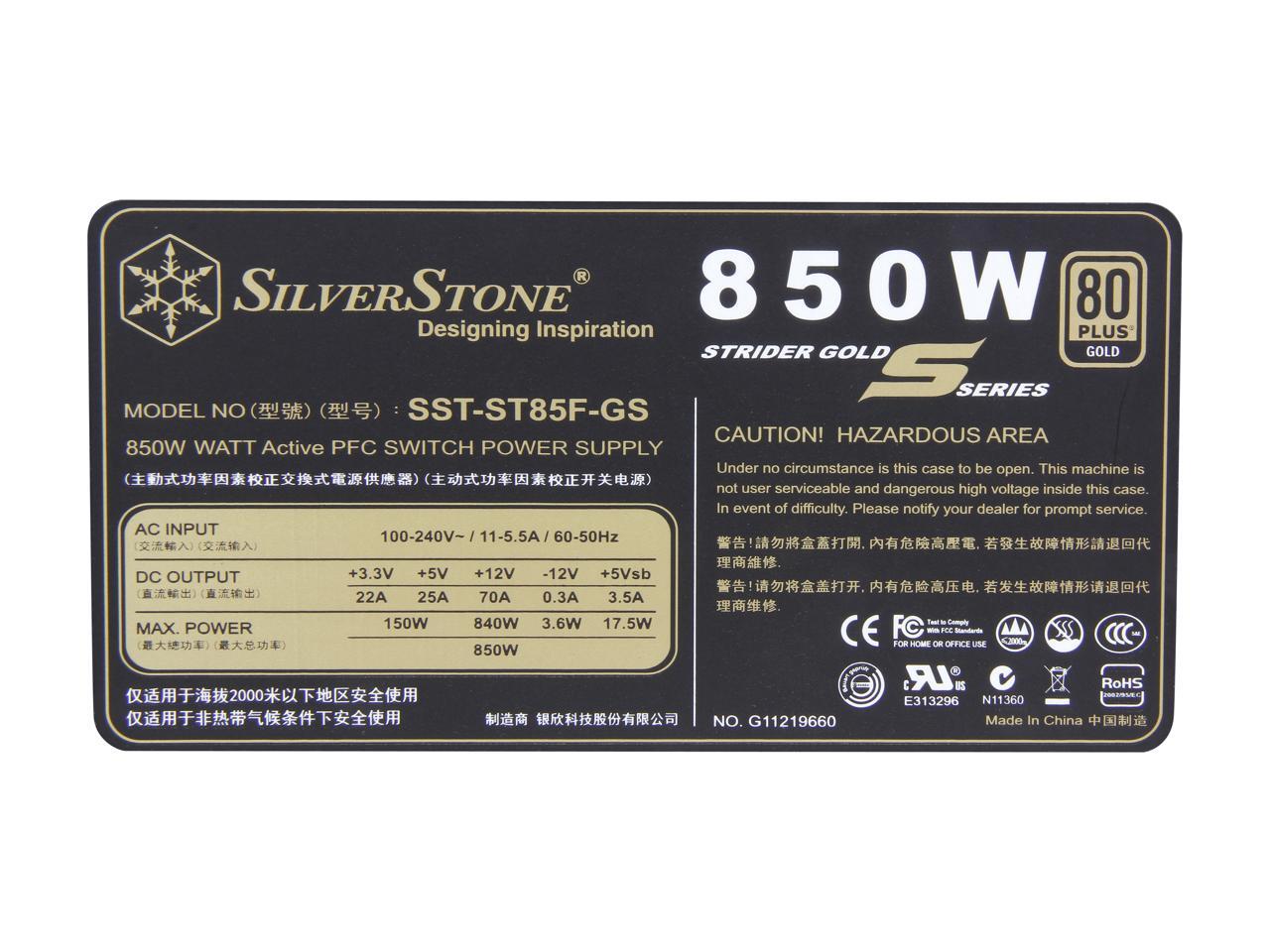

Model No.	SST-ST85F-GS
Max. DC Output	850W (Peak 900W)
Load Range
	+3.3V	+5V	+12V1	+5VSB	-12V
Max. (Amps)	22A	25A	70A	3.5A	0.3A
Min. (Amps)	0.5A	0.3A	1A	0.1A	0A
Range (%)	±3%	±3%	±3%	±5%	±10%
Line Reg. (%)	±1%	±1%	±1%	±1%	±1%
Ripple (mVp-p)	50mV	50mV	120mV	50mV	120mV
Combined +3.3, +5V	150W
Combined +12V	840W
Input Voltage	90 ~ 264V
Input Frequency Range	47Hz - 63Hz
PFC	Active PFC (PF>0.95 at full load)
Efficiency	88% - 91% at 20% - 100% loading
MTBF	100,000 hours
Operating Temperature	32 - 104°F (0 - 40°C)
Protection	Over current protection Over power protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection

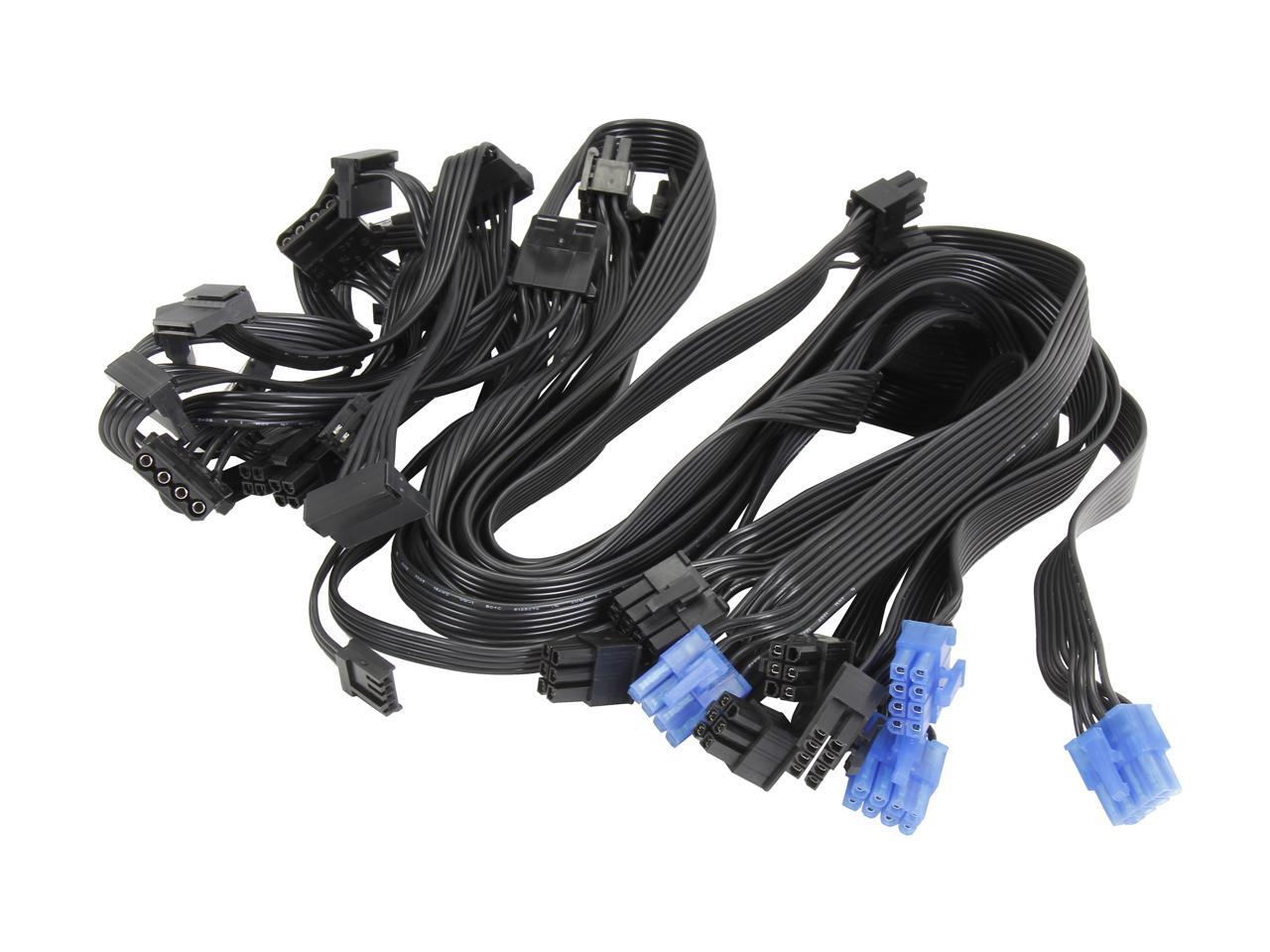

Connectors	1 x 24 / 20-Pin motherboard connector(550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 4 x 8 / 6-Pin PCIE connector(550mm ) 8 x SATA connector (600mm / 150mm / 150mm / 150mm x 2) 6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm x 2) 2 x 4-Pin Floppy connector (600mm / 150mm / 150mm / 150mm x 2)
Color	Black (Lead-Free Paint)

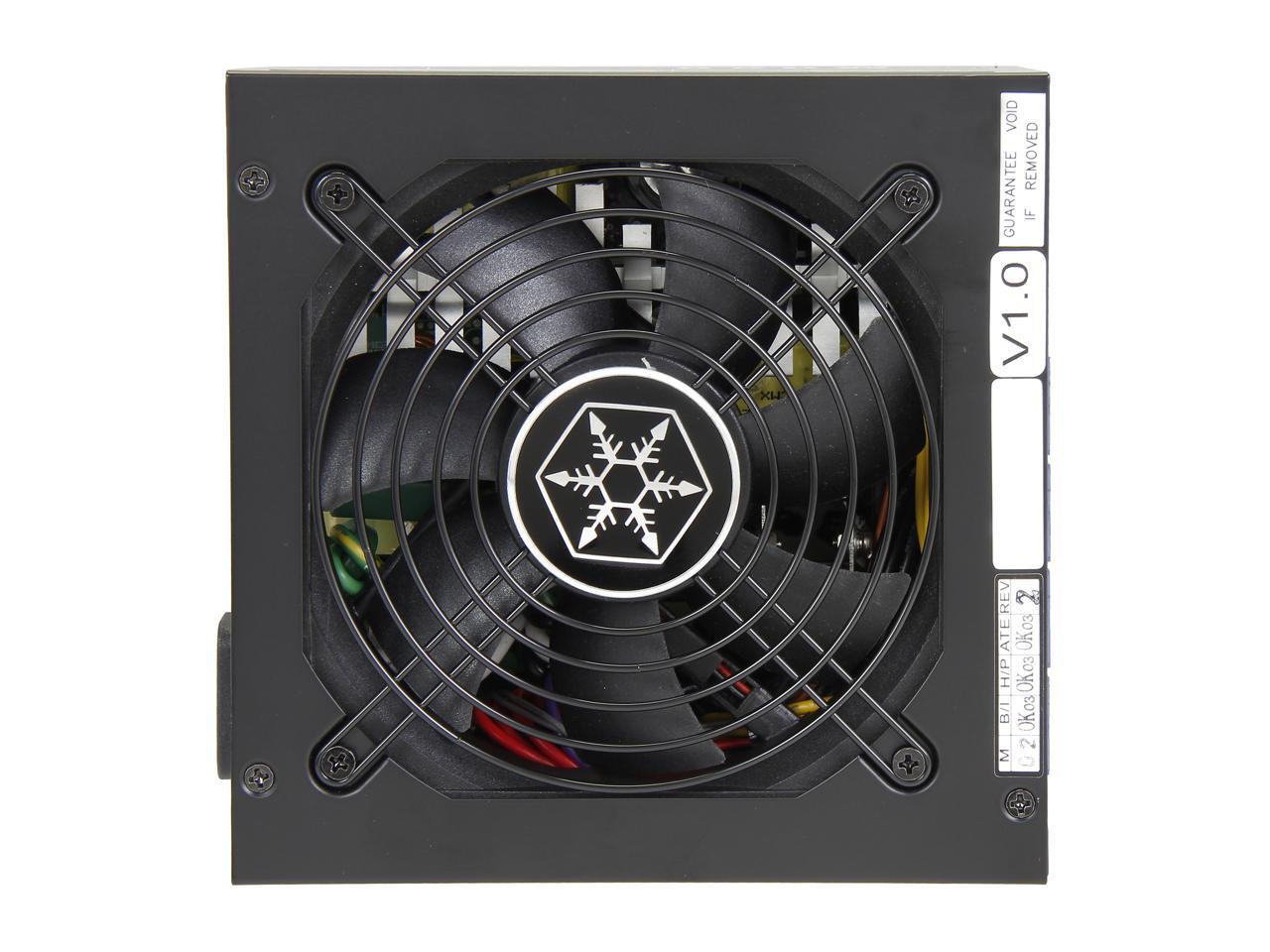

Cooling System	Silent 120mm fan
Noise Level	18dBA minimum
Dimensions (W x H x D)	6 x 3.3 x 5.5 inches (150 x 86 x 140mm)
Weight	5.5lbs (2.5kg)
Form Factor	ATX
Certification	80 PLUS Gold
Other	GPU Support List Haswell CPU Support
