SIMCO FMX-003 Electrostatic Field Meter electrostatic tester ESD 0 to ±22.0 kV

Description:
1. The FMX-003 is a convenient compact and pocketsized electrostatic fieldmeter. With this fieldmeter you can measure and store the field strength and polarity.

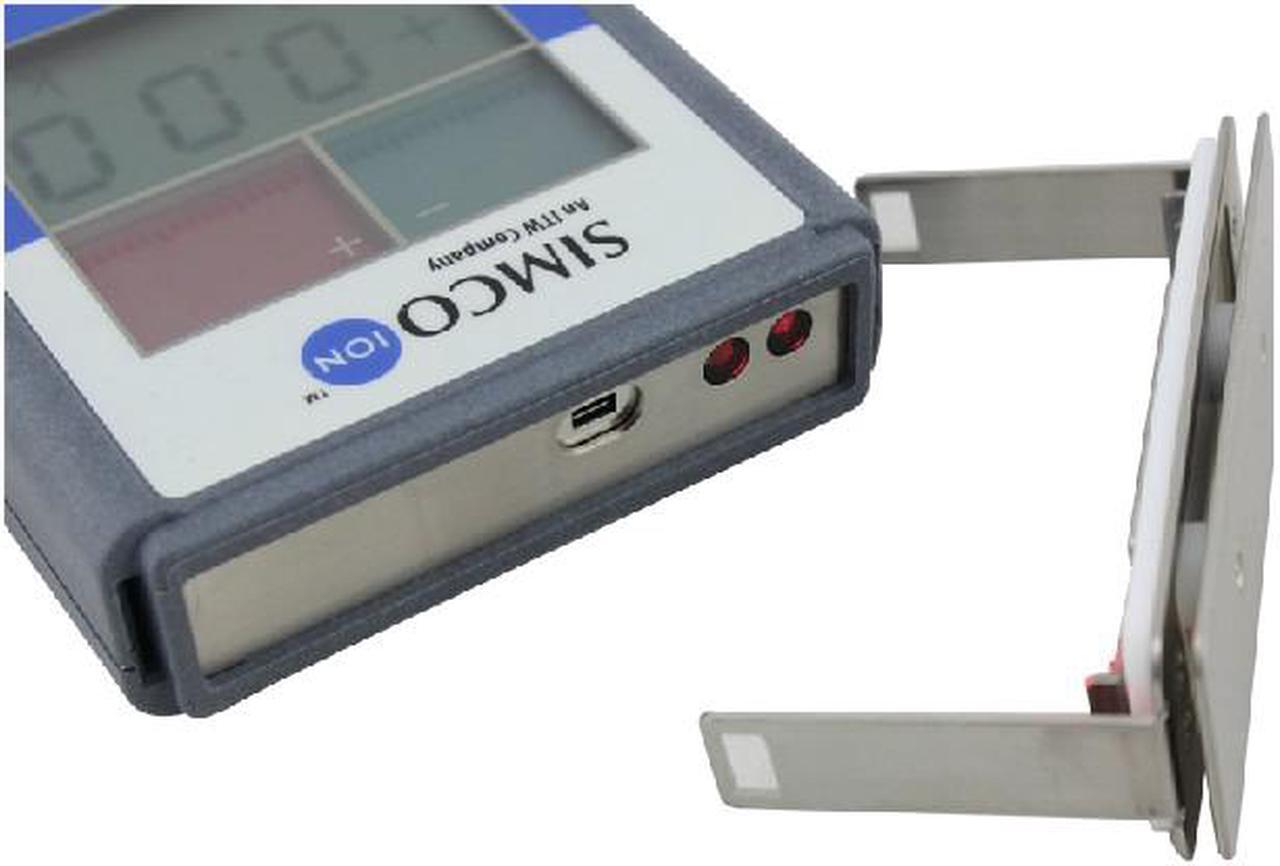

2. It enables you to carry out measurements in awkward places. The correct measuring distance is displayed by two integrated LEDs.
3. The electrically conductive plastic housing with an earth connection fitted at the side ensures accurate measurements.

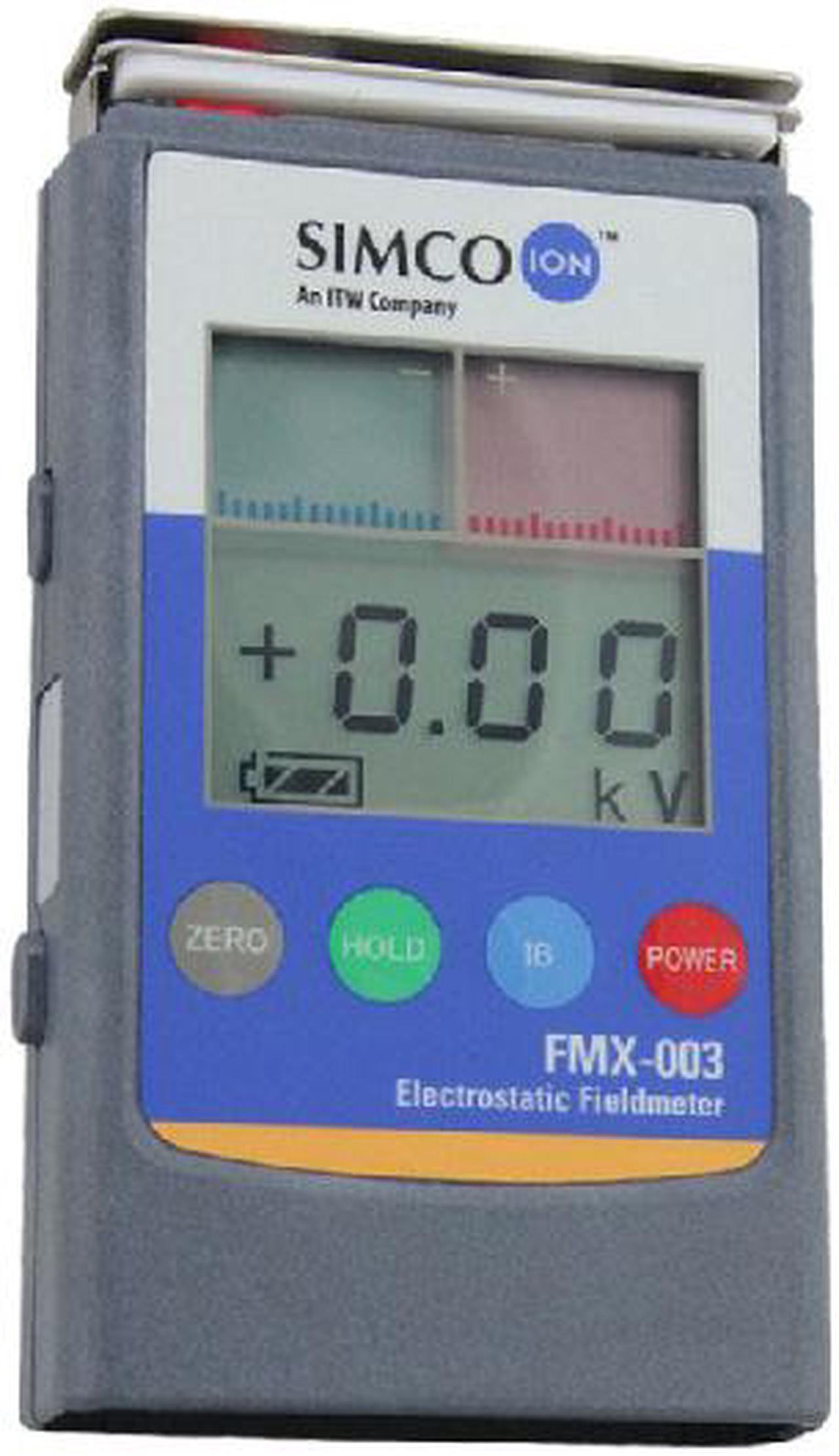

4. The unique bicolour display shows the measured value both numerical and graphically.
5. The status of the battery is shown on the display.
6. The FMX-003 is a compact electrostatic fieldmeter used for locating and measuring static charges.
Features:
1. Digital display with color coded bar graphs
2. Lightweight, compact design
3. Distance ranging lights
4. Audible alarm feature
5. Battery powered with auto shut-off feature
6.
Analog Output Technical parameters: Measuring
range: 0 to ± 1.49KV ( Low range) ± 1.0KV to ± 20.00KV ( High range) (range hysteresis: ± 1.0KV to ± 1.5KV ) 0 to ±200V ( low balance measuring range)
Measuring distance: 1"±1/64" ( 25mm± 0.5 mm), LED guide for correct distance ( between object and field meter)
Response time: <1s
LCD display renewal rate: 5 times/s
Accuracy: ±10%
Ambient conditions: 50°-100°F, (10°- 40°), 0-60%RH ( non-condensing)
Display features: Bar graph, red LCD positive polarity voltage, blue LCD negative polarity voltage
Bar graph precision: ± 0.1KV for low range ± 1.5 kV for high range, ±15V for ion balance range
Digital reading: Auto-ranging, three digits x. xx=0 to ± 1.49KV xx. x=± 1.0 kV to ± 20.0KV (Hi) xxx=0 to 200 ( long balance) lon balance mode display: (IB) is displayed Battery capacity display indicator HOLD switch to retain display after measurement Error sign (ERR) appears if the sense is damaged
Alarm feature: Beep sound will be heard during the following actions;
Power on: one beep Power on with auto
Off feature disabled: {Depress power button for more than 3 seconds} three beeps
Auto power-Off: short beeps at 1 seconds interval for 5 seconds before power off
Over range: continous sond
Auto power-off: Power turns off automatically after five minutes, { A OFF} is display whenever this features is disabled
Power source: 9V, 6F22Y manganese battery
Battery life: In excess of 30 hours
Size: 123mm (L) x 73mm (W) x 25mm (D)
Weight: 170g
Case material: Conductive resin ( ABS)

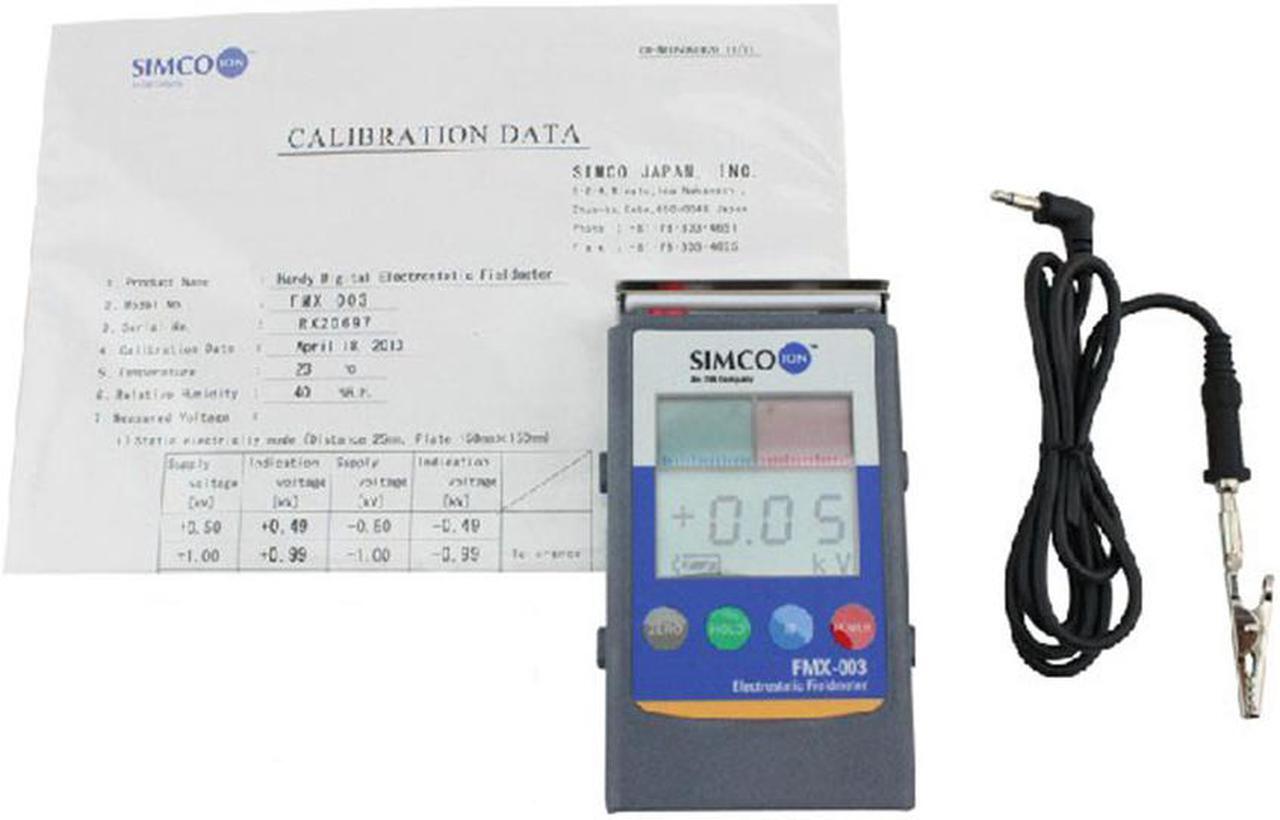

Package Included: 1 x Set of Simco FMX-003 Electrostatic Tester
