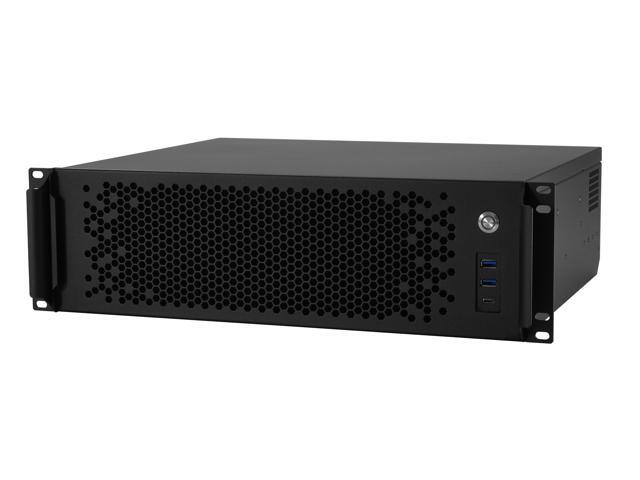

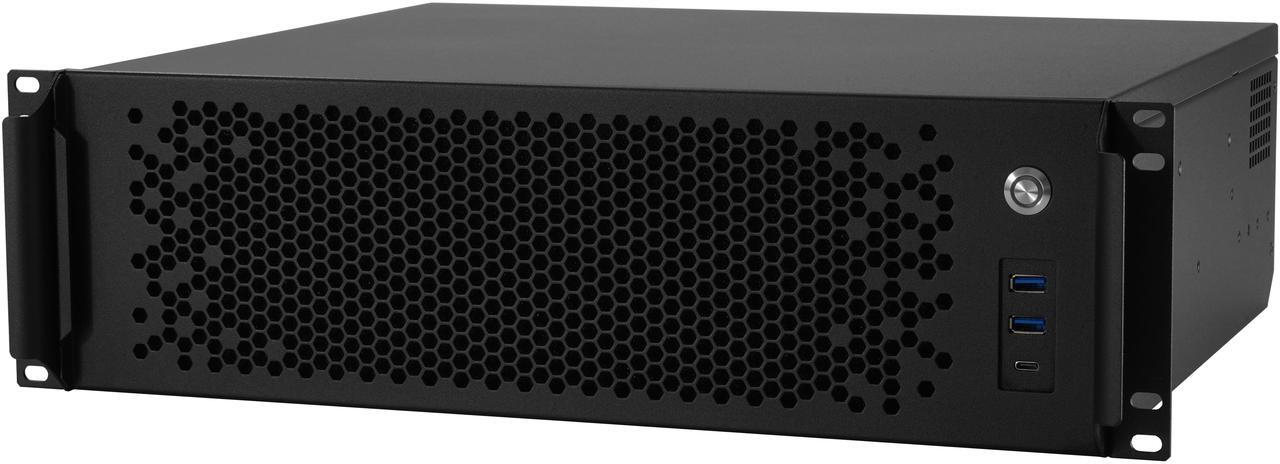

Sliger CX3150a | 3U 15" Depth Rackmount Case | ATX Motherboard | 8x PCIe Slot Cutouts | SFX PSU | 3x Fan Mounts | 1x USB C & 2x USB A | Made in USA
- Supports ATX, MicroATX, and ITX form factor motherboards (maximum supported motherboard size of 305mm x 267mm).
- 8x Full height PCIe slots for accessory cards up to 115mm H x 324mm L (account for cable clearance when checking tolerances).

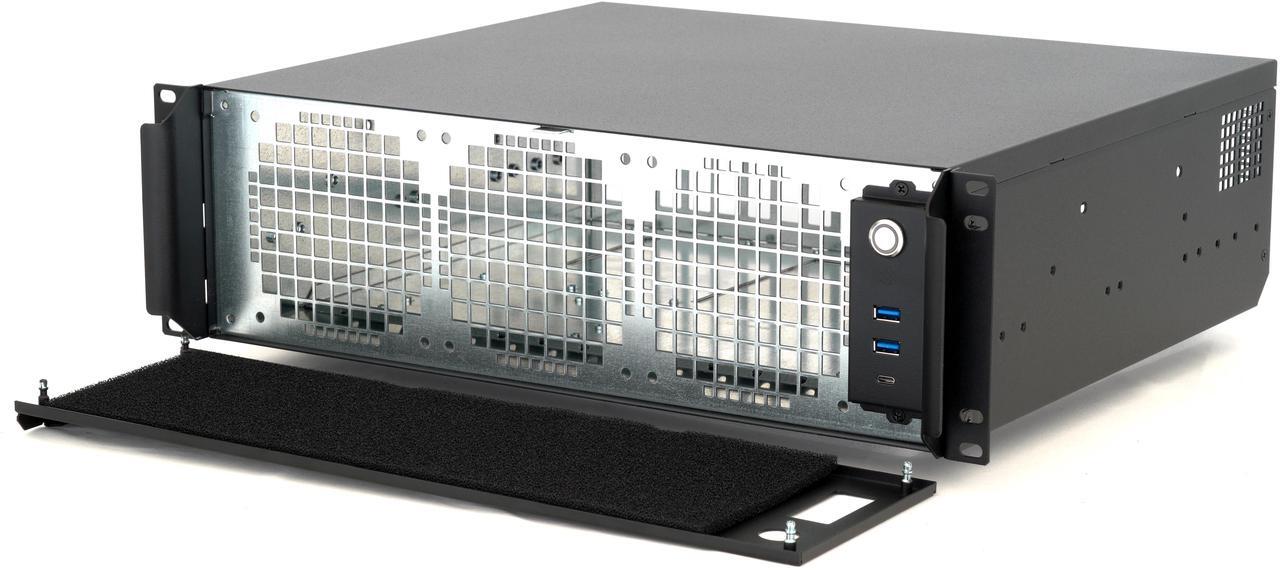

- Supports 3x 120mm front mounted fans with a removable dust filter.
- Supports 360mm AIO radiators up to 395mm L x 27mm W (using an AIO limits your max PCIe card length to 296mm).
- Compatible with CPU air coolers up to 110mm tall.
- Supports SFX/SFX-L power supplies.
- Supports one 2.5" SSD up to 15mm thick mounted between the PSU and motherboard IO (M.2/NVMe/PCIe storage is recommended).
- 100% Manufactured, assembled and shipped in the USA by Sliger Designs LLC.
+
+
Overview
Specs
Reviews
Motherboard Max Dims
CPU Air Coolers
CPU Liquid Coolers
Fan Mounting
GPU / PCIe Cards
Storage
Front Panel I/O
Power Supply
Material
Dimensions
Warranty
Homologation
Country of Origin
*NOTE* Fans and AIO's are not included
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6" ]
- MicroATX (245 x 245mm) [ 9.6" x 9.6" ]
- FlexATX (229 x 191 mm) [9" x 7.5" ]
- Mini-DTX (203mm x 170 mm) [8" x 6.7" ]
- Mini-ITX (170mm x 170 mm) [ 6.7" x 6.7" ]
CPU Air Coolers
- Up to 110mm tall
CPU Liquid Coolers
- 1x 360mm liquid cooler (maximum length 395mm)
- Or 1x 240mm liquid cooler
- Or 2x 120mm liquid coolers (AIOs on left fan and right fan, middle fan is air only)
Fan Mounting
- Front: 3x 120mm fans (up to 30mm thick)
GPU / PCIe Cards

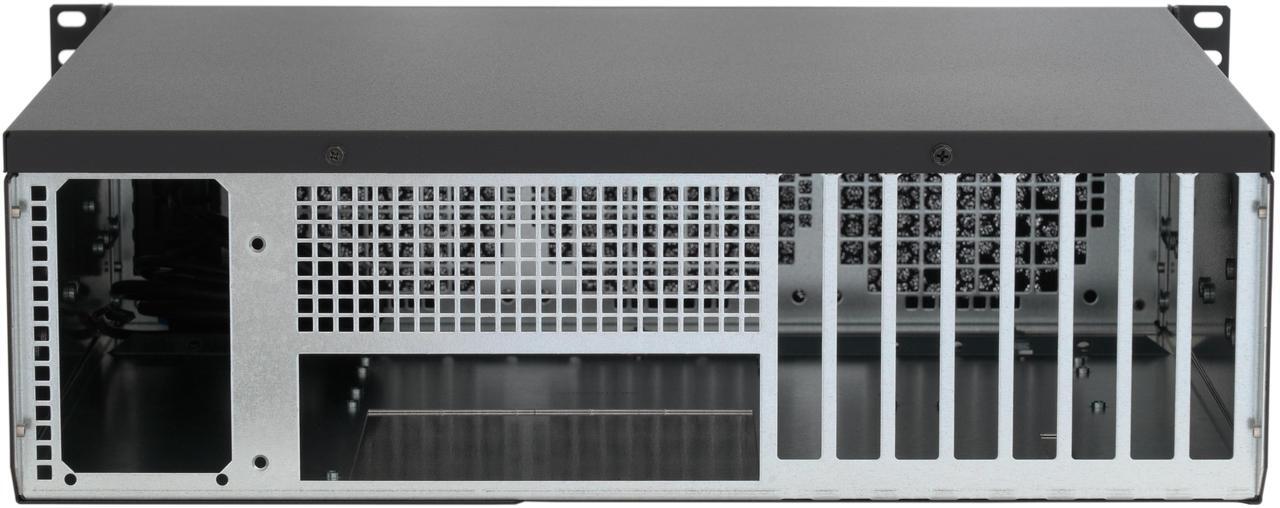

- 8x full height PCIe card slot cutouts
- Maximum card height: 115mm (account for cable clearance when checking tolerances)
- Maximum card length with front 120mm x 25mm fans: 324mm
- Maximum card length 120mm x 25mm fans and 27mm thick radiator: 296mm
- Maximum card length with no fans / no AIO cooler: 349mm
Storage
- 1x 2.5" SSD next to SFX PSU
- Sliger recommends use of M. 2/NVMe and PCIe based storage on motherboard
Front Panel I/O
- One (1) USB C 10Gbps Port
- One (2) USB 3.0 Ports
- One (1) Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply
- SFX or SFX-L
Material
- Chassis - ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panel - ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears - ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
- Finish - Powder Coat, Fine Texture
Dimensions
- Case: 14.89" x 17.00" x 3U ( 5.22" ) [DxWxH] / 378mm x 432mm x 132.5 mm [DxWxH]
- Shipping Box: 21" x 19" x 10" Double Wall
Warranty
- 5 Year Warranty (Please see our warranty policy for additional conditions, exclusions, and limitations.)
Homologation
- HTS Tariff Code: 8473.30.00.02
- RoHS, RoHS-2, RoHS, REACH, and SVHC compliant
Country of Origin
- United States of America
- TAA Compliant
*NOTE* Fans and AIO's are not included
