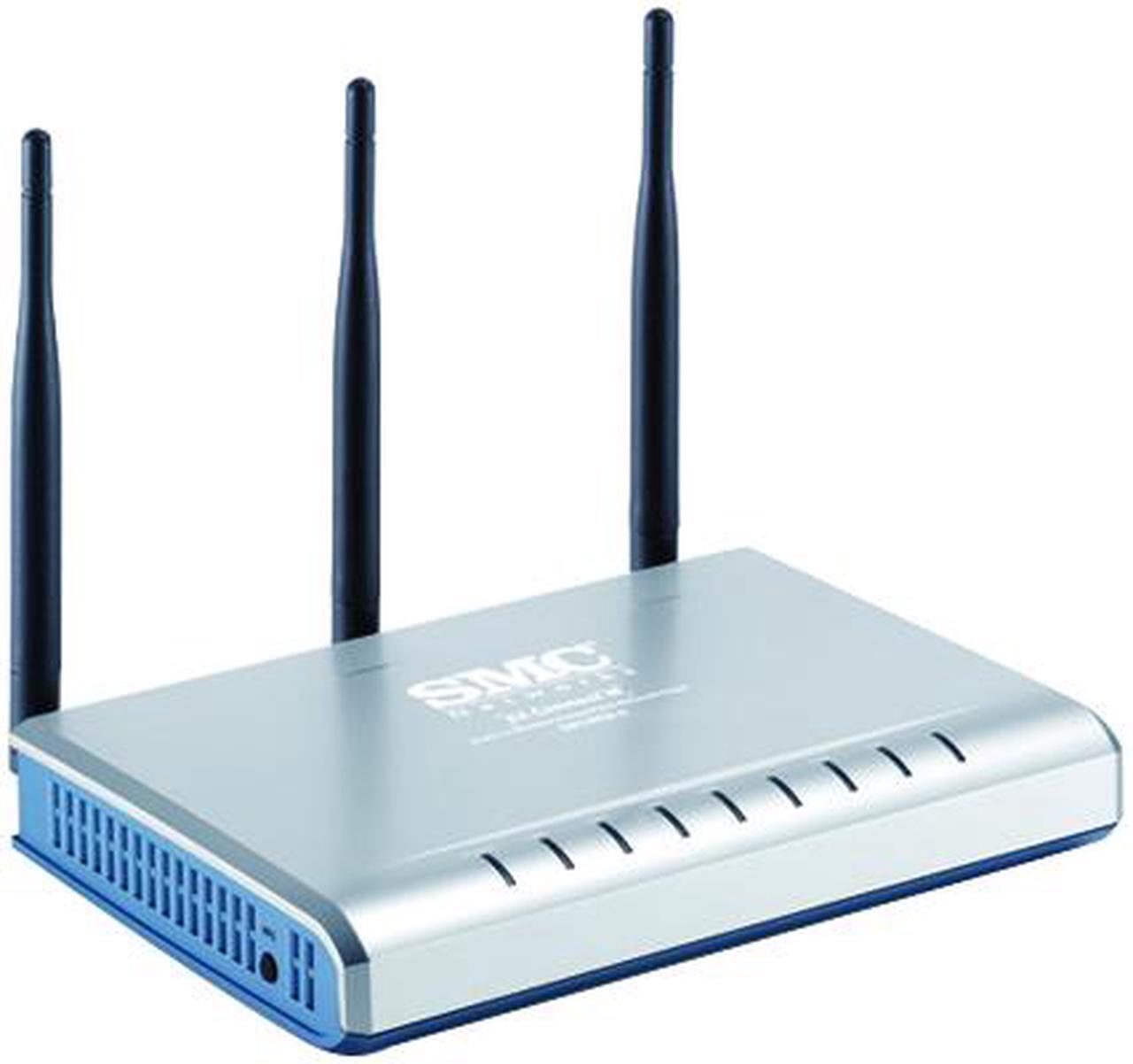

SMC LG-ERICSSON SMCWEB-N EZ Connect N Pro Draft 11n Wireless Access Point/Ethernet Client

Specs

Reviews (18)

Learn more about the SMC SMCWEB-N

Model
Brand	SMC LG-ERICSSON
Model	SMCWEB-N

Details
Standards	IEEE 802.3/3u, IEEE 802.11b/g, IEEE802.11n Draft 2
Device Management	EZ Installation Wizard Web based management interface (HTTP)
Wireless Data Rates	Up to 300Mbps
Security	SSID Broadcast disable MAC address Filtering WEP 64-/128-Bit Encryption WPA-/WPA2-PSK (Pre Shared Key) WPA/WPA2 Enterprise mode (802.1x)
Frequency Band	FCC: 2412~2462MHz (Ch1~Ch11) ETSI: 2412~2472MHz (Ch1~Ch13)
Channels	11 Channels (US, Canada) 13 Channels (Europe)
Antenna	3 x 4dBi fixed antennas
Transmitted Power	Typical RF output power: 11n Mode: 14dBm 11g Mode: 15dBm 11b Mode: 18dBm
System Requirements	2.4GHz 802.11n draft wireless adapter or 2.4GHz 802.11b/g wireless adapter or Ethernet Adapter installed on each PC Internet Explorer 5.5 or above, Netscape 4.7 or above, Mozilla Firefox 1.0 or above
Interface	Ethernet Port
Buttons	WPS button Reset button
WAN Ports	4 x 10/100M
Power Supply	12V/1A

Environmental
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	10% - 85%, Non-Condensing

Dimensions & Weight
Dimensions	7.1" x 4.8" x 1.2"
Weight	0.7 lbs

Features
Features	Multi-function: AP and Client modes Wi-Fi Protected Setup (WPS) Wireless Intelligent Stream Handling Technology Miscellaneous: DHCP Server in AP mode WDS (Wireless Distribution System) System logging with selectable event levels and types Certifications: FCC, CE

Additional Information
Date First Available	January 09, 2008
