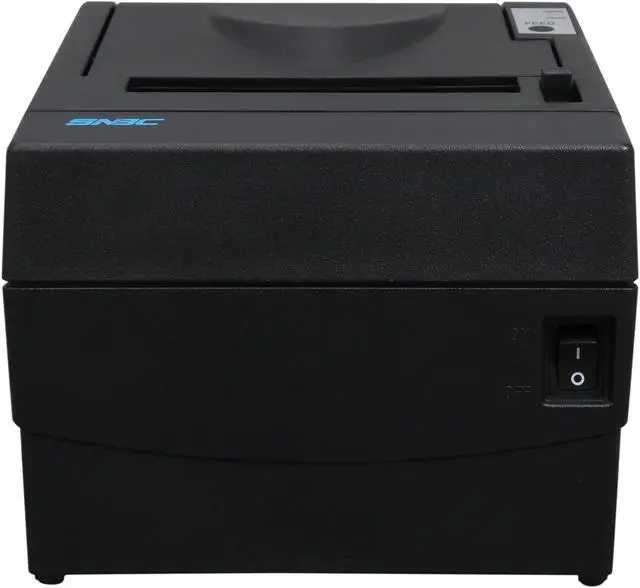

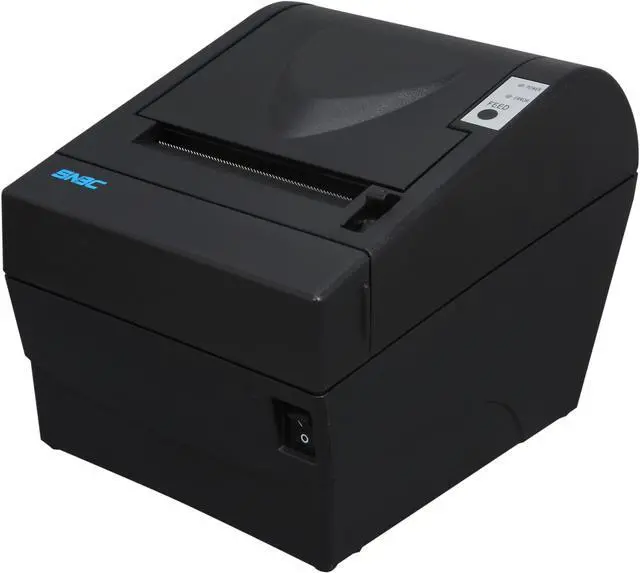

SNBC BTP-2002NP(132011) Thermal Receipt Printer (Black) – Parallel Interface
- Parallel Interface
- Integrated Auto-Cutter
- Power Supply and Cable Included
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
A Low-Cost High Quality Thermal Receipt -
Printer Ideal for Rugged Environments
- Everything You Need is in the Box
- Serial, Parallel, USB, Ethernet or Wireless WiFi Interface Boards Available
- Uses the Same Interface Boards as Other SNBC Printers
- Auto-Cutter with Selectable Full or Partial Cut
- Stores/Prints Logo Images
- Prints Watermark
- Fast 200mm per Second Print Speed
- Drop and Print Paper Loading
- Paper-End Sensor
- Adjustable Paper Near-End Sensor
- No Dip Switches – Intuitive Keypad Programming

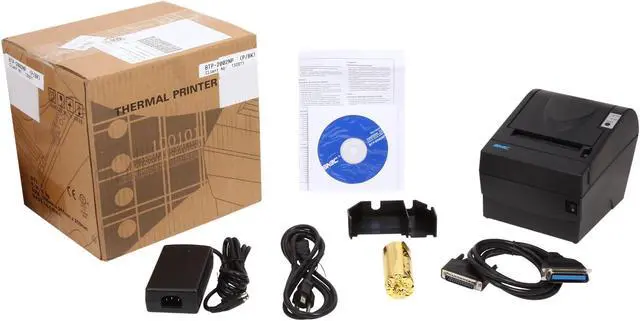

- Includes Starter Paper Roll, Paper Width Selector, Communications Cable, Power Adapter and Cord, Cable Cover, CD-ROM with Drivers, Utilities and User's Manual
Advanced High Speed Versatile Printer
The BTP-2002NP thermal receipt printer is a low-cost high
quality transaction printer produced by SNBC – a leading
manufacturer of thermal print heads. The heavy-duty metal
frame makes the BTP-2000NP thermal printer ideal for rugged
environments.
- 200mm per Second Print Speed
- Drop and Print Paper Loading
- Serial, Parallel, USB, Ethernet and Wireless Wi-Fi Interface Options
- Prints Watermark
- Stores and Prints Logo Images
- No Dip Switches – Intuitive Keypad Programming
- Extraordinary Reliability
- Certified with Popular POS Software Applications
Optional Devices / Upgrades
- Serial, Parallel, USB, Ethernet and Wireless WiFi Interface Boards Are User Interchangeable
- Audio/Visual Print Messenger – for Noisy Kitchens – Alarm Sounds and Light Flashes When a New Order is Printed
- Powered USB Cable
- Wall Mount Bracket
- Spill Cover
- Power Supply Cover

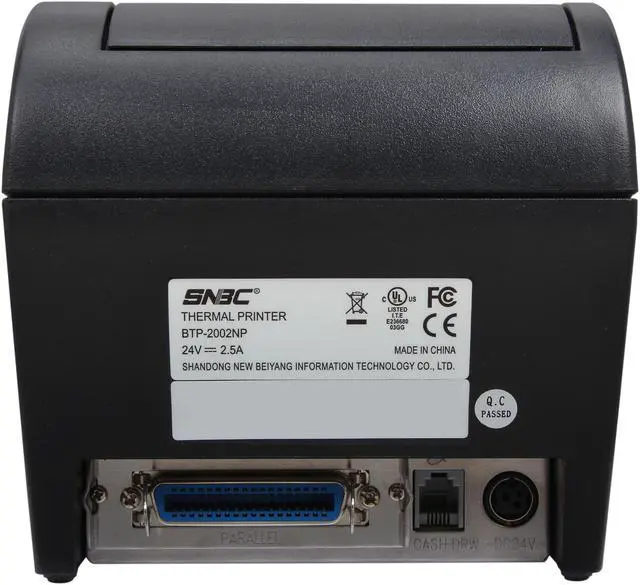

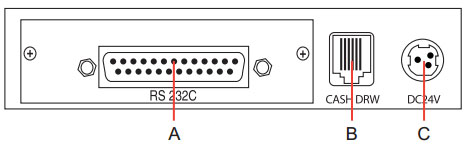

Ports and Connectivity
- A. Choice of Serial (Shown), Parallel, USB, Ethernet or Wireless WiFi Interface Boards Available
- B. Cash Drawer
- C. 24VDC Power-In

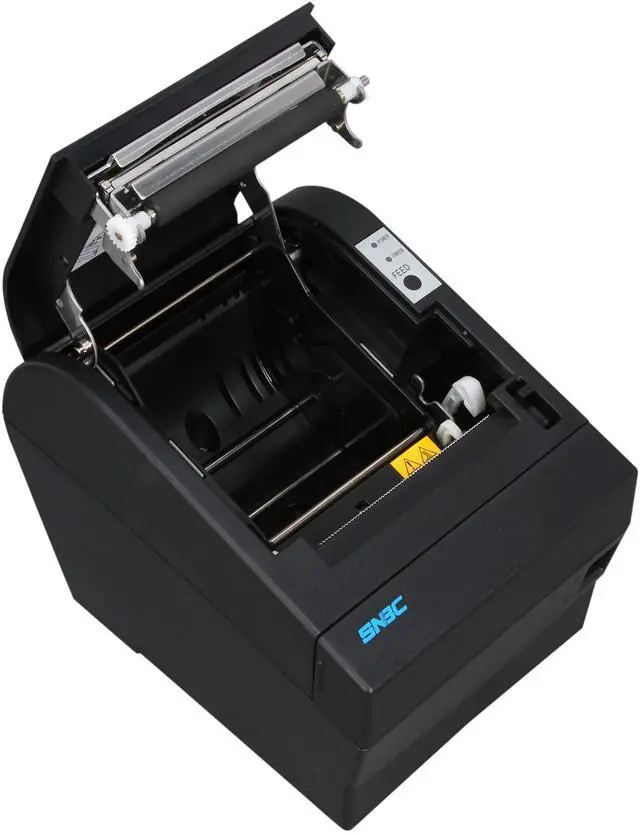

Drop and Print Paper Loading with Built-In Paper Width Selector
Standard Cable Management Cover / Optional Power Supply Cover & Spill Cover
Optional Audio/Visual Print Messenger and Optional Wall Mount Bracket
Serial, Parallel, USB, Ethernet and Wi-Fi Interface Boards are User Interchangeable
Specifications
| Print Speed: | 200mm per Second / 63 Lines per Second |
|---|---|
| Characters Per Line – Font A: | 42 (80mm) / 37 (58mm) |
| Font B: | 56 (80mm) / 49 (58mm) |
| Characters Size – Font A: | 12 x 24 |
| Font B: | 9 x 17 |
| Paper Roll Type – Width: | 82.5 ± 0.5mm, 80.0 ± 0.5mm, 76.0 ± 0.5mm, 69.5 ± 0.5mm, 57.5 ± 0.5mm |
| Maximum Diameter: | 83mm |
| Reliability – MTBF: | 348,000 Hours |
| MCBF: | 52,000,000 Lines |
| Printhead Life: | ≥ 100KM |
| Cutter Life: | 1,500,000 Cuts |
| Character Set – Alphanumeric: | 95 |
| International: | 37 |
| Graphic: | 128 x 11 |
| Bar Code: | UPC-A / UPC-E / EAN8 / EAN13 / CODABAR / Code39 / ITF / Code128 / Code93 / PDF417 |
| Interpreter: | ESC/POSTM |
| Interface: | Serial / Parallel / USB / Ethernet / Wireless WiFi |
| Driver: | Windows® POSReady 2009 / Windows 7 32- & 64-bit / Server 2008 32- & 64-bit / Vista 32- & 64-bit / Server 2003 32- & 64-bit / XP Professional 32- & 64-bit / 2000 Server / 2000 Professional |
| Drawer Port: | One RJ-11 (+24VDC) (Maximum 2 Drawers - Supports Open/Close) |
| Data Buffer – Receive Buffer: | 4KB RAM Selectable to 64KB |
| NV Bit Image Data: | 128KB |
| User NV Memory: | 1KB |
| Power Supply: | 100 - 240VAC, 50/60Hz Adapter Included |
| Current/Power Usage: | 2.5A / 60W |
| Operating Temperature: | 40 - 114°F (5 - 45°C) |
| Operating Humidity: | 20% - 90% RH (Non-Condensing) |
| Paper Cutting Method: | Auto-Cutter with Selectable Full or Partial Cut |
| Dimensions (W x H x D): | 5-3/4 x 5-11/16 x 7-5/8 inches |
| Shipping Weight: | 8lbs |
| Safety and EMI: | FCC, RoHS |
