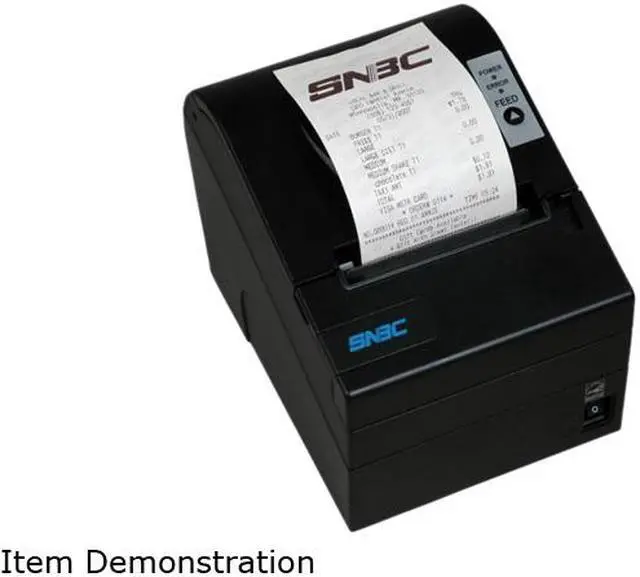

SNBC BTP-R880NP 132041 Thermal Receipt Printer
- USB and Parallel Interface
- Auto-Cutter
- Power Supply and USB Cable Included
- Black
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
A Low-Cost High Quality Thermal Receipt
Printer - Ideal for Demanding Environments.
- Serial, Parallel, USB, Ethernet, Bluetooth and Wireless Wi-Fi Interface Boards Are User Interchangeable
- Can use the Same Interface Boards as Other SNBC Printers
- Programmable Paper Saving Options
- Programmable Internal Alarm Volume
- Easy Firmware Upgrade by USB Memory Stick
- Auto-Cutter – Selectable Full or Partial Cut
- Drop and Print Paper Loading
- Paper-End Sensor
- Adjustable Paper Near-End Sensor
- No Dip Switches – Intuitive Keypad Programming
- Supports Asian Character Sets with Standard Memory
- Includes Starter Paper Roll, Two Paper Width Selectors, Communications Cable, USB Cable, Power Adapter and Cord, Power Switch Cover, Reversed Label for Wall Mounting and CD-ROM with Drivers, Utilities and User's Manual
The Best Value in its Class!
The BTP-R880NP thermal receipt printer is a second generation NP class printer produced by SNBC – a leading manufacturer of printers and thermal print heads. The BTP-R880NP is compatible with most popular POS software applications, many POS systems and fits a wide variety of mini-printer applications.
- Energy Star Certified – Superior Efficiency Reduces Energy Costs and Reduces Carbon Footprint
- Extraordinary Reliability Backed by 3-Year Bumper-to-Bumper Warranty
- Gray Scale and Two Color Print Capable
- 230mm per Second Print Speed
- Dual Interface Standard – USB Interface is on the Main Board
- Stores/Prints Coupon and Logo Images
- Prints Watermarks
Features
Optional Devices / Upgrades
- Serial, Parallel, USB, Ethernet, Bluetooth or Wireless Wi-Fi Interface Boards Available
- Audio/Visual Print Messenger – For Noisy Kitchens – Alarm Sounds and Light Flashes When a New Order is Printed
- Powered USB Cable
- Spill Cover
- Power Supply Cover

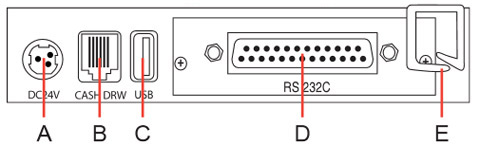

Ports and Connectivity
- A. 24VDC Power-In
- B. Cash Drawer Data Line
- C. USB
- D. Choice of Serial (Shown), Parallel, USB, Ethernet or Wireless Wi-Fi Interface Boards Available
- E. Cable Management Clip
Drop and Print Paper Loading with an Adjustable Paper Width Selector
Liquid Guard Built Into the Cabinet Design
Built-In Wall Mount Capability and Optional Audio/Visual Print Messenger
Optional Spill Cover
Specifications
| Max. Print Speed – Mono: | 230mm per Second |
|---|---|
| Grayscale: | 150mm per Second |
| Two-Color: | 120mm per Second |
| Printing Method: | Direct Thermal |
| Resolution: | 203 DPI x 180DPI |
| Characters Per Line – Font A: | 42 (80mm) / 37 (58mm) |
| Font B: | 56 (80mm) / 49 (58mm) |
| Characters Size – Font A: | 12 x 24 |
| Font B: | 9 x 17 |
| Paper Roll Type – Width: | 82 / 80 / 76 / 69 / 57mm ± 0.5mm |
| Maximum Diameter: | 83mm |
| Paper Thickness: | 0.06mm - 0.1mm |
| Auto Paper Cutting Method: | Auto-Cutter with Selectable Full or Partial Cut |
| Reliability – MTBF: | 360,000 Hours |
| MCBF: | 60,000,000 Lines |
| Printhead Life: | 150,000,000 Characters |
| Cutter Life: | 1,8000,000 Cuts |
| Character Set – Alphanumeric: | 95 |
| International: | 18 |
| Graphic | 128 x 57 Page |
| Bar Code – 1D: | UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF |
| 2D: | PDF417 / QR Code / Maxicode / GS1 |
| Interpreter: | ESC/POS™ |
| Interface: | USB+Serial / USB+Parallel / USB+Ethernet / USB+Wireless Wi-Fi / USB Only |
| Drivers – 32-bit: | POSReady 2009 / 2000 Server / 2000 Prof. / XP Home |
| 32- and 64-bit: | Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista |
| Other: | Linux / OPOS / MAC Support / BYJavaPOS Windows /BYjavaPOS Linux |
| Software Development Kit: | iOS / Androi |
| Drawer Port: | Up to 2 Drawers (+24VDC) / Drawer Compulsion |
| Data Buffer – Receive RAM: | 4 KB RAM Selectable to 64 KB |
| RAM Bitmap | 128KB |
| Flash Bitmap | 512KB |
| Power Supply: | 100 - 240VAC, 50/60Hz Adapter Included |
| Current/Power Usage: | 2.0A / 60W |
| Operating Temperature: | 40 - 114°F (5 - 45°C) |
| Operating Humidity: | 20% - 90% RH (Non-Condensing) |
| Dimensions (W x H x D): | 5-3/4 x 5-5/16 x 7-5/8" |
| Shipping Weight: | 7lbs (Each Unit) / 30.10lbs (Master Carton of 4) |
| Safety and EMI: | FCC / RoHS |
